LUMIMAX · RING LIGHTS

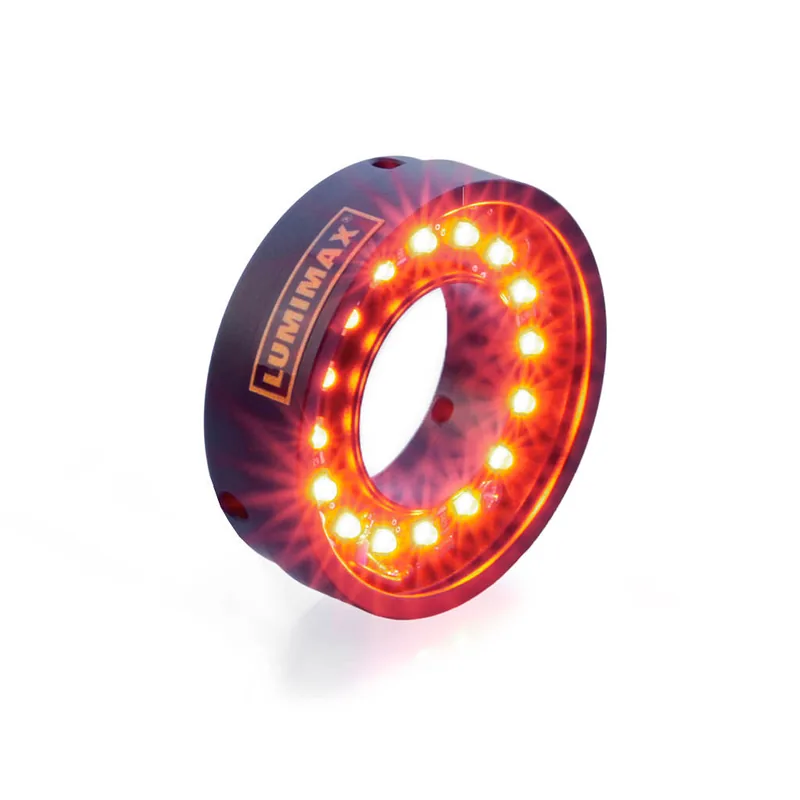

LSR24 Ring Light
LMX-LSR24Compact ring light with moderate performance for ultra-compact applications and short working distances - 24mm inner diameter, IP64.
- Light colour | wavelength
- 470 to 850 nm, white
- Power-LED
- High Power LEDs
- Light field size
- 26 x 43
About the LMX-LSR24
The LSR is the LUMIMAX miniature ring light, built for short working distance inspection up to 250 mm. Its body is compact enough to assemble straight onto the lens, which removes the mounting bracket and keeps the light concentric with the optical axis by construction.
A 24 mm inner diameter suits the small format lenses used on compact cameras. A dark field version turns the surface reflection away from the camera so defects come up bright, and an optional dome extension gives shadow-free light for convex and mirror-like parts, so one small family covers three geometries.
A representative flash article carries 16 High Power LEDs at intensity level i2 behind a 26 mm by 43 mm light area, drawing 0.4 A at 24 V DC for 164 W with the FLC1 controller, with flash times of 100 to 750 microseconds for sharp images on moving product. The anodised aluminium head is 45 mm by 13 mm, weighs 90 g and is rated IP64. The LSR range covers blue, green, red, 7300 K white and 850 nm infrared.
Specifications
Operation
- Operating mode (varies by part number)
- Continuous and switching mode | Strobe mode
- controller (varies by part number)
- External strobe controller series FLC1 (104.0053.xx) available as accessory | Integrierter lightscontroller
Environment
- Ingress protection
- IP64
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Risk Group (by operating mode)
- continuous 0, 1 · strobe 0
Mechanical

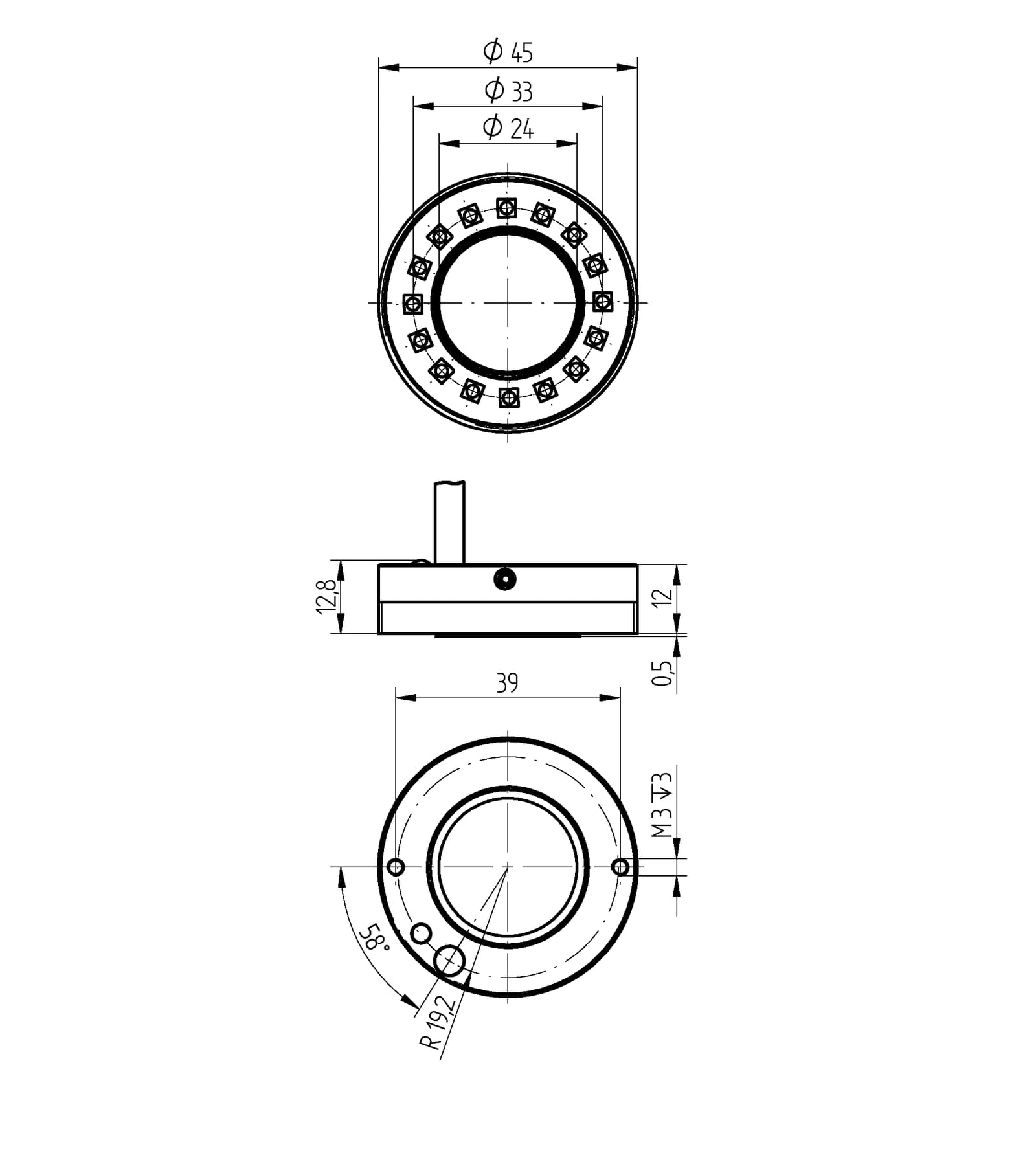

- Dimensions (Ø x h in mm)
- 45 x 13 (h = 23 mm with cable incl. bending radius)
- Material housing | window
- Aluminium, anodised | PMMA
Electrical
- Operating voltage (varies by part number)
- 19 to 30 V DC wide-range voltage input | 19 to 30 V DC wide-range voltage input *
- Maximum current consumption (varies by part number)
- 0.1 A | 0.4 A *
- Maximum electrical power at light field (varies by part number)
- 1 W | 149 W * | 153 W * | 161 W * | 162 W * | 164 W *
- Electrical connection (varies by part number)
- 1.0 m cable with M8 4-pin plug for connection to FLC1 controller series | 1.5 m cable with M8 4-pin plug for connection to FLC1 controller series | 300 mm connection cable with M8 3-pin plug
- TTL-Trigger
- High level = 3 to 30 V DC *
- SPS-Trigger
- High level = 15 to 30 V DC *
- Trigger slope
- Rising slope *
- Switch-on delay
- 100 % brightness within a maximum of 5 µs *
- Flash duration 1
- 100 µs | 220 µs | 750 µs *
- Flash frequency
- 100 Hz | 35 Hz | 10 Hz *
- PLC switching input
- High level = 15 to 30 V DC
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage
Optical
- Light field size (Inner Ø x outer Ø in mm)
- 26 x 43
- Light colour | wavelength (varies by part number)
- Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 7300 K
- Light guidance (varies by part number)
- Directed, 80° LED beam angle (without ancillary lenses) | Directed, 90° LED beam angle (without ancillary lenses)
- Power-LED
- High Power LEDs
- Illuminance at 50 mm
- continuous 5738–25326 lx · strobe 60690–462475 lx
- Illuminance at 100 mm
- continuous 2111–8438 lx · strobe 22656–154085 lx
- Illuminance at 200 mm
- continuous 619–2451 lx · strobe 6543–44757 lx
- Illuminance at 500 mm
- continuous 101–422 lx · strobe 1067–7702 lx
- Irradiance at 50 mm
- continuous 38–84.5 W/m² · strobe 450–1543 W/m²
- Irradiance at 100 mm
- continuous 13.2–28.6 W/m² · strobe 157.5–580.4 W/m²
- Irradiance at 200 mm
- continuous 4–8.3 W/m² · strobe 47.8–168.8 W/m²
- Irradiance at 500 mm
- continuous 0.6–1.4 W/m² · strobe 7.6–28.4 W/m²
General
- Country of origin
- Federal Republic of Germany
- Weight (kg) (by operating mode)
- continuous 0.042 · strobe 0.09, 0.1
