LUMIMAX · DOME LIGHTS

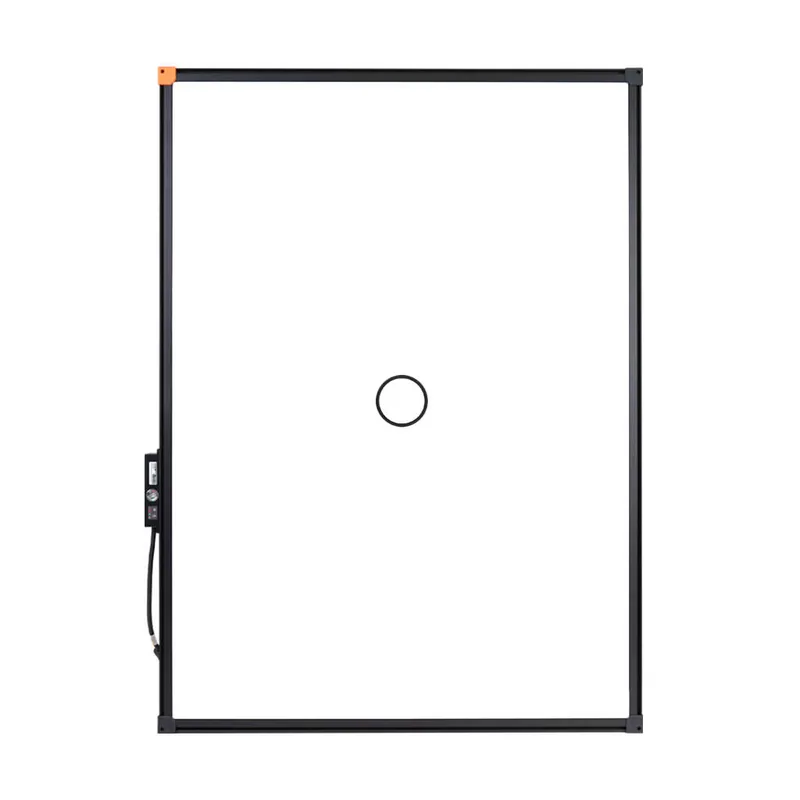

MLCB Flat Dome Light
LMX-MLCBHigh-performance, scalable flat dome with collimation available for small to extra-large FOVs — configurable from 50×250mm, 35/50/75mm camera hole, IP40.
- Light colour | wavelength
- 470 to 850 nm, white
- Power-LED
- 20 variants
- Light field size
- 42 variants
About the LMX-MLCB

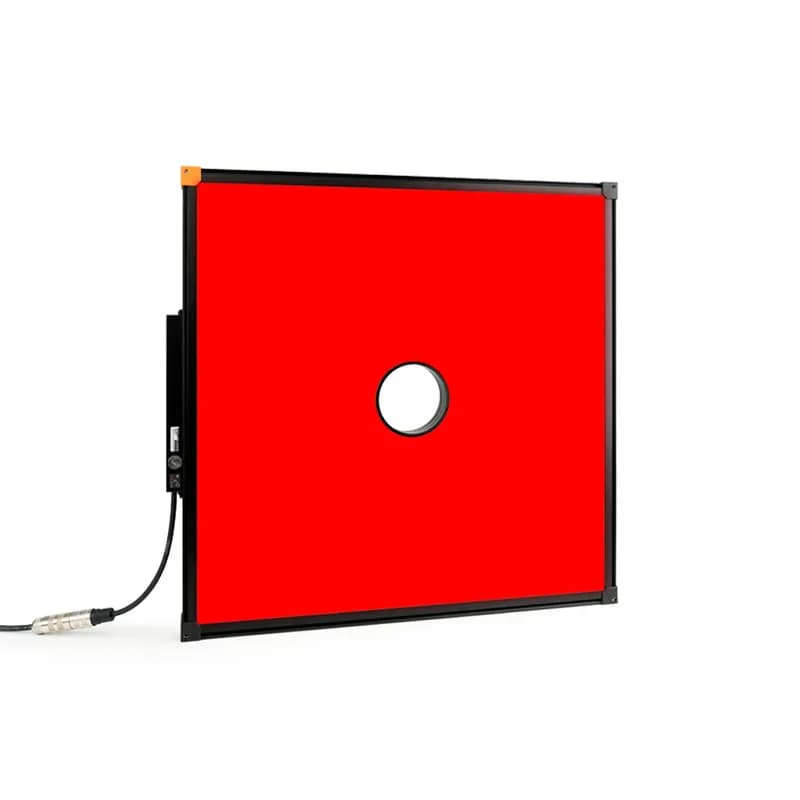

The MLCB is the camera-hole form of the modular LUMIMAX ML panel light, the configuration that turns a large area light into a flat dome for reflected light work. The free diameter is 35 mm, 50 mm or 75 mm, centred as standard, with the number and position individually designable, so a multi-camera station is served by one panel.
Panels are built from 50 by 50 mm light field modules, so light areas from 50 by 250 mm upwards are reached in rectangular, square or elongated shapes with no development cost. The field is homogeneous and highly diffuse, which suits reflective and uneven surfaces.
Maximum irradiance at 0 mm working distance is 193 W/m2 continuous and 1600 W/m2 flashed in red, giving headroom for short exposures, with larger module counts scaling down. Integrated or housing-mounted controllers give continuous, switch or strobe operation with flash times from 10 to 750 microseconds on 19 to 30 V DC. The MLCB range covers red at 625 nm, infrared at 850 nm and white at 5700 K, at protection class IP40.
Specifications
Operation
- Operating mode (varies by part number)
- Continuous and switching mode | Strobe mode
- controller (varies by part number)
- Integrierter lightscontroller | Integrierter strobe controller
Mechanical
- Camera hole (Ø in mm) (varies by part number)
- 35, 50, 75
- Dimensions (varies by part number)
- 1037 x 1053 x 33 (l x w x h in mm) | 1037 x 553 x 33 (l x w x h in mm) | 1037 x 853 x 33 (l x w x h in mm) | 1137 x 753 x 33 (l x w x h in mm) | 187 x 153 x 33 (l x w x h in mm) | 187 x 203 x 33 (l x w x h in mm) | 237 x 203 x 33 (l x b x h in mm) | 237 x 253 x 33 (l x w x h in mm) | (+33 more)
- Material housing | window
- Aluminium, anodised | PMMA
Environment
- Ingress protection
- IP40
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C (by operating mode)
- continuous 33–50 °C · strobe 28, 29, 30 °C
- Risk Group
- 0
Electrical
- Operating voltage (varies by part number)
- 19 to 30 V DC wide-range voltage input | 24 to 30 V DC wide-range voltage input
- Maximum current consumption (varies by part number)
- 0.4–6 A across variants
- Maximum electrical power at light field (by operating mode)
- continuous 8–125 W · strobe 15–2805 W
- Electrical connection (varies by part number)
- 150 mm connection cable with M16 12-pin plug | 150 mm connection cable with M16 12-pin plug # cable outlet on the short housing side
- Brightness control via potentiometer
- 0 % (left stop) to 100 % (right stop) brightness # Note: automatic deactivation at VC > 1 V DC
- Brightness control via analogue VC input
- VC = 2 to 10 V DC (0 % to 100 % brightness) # Note: Turn potentiometer to left stop
- Maximum pulse current (varies by part number)
- 2.2 A for 23 ms | 2.2 A for 35 ms | 2.3 A for 18 ms | 2.5 A for 14 ms | 2.5 A over 29 ms | 2.6 A for 20 ms
- TTL-Trigger
- High level = 3 to 30 V DC
- SPS-Trigger
- High level = 15 to 30 V DC
- Trigger slope
- Rising slope
- Switch-on delay
- 100 % brightness within a maximum of 5 µs
- Flash duration 1 (varies by part number)
- Von 10 bis 100 µs | Von 20 bis 220 µs | Von 50 bis 750 µs
- Flash frequency (by operating mode)
- continuous 10, 35 Hz · strobe 10, 35, 100 Hz
- TTL switching input
- High level = 3 to 30 V DC
- PLC switching input
- High level = 15 to 30 V DC
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
- Switch-on delay_switching (varies by part number)
- 100 % brightness within a maximum of 140 µs | 100 % brightness within a maximum of 140 μs | 100 % brightness within a maximum of 160 µs
Optical
- Light field size (varies by part number)
- 1004 x 1004 (l x w in mm) | 1004 x 504 (l x w in mm) | 1004 x 804 (l x w in mm) | 1104 x 704 (l x w in mm) | 154 x 104 (l x w in mm) | 154 x 154 (l x w in mm) | 204 x 154 (l x b in mm) | 204 x 204 (l x w in mm) | (+34 more)
- Light colour | wavelength (varies by part number)
- Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | Red | 660 nm | White | 5700 K | White | 5800 K
- Light guidance (varies by part number)
- Diffuse, can be used as incident light | Highly diffuse, can be used as incident light | Highly diffuse, suitable for reflected and backlight applications
- Power-LED (varies by part number)
- 1008 Mid Power LEDs | 128 Mid Power LEDs | 1344 Mid Power LEDs | 1504 Mid Power LEDs | 1568 Mid Power LEDs | 1584 Mid Power LEDs | 2224 Mid Power LEDs | 2272 Mid Power LEDs | (+12 more)
- Illuminance at 0 mm
- continuous 0–62098 lx · strobe 112249–313232 lx
- Illuminance at 50 mm
- continuous 33822–42553 lx · strobe 187516 lx
- Illuminance at 100 mm
- continuous 14773–46026 lx · strobe 94555.7–303905 lx
- Illuminance at 200 mm
- continuous 71.6–348449 lx · strobe 77035.5–250345 lx
- Illuminance at 500 mm
- continuous 19–16199 lx · strobe 32029.3–121509 lx
- Illuminance at 1000 mm
- continuous 398.9–7396 lx · strobe 54092.7 lx
- Irradiance at 0 mm
- continuous 81.2–205.2 W/m² · strobe 330.4–1438.9 W/m²
- Irradiance at 50 mm
- continuous 134.4–167.9 W/m² · strobe 948.8 W/m²
- Irradiance at 100 mm
- continuous 50.5–218.3 W/m² · strobe 138.6–943.3 W/m²
- Irradiance at 200 mm
- continuous 23.5–145.9 W/m² · strobe 97.5–776.8 W/m²
- Irradiance at 500 mm
- continuous 4.3–105.7 W/m² · strobe 47–379.7 W/m²
- Irradiance at 1000 mm
- continuous 2–35.4 W/m² · strobe 167.9 W/m²
General
- Weight (kg) (by operating mode)
- continuous 0.8–10.3 · strobe 1–12.5
