Photon
PhotonOEM laser with a broad 375–850 nm wavelength range, up to 85 mW, IP67 stainless housing, CW or TTL.
- Wavelength range
- 520–785 nm
- Max output power
- 10–70 mW
- IP rating
- IP67
About the Photon
Introduction

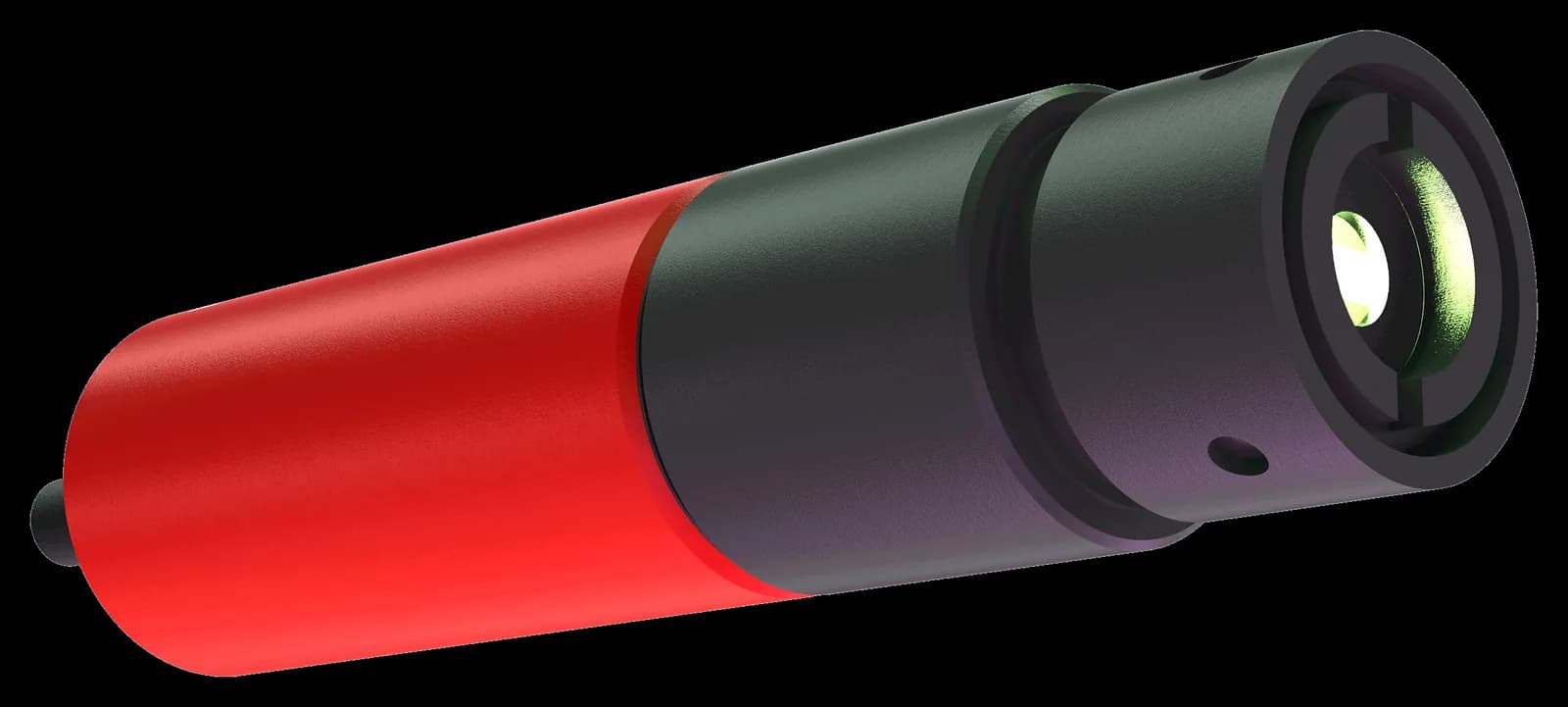

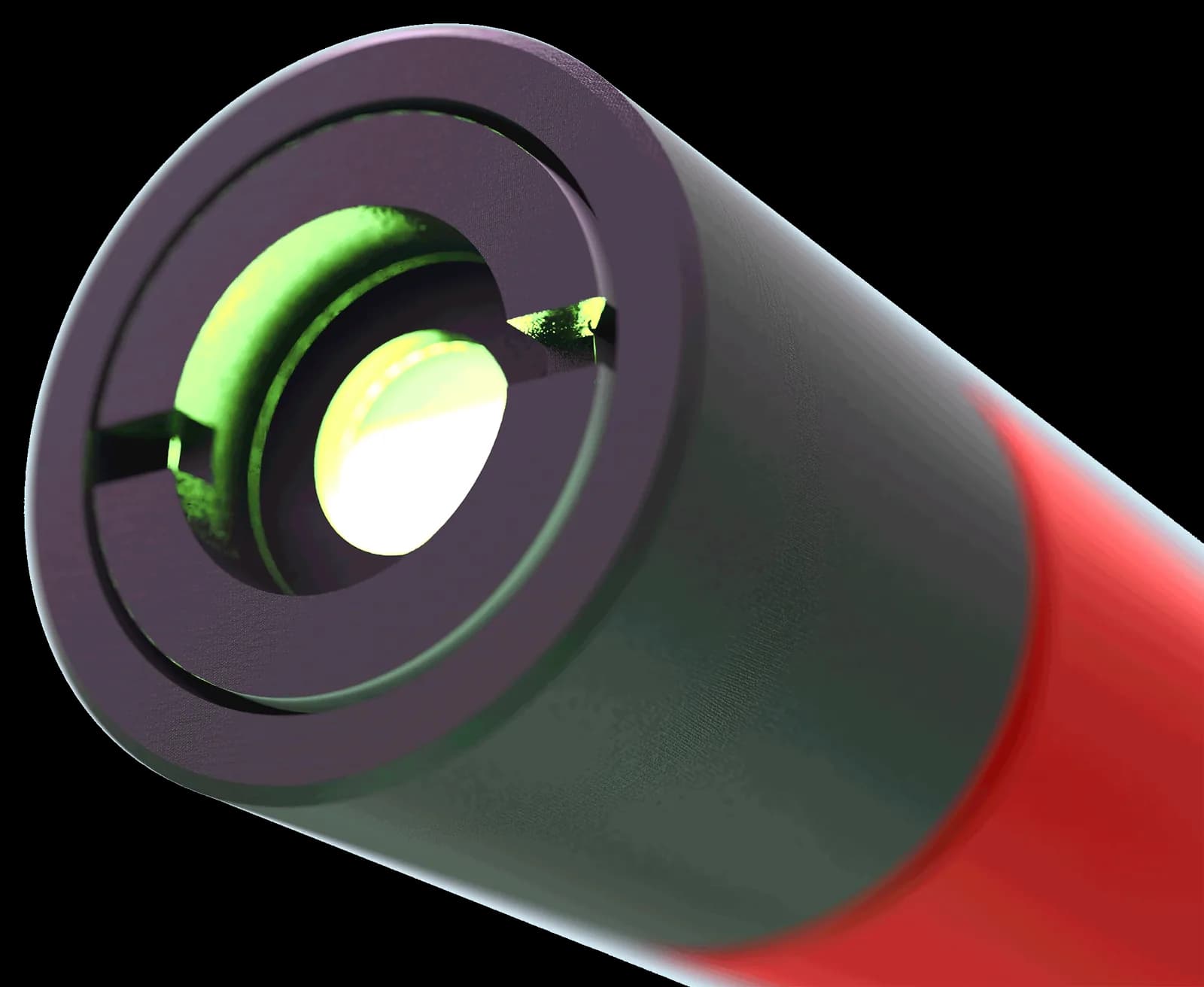

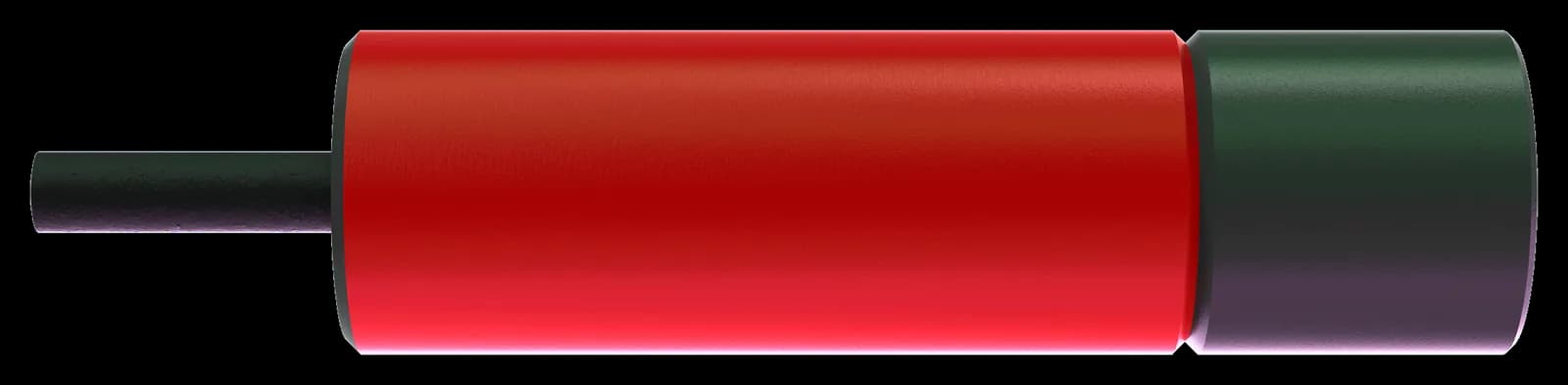

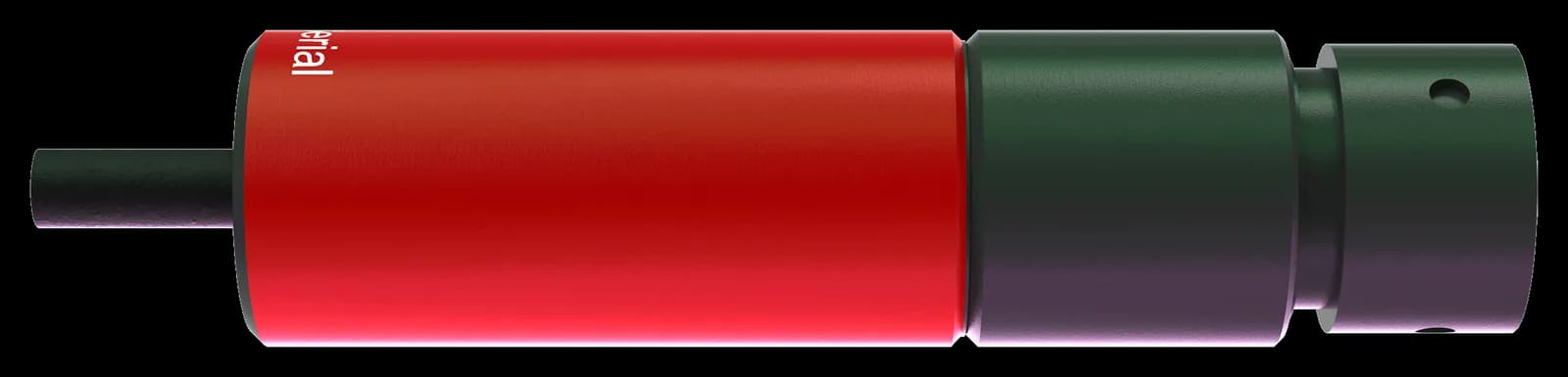

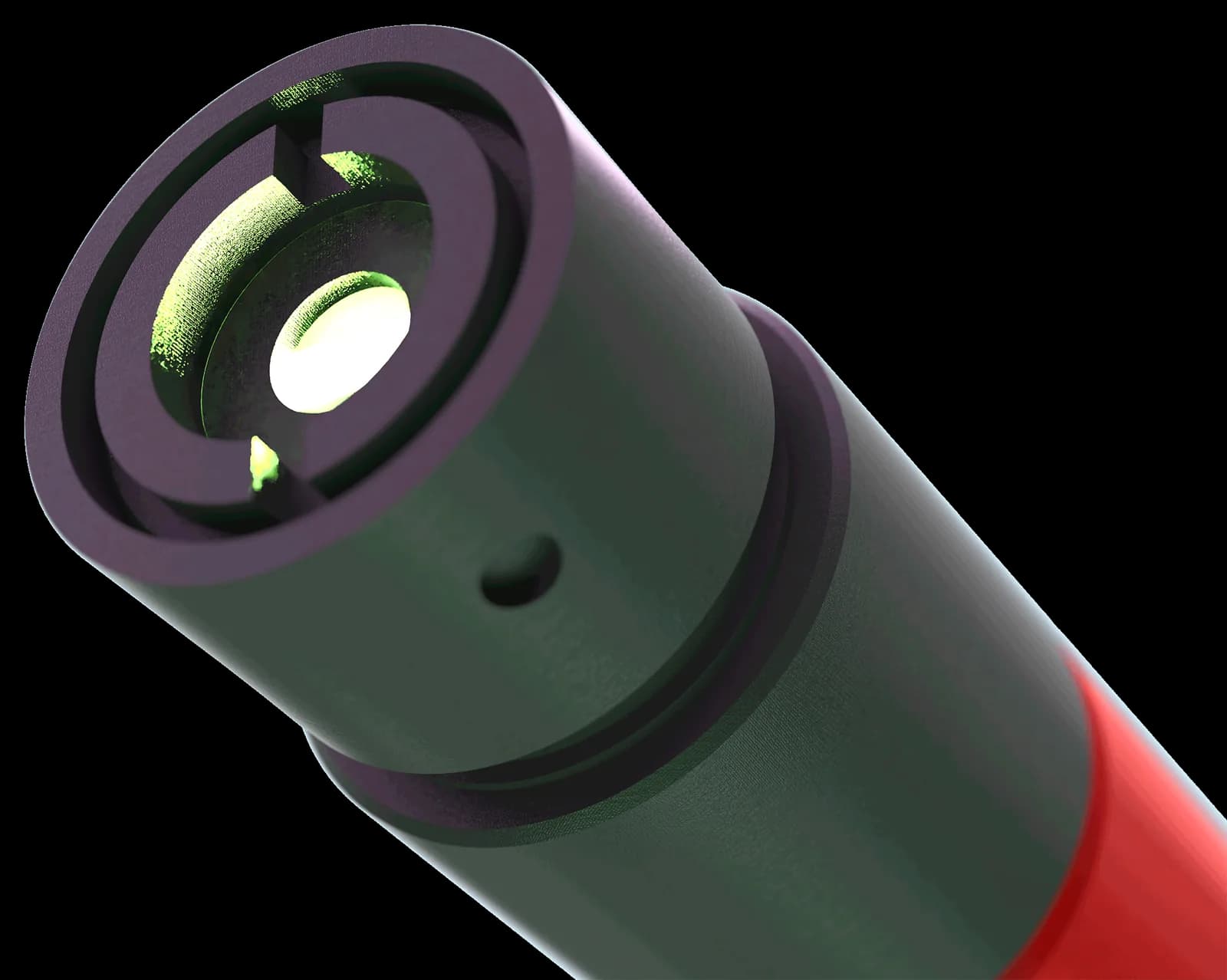

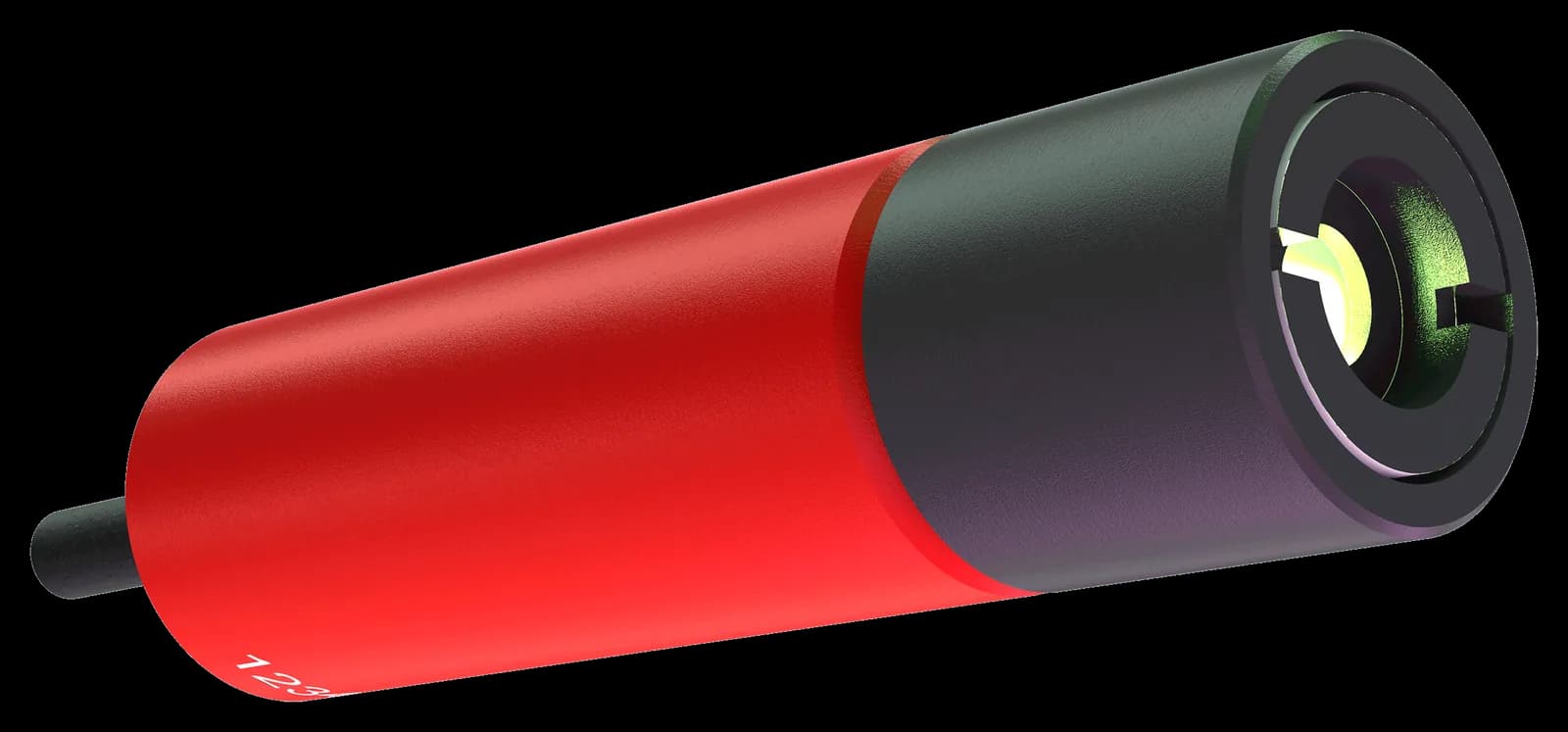

Photon is the most configurable module in the range. IP67 stainless steel, Ø19 × 53 mm, and four optic families: spot, line, cross and pattern.
Wavelengths run 520 to 785 nm at 10 to 70 mW, with CW or TTL modulation.
Why stainless and IP67
IP67 is immersion, not splash. Combined with a stainless housing, that puts Photon in washdown areas rather than in a cabinet — and stainless matters as much for what it resists chemically as for the seal.
Class 2 to 3B
The classification varies with wavelength and power across a wide span, from Class 2 to Class 3B. A 3B configuration carries obligations a Class 2 one does not, so the class should be settled with the configuration rather than after it.
Where it fits
Photon PRO shares the housing and adds near-end-of-life monitoring, at lower power. Compact is far smaller and simpler for embedded OEM work; the 3D PRO family produces a uniform rather than Gaussian line for scanning.
Specifications
Optical
- Wavelength range
- 520–785 nm
- Max output power
- 10–70 mW
- Beam shapes
- Spot / Line / Cross / Pattern
- Line quality
- Gaussian
Safety
- Laser class
- 2–3B
Thermal
- Operating temperature
- +10°C to +50°C
Mechanical
- IP rating
- IP67
- Dimensions
- Ø19 mm × 53 mm
Electrical
- Control
- Analog
- Interface
- CW / TTL modulation
Performance
- Pointing stability
- <5% at 25°C
- Boresight accuracy
- <2.0 mrad
Application
- Best for
- OEM alignment & inspection
