Piranha
PiranhaV4A hygienic stainless steel housing, IP69K, for lasers and cameras in food production and washdown areas.
- Hygienic design
- Yes
- Application 1
- Laser triangulation
- Laser diameter
- 19 / 20

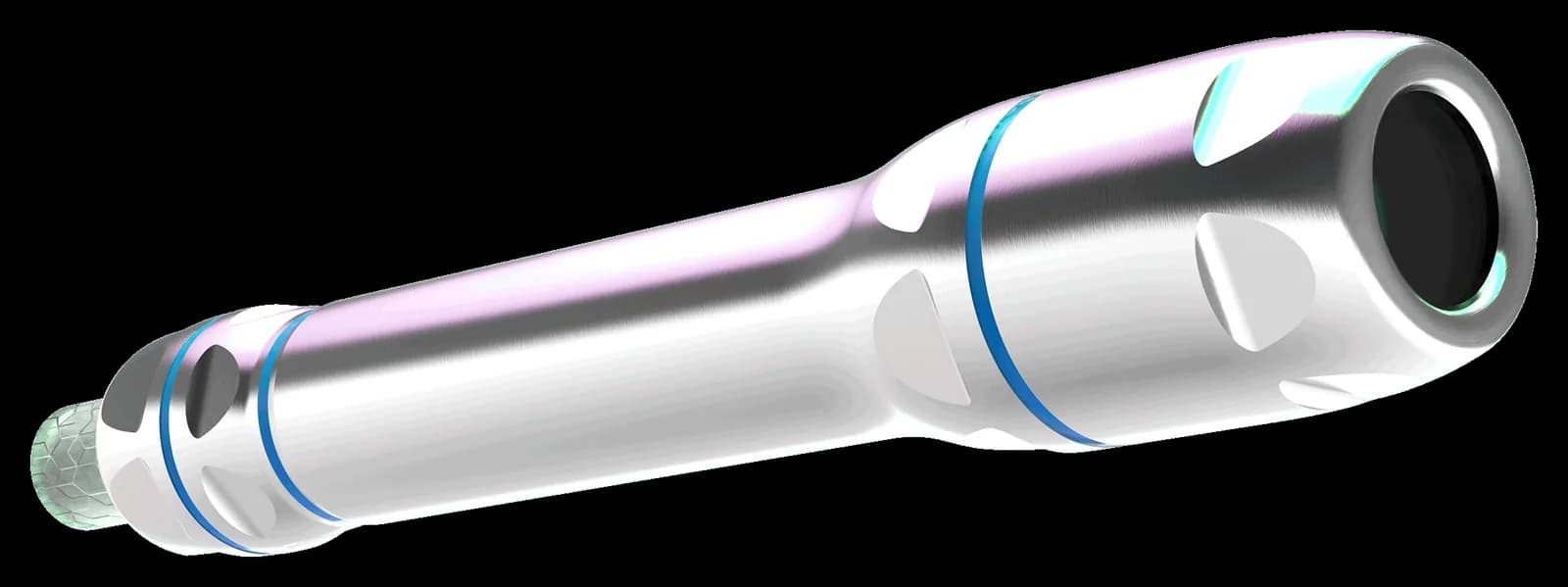

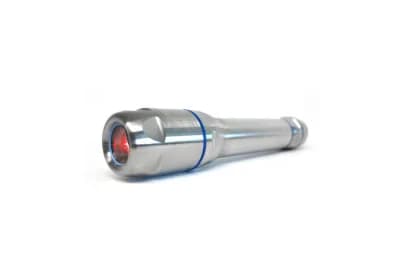

About the Piranha

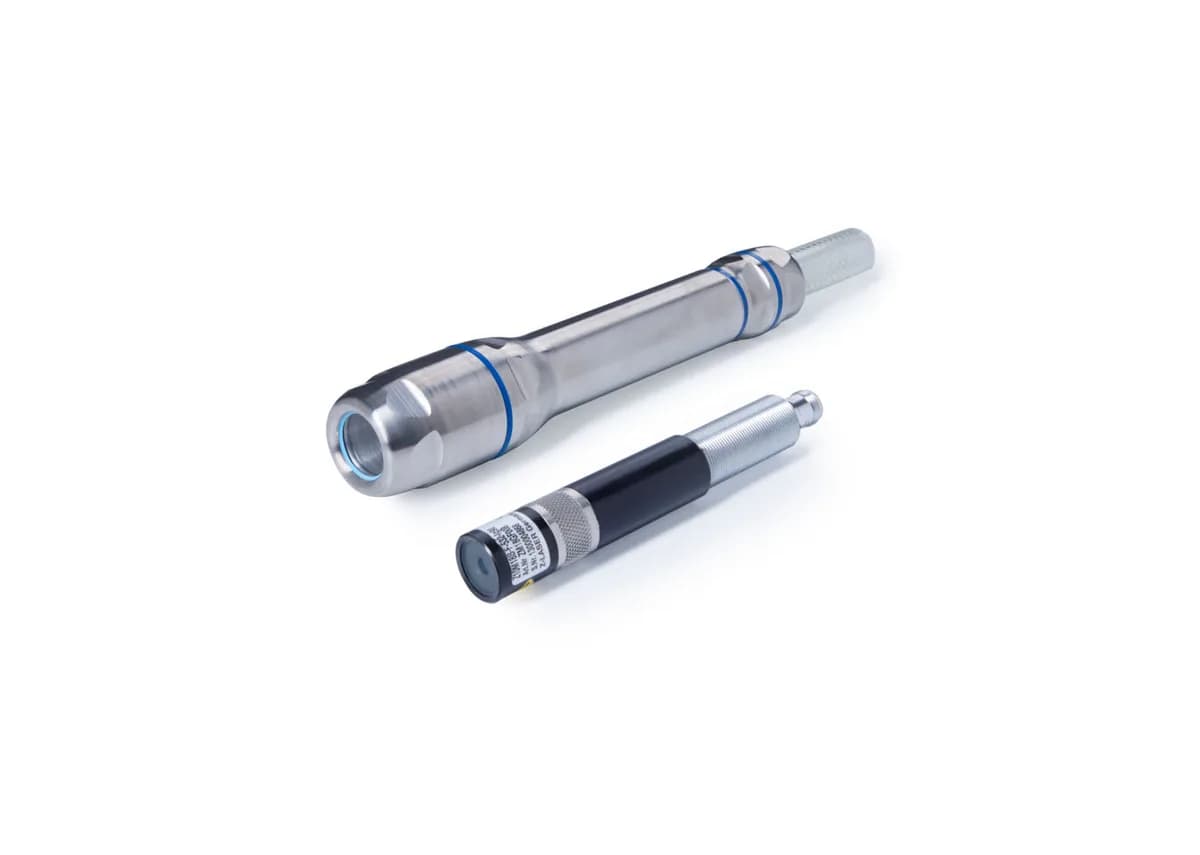

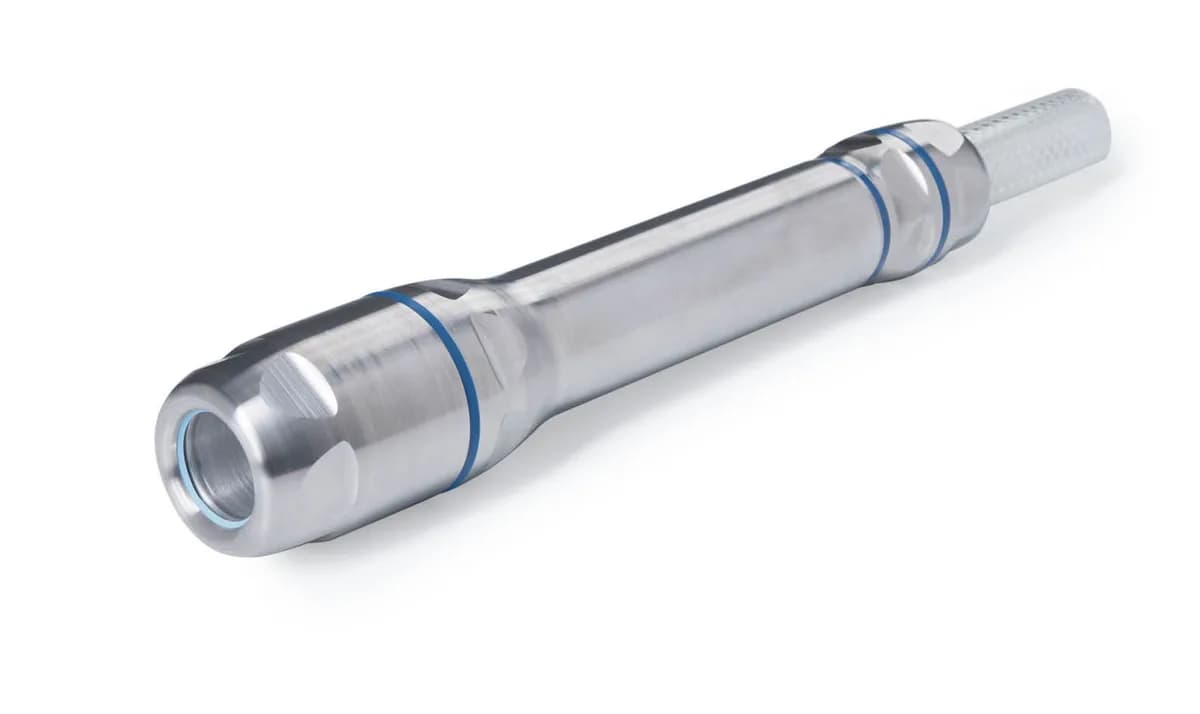

The Piranha is a hygienic stainless steel enclosure for cylindrical lasers and cameras of 19 to 20 mm diameter on food and pharmaceutical lines. The V4A AISI 316L body carries IP69K protection with the hygienic cable gland fitted, so the laser survives high-pressure hot water cleaning alongside the equipment it inspects.
At 40 mm diameter and 176.6 mm long, the Piranha is slim enough to mount inside a hygienic T-piece, and its 120 mm internal length lets the laser sit close behind the window for a tight, well-defined line. The front lid lifts off for focus adjustment, so the line can be set without removing the enclosure from the frame.
Weight is 650 g with the hygienic cable gland, and a snap ring holds the 20 mm window for quick exchange. The Piranha range offers BK7, sapphire and acrylic windows, a standard V4A cable gland rated IP68 with a 16 mm bore, and the Hygienic Building Kit for a fully sealed tube and cable run.
Specifications
Compatibility / Applications
- Compatible with
- Cylindrical lasers, pattern projectors and spot lights with 19mm or 20mm diameter (e.g. laser triangulation sensors); hygienic/food-contact production environments
- Application 1
- Laser triangulation
- Application 2
- Hygienic / food and pharma production environments (dripping and food-contact areas)
- Application 3
- Machine vision systems requiring IP69K wash-down resistance
Laser Fit
- Laser diameter
- 19 / 20
- Inner length
- 120 (max. laser length incl. connector)
Window
- Window aperture
- 20 mm
- Standard window options
- BK7 (double sided AR, standard); Sapphire; Acrylic
- Window seal
- EPDM
Seals & Cable Gland
- Enclosure seals
- EPDM
- Cable gland seal
- Hygienic: TPU / Standard V4A: TPE
- Cable gland aperture
- Hygienic tube: 13mm inner dia / V4A cable gland: 16mm inner dia
- Sealing range hygienic gland
- 15-18
Protection, Weight & Material
- Protection class
- IP69K (hygienic cable gland) / IP68 (V4A cable gland)
- Weight
- ~650g incl. hygienic cable gland
- Enclosure material
- V4A stainless steel AISI 316L
- Enclosure dimensions
- 40 (dia) x 176.6 (l), excl. cable gland
Thermal / Electrical
- Cooling operating voltage
- n/a (passive heat dissipation via laser mount)
Order Numbers
- Available variants
- 19mm or 20mm laser diameter; standard V4A cable gland (IP68) or hygienic cable gland (IP69K)
- Order numbers
- 19mm, std. cable gland: 40.020.008 | 20mm, std. cable gland: 40.020.009 | 19mm, hygienic cable gland: 40.020.010 | 20mm, hygienic cable gland: 40.020.011
- Part number notes
- Order number selects laser diameter and cable gland type; spare parts (windows, seals) ordered separately - ask for current part numbers.
Environmental
- Hygienic design
- Yes
- Active climatisation
- No
Construction
- Angle-mount body
- No
Fit
- Max camera width
- 20 mm
- Max camera height
- 20 mm
- Max lens diameter
- 25 mm
Configuration
- Available lengths
- 60mm / 90mm / 120mm
- Rear-wall options
- Rear A
- Accessory options
- Hygienic Building Kit / Mounting kit
Media
