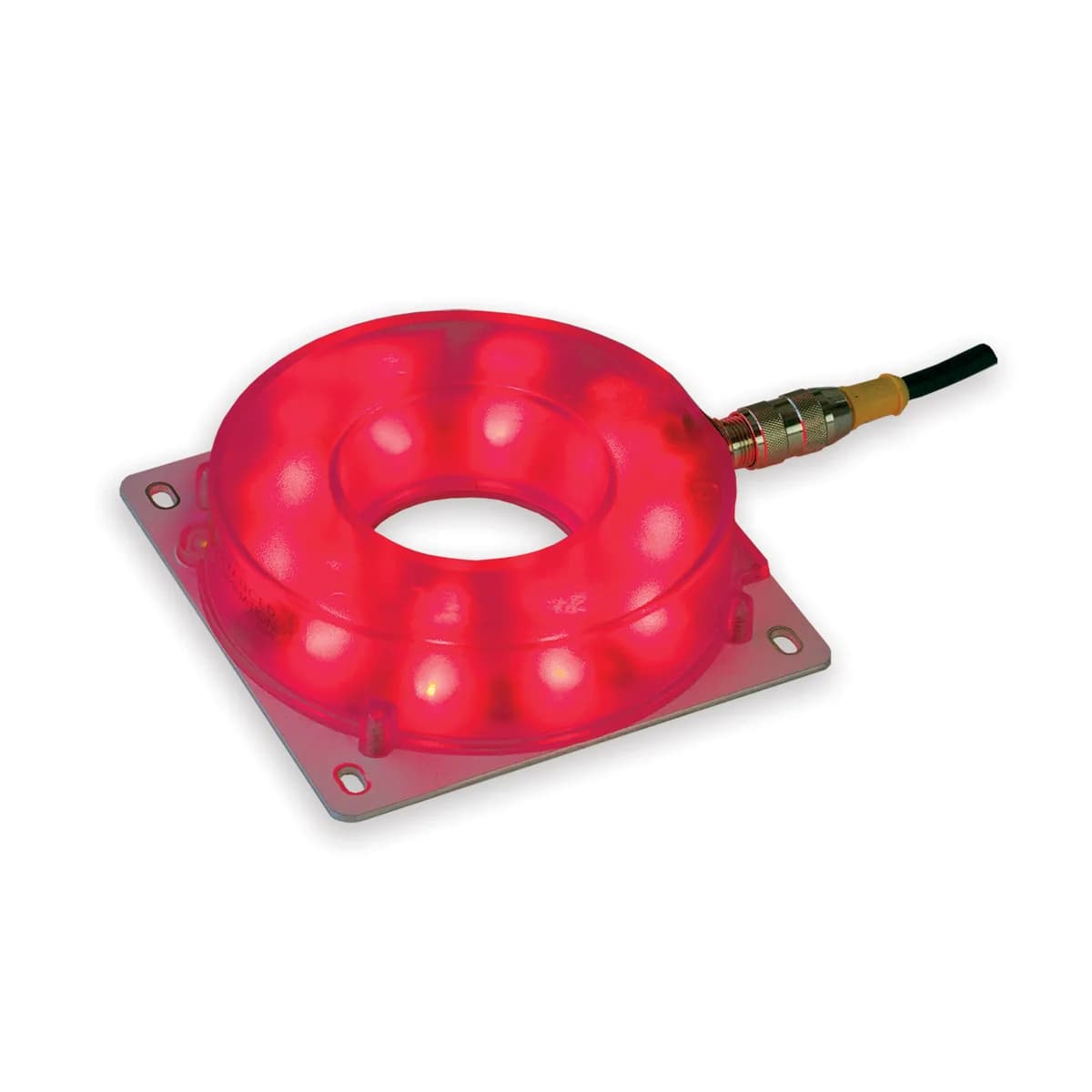

RL-S052120 EuroBrite™ Ring Light
AI-RLS052120-WLow-cost bright field ring with medium performance - 11 wavelength options, 33,300 Lux.
- Wavelengths available
- WHI, 455 - 940
- Supply voltage
- 24V DC
- Ip rating
- IP67
About the AI-RLS052120-W
The RL-S052120 is a EuroBrite ring light for general inspection where high intensity matters and budget is tight. An IP67 sealed housing keeps water and dust out, so the light goes straight onto a wash-down line without an enclosure.
The head accepts a standard coded 5-pin M12 cable, so it connects with cordsets already stocked for the sensors and cameras on the machine. At 172.4 g it carries on a moving axis or robot wrist without meaningful load.
Strobe control allows up to five times overdrive, giving the light needed to freeze fast-moving parts at short exposure, and trigger-to-pulse latency of 10 microseconds keeps the flash tight to the camera trigger. Analogue intensity control from 0.7 V to 10 V sets brightness from 10 to 100 per cent, so exposure can be tuned in software. The RL-S052120 range covers white and ten wavelengths from 455 nm to 940 nm, runs on 24 V nominal from 0 to 60 degrees C, and is certified to CE, RoHS and IEC 62471.
Specifications
Maximum Illuminance / Irradiance
- Max illuminance typ klux
- 33.3 kLux @ 300mm (White, M lens)
- Max illuminance min klux
- 20.8 kLux @ 300mm (White, M lens)
- Max irradiance typ wm2
- 75.6 W/m² @ 300mm (White, M lens)
- Measurement reference
- RL-S052120M-WHI @ 300mm
Available Wavelengths
- Wavelengths available
- 455,470,505,530,590,625,660,730,850,940,WHI
Lens / Optics
- Lens type
- Medium (M) 21°, Wide (W) 32°
- Working distance range
- 200–600mm shown
Mechanical
- Outer diameter
- 120.0 mm
- Inner diameter
- 52.1 mm
- Height depth
- 30.0 mm
- Weight
- 172.4 g
- Ip rating
- IP67
- Mounting
- 4× obrounds (4.8mm × 7.9mm typical)
- Led aim angle
- 21° (M) / 32° (W)
- Lumen maintenance
- L70 = 50,000 Hours
Electrical
- Input voltage
- 24V DC nom. (22–28V)
- Operating temp
- 0–60°C
- Current 24v uv group
- n/a (no UV wavelengths)
- Current 24v vis group
- ~0.54A (455–530, WHI)
- Current 24v red ir group
- ~0.54A (590–730); IR (850, 940) — see DS
- Current controller max
- 0.42–0.49A max input current
- Std cable length
- No cable included (use LC2-M12-5-FX or standard 5-pin M12)
- Cable spec
- No cable included — M12 5-pin male connector on unit
- Supply voltage
- 24V DC
Control Interfaces
- Control options
- S (Strobe only)
- Analogue control
- Yes (Analog 0.7–10V; 0.7V=10%, 10V=100%)
- Strobe capability
- Yes — up to 5× overdrive, active high; 10µsec trigger latency
- Connector options
- M12 5-pin male (no cable included); LC2-M12-5-FX or standard coded 5-pin M12
- Compliance
- CE, RoHS, IEC 62471
Optical
- Wavelength / colour
- White, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940 nm
- Beam
- Bright field
- Intensity
- High
- Irradiance
- 33,300 Lux
Environmental
- Operating temperature
- 0 to +60°C
Application
- Applications
- Inspection / Machine Vision
