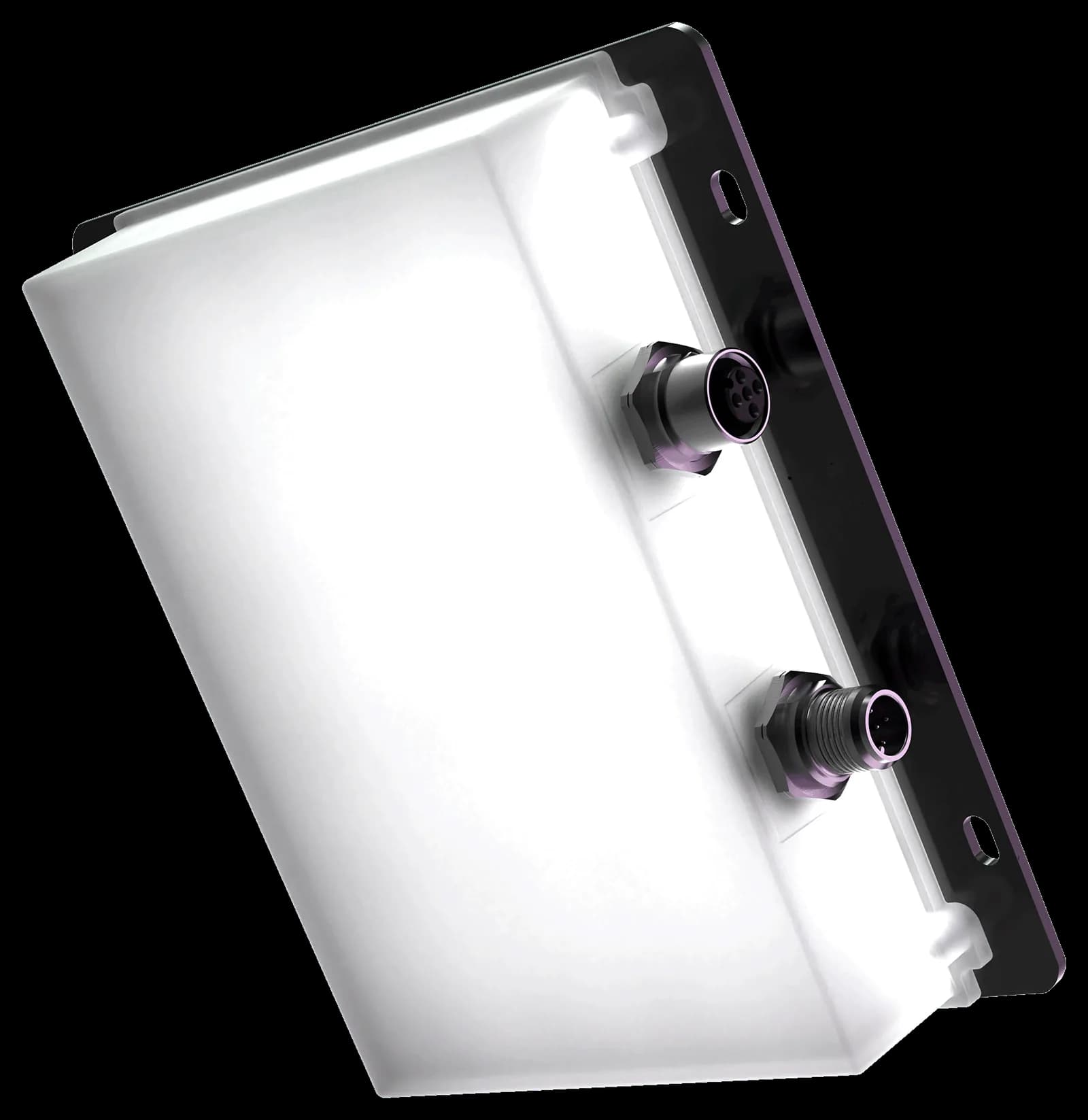

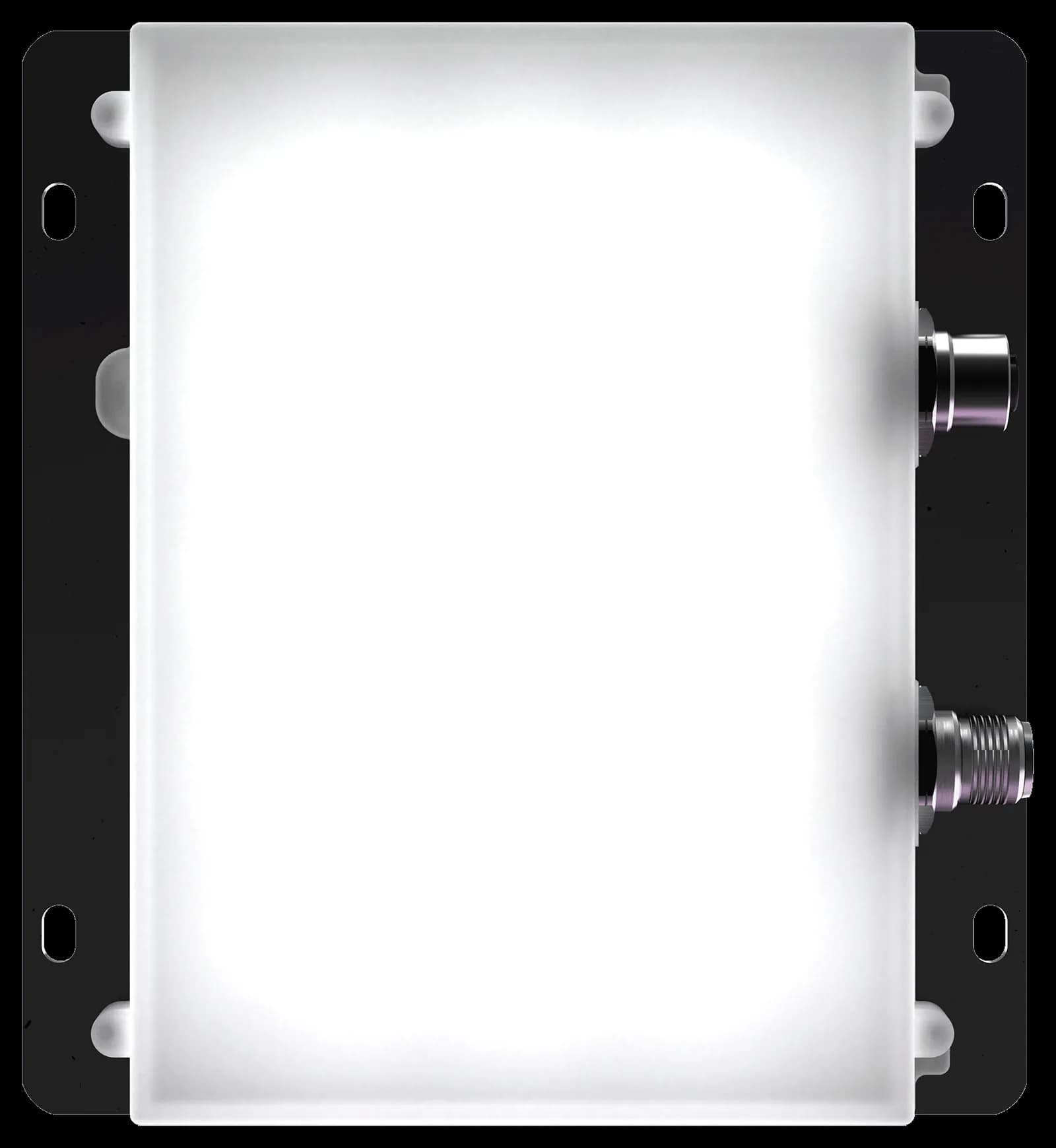

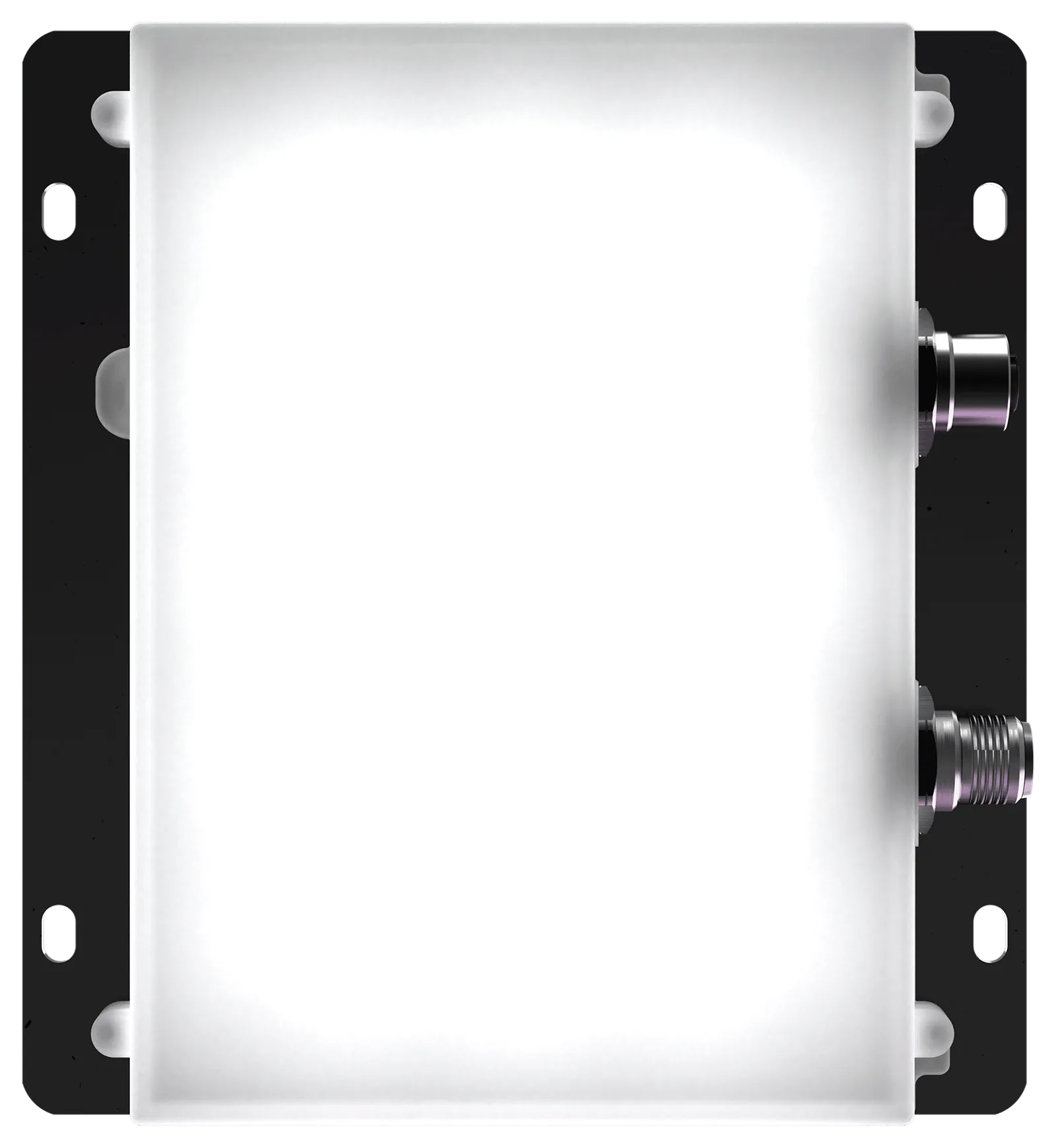

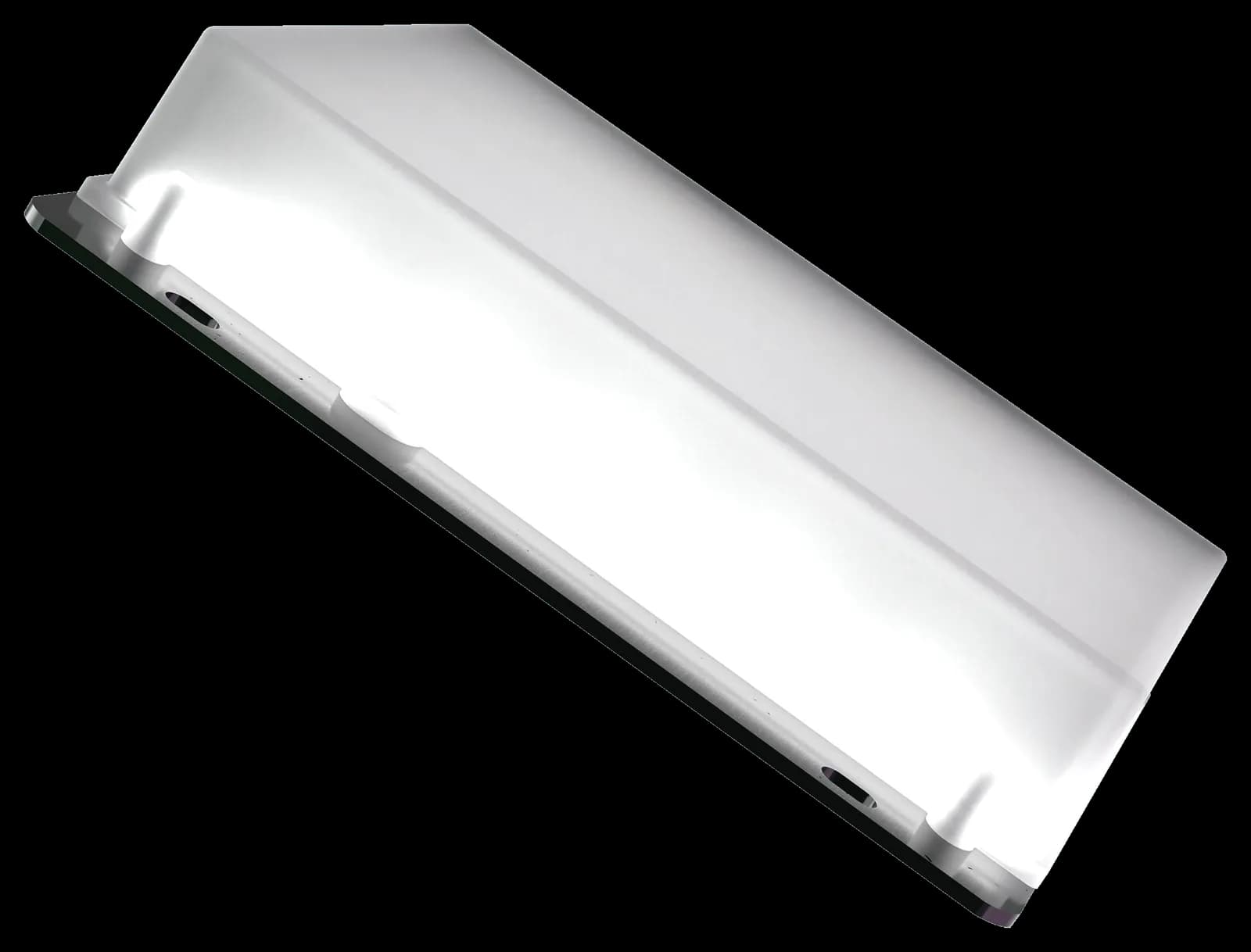

SL-S100150 EuroBrite™ Large Spot Light

The SL-S100150 is a EuroBrite spot light with an on-board smart driver, built for inspection stations that switch between strobed and continuous illumination. A sealed IP67 enclosure lets it work on wash-down lines without an additional housing.

Up to four units daisy-chain with pass-through control, so a multi-light station wires as one run and needs a single control connection. The head weighs 265.81 g and takes a standard coded 5-pin M12 cable, connecting with cordsets already stocked for the machine.

Adaptive Overdrive holds optimised power under all strobe conditions and Adaptive Power factors in the heat sinking and ambient temperature, which protects output and lifespan when the light runs hard. Trigger-to-pulse latency of 10 microseconds keeps the flash tight to the camera trigger, and analogue intensity control from 0.7 V to 10 V sets brightness from 10 to 100 per cent. The SL-S100150 range covers white and ten wavelengths from 455 nm to 940 nm, with medium 21 degree and wide 32 degree beam angles, on 24 V nominal from 0 to 60 degrees C.
