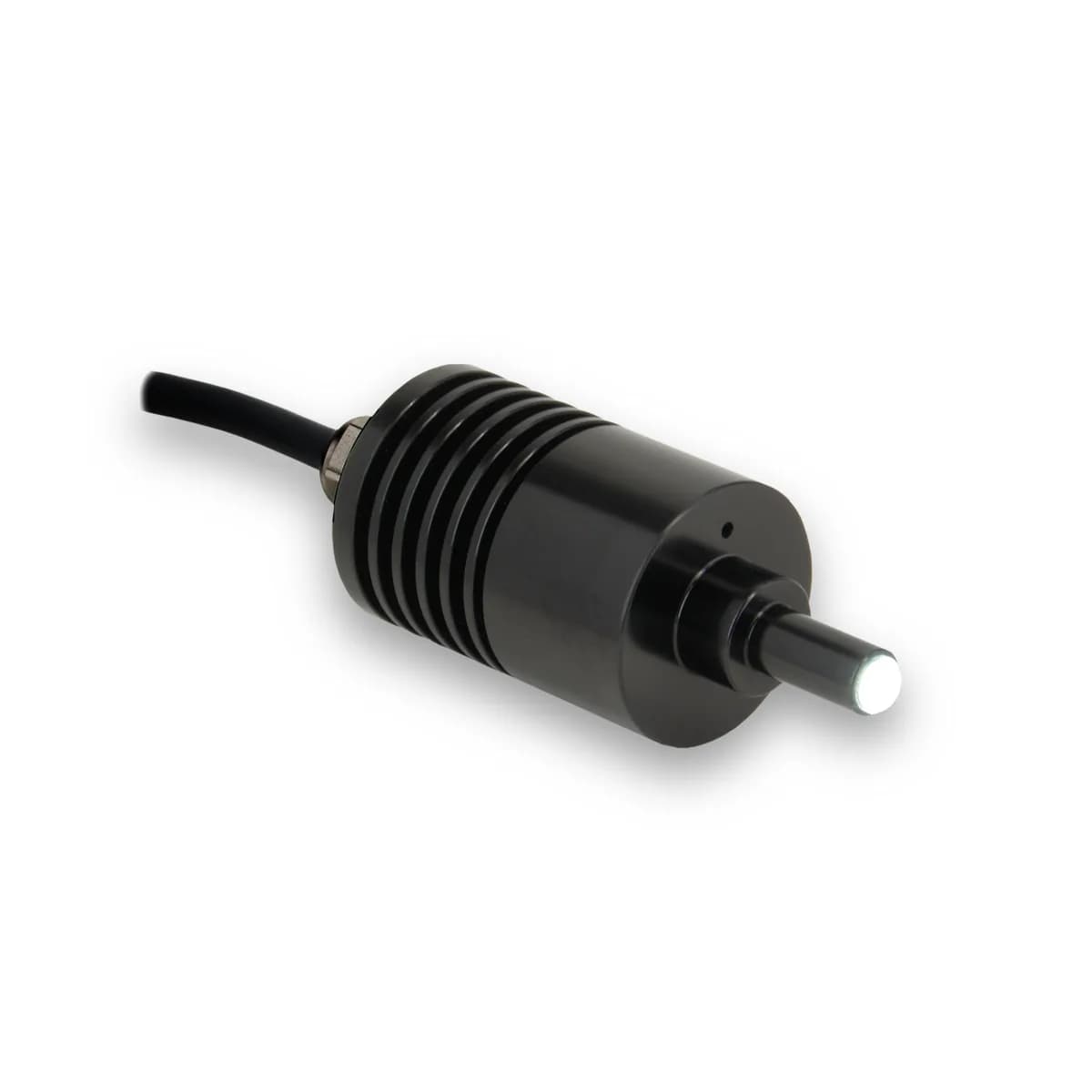

SL162 High Intensity Spot/Coaxial Light
AI-SL162-WHigh-intensity spot/coaxial light for telecentric lenses at extra-short to short distances - 22° spot, 33,000 Lux.
- Wavelengths available
- White, 365 - 940
- Power supply note
- 24V DC ±10% typical
- Supply voltage
- 24V DC
About the AI-SL162-W
The SL162 is a high intensity spot and coaxial light built to replace fibre-optic light sources, particularly in lens-based internal coaxial applications including microscopy and stereo scope inspection. A "24" model option carries an embedded driver, so the light runs without an external or inline controller and cable runs stay simple.
The barrel is 31.8 mm in diameter and 84.9 mm long at 77 g, which fits the standard coaxial mounting used on vision lenses and stays light on a moving head. An M3 mounting point secures it once aligned. Optional couplers suit Dolan-Jenner, Fostec and Moritex fibre bundles, so existing fibre optics can be driven from the new source.
Sixteen wavelength choices from 365 nm ultraviolet to 940 nm near-infrared make one housing serve many inspection tasks, and an ultra-high power white LED option raises intensity on target where exposure time is short. White light lumen maintenance is L70 at 50,000 hours. The SL162 is rated IP50 and certified to CE, RoHS and IEC 62471.
Specifications
Key Features
- Feature 1
- Replaces fiber optic light sources
- Feature 2
- Compact light head with efficient thermal management
- Feature 3
- Wide wavelength range: 365–940 nm
- Feature 4
- User-selectable intensity on 24V version
- Feature 5
- IP50 rated
- Feature 6
- Multiple control options (C1, C5, IC, I3, I3S, 24V)
- Feature 7
- Build-to-order 2 weeks
Key Applications
- Application 1
- Coaxial lensing inspection
- Application 2
- PCB inspection
- Application 3
- Food safety inspection
- Application 4
- Fill level inspection
- Application 5
- Medical imaging
Available Wavelengths
- Wavelengths available
- 365–395 (UV), 405, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940, White
- Wavelength count
- 16
- Uv available
- Yes (365–395 nm)
- Ir available
- Yes (730–940 nm)
- Continuous illuminance klux at 100mm
- 28–33 klx @ 100 mm
- Continuous irradiance wm2 at 100mm
- 88–104 W/m²
- Strobe multiplier i3
- Up to 5×
- Strobe multiplier c5
- Up to 10×
Lensing / Optics
- Available lensing
- Fixed coaxial
- Fwhm at 100mm
- 61 mm
Photobiological Risk (Iec 62471)
- Risk exempt wavelengths
- 850, 940 nm
- Risk group1 wavelengths
- 455, 470, 505, 530, 590, 625, 660, 730, WHI
- Risk group2 wavelengths
- 365, 375, 385, 395
Form Factor
- Form factor
- Barrel / Spot
- Diameter outer
- 31.8 mm
- Length depth
- 70.4 mm
- Weight
- 85.1 g
- Mounting type
- 3× M3 mounting holes
Housing & Materials
- Housing material
- Anodized Aluminum
Ingress Protection & Thermal
- Ip rating
- IP50
- Sealed version
- No
- Op case temp
- 0–60
- Op ambient temp
- 0–60
Cable
- Cable length
- 2 m (80" +6")
- Cable jacket
- 105°C PVC, foil shield w/ drain
- Alternative connector
- M12
Power Supply
- Input voltage
- 24V DC
- Power supply note
- 24V DC ±10% typical
- Current 24v whi
- 0.09 A
- Current 24v vis
- 0.06–0.16
- Current 24v ir
- 0.14 A
- Current ctrl whi
- 0.23 A
- Current ctrl vis
- 0.08–0.25
- Current ctrl ir
- 0.1 A
Control Options
- C1 connector
- Yes
- C5 connector
- Yes
- Ic inline
- Yes
- I3 inline
- Yes
- I3s inline
- Yes
- 24v driver
- Yes
- Q4 connector
- No
Inline Controller Specs
- Ic max power
- 25 W continuous
- Ic max current
- 1.25 A continuous
- I3 max power pulsed
- 125 W pulsed
- I3 max current pulsed
- 8 A pulsed
- Dimming input
- 0–10V analog
- Pin 1 brown
- 24V DC
- Pin 2 white
- IC: 0–10V analog | I3: reserved
- Pin 3 blue
- DC GND
- Pin 4 black
- IC: Gate Low | I3: PNP/Active High Trigger
- Pin 5 gray
- IC: N/A | I3: 0–10V analog
Optical
- Wavelength / colour
- White, 365-395, 405, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940 nm
- Beam
- 22° spot/coaxial
- Intensity
- High
- Irradiance
- 33,000 Lux
Environmental
- Operating temperature
- 0 to +60°C
Electrical
- Supply voltage
- 24V DC
Application
- Applications
- Inspection / Machine Vision
