SL164 Compact High Intensity Spot Light
AI-SL164-WHigh-performance compact spot for extra-short to medium distances — 201,000 Lux, 15 wavelengths.
- Wavelengths available
- White, 365 - 940
- Power supply note
- 24V DC ±10% typical
- Supply voltage
- 24V DC
About the AI-SL164-W
The SL164 is a compact high intensity spot light for off-axis inspection at medium working distances in tight installations. A "24" model option carries an embedded controller, which removes the external or inline controller and makes the light practical on robots where space and cable routing are restricted.

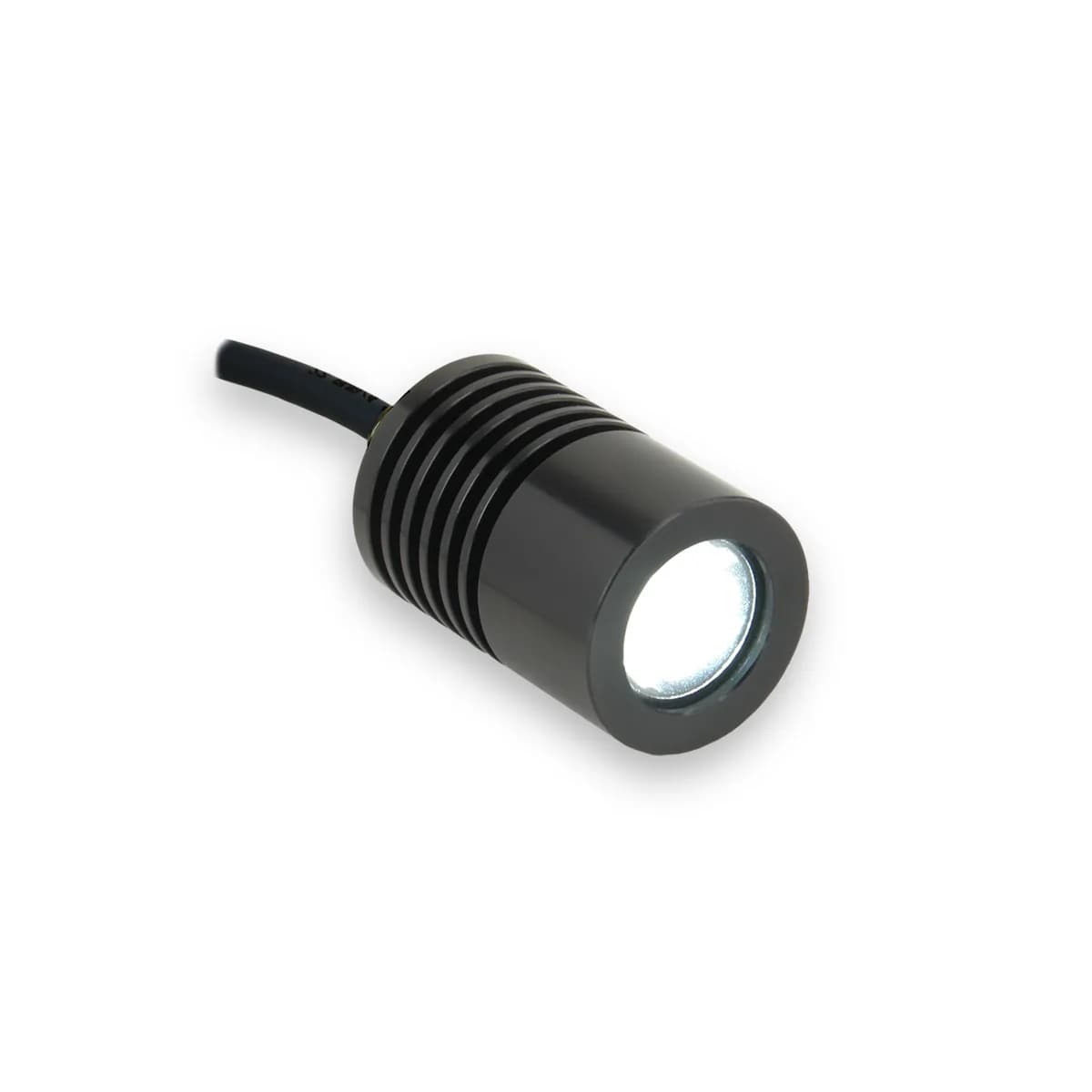

The barrel is 31.8 mm in diameter and 61.1 mm long at 81 g, small enough for crowded stations and light enough for a moving axis, and four opposing rear M3 mounting points hold it securely. Narrow 19 degree, medium 30 degree and wide 42 degree lenses set the pattern size, so one head covers a range of fields of view and working distances.
Sixteen wavelength choices from 365 nm ultraviolet to 940 nm near-infrared make one housing serve many inspection tasks. The anodised aluminium housing with polycarbonate window is rated IP64 for splash and dust exposure and certified to CE, RoHS and IEC 62471, with white light lumen maintenance of L70 at 50,000 hours. A diffuser is available as a light conditioning option.
Specifications
Key Features
- Feature 1
- High intensity output (116.4 klx @ 100 mm)
- Feature 2
- 3 lens options: narrow (19°), medium (30°), wide (42°)
- Feature 3
- Embedded 24V controller option (robotics-friendly)
- Feature 4
- 16 wavelengths (365 nm UV – 940 nm NIR)
- Feature 5
- Overdrive strobe capable (5× via I3/I3S, 10× via Pulsar 320E)
- Feature 6
- M3 mounting points
- Feature 7
- 1–2 week BTO lead times
Key Applications
- Application 1
- Off-axis illumination
- Application 2
- PCB inspection
- Application 3
- Circuit board inspection
- Application 4
- Fill level inspection
- Application 5
- Medical imaging
Available Wavelengths
- Wavelengths available
- 365–395 (UV), 405, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940, White
- Wavelength count
- 16
- Uv available
- Yes (365–395 nm)
- Ir available
- Yes (730–940 nm)
- White cct k
- 6500 K
- Continuous illuminance klux at 100mm
- 116.4 klx @ 100 mm (medium lens)
- Continuous irradiance wm2 at 100mm
- 384 W/m²
- Strobe multiplier i3
- Up to 5×
- Strobe multiplier c5
- Up to 10×
Lensing / Optics
- Available lensing
- Narrow (19°), Medium (30°), Wide (42°)
- Light conditioning
- Diffuser
- Fwhm at 100mm
- ~50 mm (medium)
Photobiological Risk (Iec 62471)
- Risk exempt wavelengths
- 730, 850, 940 nm
- Risk group1 wavelengths
- 455, 470, 505, 530, 590, 625, 660, WHI
- Risk group2 wavelengths
- 365, 375, 385, 395, 405
Form Factor
- Form factor
- Barrel / Spot
- Diameter outer
- 31.8 mm
- Length depth
- 61.1 mm
- Weight
- ~81
- Mounting type
- 4× M3 mounting holes
Housing & Materials
- Housing material
- Anodized Aluminum
- Window material
- Polycarbonate
- Strain relief
- Nickel Plated Brass
Ingress Protection & Thermal
- Ip rating
- IP64
- Sealed version
- No
- Op case temp
- 25–60
- Op ambient temp
- 0–35
Cable
- Cable length
- 2 m (80" +6")
- Cable jacket
- 105°C PVC, foil shield w/ drain
- Alternative connector
- M12, M8
Power Supply
- Input voltage
- 24V DC
- Power supply note
- 24V DC ±10% typical
- Current 24v whi
- 0.09 A
- Current 24v vis
- 0.060–0.160
- Current 24v ir
- 0.14 A
- Current ctrl whi
- 0.23 A
- Current ctrl vis
- 0.080–0.250
- Current ctrl ir
- 0.100–0.150
Control Options
- C1 connector
- Yes
- C5 connector
- Yes
- Ic inline
- Yes
- I3 inline
- Yes
- I3s inline
- Yes
- 24v driver
- Yes
- Q4 connector
- No
Inline Controller Specs
- Ic max power
- 25 W continuous
- Ic max current
- 1.25 A continuous
- I3 max power pulsed
- 125 W pulsed
- I3 max current pulsed
- 8 A pulsed
- Dimming input
- 0–10V analog
- Pin 1 brown
- 24V DC
- Pin 2 white
- IC: 0–10V analog | I3: reserved
- Pin 3 blue
- DC GND
- Pin 4 black
- IC: Gate Low | I3: PNP/Active High Trigger
- Pin 5 gray
- IC: N/A | I3: 0–10V analog
Optical
- Wavelength / colour
- White, 365-395, 405, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940 nm
- Beam
- Focused spot
- Intensity
- Ultra
- Irradiance
- 201,000 Lux
Environmental
- Operating temperature
- 0 to +35°C
Electrical
- Supply voltage
- 24V DC
Application
- Applications
- Inspection / Machine Vision
Downloads
- ENDownload
