Advanced Illumination · COAXIAL

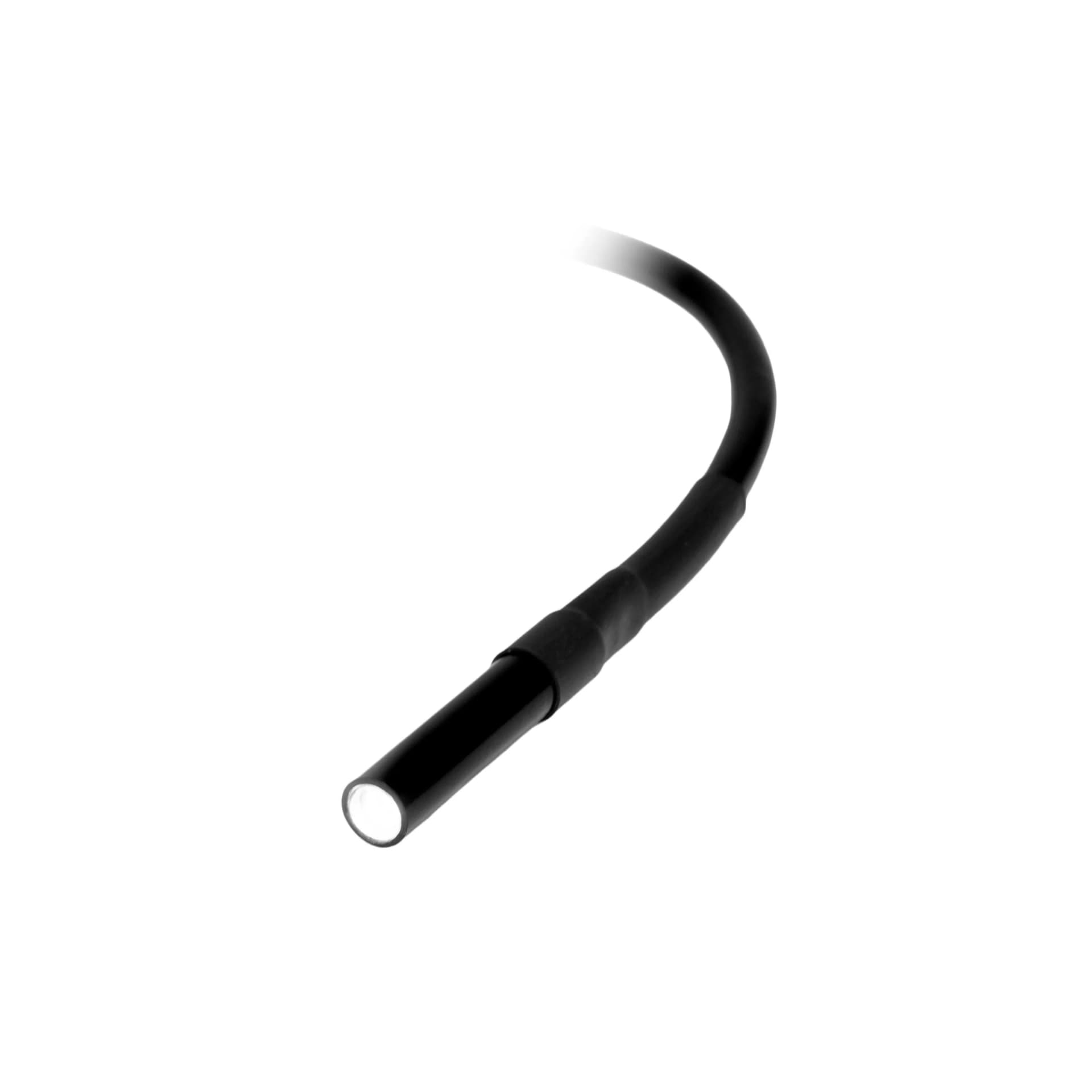

SL223 MicroBrite™ Spot/Coaxial Light
AI-SL223-WMiniaturised MicroBrite™ spot/coaxial light for telecentric lenses at extra-short distances - fibre-optic replacement, 92,000 Lux.
- Wavelengths available
- White, 365 - 940
- Power supply note
- 24V DC ±10% typical
- Supply voltage
- 24V DC
About the AI-SL223-W
The SL223 is a MicroBrite spot and coaxial light built to replace fibre-optic light sources in internal coaxial work and in close external off-axis applications. At 9.4 mm in diameter and 13 g it fits inside lens assemblies and tight sensor housings where no conventional light source will go.
The barrel is 73.7 mm long and carries an internal secondary focusing lens, which tightens the fan angle and makes the light usable externally at short working distances as well as coaxially. A standard 8 mm nose diameter is fitted, with a 10 mm option specified at time of order to match the bore it mounts into.
Sixteen wavelength choices from 365 nm ultraviolet to 940 nm near-infrared make one housing serve many inspection tasks, and white light lumen maintenance of L70 at 50,000 hours keeps output stable. The anodised aluminium body with acrylic window and silicone sealant is rated IP65 and certified to CE, RoHS and IEC 62471. Optional couplers are available for Dolan-Jenner, Fostec and Moritex fibre bundles, with cable inline and external controllers.
Specifications
Key Features
- Feature 1
- Extremely small form factor
- Feature 2
- Optional fiber bundle couplers
- Feature 3
- IP65 rated
- Feature 4
- 17 wavelengths (UV to NIR, 365–940 nm)
- Feature 5
- Multiple control options (C1, C5, IC, I3, I3S)
- Feature 6
- L70 = 50,000 hrs lumen maintenance
Key Applications
- Application 1
- Coaxial lensing inspection
- Application 2
- PCB inspection
- Application 3
- Circuit board inspection
- Application 4
- Fill level inspection
- Application 5
- Medical imaging
Available Wavelengths
- Wavelengths available
- 365–395 (UV), 405, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940, White
- Wavelength count
- 17
- Uv available
- Yes (365–405 nm)
- Ir available
- Yes (730–940 nm)
- Continuous illuminance klux at 100mm
- 6.9–8.1 klx @ 100 mm
- Continuous irradiance wm2 at 100mm
- 23.2–27.3 W/m²
- Strobe multiplier i3
- Up to 5×
- Strobe multiplier c5
- Up to 10×
Lensing / Optics
- Available lensing
- Fixed coaxial
- Fwhm at 100mm
- ~41 mm
Photobiological Risk (Iec 62471)
- Risk exempt wavelengths
- 850, 940 nm
- Risk group1 wavelengths
- 455, 470, 505, 530, 590, 625, 660, 730, WHI
- Risk group2 wavelengths
- 365, 375, 385, 395, 405
Form Factor
- Form factor
- Pencil / Barrel
- Diameter outer
- 9.4 (S) / 10.0 (B)
- Length depth
- 73.7 mm
- Weight
- 13.6 g
- Mounting type
- Crimp sleeve / barrel
Housing & Materials
- Housing material
- Black Anodized Aluminum
- Strain relief
- Crimped brass sleeve
Ingress Protection & Thermal
- Ip rating
- IP65
- Sealed version
- Yes (standard)
- Op case temp
- 0–60
- Op ambient temp
- 0–60
Cable
- Cable length
- 2 m (80" +6")
- Cable jacket
- 105°C PVC, foil shield w/ drain
- Alternative connector
- M12, M8
Power Supply
- Input voltage
- 24V DC
- Power supply note
- 24V DC ±10% typical
- Current ctrl whi
- 0.3 A
- Current ctrl vis
- 0.25–0.45
- Current ctrl ir
- 0.7 A
Control Options
- C1 connector
- Yes
- C5 connector
- Yes
- Ic inline
- Yes
- I3 inline
- Yes
- I3s inline
- Yes
- 24v driver
- No
- Q4 connector
- No
Inline Controller Specs
- Ic max power
- 25 W continuous
- Ic max current
- 1.25 A continuous
- I3 max power pulsed
- 125 W pulsed
- I3 max current pulsed
- 8 A pulsed
- Dimming input
- 0–10V analog
- Pin 1 brown
- 24V DC
- Pin 2 white
- IC: 0–10V analog | I3: reserved
- Pin 3 blue
- DC GND
- Pin 4 black
- IC: Gate Low | I3: PNP/Active High Trigger
- Pin 5 gray
- IC: N/A | I3: 0–10V analog
Optical
- Wavelength / colour
- White, 365-395, 405, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940 nm
- Beam
- Focused spot
- Intensity
- Ultra
- Irradiance
- 92,000 Lux
Environmental
- Operating temperature
- 0 to +60°C
Electrical
- Supply voltage
- 24V DC
Application
- Applications
- Inspection / Machine Vision
