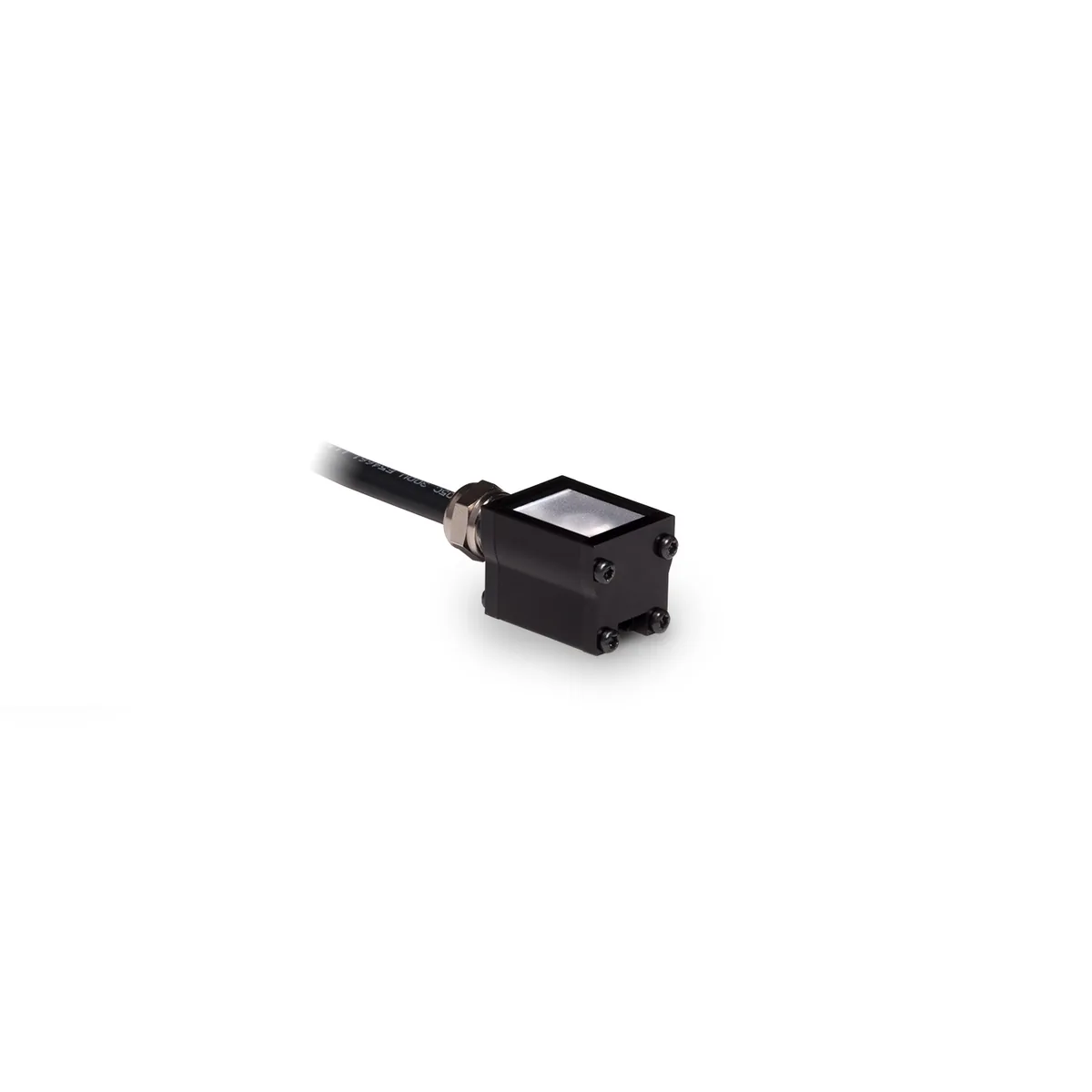

SL243 MicroBrite™ Small Spot Light
AI-SL243-WHigh-performance compact MicroBrite™ spot for short to medium-long distances, fibre-optic replacement - 92,000 Lux.
- Wavelengths available
- White, 365 - 940
- Power supply note
- 24V DC ±10% typical
- Supply voltage
- 24V DC
About the AI-SL243-W
The SL243 is a MicroBrite single-LED spot light offering a high performance to size ratio for space-restricted inspection stations. The body measures 60.1 mm by 32.2 mm by 20.0 mm and weighs 40 g, so it fits inside a guard or on a robot arm while still delivering full output.
An M4 mounting nut channel on the base allows position and angle to be adjusted after installation, so the beam is trimmed to the part without a new bracket. An IP65-compliant washdown build measures 62.6 mm by 32.2 mm by 20.4 mm, keeping the same mounting pattern on lines that are hosed down.
Industrial grade high power LEDs run strobed or continuous with white light lumen maintenance of L70 at 50,000 hours, so brightness holds through long runs. The SL243 range covers sixteen wavelengths from 365 nm ultraviolet to 940 nm near-infrared, a narrow 8 degree lens, a diffuser option and IP50 or IP65 sealing, certified to CE, RoHS and IEC 62471.
Specifications
Key Features
- Feature 1
- Industry-leading performance-to-size ratio
- Feature 2
- Excellent thermal dissipation
- Feature 3
- Small footprint for machine vision
- Feature 4
- 18 wavelengths (UV to NIR, 365–940 nm)
- Feature 5
- Multiple control options (C1, C5, IC, I3, I3S, Q4)
- Feature 6
- L70 = 50,000 hrs lumen maintenance
Key Applications
- Application 1
- Small footprint machine vision
- Application 2
- PCB inspection
Available Wavelengths
- Wavelengths available
- 365–395 (UV), 405, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940, White
- Wavelength count
- 18
- Uv available
- Yes (365–405 nm)
- Ir available
- Yes (850, 940 nm)
- Continuous illuminance klux at 100mm
- Max 15 klx @ 100 mm
- Continuous irradiance wm2 at 100mm
- Max 64 W/m²
- Strobe multiplier i3
- Up to 5×
- Strobe multiplier c5
- Up to 10×
Lensing / Optics
- Available lensing
- Fixed
- Light conditioning
- Diffuser
- Fwhm at 100mm
- 75 mm
Photobiological Risk (Iec 62471)
- Risk exempt wavelengths
- 850, 940 nm
- Risk group1 wavelengths
- 455, 470, 505, 530, 590, 625, 660, 730, WHI
- Risk group2 wavelengths
- 365, 375, 385, 395, 405
Form Factor
- Form factor
- Rectangular block
- Diameter outer
- 20.0 × 17.6
- Length depth
- 29.2 (sealed)
- Weight
- 24 g
- Mounting type
- M4 nut channel + M4 mounting screws
Housing & Materials
- Housing material
- Anodized Aluminum
Ingress Protection & Thermal
- Sealed version
- Yes (option W)
- Op case temp
- 0–60
- Op ambient temp
- 0–60
Cable
- Cable length
- 2 m (80" +6")
- Cable jacket
- 105°C PVC, foil shield w/ drain
- Alternative connector
- M12, M8
Power Supply
- Input voltage
- 24V DC
- Power supply note
- 24V DC ±10% typical
- Current ctrl whi
- 0.32 A
- Current ctrl vis
- 0.22–0.32
- Current ctrl ir
- 0.24 A
Control Options
- C1 connector
- Yes
- C5 connector
- Yes
- Ic inline
- Yes
- I3 inline
- Yes
- I3s inline
- Yes
- 24v driver
- Yes
- Q4 connector
- Yes
Inline Controller Specs
- Ic max power
- 25 W continuous
- Ic max current
- 1.25 A continuous
- I3 max power pulsed
- 125 W pulsed
- I3 max current pulsed
- 8 A pulsed
- Dimming input
- 0–10V analog
- Pin 1 brown
- 24V DC
- Pin 2 white
- IC: 0–10V analog | I3: reserved
- Pin 3 blue
- DC GND
- Pin 4 black
- IC: Gate Low | I3: PNP/Active High Trigger
- Pin 5 gray
- IC: N/A | I3: 0–10V analog
Optical
- Wavelength / colour
- White, 365-395, 405, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940 nm
- Beam
- Focused spot
- Intensity
- Ultra
- Irradiance
- 92,000 Lux
Environmental
- IP rating
- IP50 (IP65 washdown option)
- Operating temperature
- 0 to +60°C
Electrical
- Supply voltage
- 24V DC
Application
- Applications
- Inspection / Machine Vision
