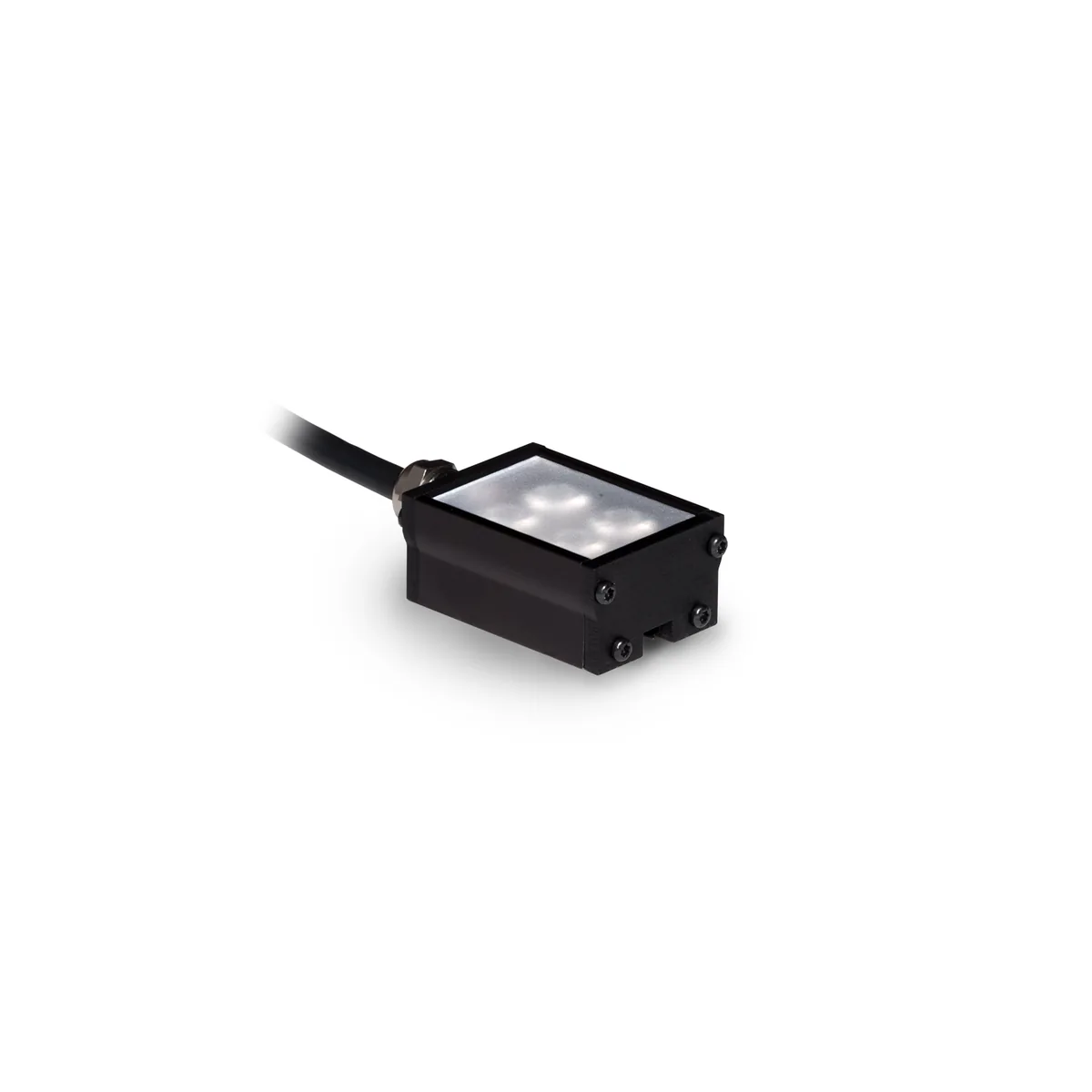

SL244 MicroBrite™ Spot Light
AI-SL244-WHigh-performance compact MicroBrite™ spot for short to medium-long distances - 94,000 Lux, 15 wavelengths.
- Wavelengths available
- White, 365 - 940
- Power supply note
- 24V DC ±10% typical
- Supply voltage
- 24V DC
About the AI-SL244-W
The SL244 is a MicroBrite single-LED spot light for inspection stations where there is very little room for a light. The body measures 60.1 mm by 32.2 mm by 20.0 mm and weighs 40 g, so it mounts inside a machine guard or on a moving axis without redesigning the fixture.
An M4 mounting nut channel on the base lets the position and angle be adjusted after installation, so the beam can be trimmed to the part without machining a new bracket. A washdown option seals the head to IP65 at 62.6 mm by 32.2 mm by 20.4 mm, keeping the same mounting pattern for lines that are hosed down.
A narrow 8 degree lens concentrates the output for close and medium working distances, and high power industrial grade LEDs run strobed or continuous with white light lumen maintenance of L70 at 50,000 hours. The SL244 range covers sixteen wavelengths from 365 nm to 940 nm and white, with IP50 or IP65 sealing and a diffuser option, certified to CE, RoHS and IEC 62471.
Specifications
Key Features
- Feature 1
- High-intensity illumination in compact package
- Feature 2
- Available in broad range of wavelengths
- Feature 3
- Washdown version available
- Feature 4
- M4 T-slot mounting
- Feature 5
- Multiple control options (C1, C5, IC, I3, I3S, Q4)
- Feature 6
- L70 = 50,000 hrs lumen maintenance
Key Applications
- Application 1
- Small footprint machine vision
- Application 2
- PCB inspection
Available Wavelengths
- Wavelengths available
- 365–395 (UV), 405, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940, White
- Wavelength count
- 18
- Uv available
- Yes (365–405 nm)
- Ir available
- Yes (850, 940 nm)
- Continuous illuminance klux at 100mm
- Max 60 klux @ 100 mm
- Continuous irradiance wm2 at 100mm
- Max 150 W/m²
- Strobe multiplier i3
- Up to 5×
- Strobe multiplier c5
- Up to 10×
Lensing / Optics
- Available lensing
- Fixed
- Light conditioning
- Diffuser
- Fwhm at 100mm
- 75 mm
Photobiological Risk (Iec 62471)
- Risk exempt wavelengths
- 850, 940 nm
- Risk group1 wavelengths
- 455, 470, 505, 530, 590, 625, 660, 730, WHI
- Risk group2 wavelengths
- 365, 375, 385, 395, 405
Form Factor
- Form factor
- Rectangular block
- Diameter outer
- 32.2 × 29.7
- Length depth
- 47.0 (sealed)
- Weight
- 42 g
- Mounting type
- M4 nut channel + M4 mounting screws
Housing & Materials
- Housing material
- Anodized Aluminum
Ingress Protection & Thermal
- Sealed version
- Yes (option W)
- Op case temp
- 0–60
- Op ambient temp
- 0–60
Cable
- Cable length
- 2 m (80" +6")
- Cable jacket
- 105°C PVC, foil shield w/ drain
- Alternative connector
- M12, M8
Power Supply
- Input voltage
- 24V DC
- Power supply note
- 24V DC ±10% typical
- Current ctrl whi
- 0.19 A
- Current ctrl vis
- 0.13–0.19
- Current ctrl ir
- 0.14 A
Control Options
- C1 connector
- Yes
- C5 connector
- Yes
- Ic inline
- Yes
- I3 inline
- Yes
- I3s inline
- Yes
- 24v driver
- Yes
- Q4 connector
- Yes
Inline Controller Specs
- Ic max power
- 25 W continuous
- Ic max current
- 1.25 A continuous
- I3 max power pulsed
- 125 W pulsed
- I3 max current pulsed
- 8 A pulsed
- Dimming input
- 0–10V analog
- Pin 1 brown
- 24V DC
- Pin 2 white
- IC: 0–10V analog | I3: reserved
- Pin 3 blue
- DC GND
- Pin 4 black
- IC: Gate Low | I3: PNP/Active High Trigger
- Pin 5 gray
- IC: N/A | I3: 0–10V analog
Optical
- Wavelength / colour
- White, 365-395, 405, 455, 470, 505, 530, 590, 625, 660, 730, 850, 940 nm
- Beam
- Focused spot
- Intensity
- Ultra
- Irradiance
- 94,000 Lux
Environmental
- IP rating
- IP50 (IP65 washdown option)
- Operating temperature
- 0 to +60°C
Electrical
- Supply voltage
- 24V DC
Application
- Applications
- Inspection / Machine Vision
