SL256 High Intensity Pattern Projecting Spot
AI-SL256-WUltra-high-performance spot with focus and pattern-adjustable projection, swappable reticles, C-mount lens compatible.
- Wavelengths available
- White, 455 - 625 nm
- Power supply note
- 24V DC ±10% typical
- Supply voltage
- 24V DC
About the AI-SL256-W

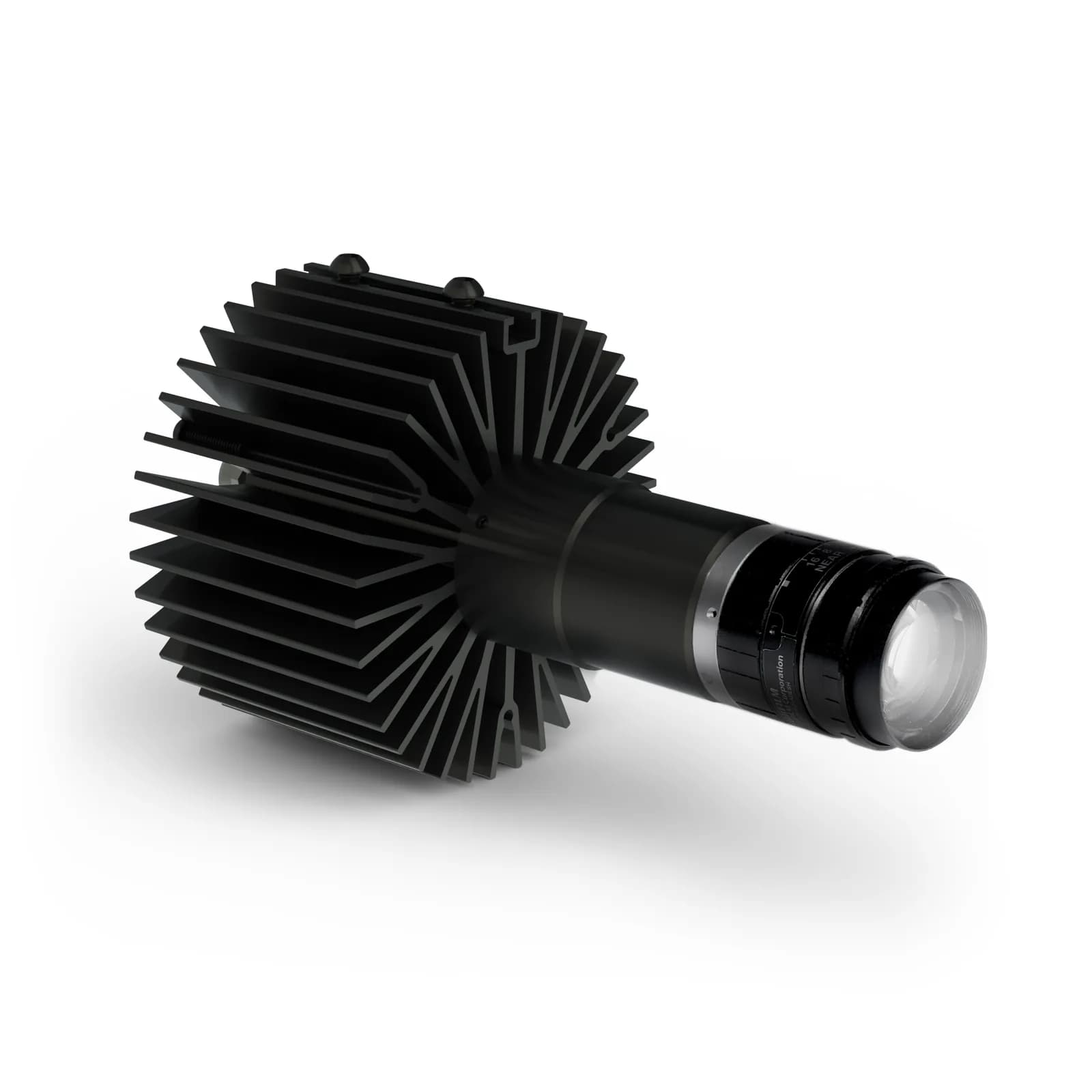

The SL256 is a pattern projecting spot light for reticle-based inspection where laser light is not acceptable, covering gauging, counting and positioning tasks. It takes any standard C-Mount vision lens, so the projection size can be dialled in at whatever working distance the station needs.
The 81.0 mm canister is 112.0 mm long and weighs 362 g, and an M4 mounting nut channel allows the head to be adjusted and aimed after installation. Five reticles are supplied as standard with custom designs available, so the projected pattern can be matched to the feature being measured.
High power industrial grade LEDs deliver uniform, high intensity output strobed or continuous, with white light lumen maintenance of L70 at 50,000 hours so a measured pattern stays consistent over time. Cable inline and external controllers give dimming, constant-on and strobing control from the machine. The SL256 range covers white, 455 nm, 530 nm and 625 nm, is rated IP50 and is certified to CE, RoHS and IEC 62471.
Specifications
Key Features
- Feature 1
- Structured light projector with high-intensity LED cluster
- Feature 2
- Up to 9× brighter than SL191 Pattern Projecting Spot Light
- Feature 3
- More than 3× brighter than leading competitive structured light projector
- Feature 4
- 4 wavelengths (455, 530, 625, White)
- Feature 5
- 5 reticle patterns: ROL, RCH, RML, RED, RGR (+ RKT kit)
- Feature 6
- IP50 rated
- Feature 7
- C1/C5/IC/I3/I3S control options
Key Applications
- Application 1
- Structured light / pattern projection
- Application 2
- Calibration and alignment
- Application 3
- Gauging and measurement
- Application 4
- 3D inspection
Available Wavelengths
- Wavelengths available
- White, 455, 530, 625 nm
- Wavelength count
- 4
- Uv available
- No
- Ir available
- No
- Continuous illuminance klux at 100mm
- 2.0 klx @ 200 mm (RCH, 25mm lens)
- Continuous irradiance wm2 at 100mm
- 5.5 W/m² @ 200 mm (RCH)
- Strobe multiplier i3
- Up to 5×
- Strobe multiplier c5
- Up to 10×
Lensing / Optics
- Available lensing
- Fixed spot with reticle projection
- Light conditioning
- Reticle patterns: ROL, RCH, RML, RED, RGR
- Fwhm at 100mm
- N/A – pattern projection
Photobiological Risk (Iec 62471)
- Risk group1 wavelengths
- 455, 530, 625, WHI
Form Factor
- Form factor
- Round canister with fin heatsink + lens barrel
- Diameter outer
- 81.0 (body) / 60.1 (lens barrel)
- Length depth
- 98.0 mm
- Weight
- 362.9 g
- Mounting type
- M4 nut channel + 2× M4 mounting screws
Housing & Materials
- Housing material
- Anodized Aluminum
Ingress Protection & Thermal
- Ip rating
- IP50
- Sealed version
- No
- Op case temp
- 0–60 (max 60°C @ 25°C ambient)
- Op ambient temp
- 0–50
Cable
- Cable length
- 2 m (80" +6")
- Cable jacket
- 105°C PVC, foil shield w/ drain
- Alternative connector
- M12, M8
Power Supply
- Input voltage
- 24V DC
- Power supply note
- 24V DC ±10% typical
- Current ctrl whi
- 0.794 A
- Current ctrl vis
- 0.592 A
Control Options
- C1 connector
- Yes
- C5 connector
- Yes
- Ic inline
- Yes
- I3 inline
- Yes
- I3s inline
- Yes
- 24v driver
- No
- Q4 connector
- No
Inline Controller Specs
- Ic max power
- 25 W continuous
- Ic max current
- 1.25 A continuous
- I3 max power pulsed
- 125 W pulsed
- I3 max current pulsed
- 8 A pulsed
- Dimming input
- 0–10V analog
- Pin 1 brown
- 24V DC
- Pin 2 white
- IC: 0–10V analog | I3: reserved
- Pin 3 blue
- DC GND
- Pin 4 black
- IC: Gate Low | I3: PNP/Active High Trigger
- Pin 5 gray
- IC: N/A | I3: 0–10V analog
Optical
- Wavelength / colour
- White, 455, 530, 625 nm
- Beam
- Structured pattern
- Intensity
- Ultra
- Irradiance
- N/A
Environmental
- Operating temperature
- 0 to +50°C
Electrical
- Supply voltage
- 24V DC
Application
- Applications
- Inspection / Machine Vision
