LUMIMAX · SPOT LIGHTS
Spot3W Spot Light
LMX-SPOT3WContinuous / switch operation, operating voltage 19 to 30 V DC; built-in controller; TTL (5 V DC) input for switch operation
- Light colour | wavelength
- 470 to 850 nm, white
- Power-LED
- 1 High Power LED
- Light field size
- 14
About the LMX-SPOT3W

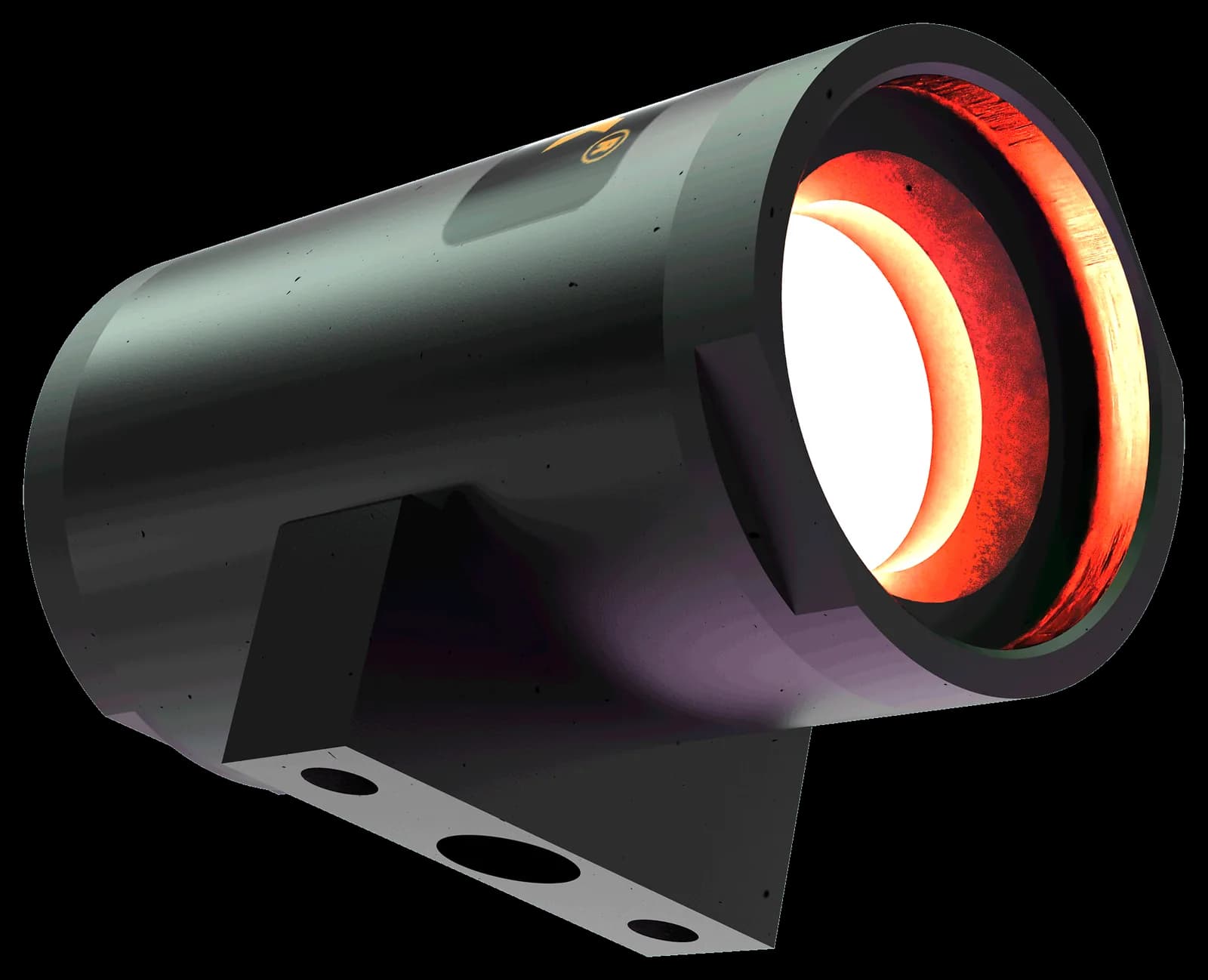

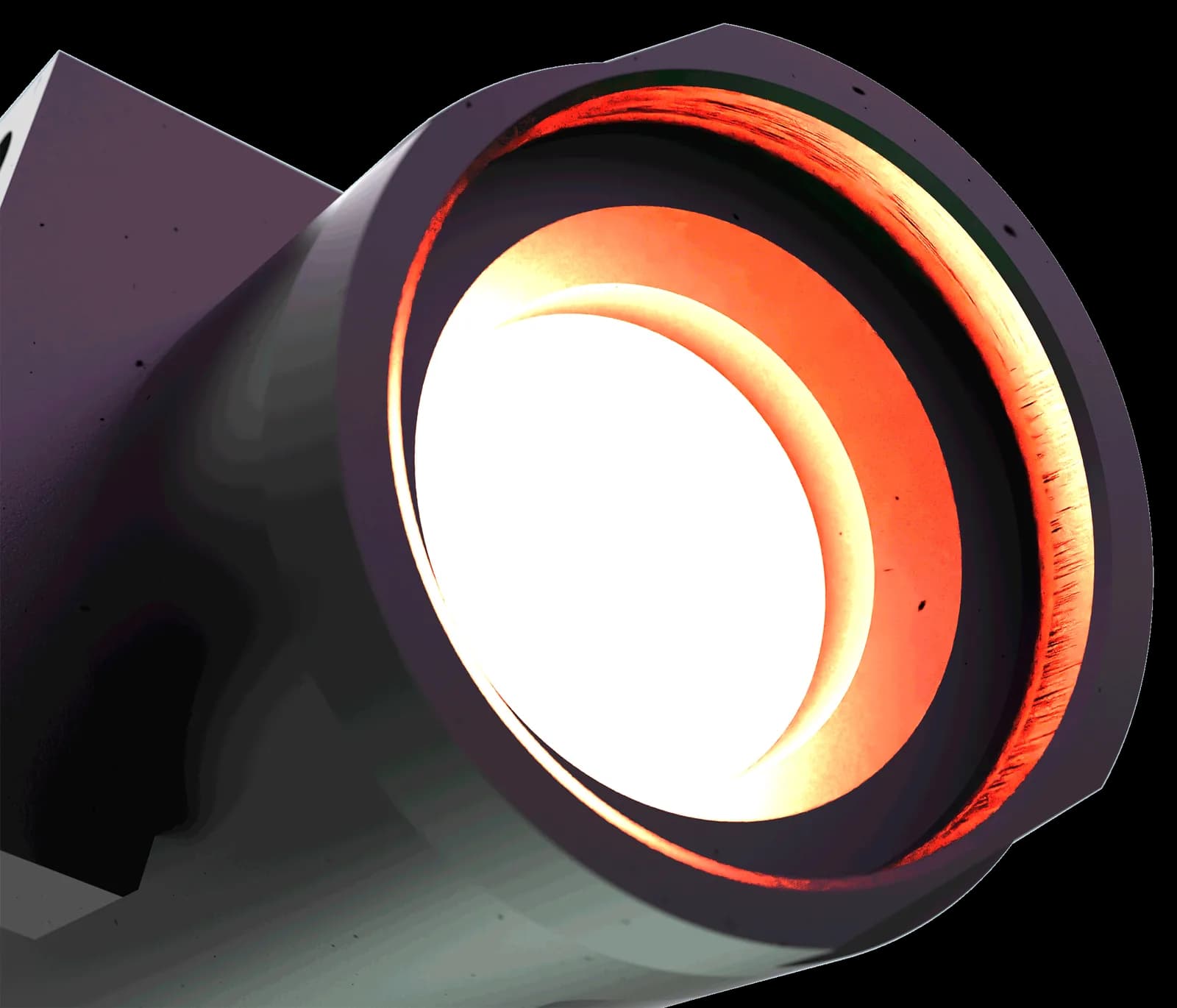

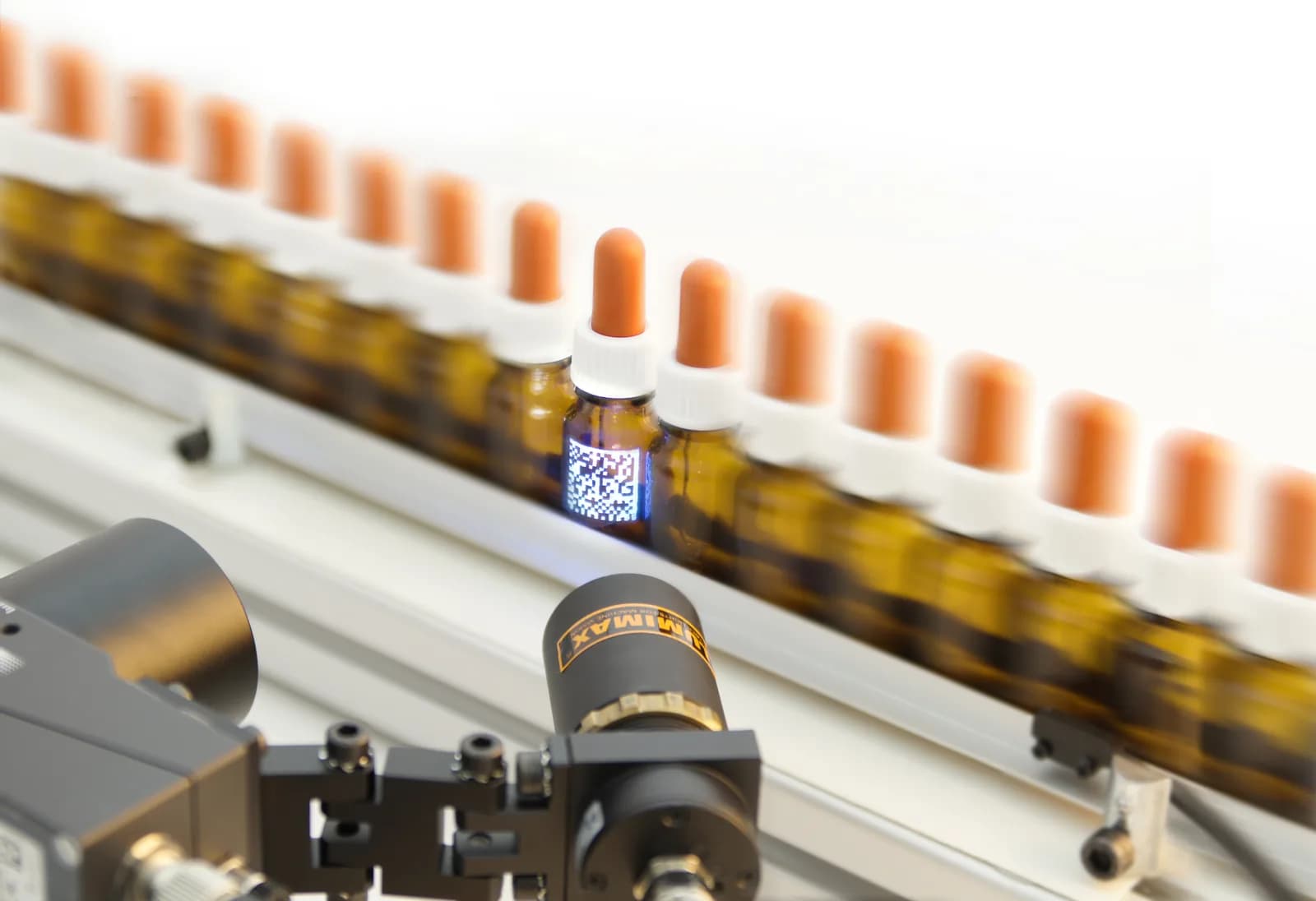

The Spot3W is the 3 W power class of the LUMIMAX high power LED spot lights, a compact single-LED unit with a 14 mm light area for targeted machine vision illumination. The lens in front of the LED is exchangeable, so a tight beam angle lights an object metres away and a broad angle gives homogeneous light at short range.

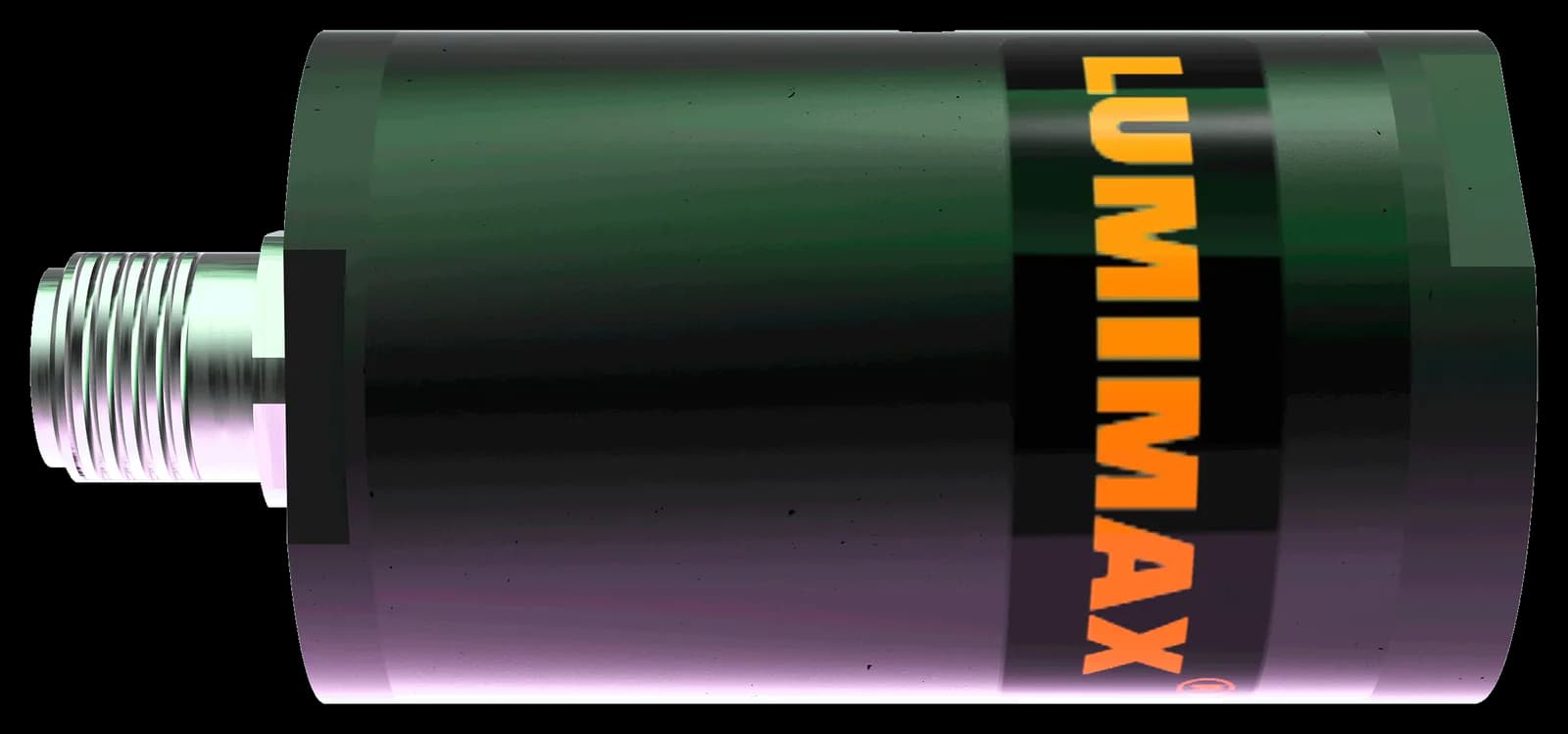

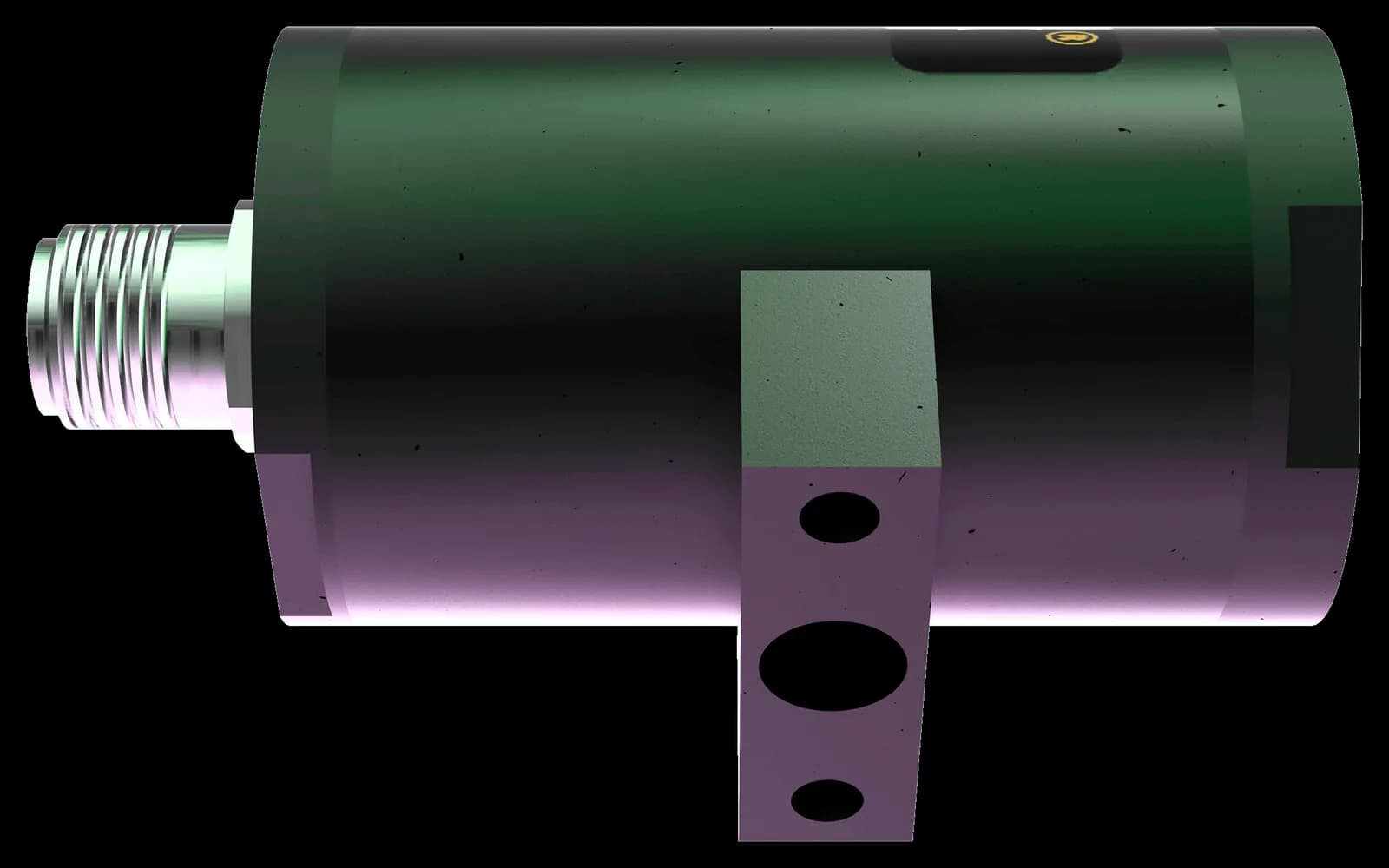

The anodised aluminium housing measures 74 mm by 43 mm by 35 mm at 200 g and is rated IP64, compact enough for a crowded station and sealed against splash and dust. A filter thread takes polarisation filters or bandpass filters for fluorescence work, and a C-Mount connector accepts focusing lenses.

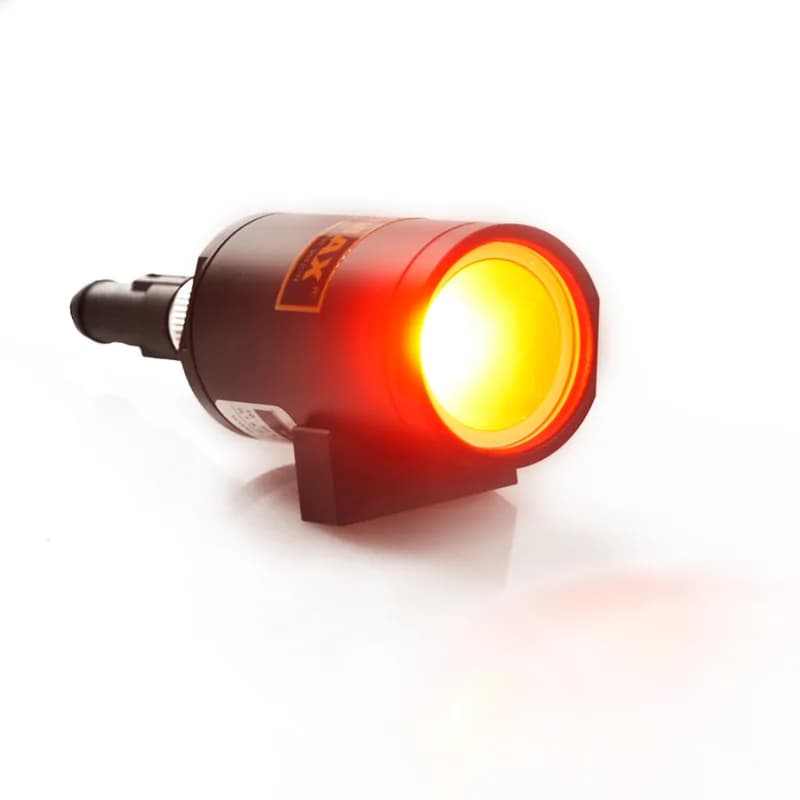

A representative red article gives 140 W/m2 at 0.2 m at 3 W and 0.20 A from a 19 to 30 V DC input, with an integrated controller for continuous and switching mode, so no control box is needed. The Spot3W range runs to 41 articles from 365 nm ultraviolet to 850 nm infrared plus three white colour temperatures, with lenses from 10 to 49 degrees.
Specifications
Operation
- Operating mode
- Continuous and switching mode
- controller
- Integrierter lightscontroller
Environment
- Ingress protection
- IP64
- Allowed ambient temperature
- 5 to 45 °C, non-condensing
- Operating temperature at 21°C
- 38 °C
- Risk Group (varies by part number)
- 0, 1, 2
Mechanical
- Dimensions (l x w x h in mm)
- 74 x 43 x 35 (l = 114 mm with cable incl. bending radius)
- Material housing | window
- Aluminium, anodised | PMMA
Electrical
- Operating voltage
- 19 to 30 V DC wide-range voltage input
- Maximum current consumption
- 0.20 A
- Maximum electrical power at light field (varies by part number)
- 2.6, 3 W
- Electrical connection
- Sensor/actuator cable with M12 4-pin plug
- TTL switching input
- High level = 3 to 30 V DC
- Switching mode
- Switching time follows the switching signal # Connect + ON / OFF and GND ON / OFF
- Continuous mode
- Assign + ON / OFF permanently with high signal, e. g. by applying to operating voltage # Connect GND ON / OFF
Optical
- Light field size (Ø in mm)
- 14
- Light colour | wavelength (varies by part number)
- Blue | 470 nm | Green | 528 nm | Infrared | 850 nm | Red | 625 nm | White | 6000 K | White | 6100 K | White | 9100 K
- Light guidance (varies by part number)
- Diffuse with 10° ancillary lense <_Blau_> | Diffuse with 12° ancillary lense <_Gelb_> | Diffuse with 14° ancillary lense <_Blau_> | Diffuse with 17° ancillary lense <_Gelb_> | Diffuse with 23° ancillary lense <_Weiss_> | Diffuse with 26° ancillary lense <_Weiss_> | Diffuse with 28° ancillary lense <_Pink_> | Diffuse with 31° ancillary lense <_Pink_> | (+6 more)
- Power-LED
- 1 High Power LED
- Illuminance at 200 mm
- 88–17632 lx across variants
- Illuminance at 500 mm
- 24–12829 lx across variants
- Illuminance at 1000 mm
- 16–1241 lx across variants
- Irradiance at 200 mm
- 1.4–97.2 W/m² across variants
- Irradiance at 500 mm
- 0.3–17.4 W/m² across variants
- Irradiance at 1000 mm
- 0.1–4.4 W/m² across variants
General
- Country of origin
- Federal Republic of Germany
- Weight (kg)
- 0.2
