ProPhotonix · UV DISINFECTION

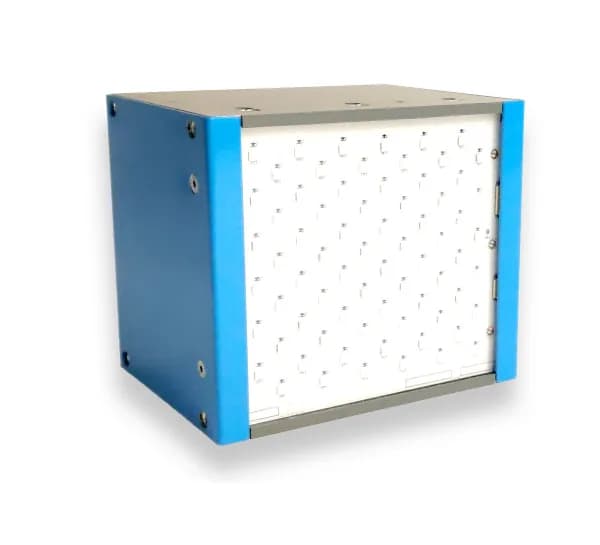

UVC-Pro LED Area Light
PPX-UVCPROCompact, stackable 265 nm UVC area light for machine vision, fluorescence and disinfection, up to 35 mW/cm².
- Wavelengths available
- 265 nm
- Feature 3
- Uniform light at 265 nm
- Application 4
- Quality control
About the PPX-UVCPRO
The UVC-Pro LED Area Light is a compact 265 nm UVC area light for machine vision, fluorescence and disinfection work, aimed at system designers building inspection and verification stations. A stackable form factor means several units butt together to cover a wider area, so the illuminated field grows without a custom light.
Uniform light distribution gives even illumination across the surface, which matters where a fluorescence signal has to be compared from one side of the field to the other. The compact design integrates easily into existing systems.
Operating at 265 nm with intensity up to 35 mW/cm2, the UVC-Pro gives the output needed to excite fluorescent markers and coatings reliably. LED technology removes the mercury lamp, which makes the light safer, longer-lasting and easier to dispose of. Applications include pharmaceutical and chemical analysis, defect detection, verification of coatings, adhesives and other fluorescent markers, quality control, sorting and packaging verification.
Specifications
Key Features
- Feature 1
- Intensity up to 35 mW/cm²
- Feature 2
- Compact, stackable design
- Feature 3
- Uniform light at 265 nm
- Feature 4
- Compact, stackable design
- Feature 5
- Eliminates need for mercury lamps
Key Applications
- Application 1
- Pharmaceutical & chemical analysis
- Application 2
- Inspection / defect detection
- Application 3
- Verification of coatings & fluorescent markers
- Application 4
- Quality control
- Application 5
- Sorting
- Application 6
- Packaging verification
Maximum Intensity / Dose
- Peak irradiance / max_intensity
- 35 mW/cm² at 100 mm WD
Available Wavelengths
- Wavelengths available
- 265 nm
- Uvc disinfection wavelengths
- 265 nm
Optical Configurations
- Optical configs available
- Lensed (LF1)
- Collimated option
- Lensed only
Working Distance & Performance
- Factory set working distance
- 0–100 mm range
- Nominal intensity D4 or best 395nm
- 35.7 mW/cm² at WD=0
Spectral Measurement
- Peak wavelength tolerance
- ±5 nm
Housing & Form Factor
- Module length
- 103.6 × 95 × 120 mm
Cooling
- Cooling type
- Active cooling
- Venting options
- Integrated fan
Environmental
- Humidity range rh
- relative humidity 60% - 80% non-condensing
Media
