Z Fiber Module (ZFSM)
Z Fiber Module (ZFSM)Fibre-coupled laser that separates the light source from the optical head.
- Wavelengths available
- 450 - 660
- Power consumption
- <15
- Supply voltage vdc
- 5–30
About the Z Fiber Module (ZFSM)

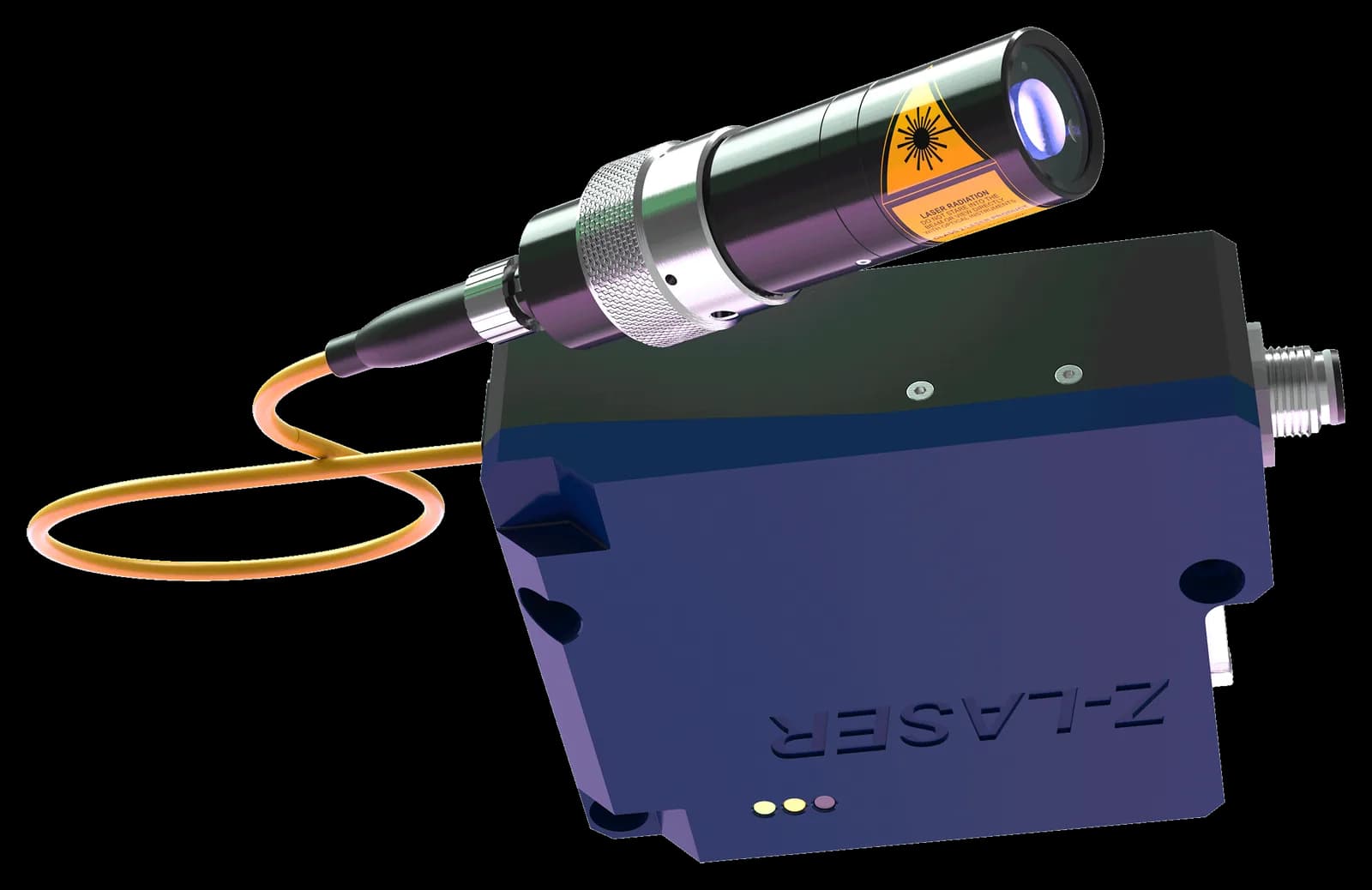

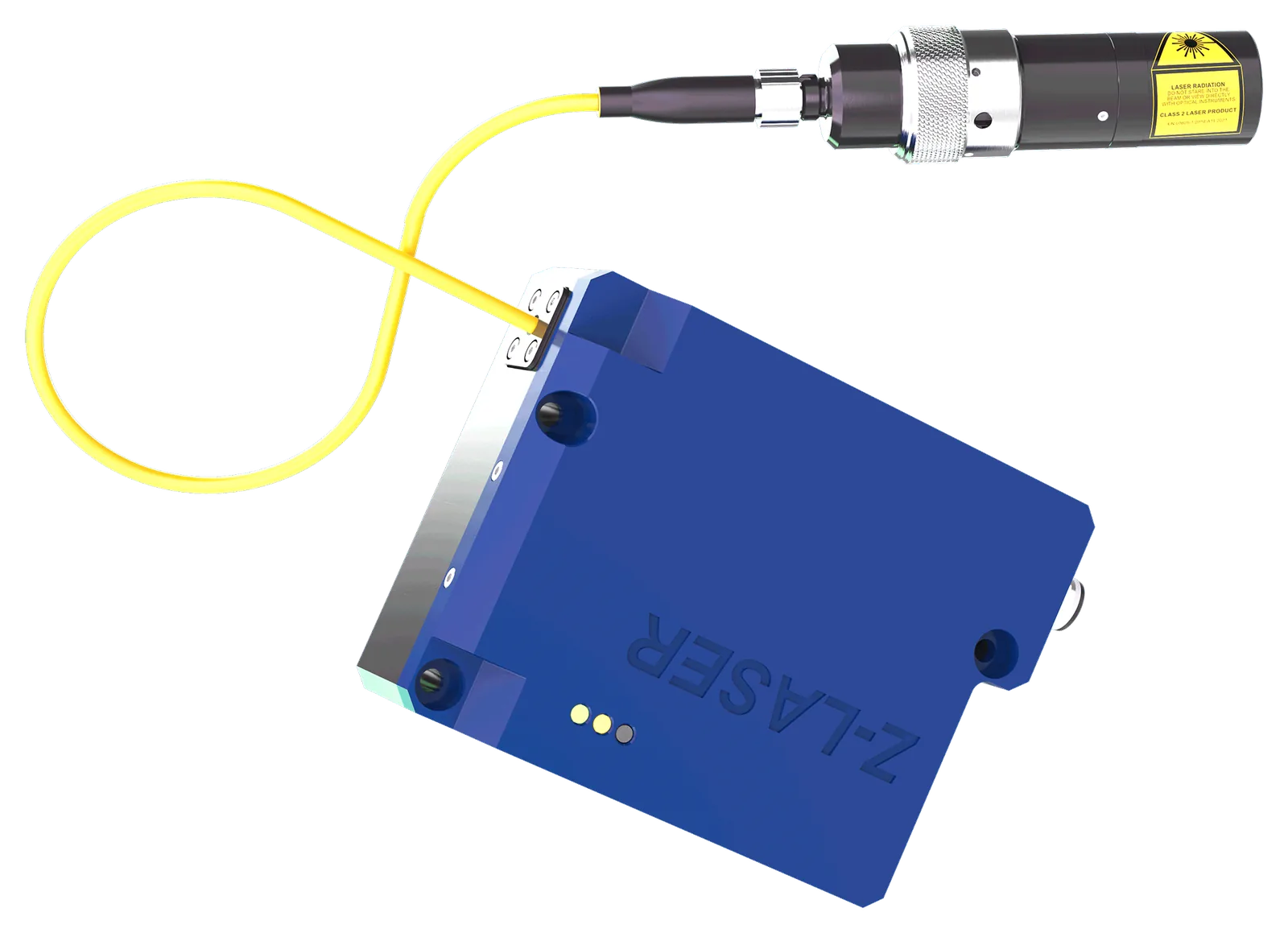

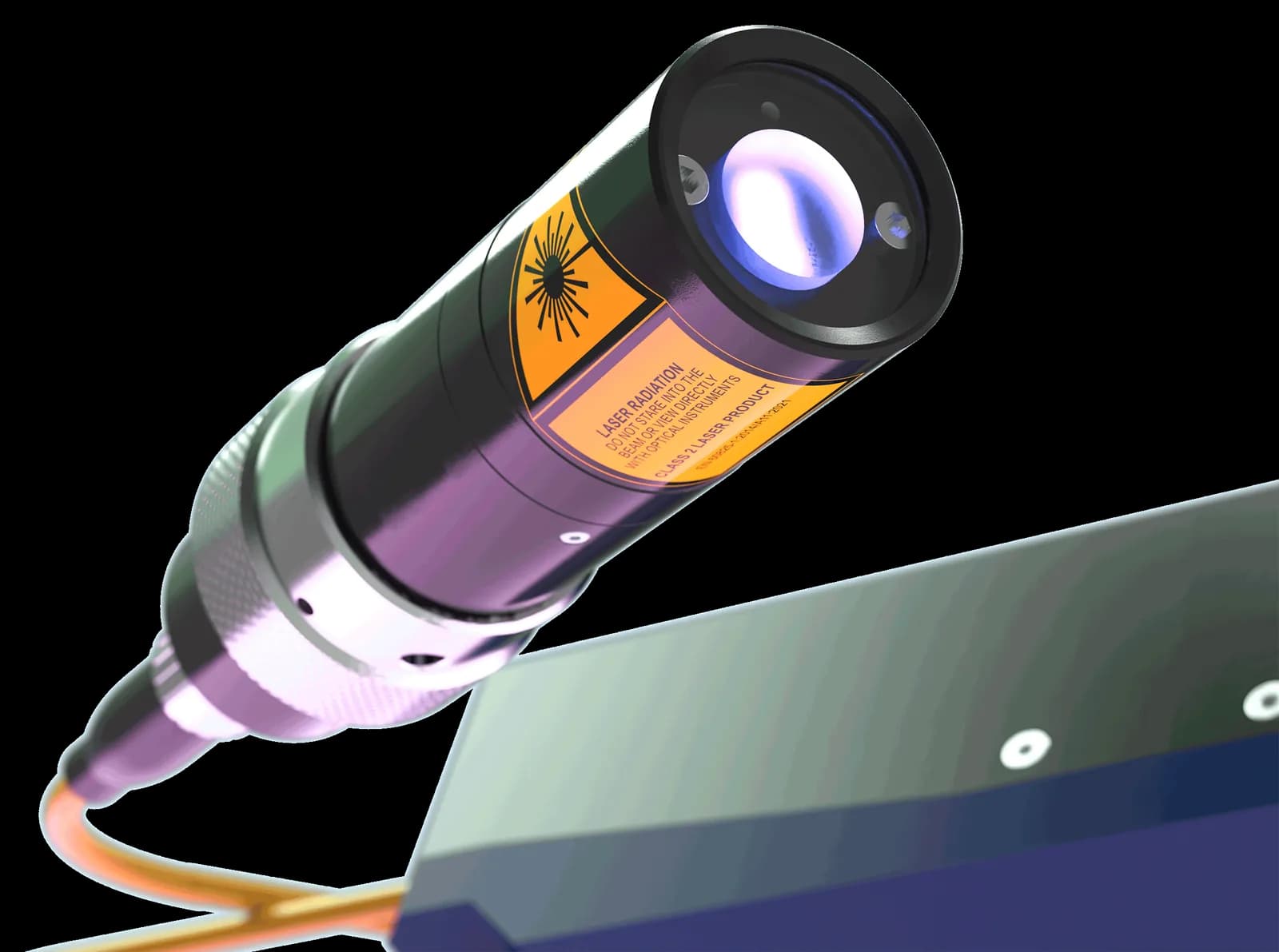

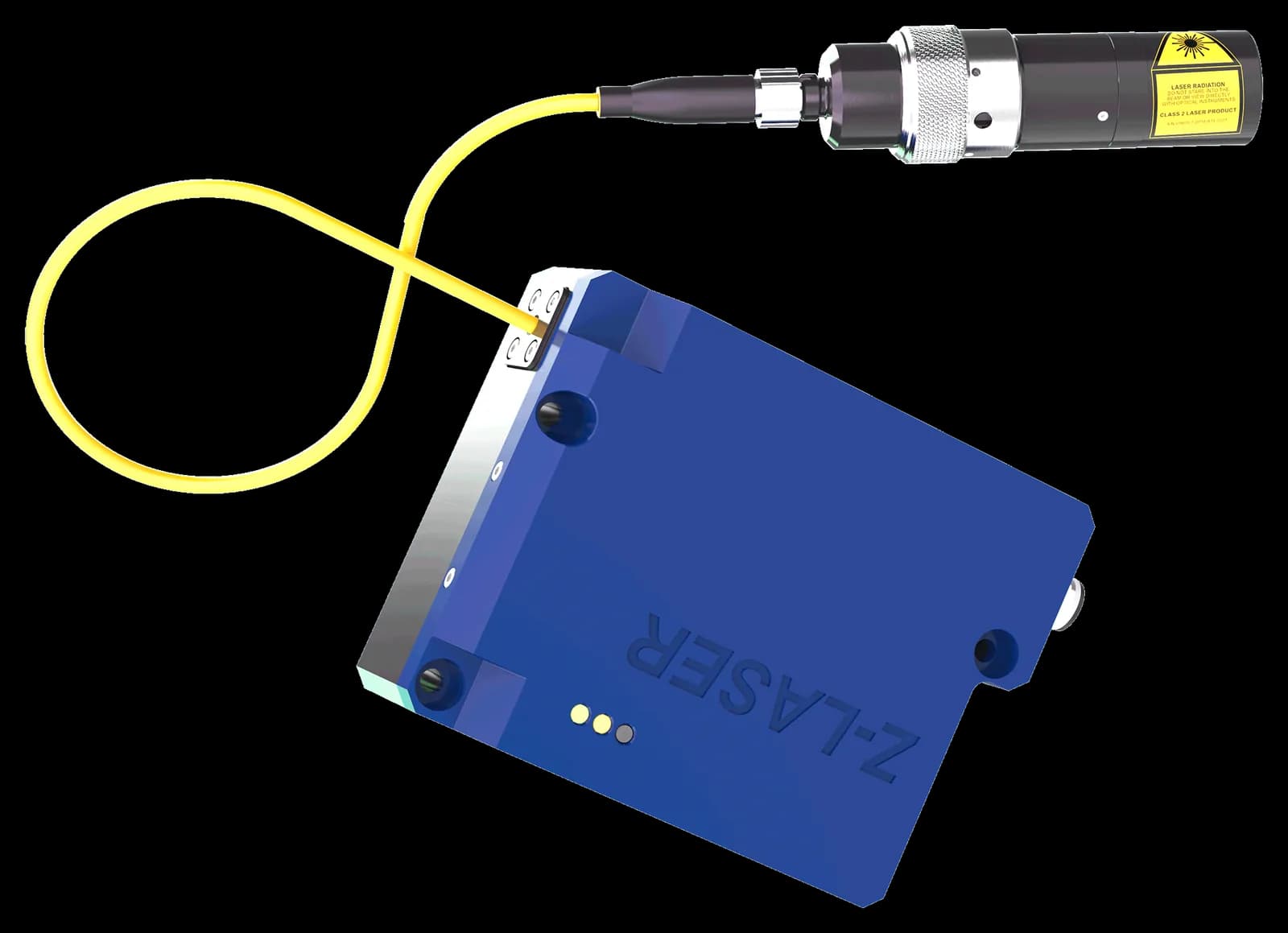

The ZFSM-Mini is a high-end fiber laser with active cooling for high-resolution measurement, medical devices and analytical instruments. Light travels down a single-mode fiber with an FC/PC connector into a separate 20 mm optical head, so the diode and its heat sit away from the measurement point.
Micro-optics on that head produce lines under 15 micrometres wide with M2 below 1.05, uniformity of plus or minus 10 percent and straightness inside 0.05 percent, which is what a fine profile measurement needs. Micro-optics give 10 and 20 degree fan angles over 40 to 150 mm, and standard optics add 30 to 75 degrees over 150 to 10,000 mm.
An integrated thermoelectric cooler power-stabilizes the source, holding wavelength drift under 1 nm and one-hour power stability inside 1 percent, and fail-safe operation is provided for critical applications. Wavelengths are 450 nm and 520 nm to 15 mW and 640 nm and 660 nm to 35 mW, on 5 to 30 VDC at under 15 W with I2C and RS-232. Classification follows IEC 60825-1:2014 and IEC 60601-2-22 for laser classes 3R and 3B.
Specifications
Key Features
- Feature 1
- Optical output power up to 35 mW
- Feature 2
- Single-mode fiber with FC/PC connector
- Feature 3
- Unique line uniformity and µ-optics for thin lines (<15 µm 1/e²)
- Feature 4
- Red, green and blue wavelengths
- Feature 5
- Analog and simultaneous TTL modulation up to 200 kHz
- Feature 6
- Fail-safe for critical applications (e.g. medical)
- Feature 7
- OEM-version without housing and TEC (PCB-version)
Key Applications
- Application 1
- Machine Vision
- Application 2
- Triangulation
- Application 3
- Analytics
- Application 5 (website)
- Medical & life science setups
Wavelength
- Wavelengths available
- 450, 520, 640, 660
- Wavelength tolerance
- ±10 (450), −5/+10 (520), ±5 (640/660)
- Wavelength drift
- <1 nm (temperature stabilized)
Output Power
- Max output power
- 15 (450/520 nm) / 35 (640/660 nm)
- Spatial mode
- Single transversal mode
- Laser operation mode
- Power stabilized (integrated TEC)
Beam / Line Quality
- Boresight error
- <3 (typ.)
- Pointing stability
- <10 µrad/(°C·K)
- Line straightness
- <0.05
- Line uniformity
- ±10 (typ.)
- Optics configuration
- µlp / lp (µ-line / line Powell)
Focus & Fan Angle
- Focus type
- Fixed focus
- Focus range
- 40–150 (µlp) and 150–10,000 (lp)
- Fan angles
- 10, 20 (µ-optics); 10–75 (standard)
- Projection type
- Circular dot
Stability
- Long term power stability
- <1% over 1 h
- Rms noise
- <0.5 (20 Hz–20 MHz)
- Warm up start up time
- <5 s
Modulation
- Digital modulation max
- 20 kHz
- Analog modulation bandwidth
- <100 kHz
- Analog active range vdc
- 0–2
Mechanical
- Net weight
- 60 g (head) / 410 g (housed electronics)
- Dimensions lxbxh
- 105.25 × 82.5 × 36.6 (housing); 70 × 60 (PCB version)
- Diameter head
- 20 mm
- Housing material
- Aluminum (black anodized)
- Protection class ip
- IP 50
- Mounting
- 20 mm mount
- Conformity
- CE (2014/30/EU, 2011/65/EU, 2006/25/EU)
- IP rating
- IP50
- Dimensions
- Ø20 mm head
- Weight
- 60 g (head)
Cooling
- Cooling
- Active cooling integrated (TEC); mount on heat sink
Electrical
- Supply voltage vdc
- 5–30
- Power consumption
- <15
- Operating current
- Max. 3 A
- Protection electrical
- Over-temperature protection, LED pre-failure indicator, reverse polarity & transient protection (ESD, burst & surge)
- Electrical isolation
- Potential-free housing

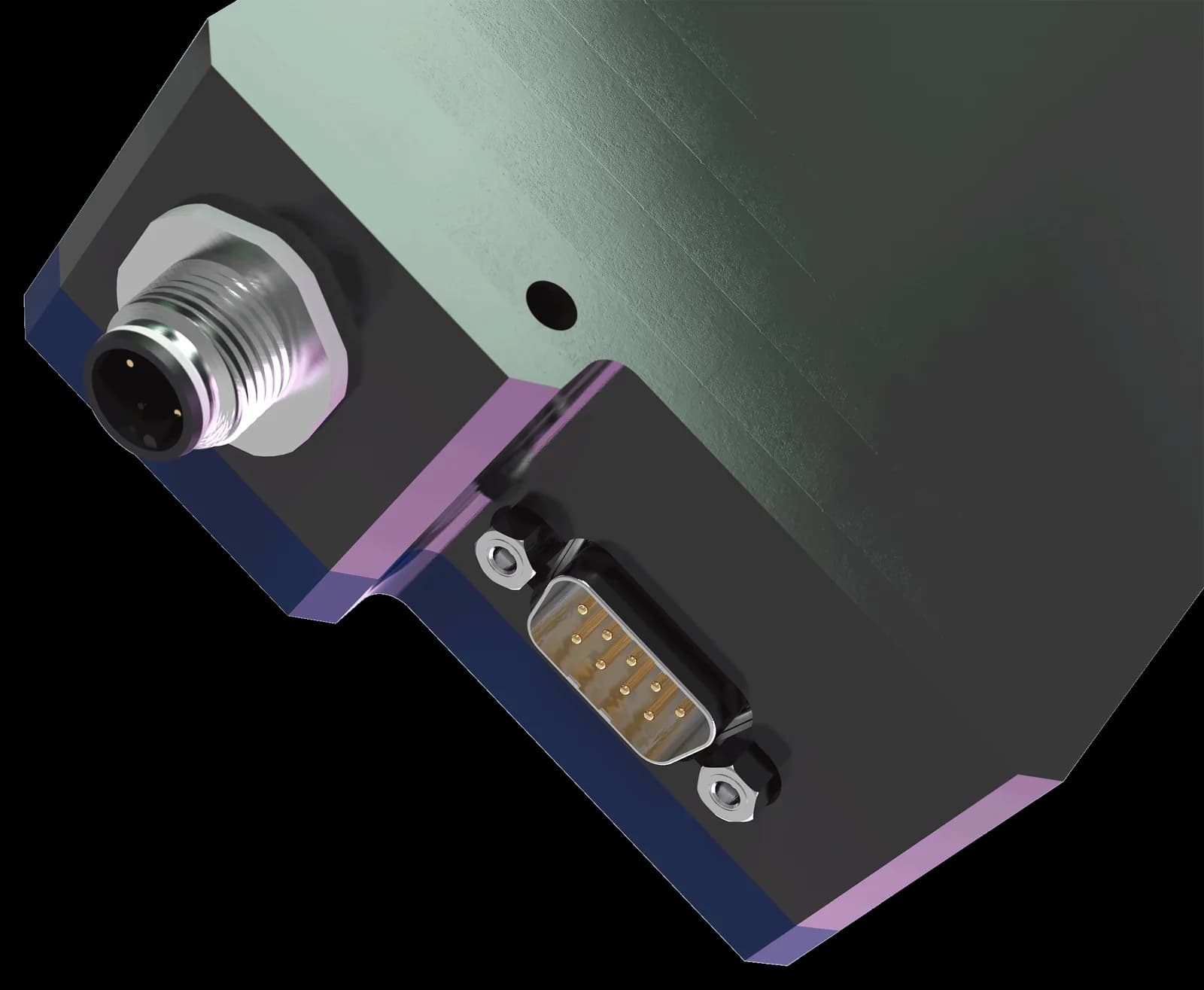

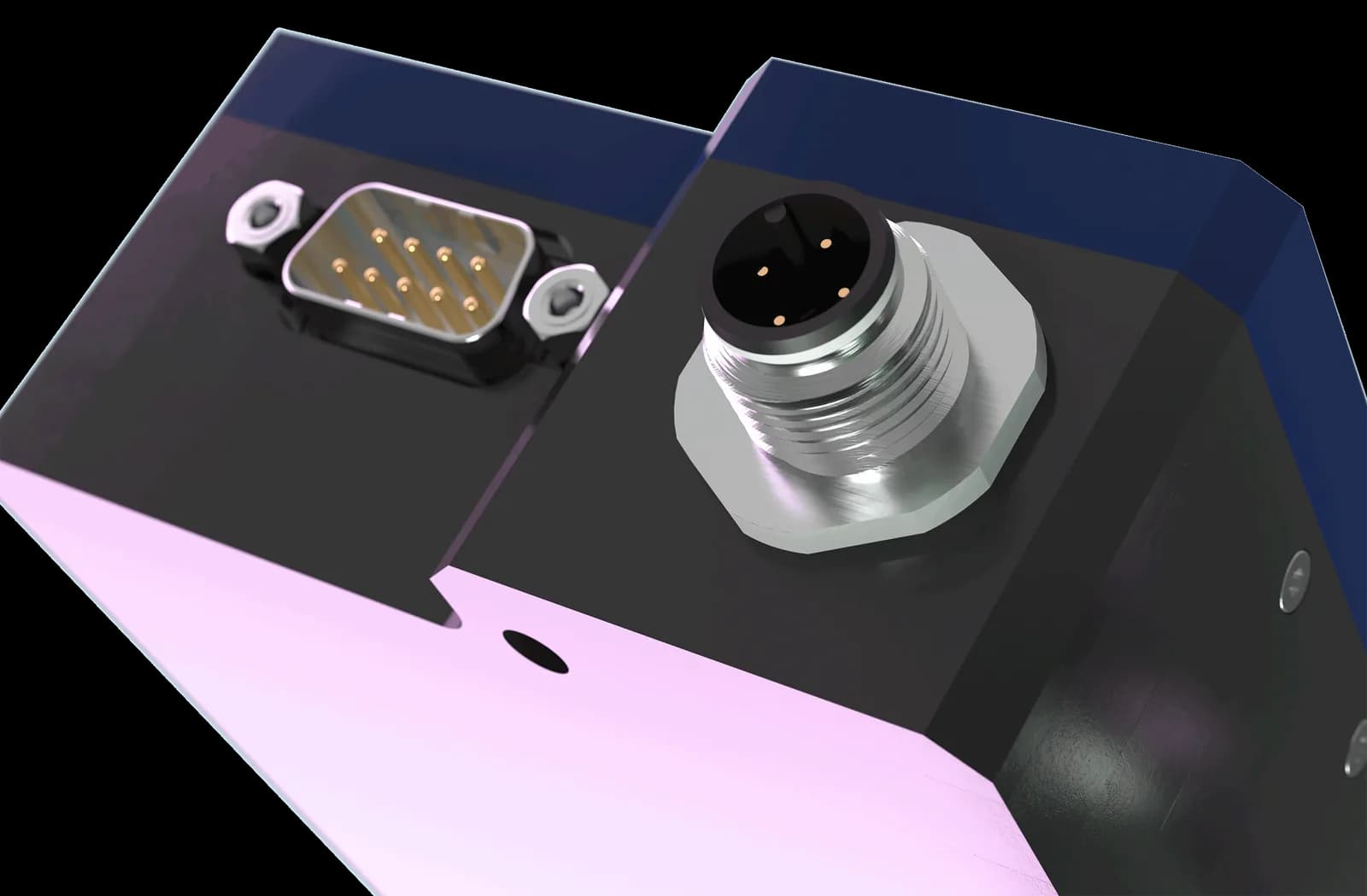

- Connection type
- M12 4-pin + Sub-D 9-pin
- Communication interfaces
- I²C, RS-232
- Control
- Digital
- Interface
- RS-232 / I²C / TTL / Analog
Environmental
- Operating temperature
- −10 to +50 (housed) / 0 to +50 (PCB)
- Storage temperature
- −20 to +80
- Humidity max
- <90, non-condensing
Software
- Gui software
- Yes — GUI, serial communication (I²C / RS-232)
Optical
- Wavelength range
- 450–660 nm
- Max output power
- Up to 35 mW
- Beam shapes
- Line / Spot
- Line quality
- Uniform
Thermal
- Operating temperature
- −10°C to +50°C
Performance
- Boresight accuracy
- <3 mrad
Application
- Best for
- Spectroscopy & precision analytics
Media
