Z-LASER · POSITIONING

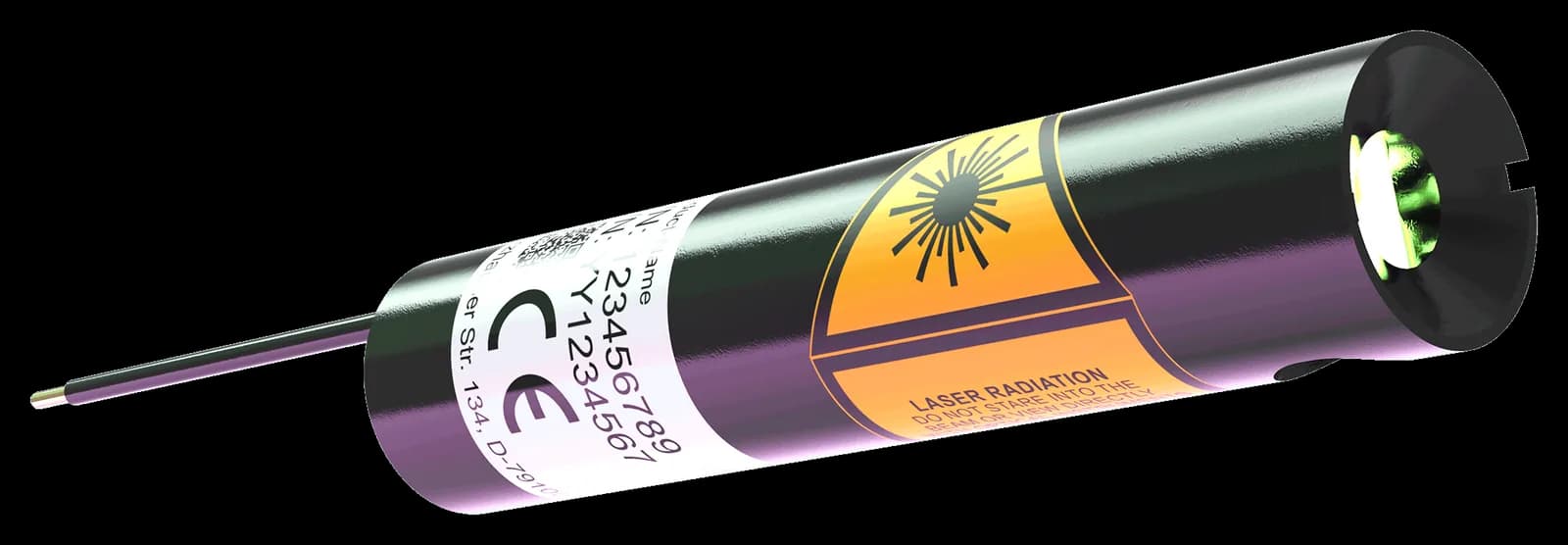

ZD Module
ZD ModuleØ11mm positioning laser up to 15 mW with line, dot or cross optics, 5–24 VDC supply.
- Wavelength range
- 520 nm / 635 nm
- Max output power
- 1–15 mW
- IP rating
- IP40
About the ZD Module
Introduction

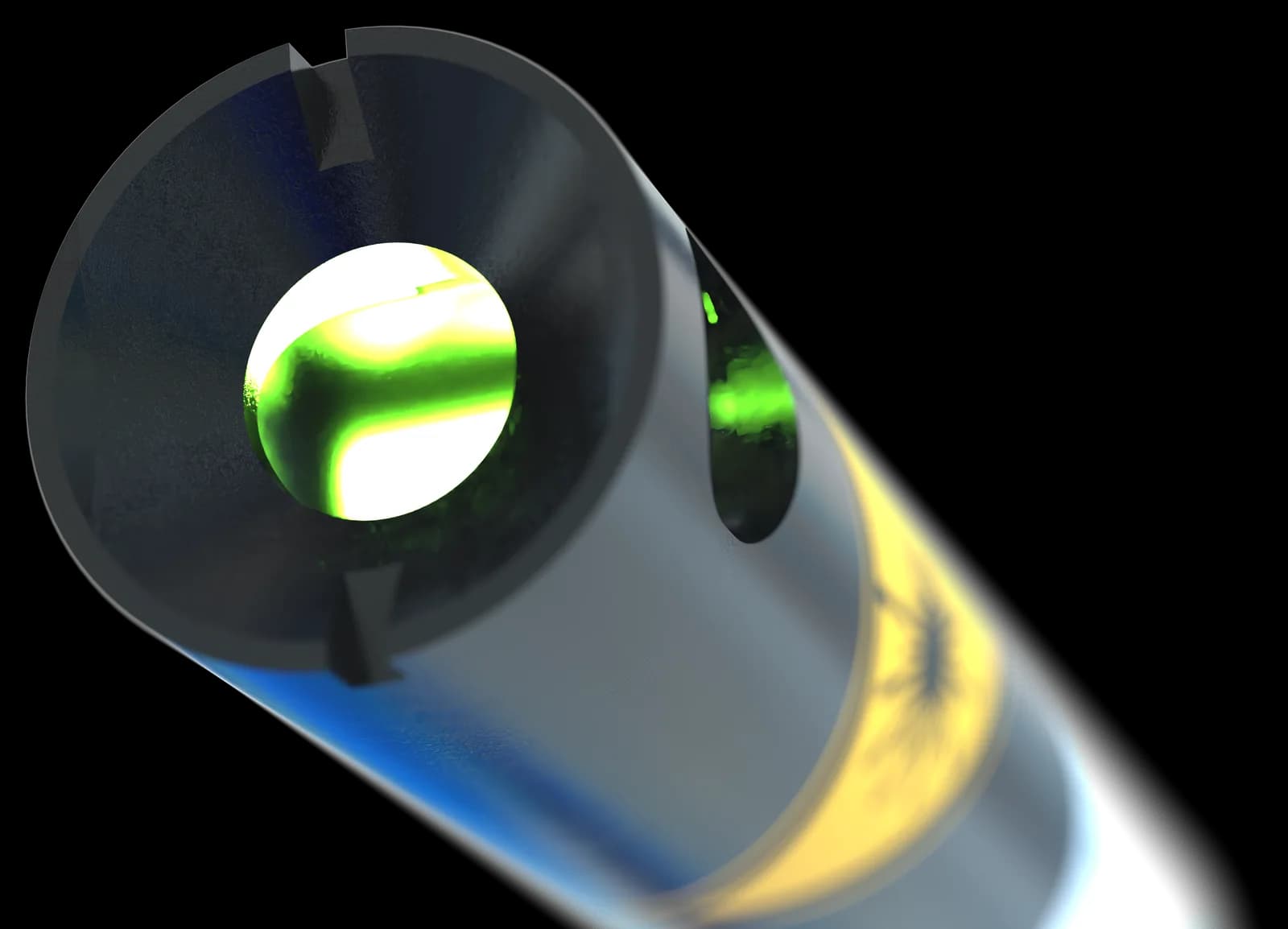

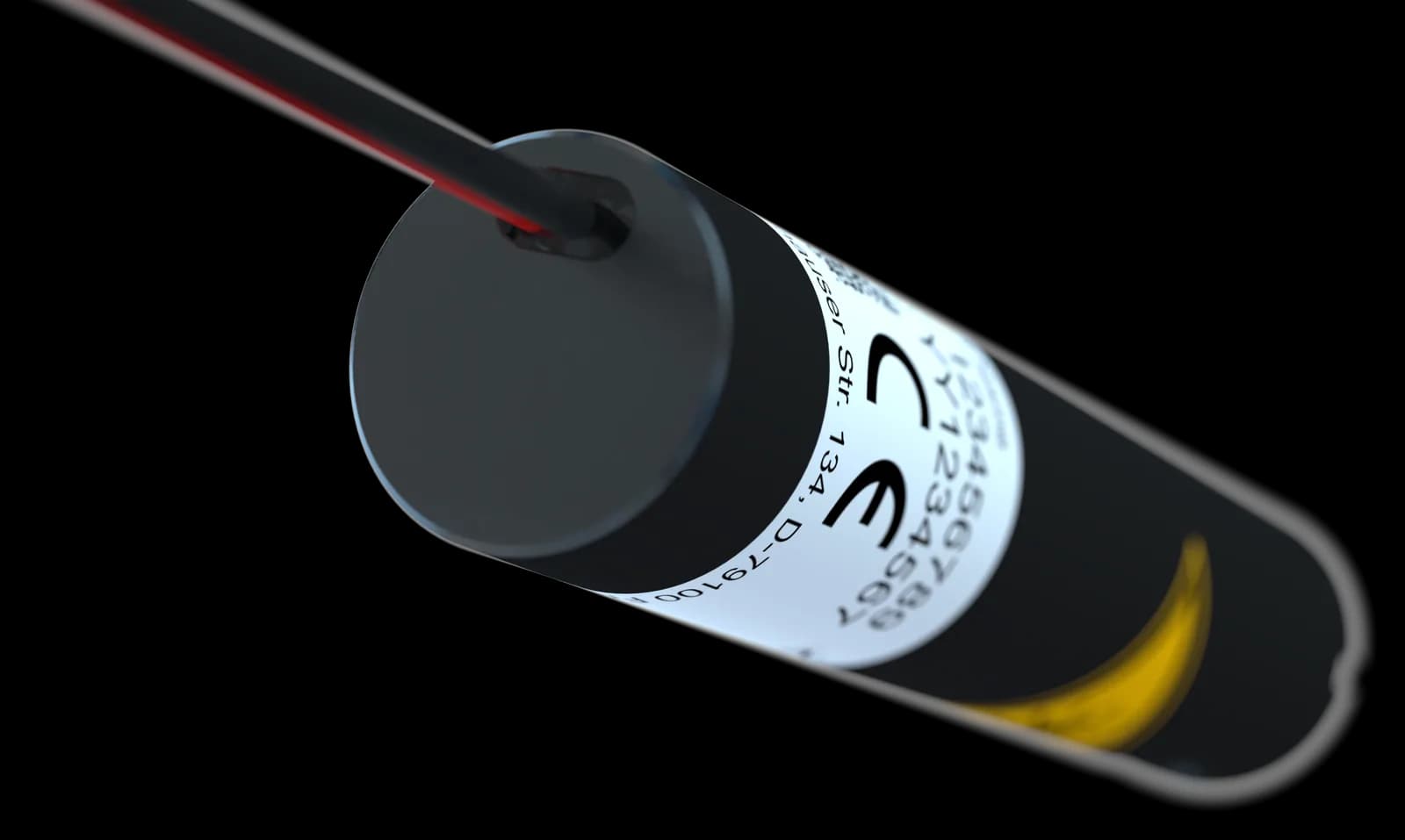

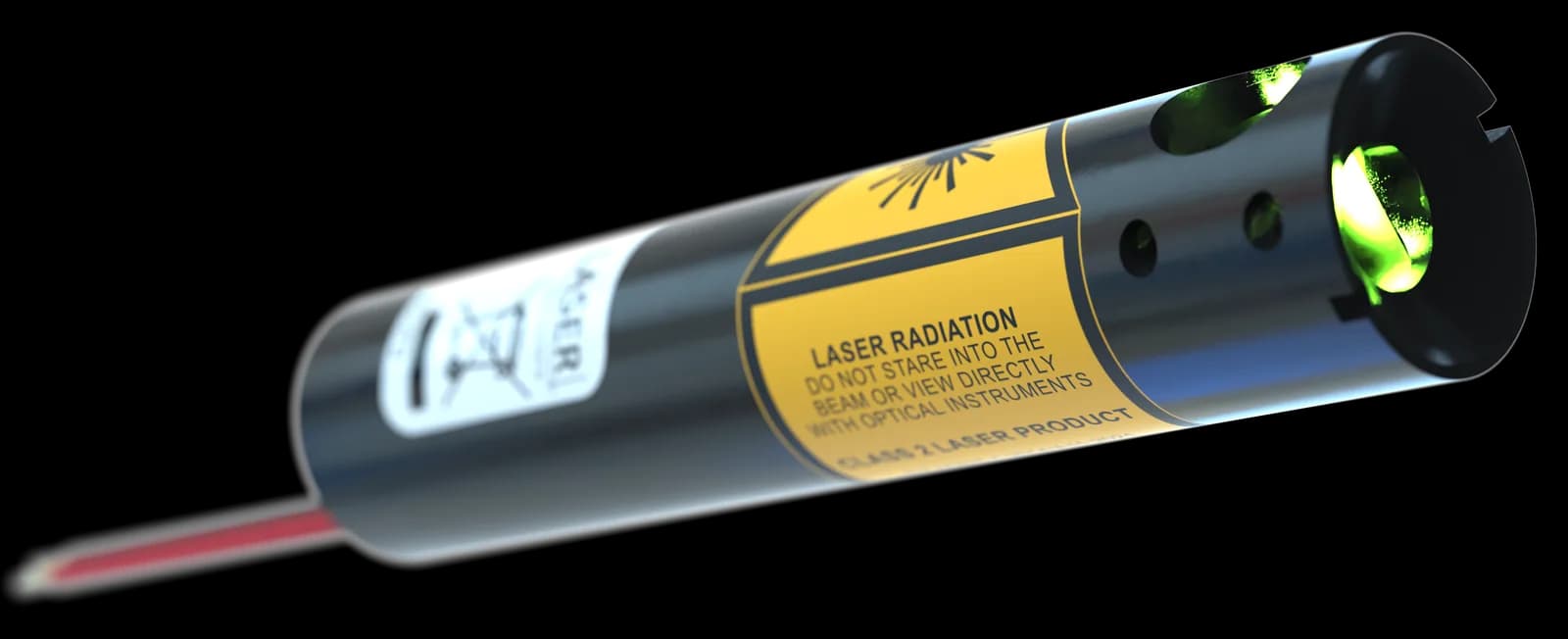

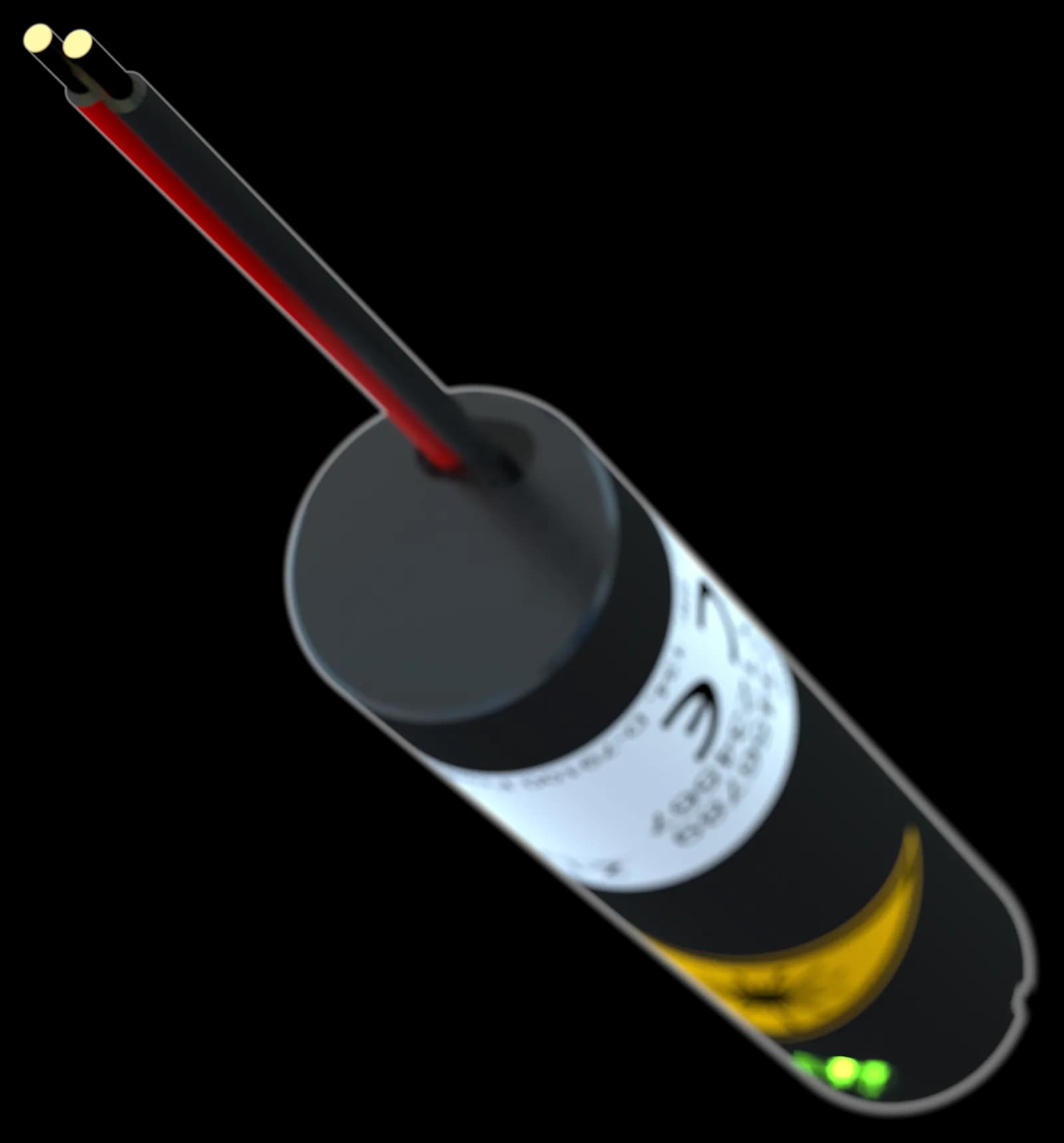

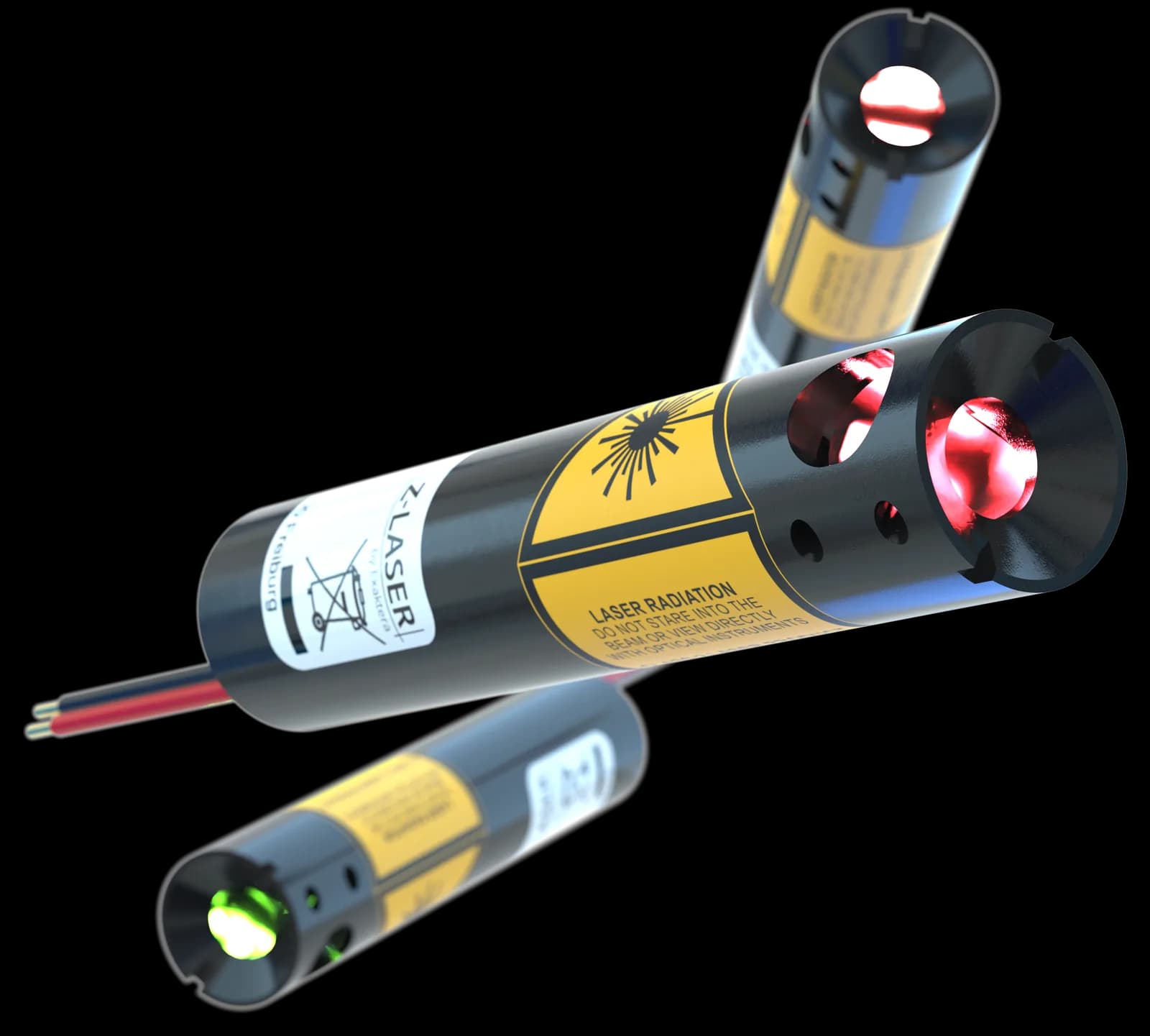

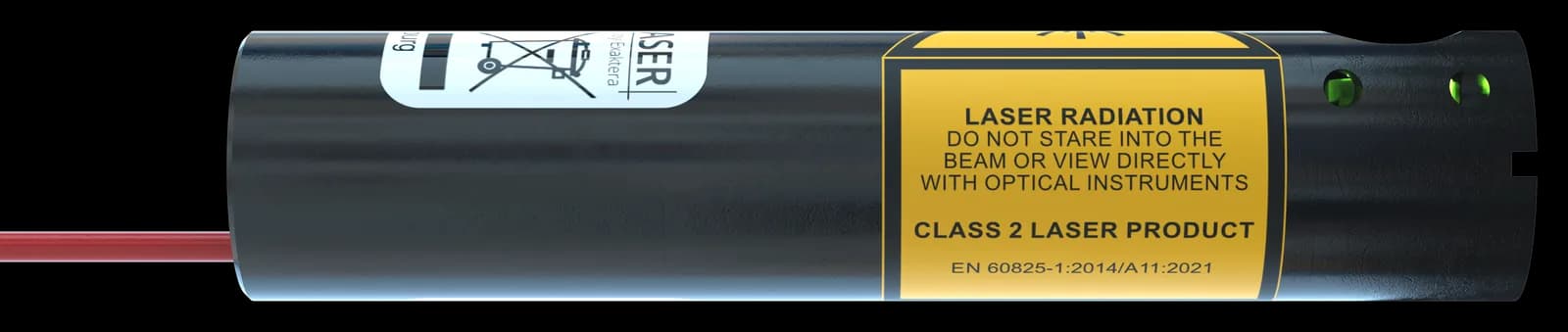

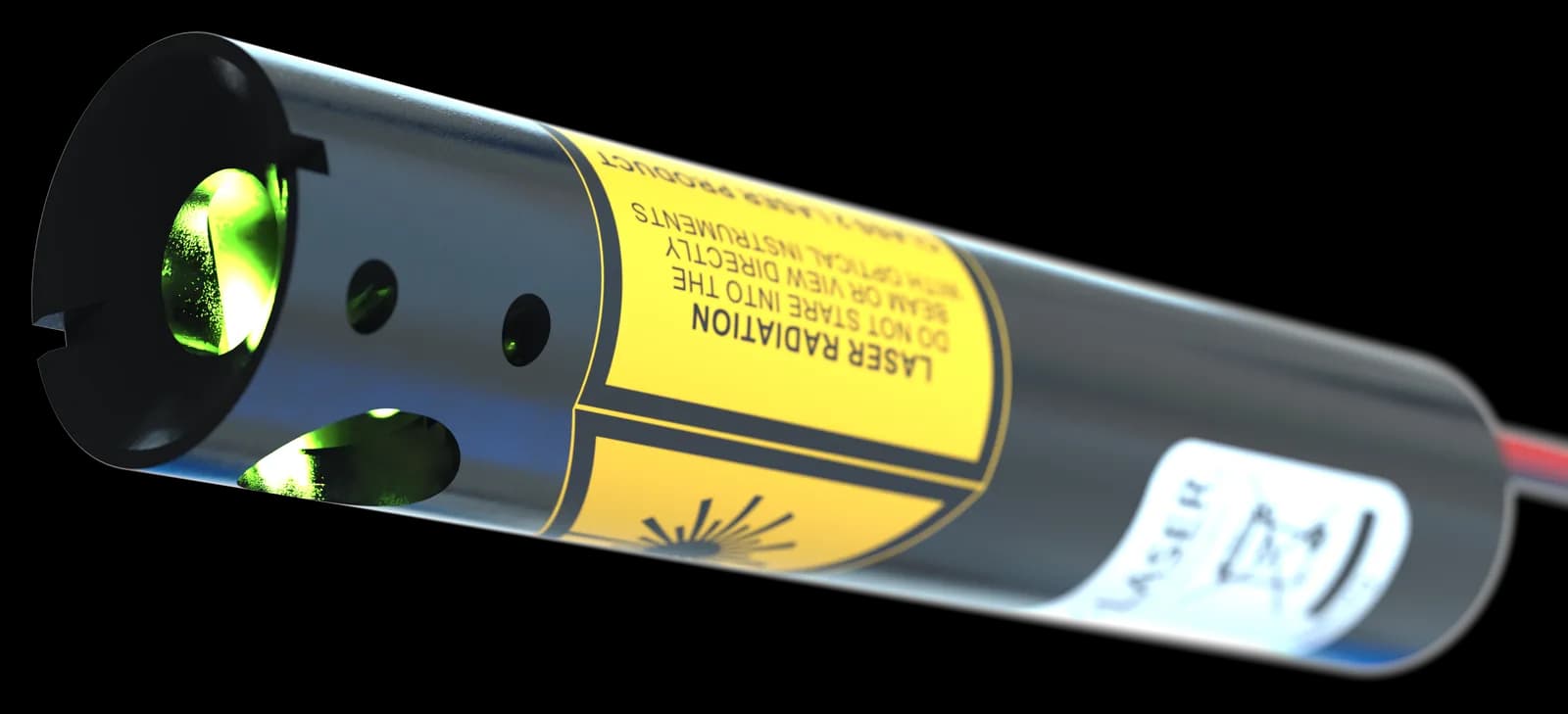

ZD is the small universal module: Ø11 mm × 51 mm, 35 g, in green 520 nm or red 635 nm.
Its useful feature is the supply. 5 to 24 V DC covers almost every voltage rail a machine already has, so integrating it rarely means adding a power supply.
Applications
Alignment and positioning in woodworking, stone and textile work — trades where a projected line marks a cut and an operator works to it.
A note on protection
IP40 keeps fingers and coarse dust out; it does not keep water out. The spot optic drops this to IP30. For a wet or washdown environment, look to the IP65 and IP67 modules in the range.
Where it fits
ZD is the one to reach for when space and supply voltage are the constraints. ZPT-F and ZRG-F are larger, IP65, focusable and considerably more powerful; ZR adds a mains input and a rotatable mount.
Specifications
Optical
- Wavelength range
- 520 nm / 635 nm
- Max output power
- 1–15 mW
- Beam shapes
- Spot / Line / Cross
- Line quality
- Gaussian
Safety
- Laser class
- 2–3R
Thermal
- Operating temperature
- −10°C to +40°C
Mechanical
- IP rating
- IP40
- Dimensions
- Ø11 mm × 51 mm
- Weight
- 35 g
Electrical
- Control
- Analog
- Interface
- CW / TTL modulation
Application
- Best for
- Alignment & positioning
