Z-LASER · POSITIONING
ZF-pe-F Module

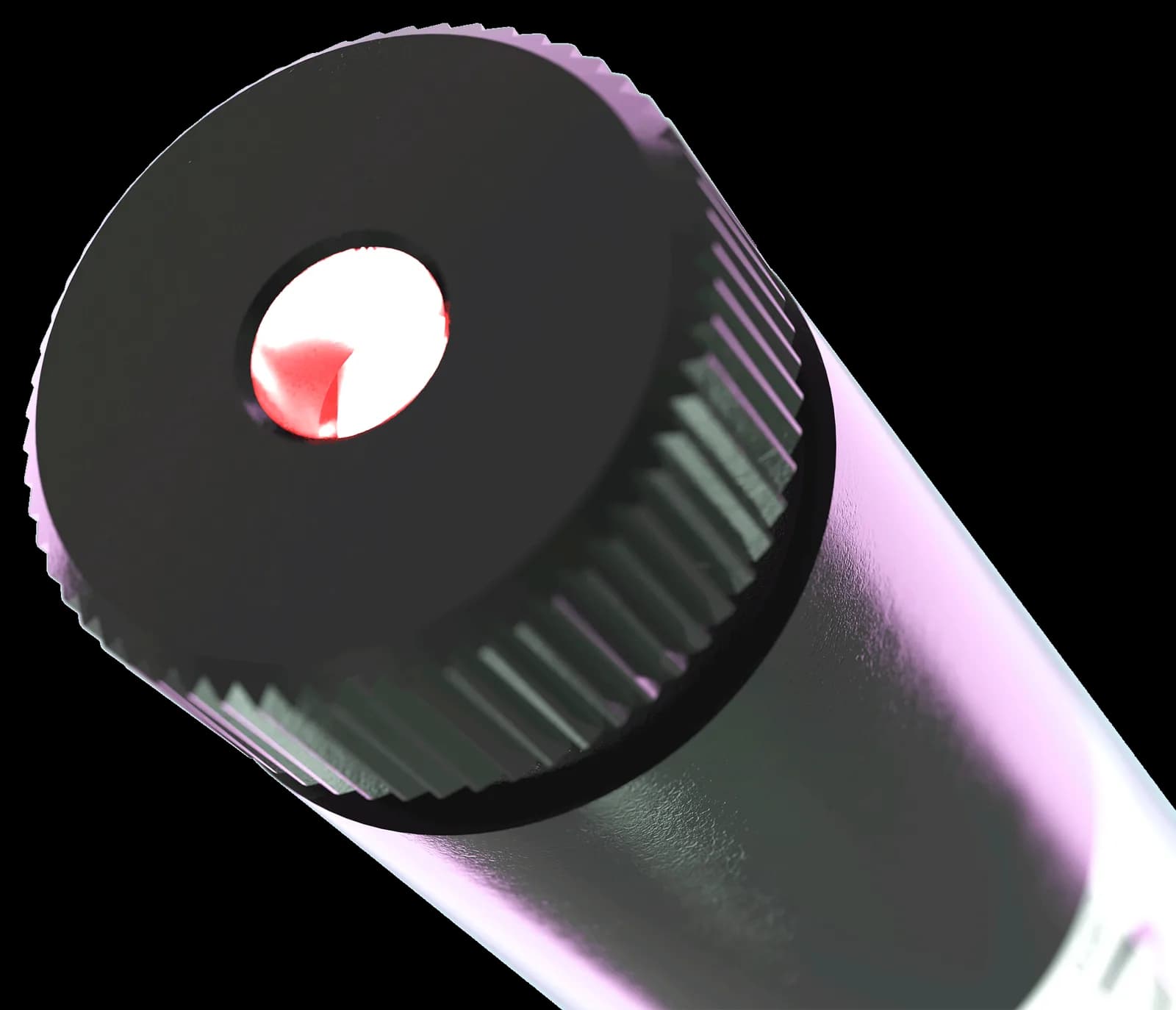

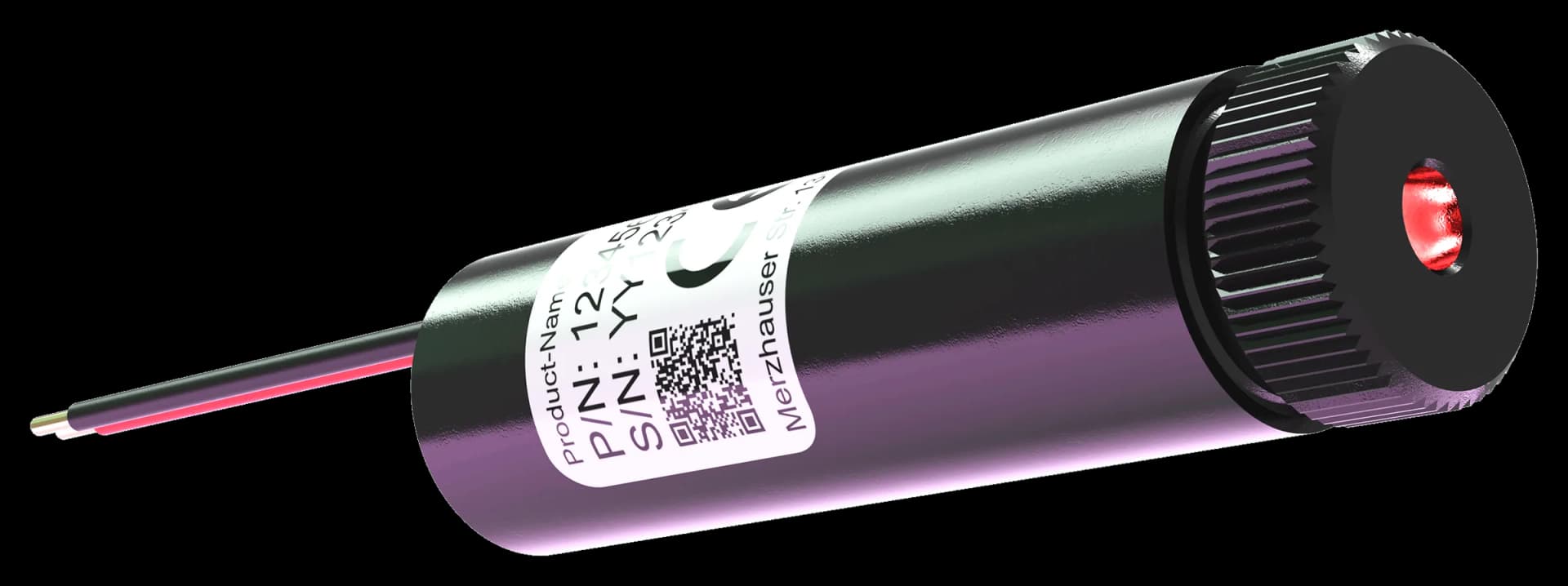

ZF-pe-F ModuleØ11mm dot laser with fixed optics, 5 mW, compact positioning module.
- Wavelength range
- 520–635 nm
- Max output power
- Up to 5 mW
- IP rating
- IP65
About the ZF-pe-F Module
Introduction
ZF-pe-F puts IP65 into an 11 mm body. That combination is the product: the compact modules in this range are typically IP40, and stepping up to IP65 usually means stepping up to a 20 mm or 40 mm barrel.
Ø11 × 40 mm, 31 g, and focusable.

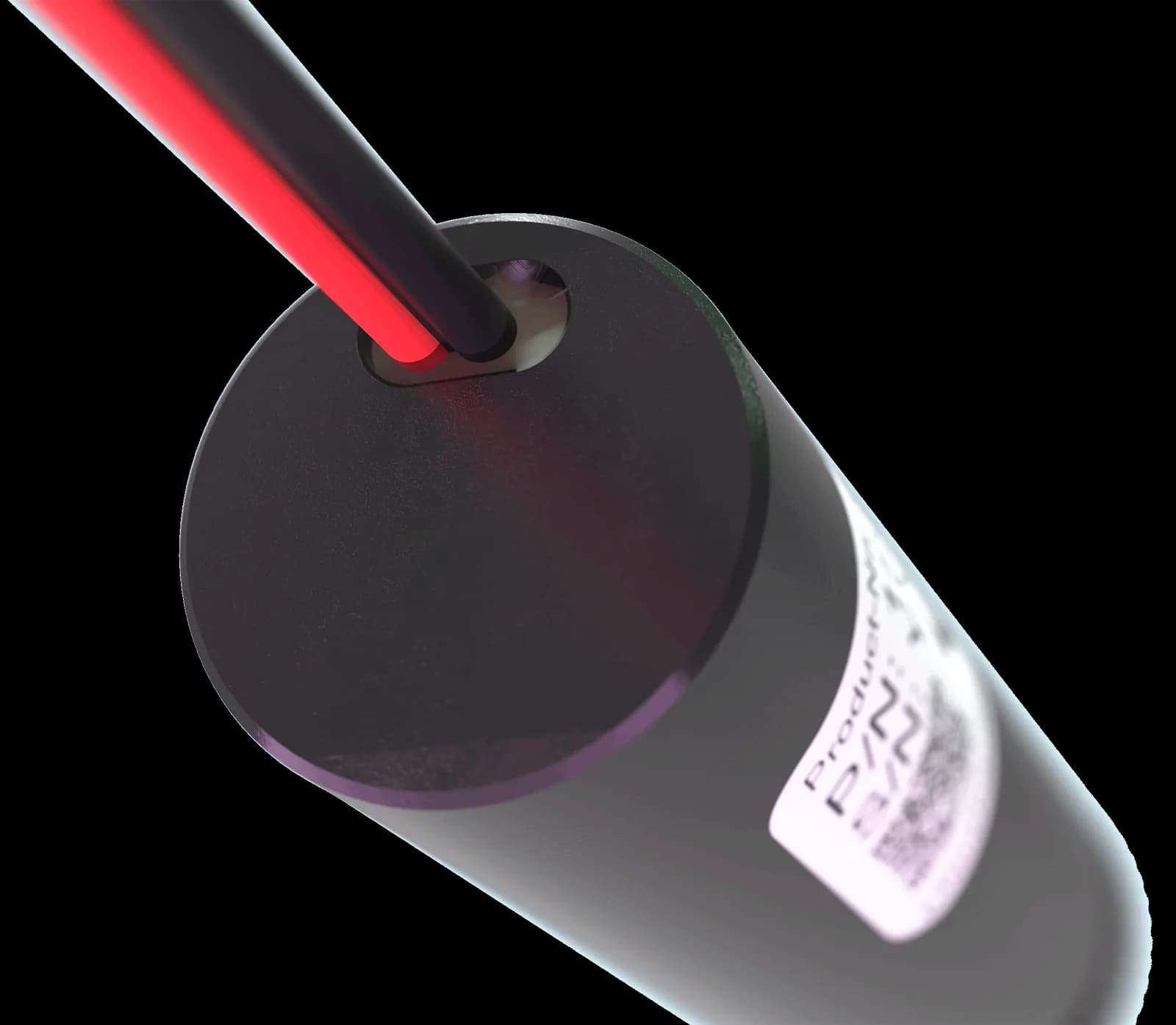

Electrical protection
Reverse polarity, transient and ESD protection built in.
On a module this small that matters more than it sounds. A compact laser is usually wired into a machine by whoever is installing it rather than assembled on a bench, and reverse polarity protection is the difference between a wiring mistake and a replacement.
Where it fits
ZF-pe-F is the choice when the space is tight and the environment is not kind — the two constraints that usually pull in opposite directions in this range.
ZD is smaller still at Ø11 × 51 mm but only IP40, and takes a 5–24 V supply. ZM18 is IP67 in a sensor housing four times the volume.
Specifications
Optical
- Wavelength range
- 520–635 nm
- Max output power
- Up to 5 mW
- Beam shapes
- Spot
- Line quality
- Gaussian
Safety
- Laser class
- OEM
Thermal
- Operating temperature
- −10°C to +50°C
Mechanical
- IP rating
- IP65
- Dimensions
- Ø11 mm × 40 mm
- Weight
- 31 g
Electrical
- Control
- Analog
- Interface
- Analog (fixed)
Application
- Best for
- Compact IP65 positioning
