Z-LASER · ZLP1
ZLP1
ZLP1Compact and cost-effective laser projector for small working areas and short distances.
- Optic
- standard optic
- Projection angle
- 60°
- Laser class
- 2M
About the ZLP1

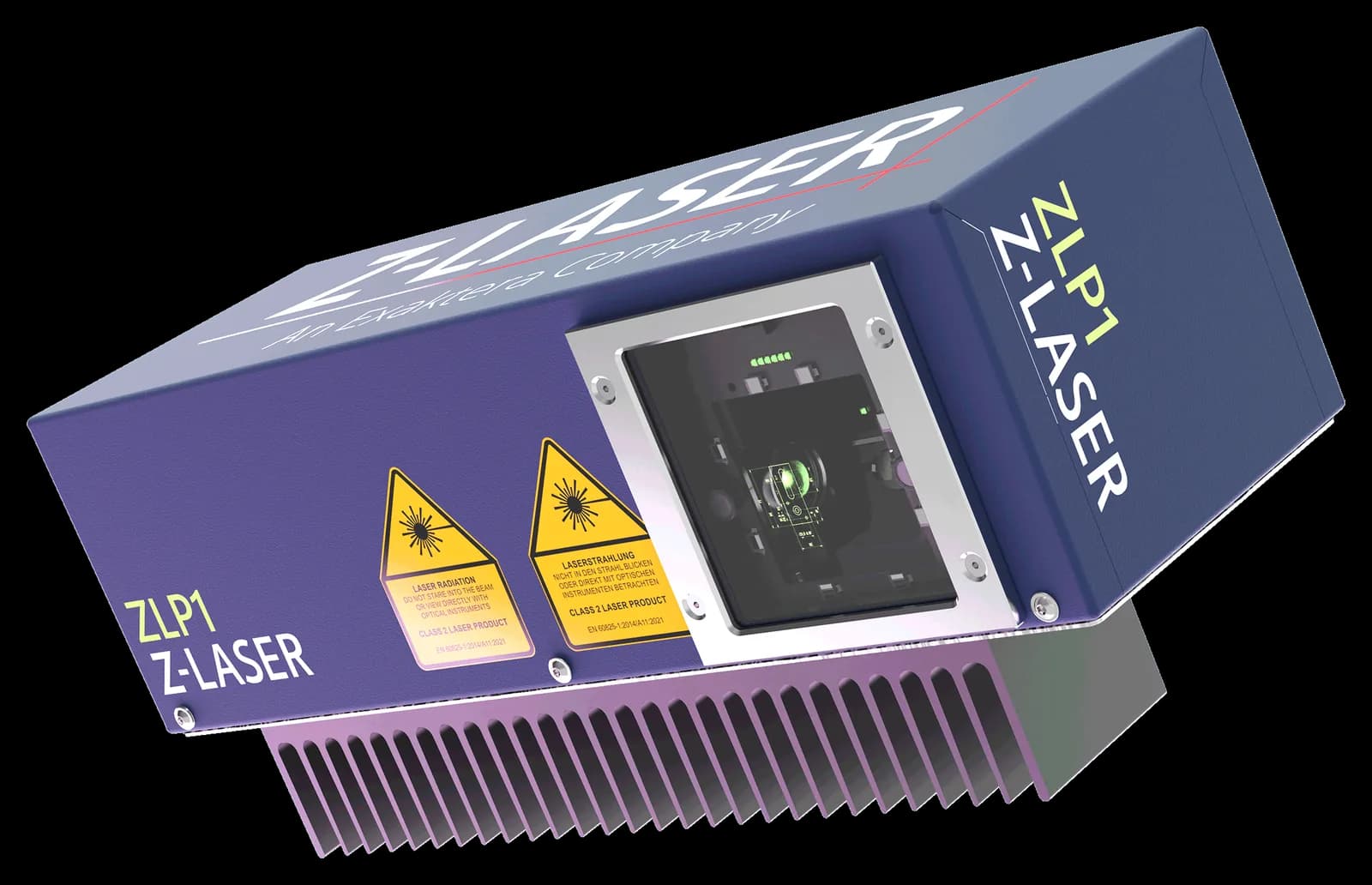

The ZLP1 is a compact laser projector for worker guidance at assembly benches, pick-and-place stations and put-to-light picking. It is eye-safe at laser class 2M, so it mounts over a staffed workstation with no enclosure, interlock or eyewear.
The ZLP1 works at 1 to 3 m with fixed focus set at 2 m, the range that suits a bench or a single picking face. A 60 by 60 degree fan angle covers 2309 by 2309 mm at 2 m, enough to put contours across a full work surface from a low ceiling, and several units integrate into one multi-projector system.

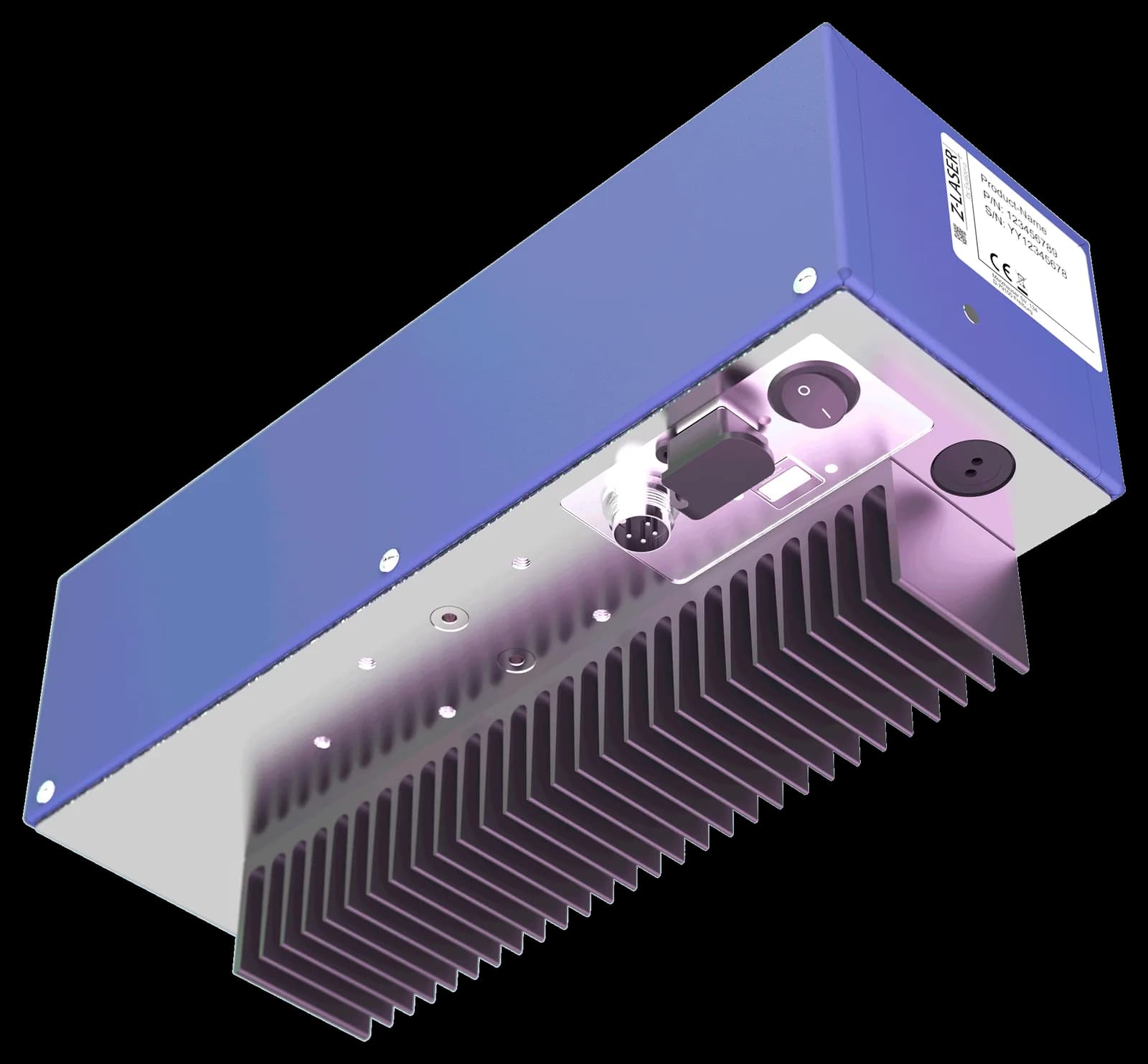

Accuracy is 3 mm across that range and projection refreshes at up to 50 Hz, which keeps 2D and 3D contours steady to the eye. The 520 nm green diode runs at 5 mW from 24 V DC, drawing under 40 W, in a 314 by 111 by 96 mm body of 3.4 kg rated IP54. The ZLP1 range offers passive or active cooling, ZLP-Suite software with C++, C# and Python SDKs, and DXF and HPGL input.
Specifications
Optical
- Wavelength options
- 520 nm (green) / 638 nm (red)
- Optic
- standard optic
- Projection angle
- 60°
Safety
- Laser class
- 2M
Variants
- Variant SKU — green
- ZLP1-520-2M — Green 520nm, Class 2M — Standard
- Variant SKU — red
- ZLP1-638-2M — Red 638nm, Class 2M — Standard
Pricing (indicative)
- List price — green
- 11,500 (currency TBC, likely EUR — unconfirmed)
- List price — red
- 10,800 (currency TBC, likely EUR — unconfirmed)
Media
Request a quote or talk to an applications engineer
Tell us about your application and we will confirm the right product and configuration, or specify a variant outside the catalogue.
