ZX10-M
ZX10-M10mm precision line laser with sub-mrad line accuracy up to 40 mW, boresight error <0.8 mrad.
- Wavelengths available
- 640, 685
- Power consumption
- <1.5
- Fan angles
- 5 to 90
About the ZX10-M

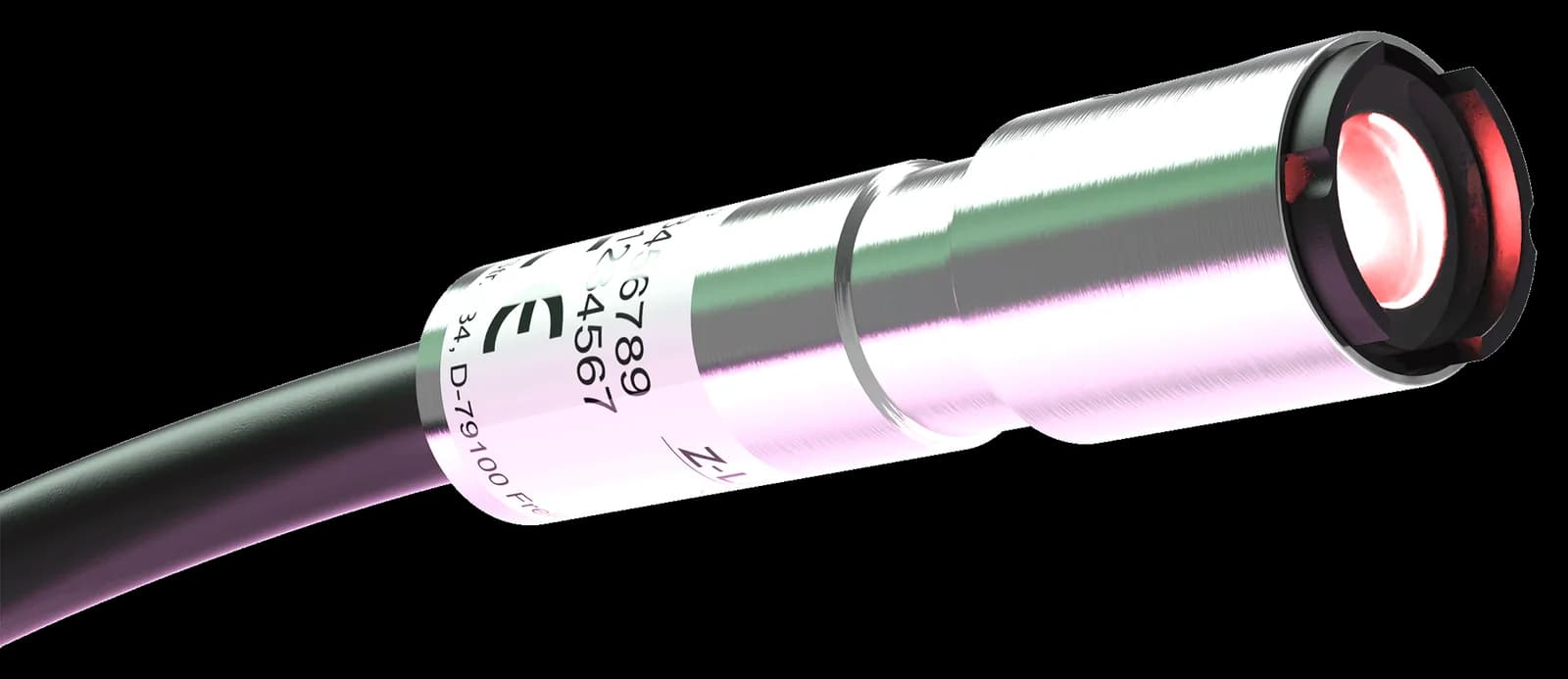

The ZX10 is a fixed focus line laser module for industrial image processing, triangulation sensors and 3D measurement. All optical components are aligned by robot during automated production, which brings boresight error down to less than 0.8 mrad typical and makes beam quality repeatable from unit to unit.

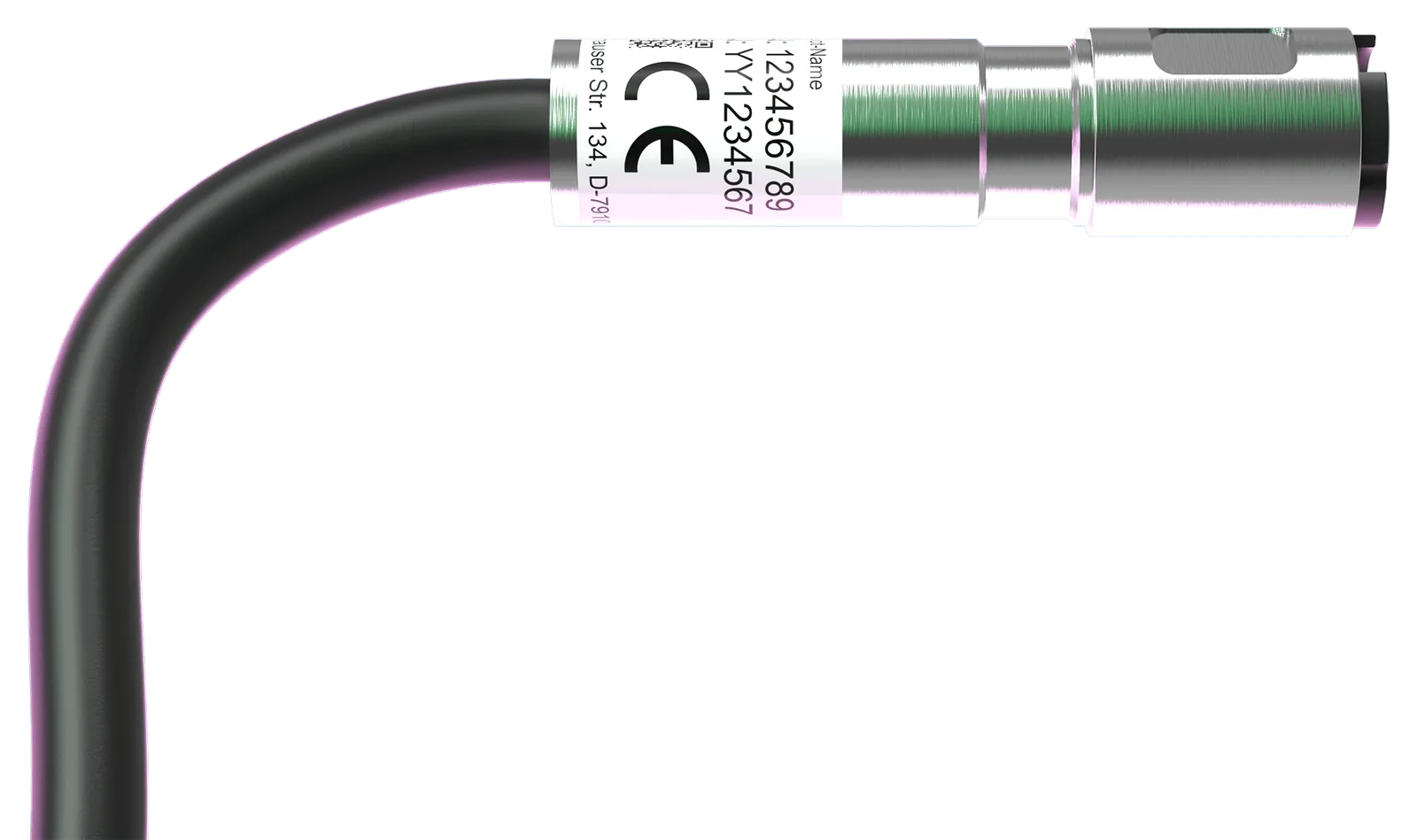

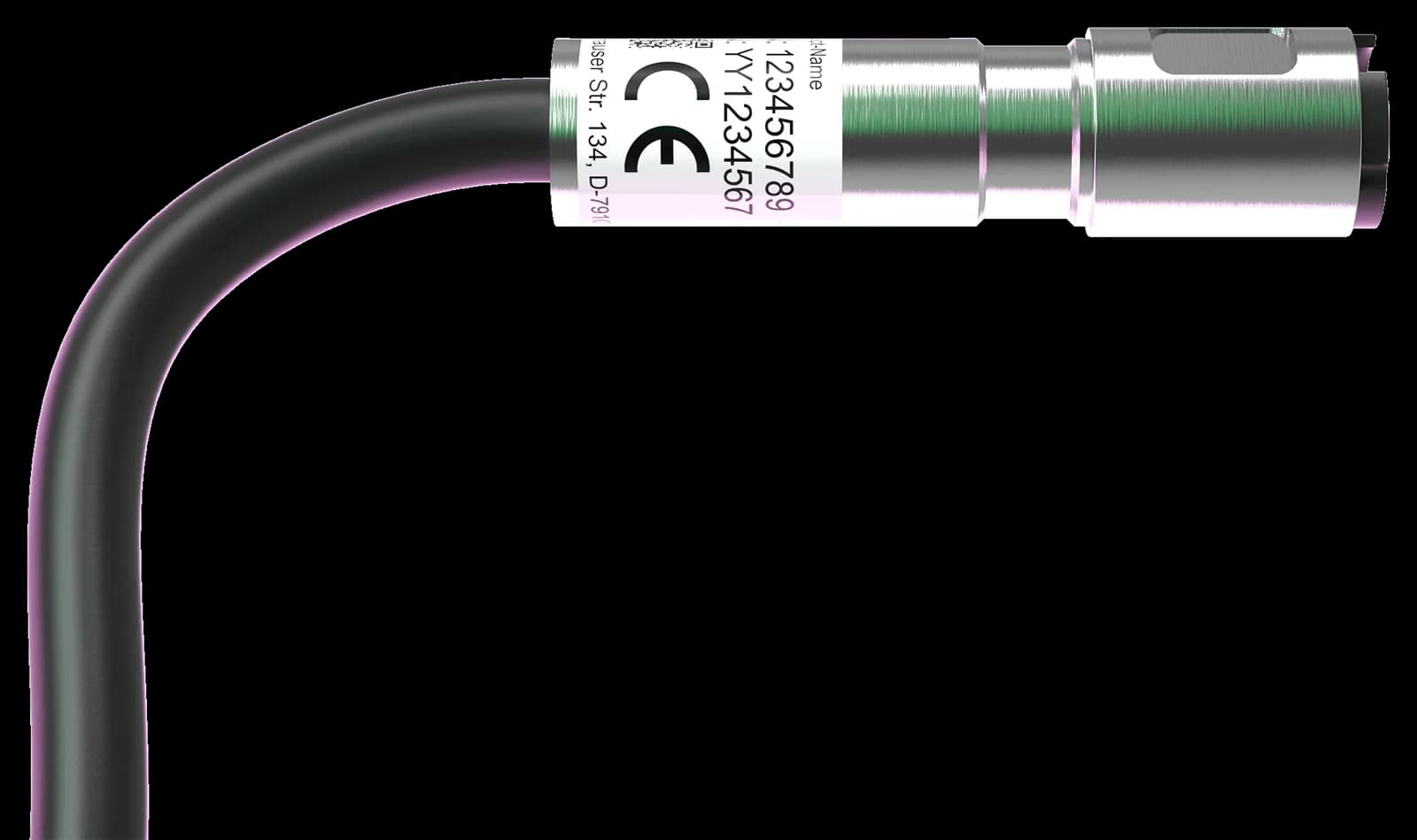

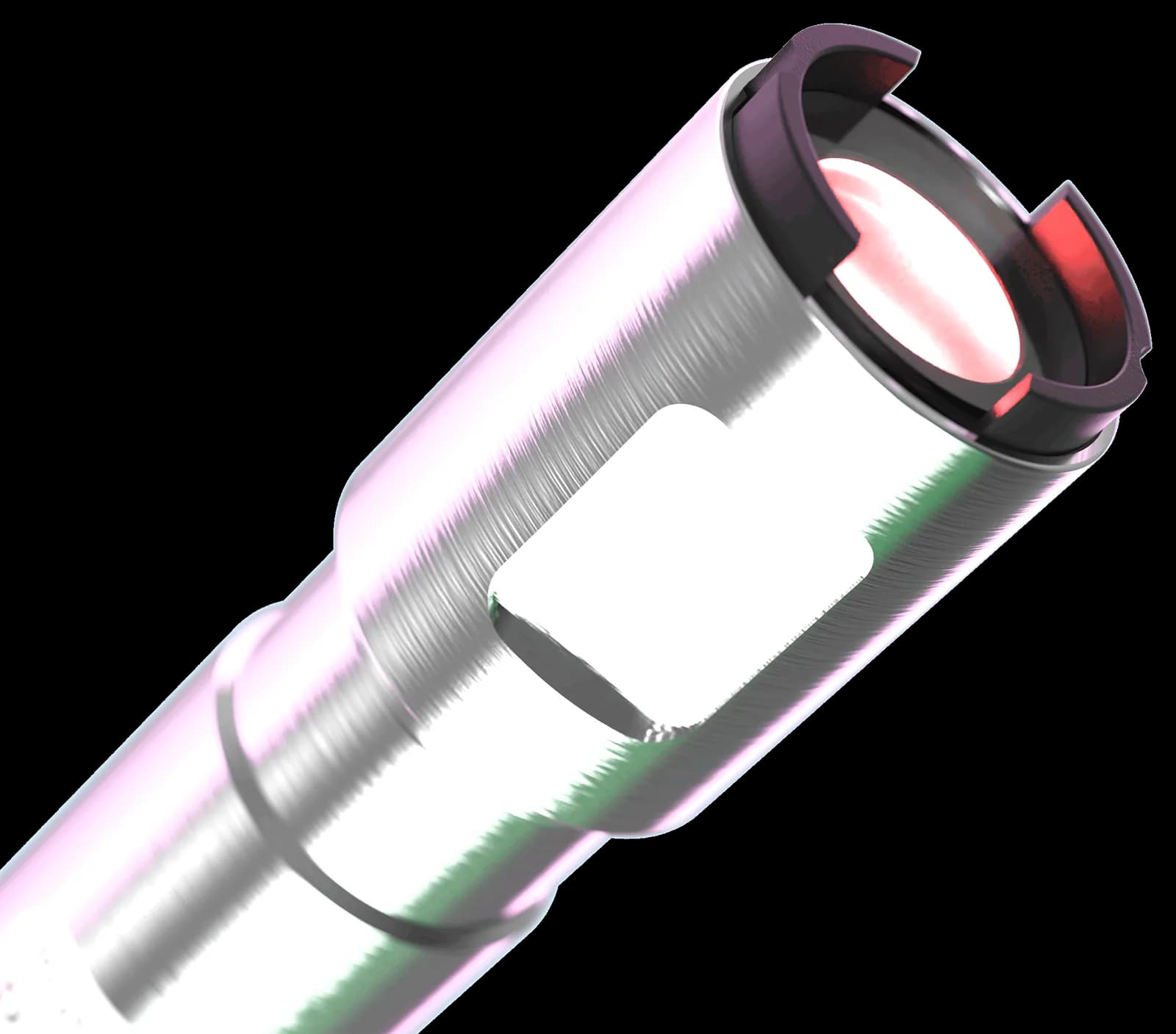

At just 10mm in diameter and 33 mm long, the stainless steel ZX10 weighs 30g. Protection class is IP 50, or IP 67 with the cap fitted, and shock and vibration follow IEC EN 61373:2011 category 2.
Depending on the application, the ZX10 is available in red and infrared wavelengths with red output power of 30 mW at 640 nm or 40 mW at 685 nm in APC mode. Start-up is under 70 us and pointing stability better than 10 urad per K. Fan angle options of 5 and 10 degrees sit alongside 20 to 90 degree options for uniform lines.
Specifications
Key Features
- Feature 1
- Optical output power up to 40 mW
- Feature 2
- Highest reproducibility of beam quality
- Feature 3
- Fixed focus
- Feature 4
- IP 50 (IP 67 optional)
- Feature 5
- Wavelengths from 640 nm – 685 nm
Key Applications
- Application 1
- Machine Vision
- Application 2
- Triangulation Sensors
- Application 3
- Positioning Tasks
- Application 4
- 3D-Measurement
- Application 5 (website)
- Sensors, testing devices, machinery
Wavelength
- Wavelengths available
- 640, 685
- Wavelength tolerance
- ±10
- Wavelength drift
- <0.25 nm/K
Output Power
- Max output power
- 30 (640 nm) / 40 (685 nm)
- Spatial mode
- Single transverse mode
- Laser operation mode
- APC
Beam / Line Quality
- Boresight error
- <0.8 (typ.)
- Line orientation
- <10
- Pointing stability
- <10 µrad/K
- Line straightness
- <0.08 (640 nm) / <0.05 (685 nm)
- Line uniformity
- <25 (typ.)
- Optics configuration
- slp / elp
Focus & Fan Angle
- Focus type
- Fixed focus
- Focus range
- <100 up to 10,000 (up to 980 @ 5° fan angle)
- Fan angles
- 5, 10, 20, 30, 45, 60, 75, 90
- Projection type
- Dot, DOE (multi line, crosses, grids)
Stability
- Long term power stability
- ±3% over operating temperature range (24 h)
- Rms noise
- <0.5 (20 Hz–20 MHz)
- Warm up start up time
- <70 µs
Mechanical
- Net weight
- 30 g / 0.07 lbs
- Dimensions lxbxh
- 33 (length)
- Diameter head
- 11h7 (with cap) / 10h7 (without cap)
- Housing material
- Stainless steel
- Protection class ip
- IP 50 (IP 67 with protection cap)
- Mounting
- 2 flying leads (optional Texas plug)
- Shock vibration
- IEC EN 61373:2011, cat. 2
- Conformity
- CE (2014/30/EU, 2011/65/EU, 2006/25/EU)
Cooling
- Cooling
- None stated (passive)
Electrical
- Supply voltage vdc
- 3.5–5.5
- Power consumption
- <1.5
- Operating current
- <250 (max @ 25°C)
- Protection electrical
- Reverse polarity protection, ESD
- Electrical isolation
- Potential-free housing
- Connection type
- 2 flying leads (optional Texas plug)
- Communication interfaces
- Not applicable (analog/digital only)
- Operating current
- <250 mA (max @ 25°C)
Environmental
- Operating temperature
- −10 to +50
- Storage temperature
- −40 to +85
- Humidity max
- <90, non-condensing
