Z-LASER · MACHINE VISION

ZX20

20mm precision laser with extended optics and thermal stability up to 200 mW, robot-aligned, IR/red/green/blue.

Wavelengths available: 405 - 830
Max output power: Up to 200 (830 nm, elp)
Fan angles: 5 to 90

Overview

About the ZX20

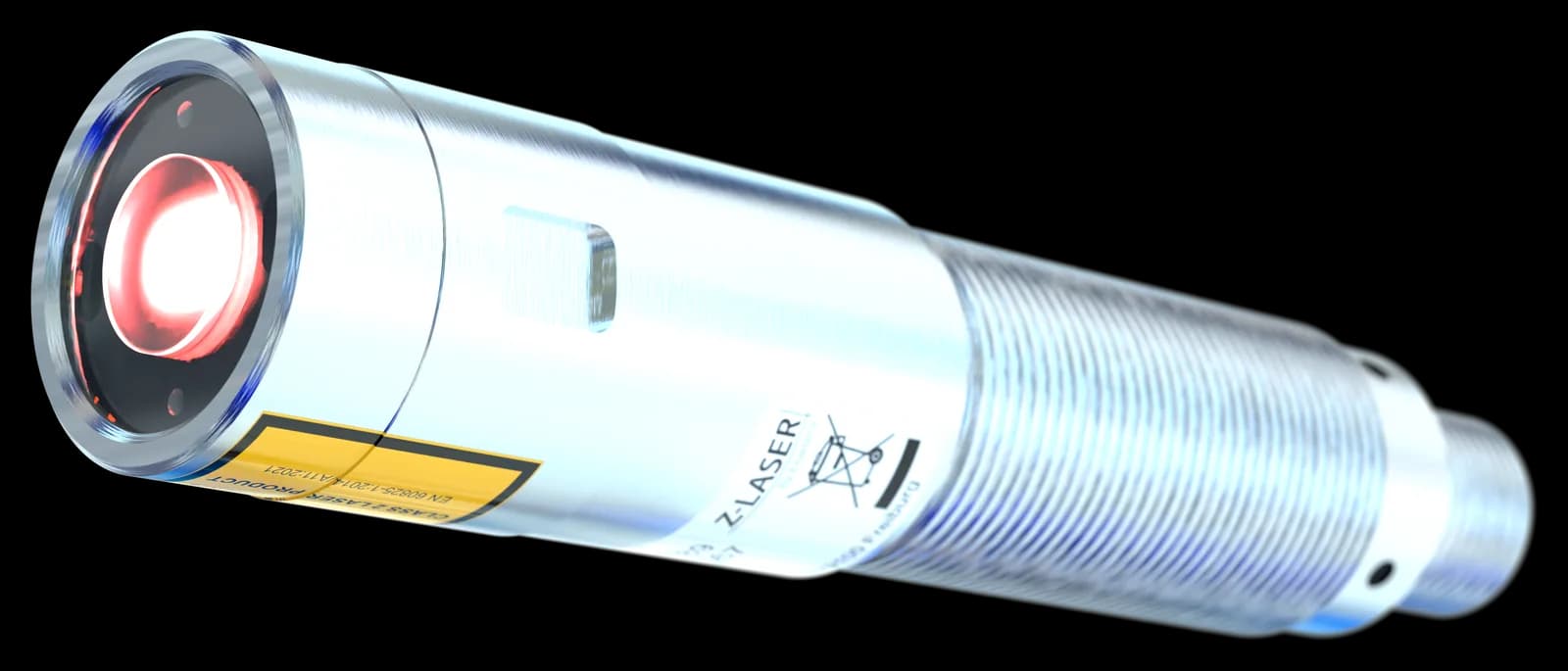

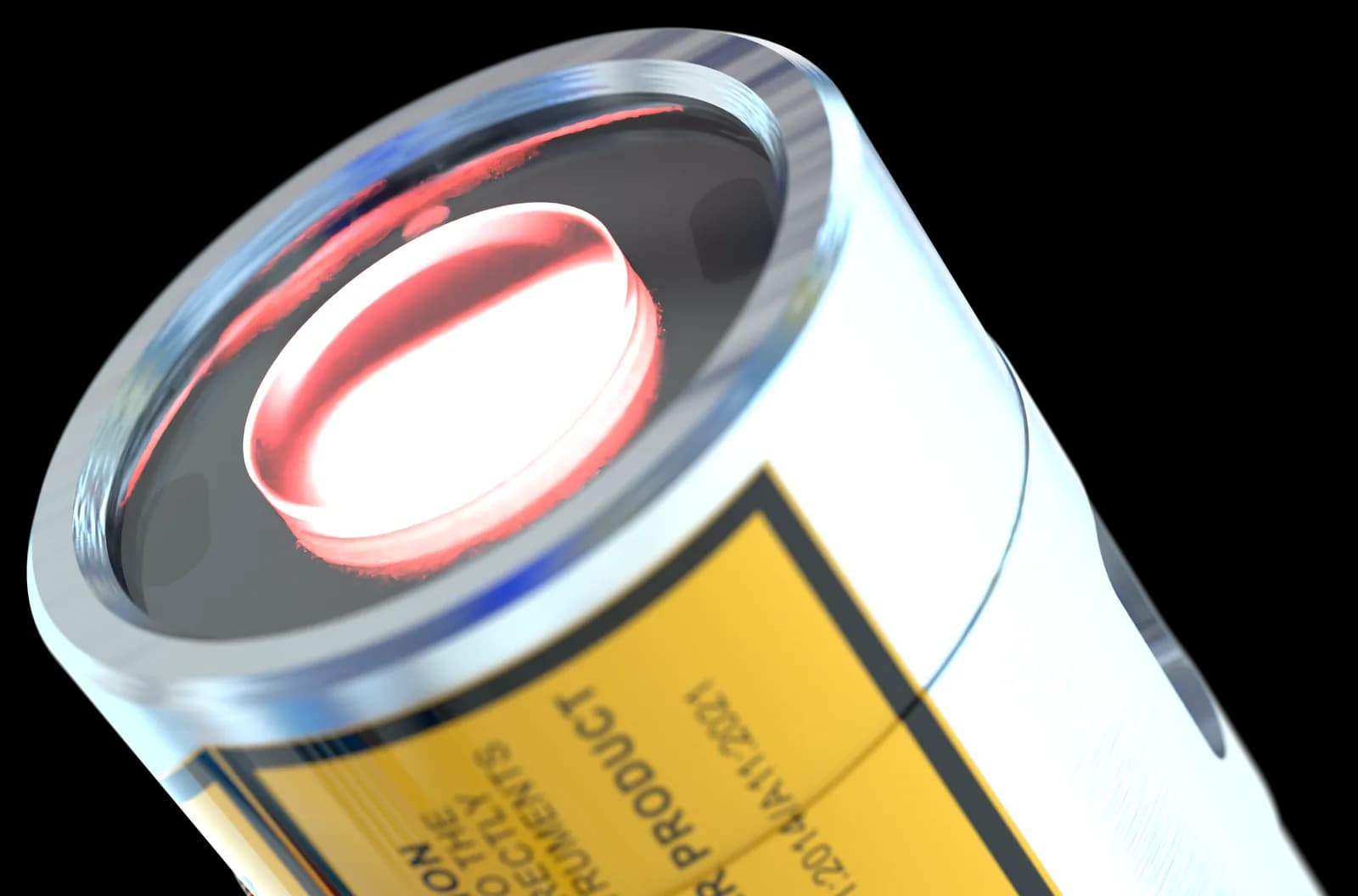

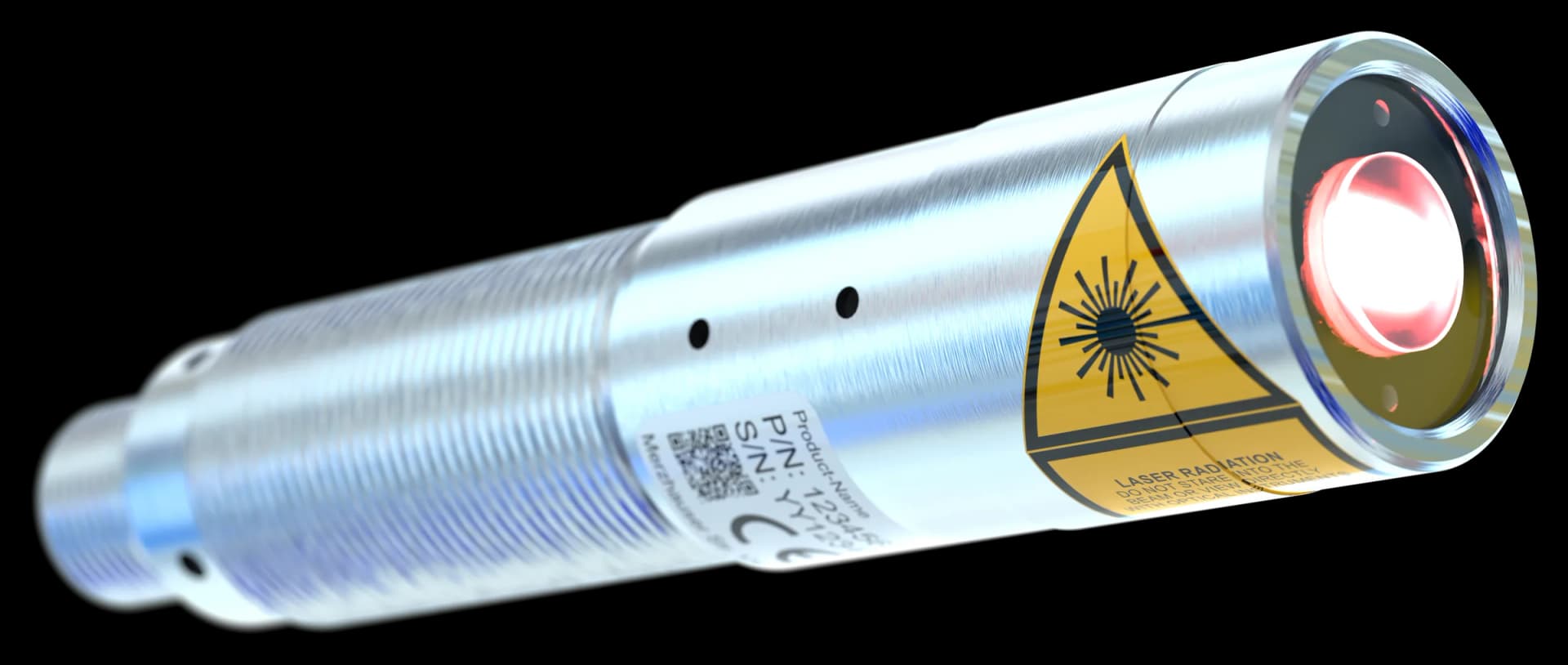

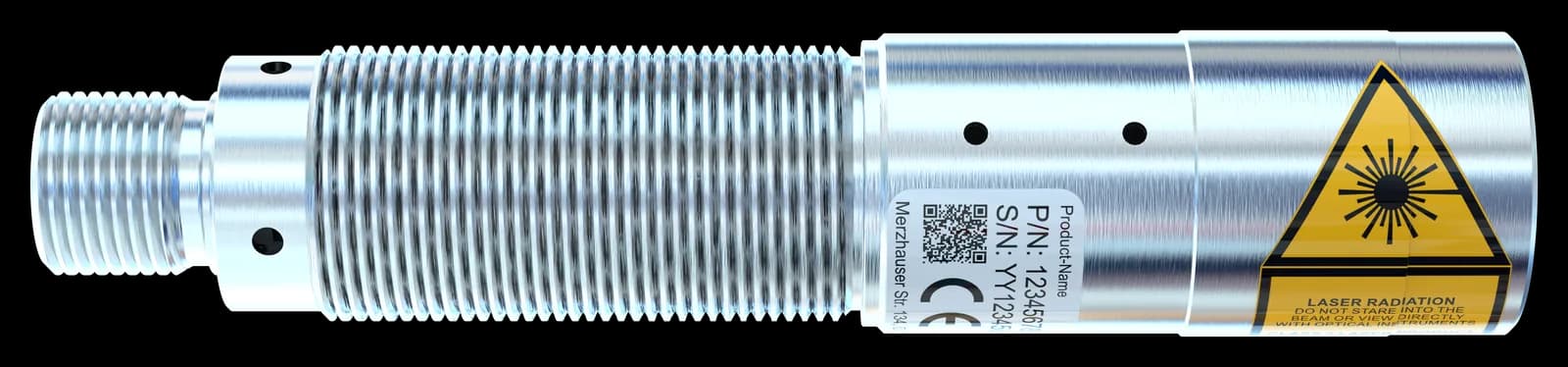

The ZX20 is a precision structured light laser module for demanding image processing, and it is available in a wide range of wavelengths. Robot alignment of every optical component during automated production yields a typical boresight error below 0.8 mrad in fixed focus form, while tool-free focusing means the laser can be optimally adjusted to different working distances. The ZX20 can operate reliably in harsh environments due to its robust design.

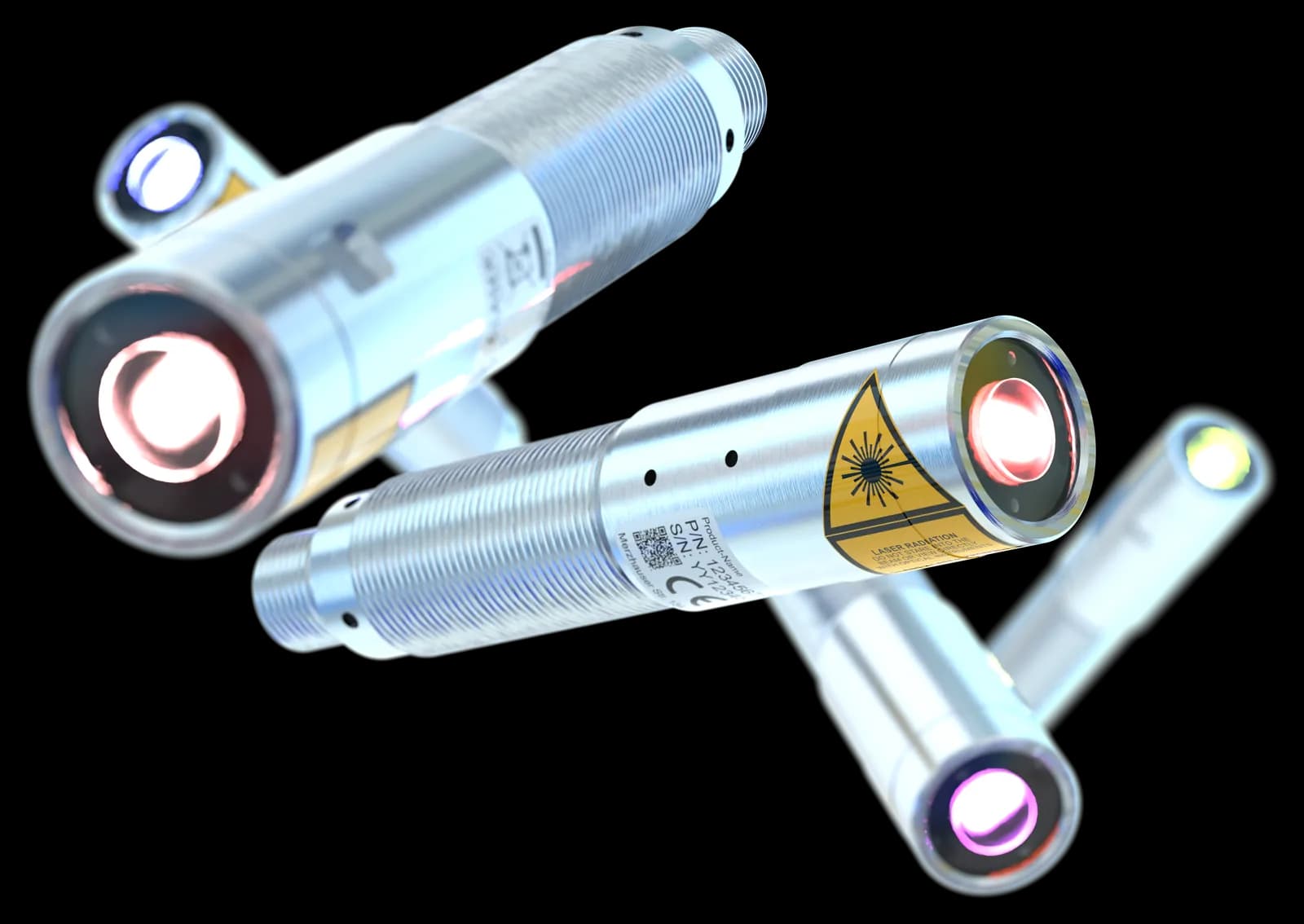

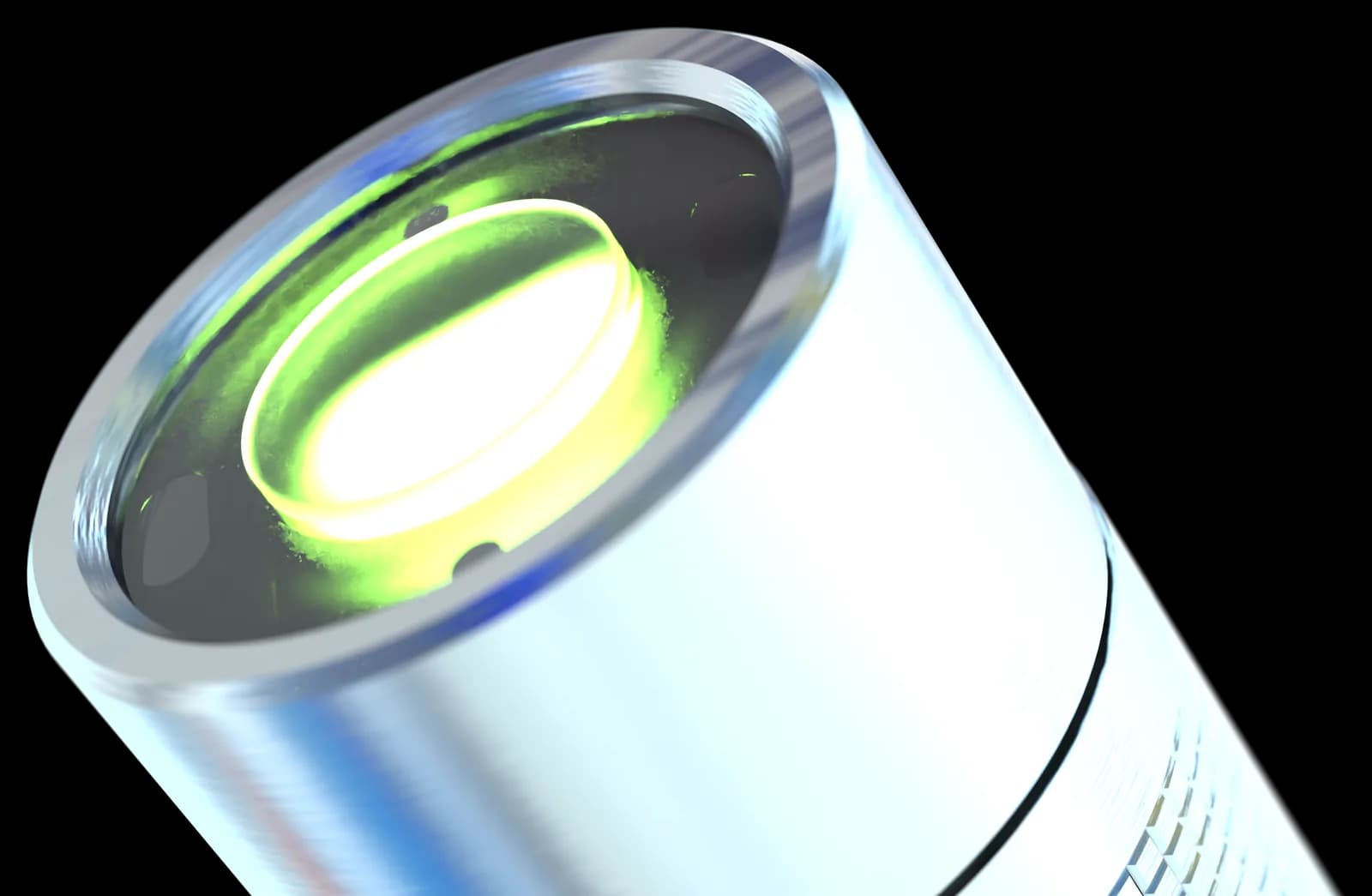

Eight wavelengths are available, from 405 nm and 450 nm blue through 520 nm green and 640 to 685 nm red to 785 nm and 830 nm infrared, with output power up to 200 mW depending on the laser diode. Fan angles of 5 and 10 degrees sit alongside 20 to 90 degrees for uniform lines, with line straightness under 0.05 percent.

Blue and green versions take 9 to 30 VDC, red and infrared 5 to 30 VDC, both on a 5-pin M12 plug. I2C and RS-232 at 5 V drive a graphical user interface for status query, power control, intensity and a weighted end of life indication, and TTL modulation reaches 400 kHz. The stainless steel head is 20 mm in diameter and IP 67 rated.

Specifications

Key Features

Feature 1: Optical output power up to 200 mW
Feature 2: Highest reproducibility of beam quality (robot-aligned optics)

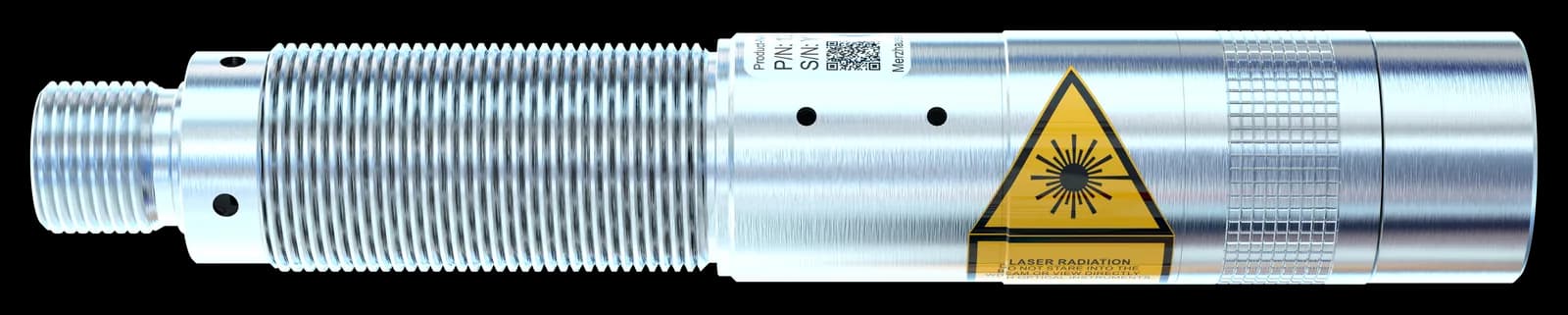

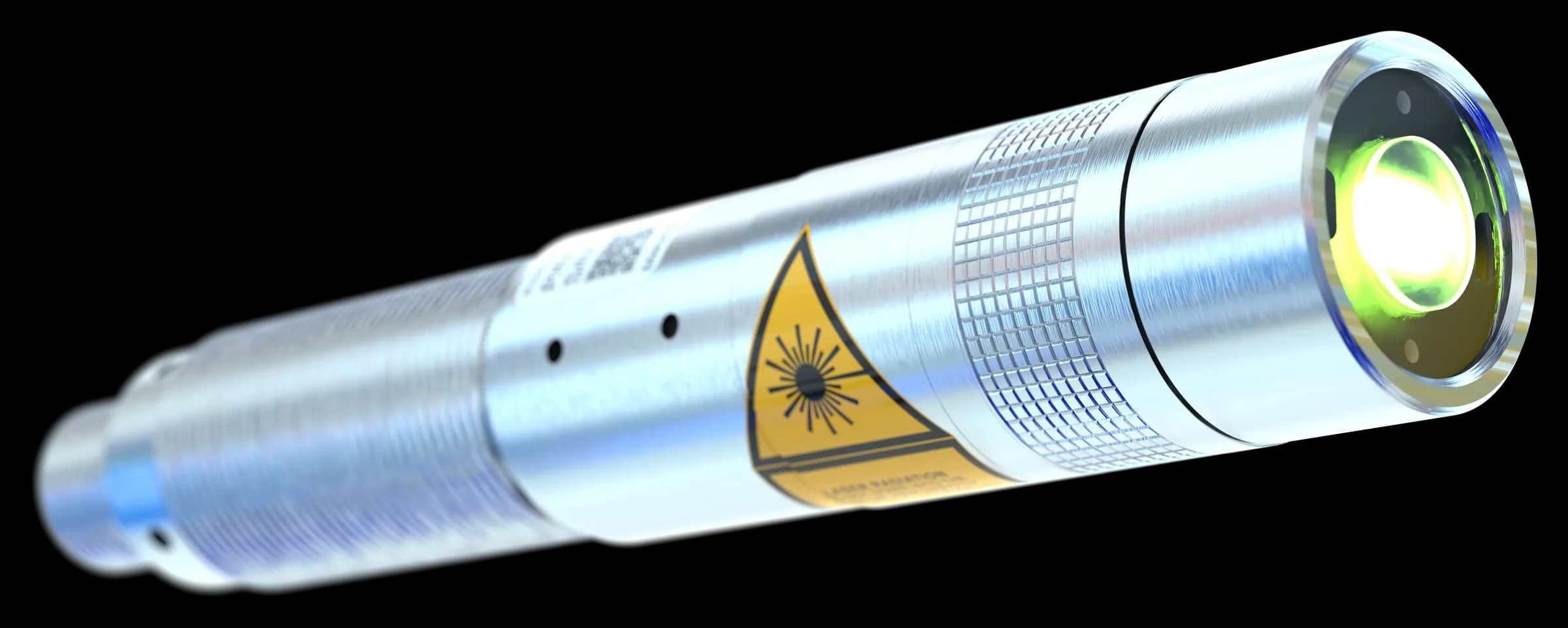

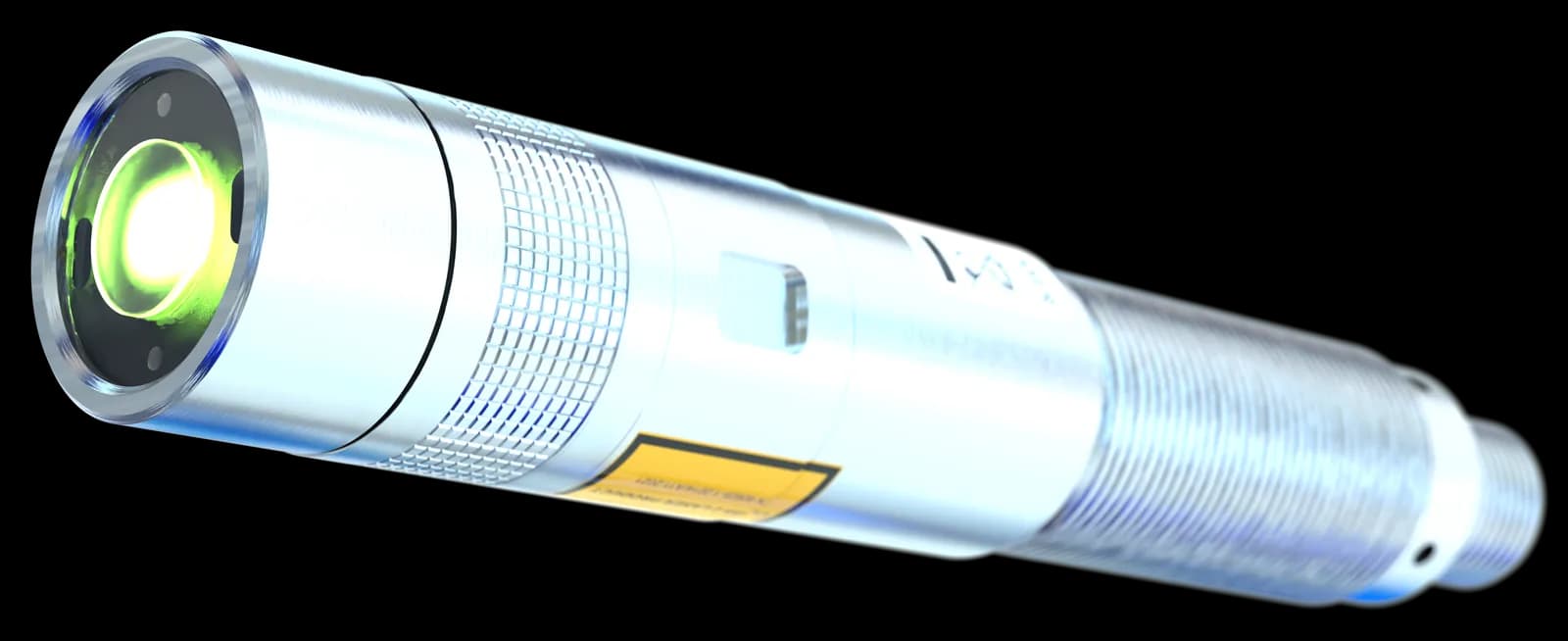

Feature 3: Manually focusable (optional, tool-free)
Feature 4: IP 67 / stainless steel housing
Feature 5: TTL modulation up to 400 kHz
Feature 6: Analog intensity control
Feature 7: I²C, RS-232 (5 V) communication
Feature 8: Stainless steel housing

Key Applications

Application 1: Machine Vision
Application 2: Triangulation Sensors
Application 3: Positioning Tasks
Application 4: 3D-Measurement
Application 5 (website): Sensors, complex vision systems, heavy-duty machinery (e.g. saws)

Wavelength

Wavelengths available: 405, 450, 520, 640, 660, 685, 785, 830
Wavelength tolerance: ±10 (405/450/640/660/685/785), −5/+10 (520), ±4 (830)
Wavelength drift: 0.02–0.25 nm/K (by wavelength)

Output Power

Max output power: Up to 200 (830 nm, elp)
Spatial mode: Single transverse mode
Laser operation mode: APC

Beam / Line Quality

Boresight error: <0.8 (fixed focus, typ.)
Line orientation: <10
Pointing stability: <10 µrad/K
Line straightness: <0.08 / <0.05 (by fan angle)
Line uniformity: <25 (typ.)
Optics configuration: elp

Focus & Fan Angle

Focus type: Fixed focus (manual focus optional)
Focus range: <100 up to 10,000 (up to 980 @ 5° fan angle)
Fan angles: 5, 10, 20, 30, 45, 60, 75, 90
Projection type: Dot, DOE (multi line, crosses, grids)

Stability

Long term power stability: ±3% over operating temperature range (24 h)
Rms noise: <0.5 (20 Hz–20 MHz)
Warm up start up time: <2 s

Modulation

Digital modulation max: 400 kHz
Analog modulation bandwidth: <10 Hz
Analog active range vdc: 0–2

Mechanical

Net weight: 90 g (ZX20) / 125 g (ZX20-F)
Dimensions lxbxh: 98 (ZX20) / 117 (ZX20-F)
Diameter head: 20h7
Housing material: Stainless steel
Protection class ip: IP 67
Mounting: 20 mm mount (alternative M18 thread)
Shock vibration: IEC EN 61373:2011, cat. 2
Conformity: CE (2014/30/EU, 2011/65/EU, 2006/25/EU)

Electrical

Supply voltage vdc: 9–30 (405–520 nm) / 5–30 (640–830 nm)
Power consumption: <2.5–2.7 (by wavelength)
Operating current: <300 (405–520 nm) / <500 (640–830 nm)
Protection electrical: Over-temperature protection, LED pre-failure indicator, reverse polarity & transient protection (ESD, burst & surge)
Electrical isolation: Potential-free housing

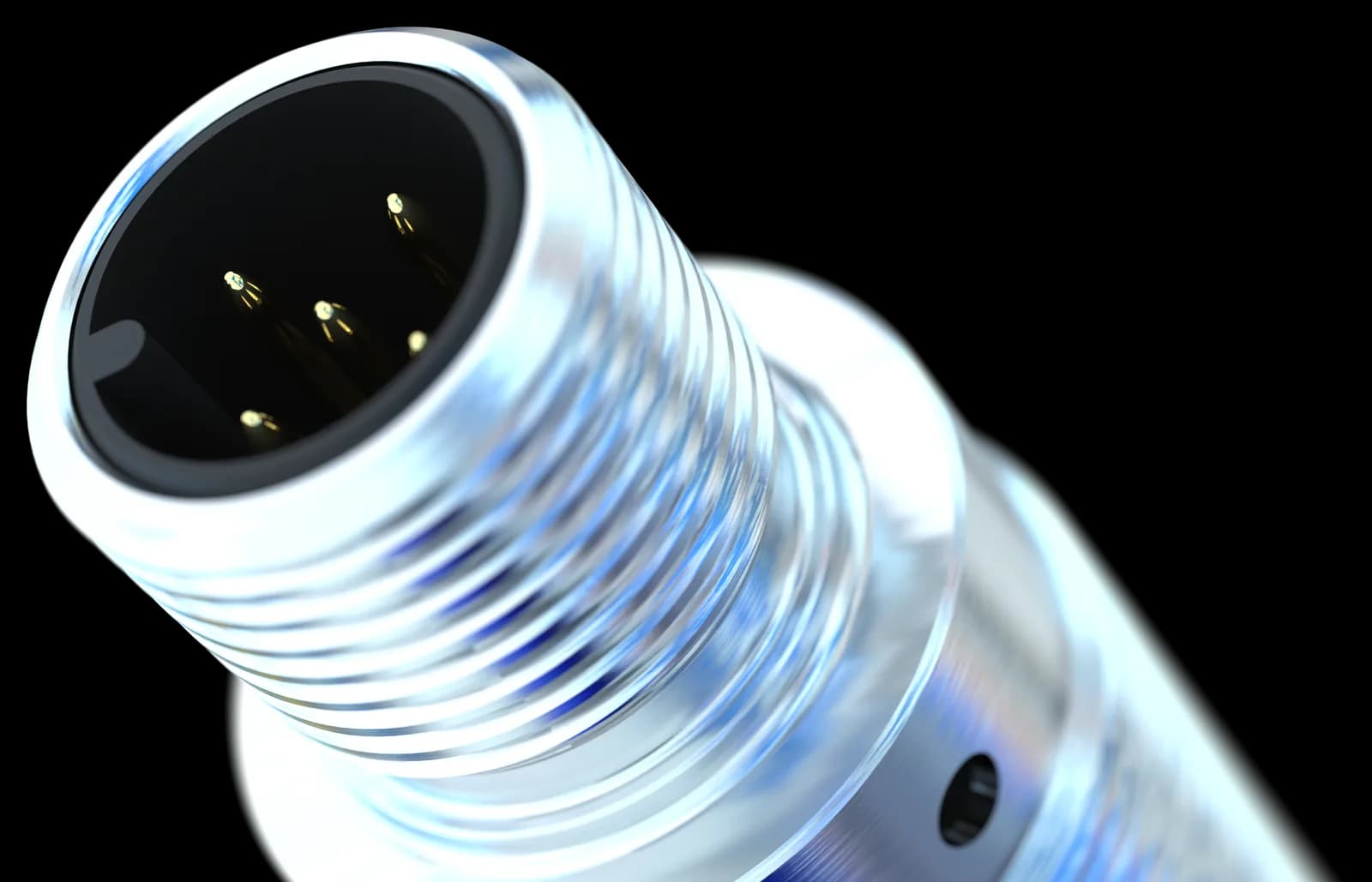

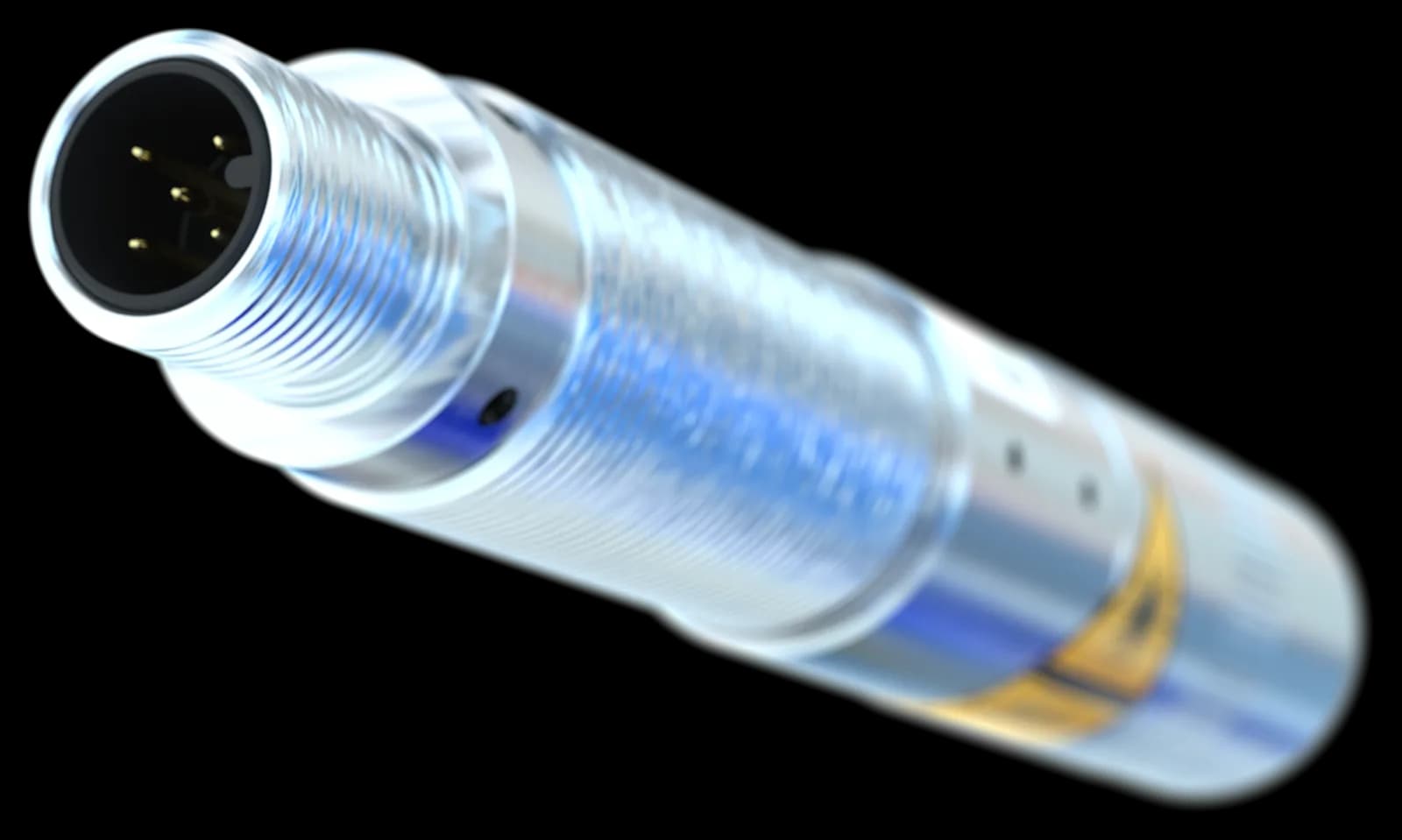

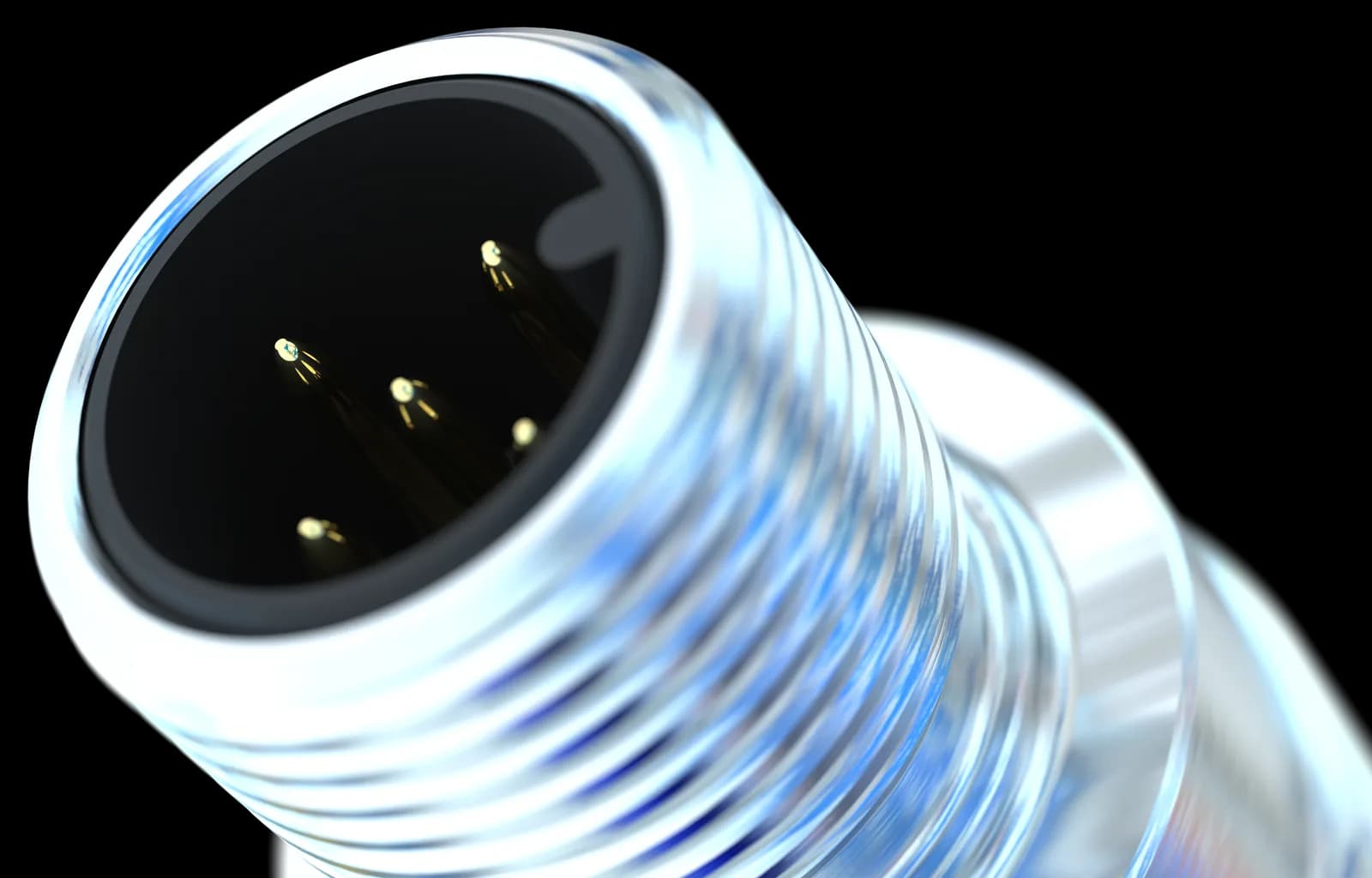

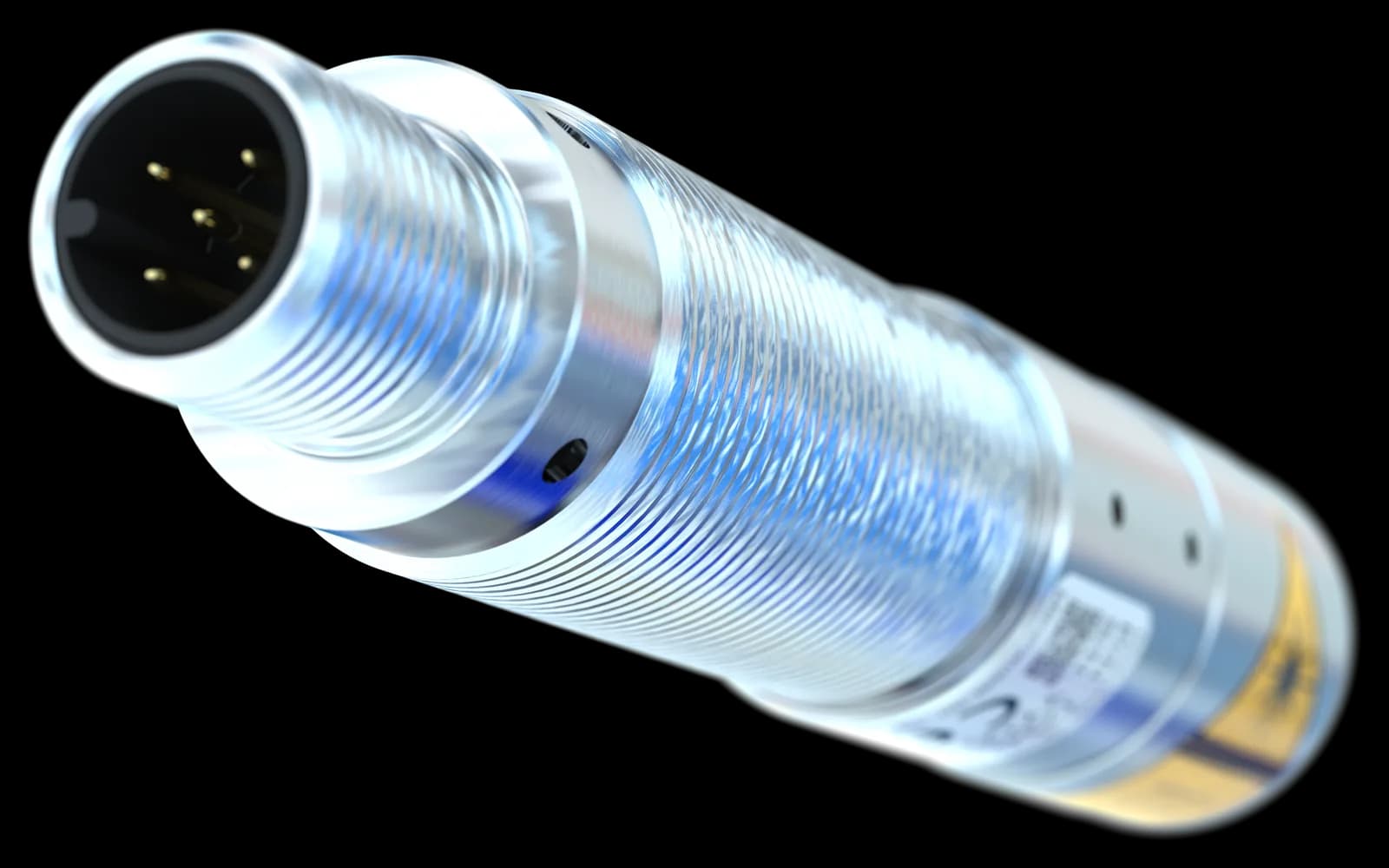

Connection type: 5-pin M12 plug; flying leads or customized
Communication interfaces: I²C, RS-232 (5 V)
Operating current: <300 mA (405–520 nm) / <500 mA (640–830 nm)
