ZXS-OEM

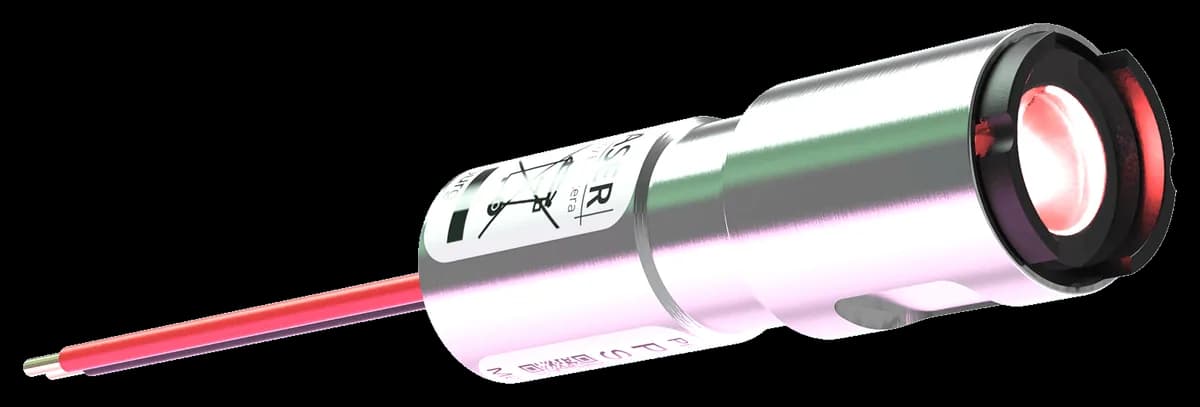

Ø20mm laser head with external electronics, or as an OEM version with custom electronics for your own PCB, up to 200 Mw power.

Wavelengths available: 405 - 830
Max output power: Up to 200 (830 nm, elp)
Fan angles: 5 to 90

Overview

About the ZXS-OEM

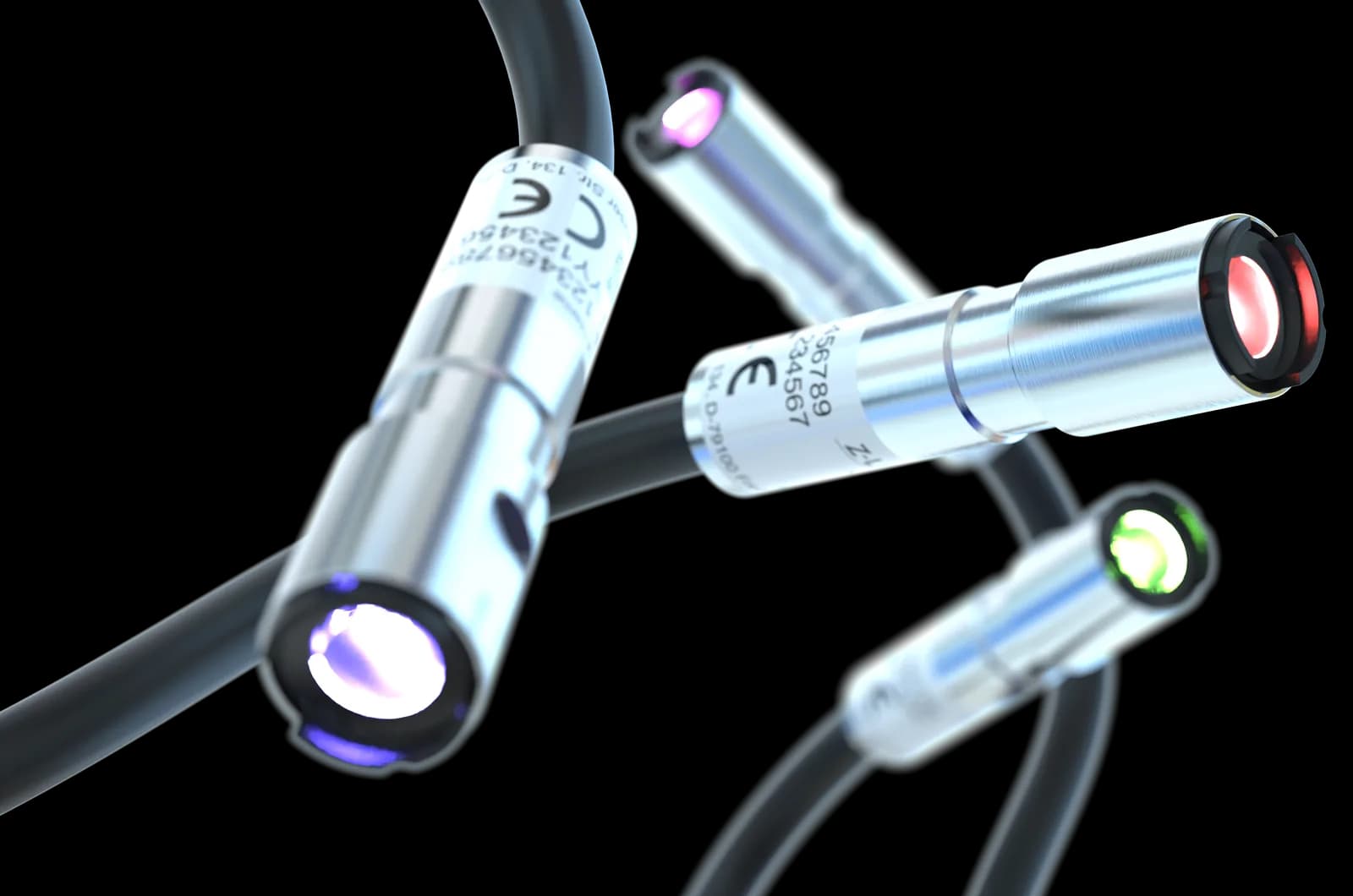

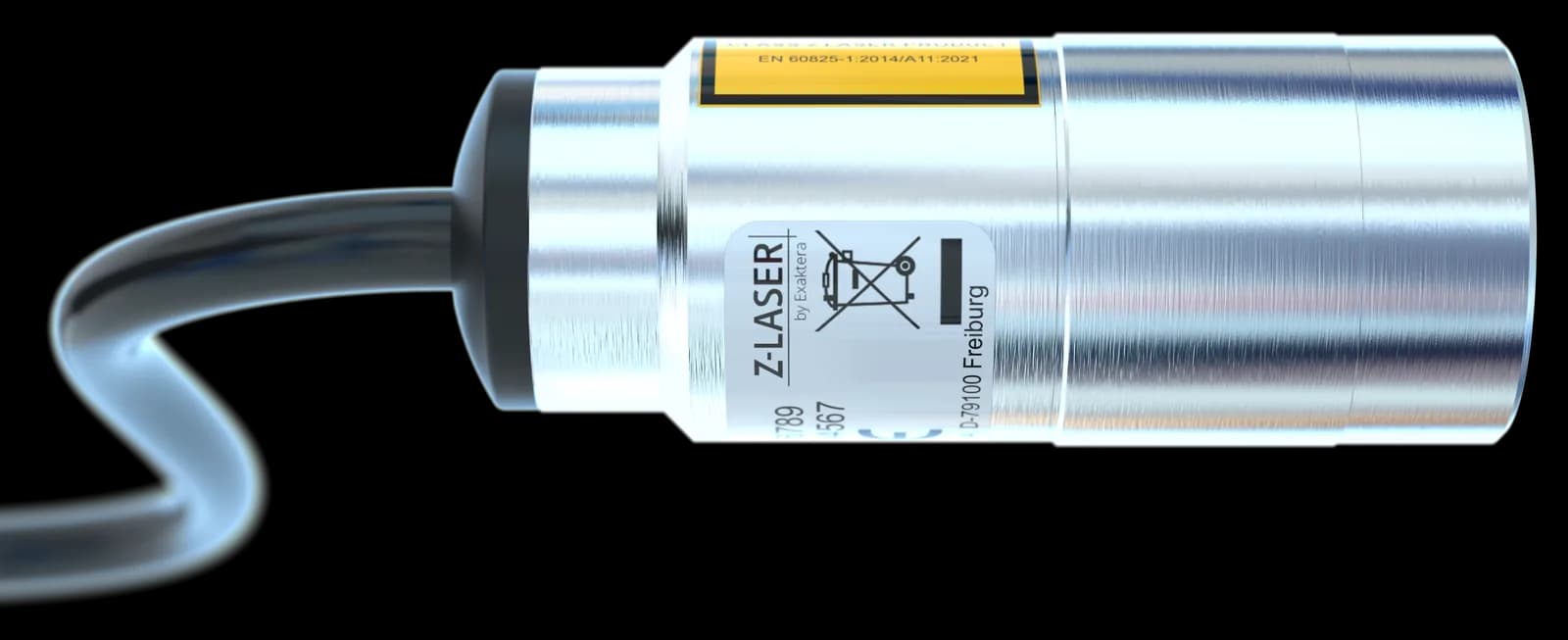

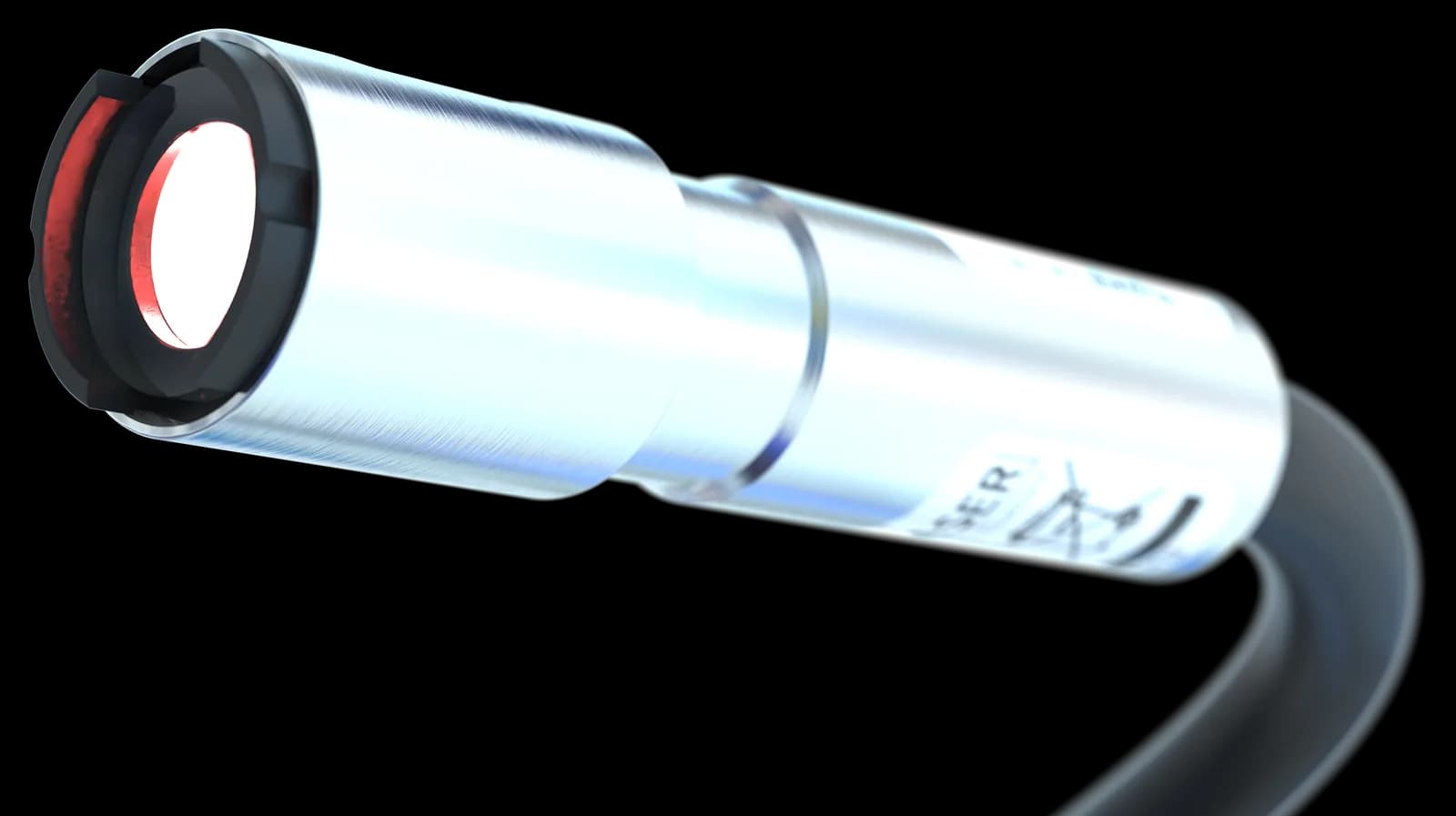

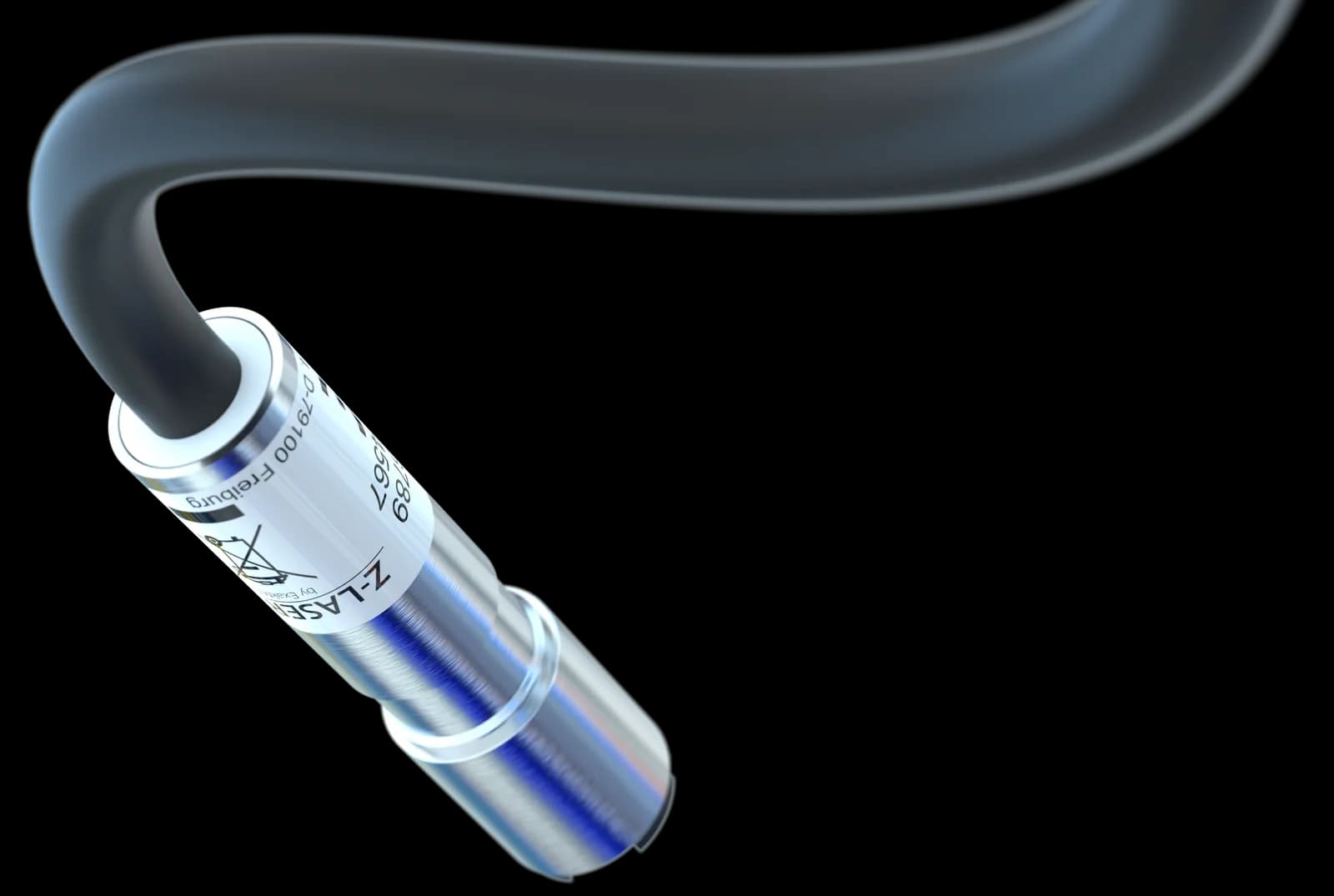

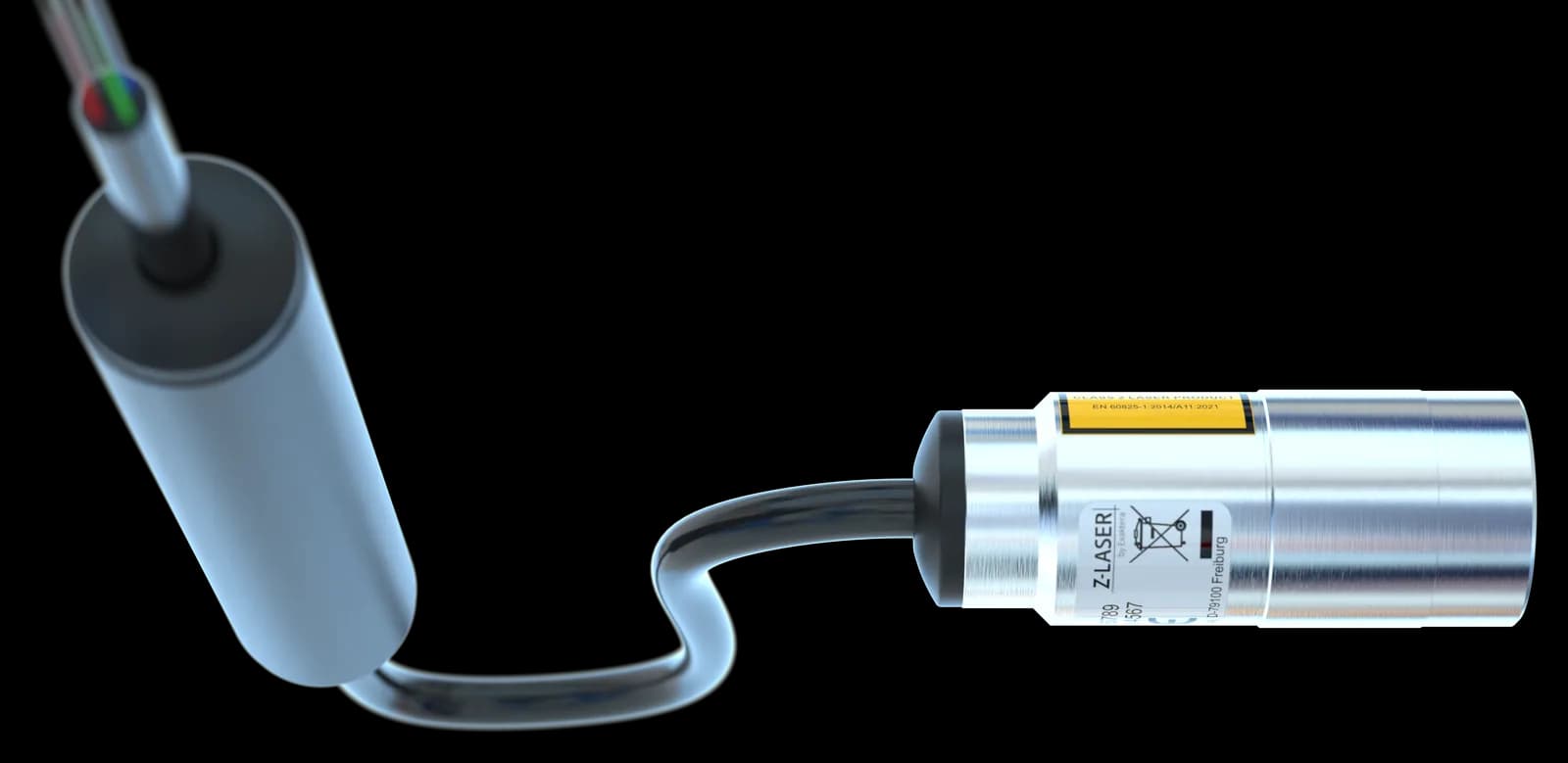

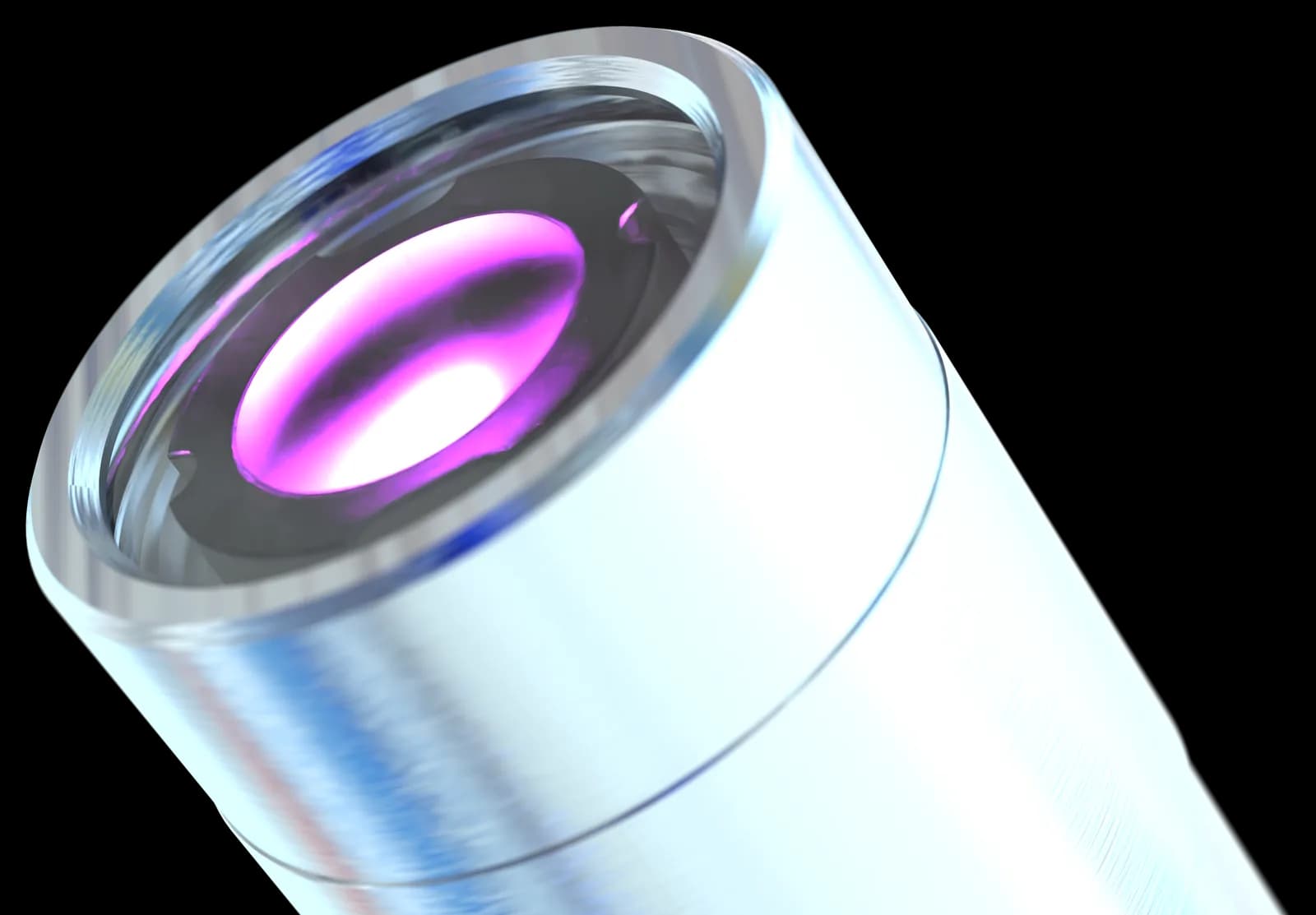

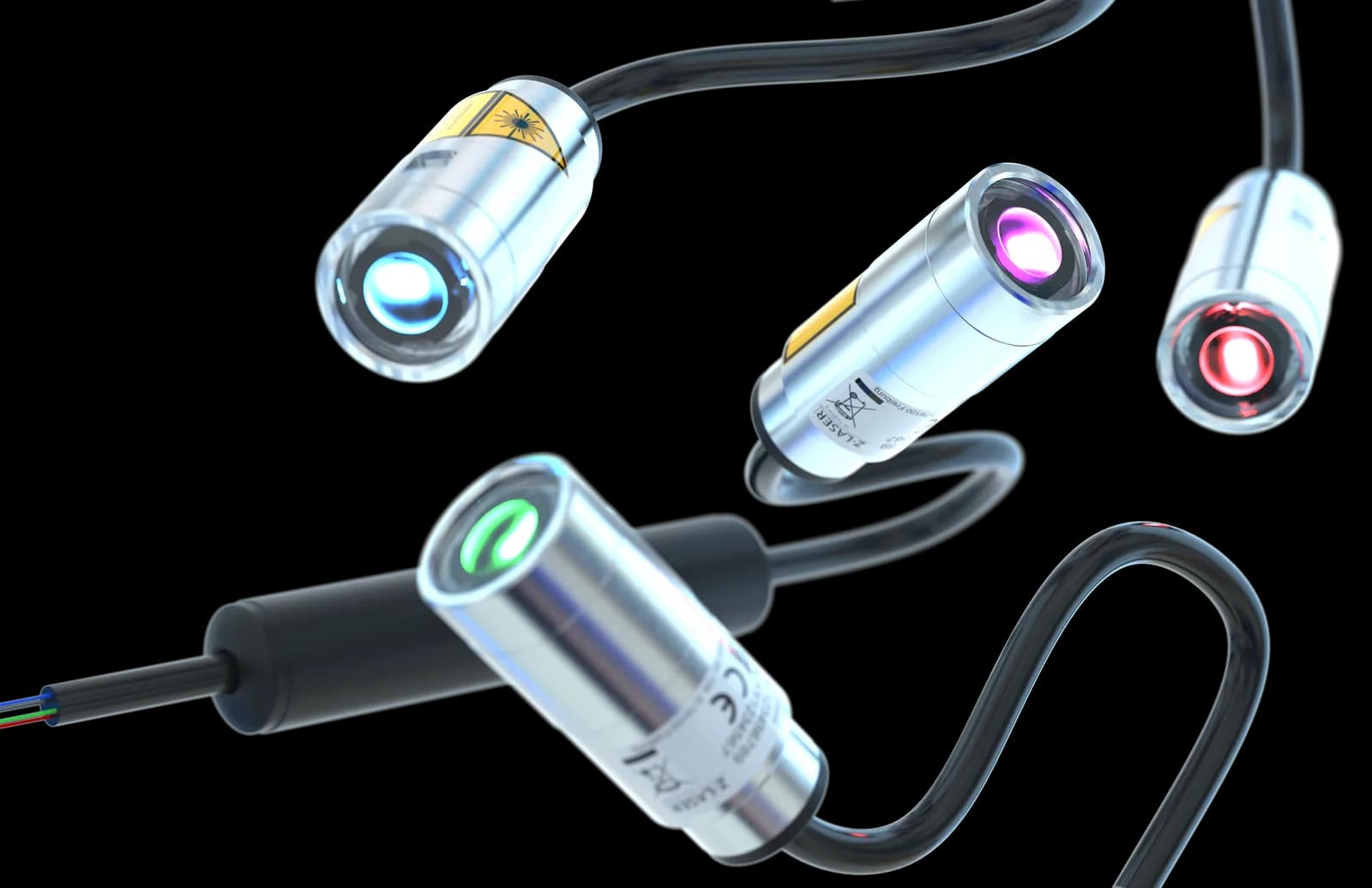

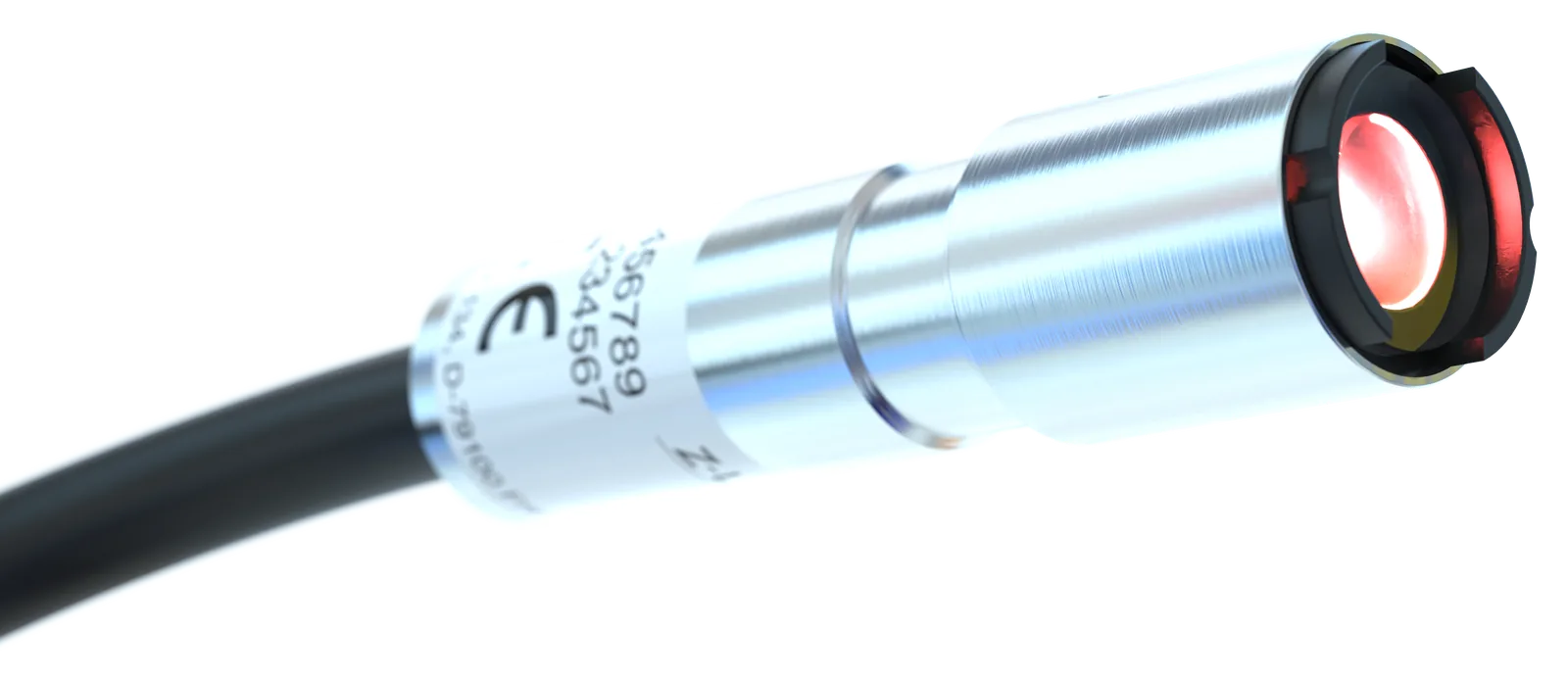

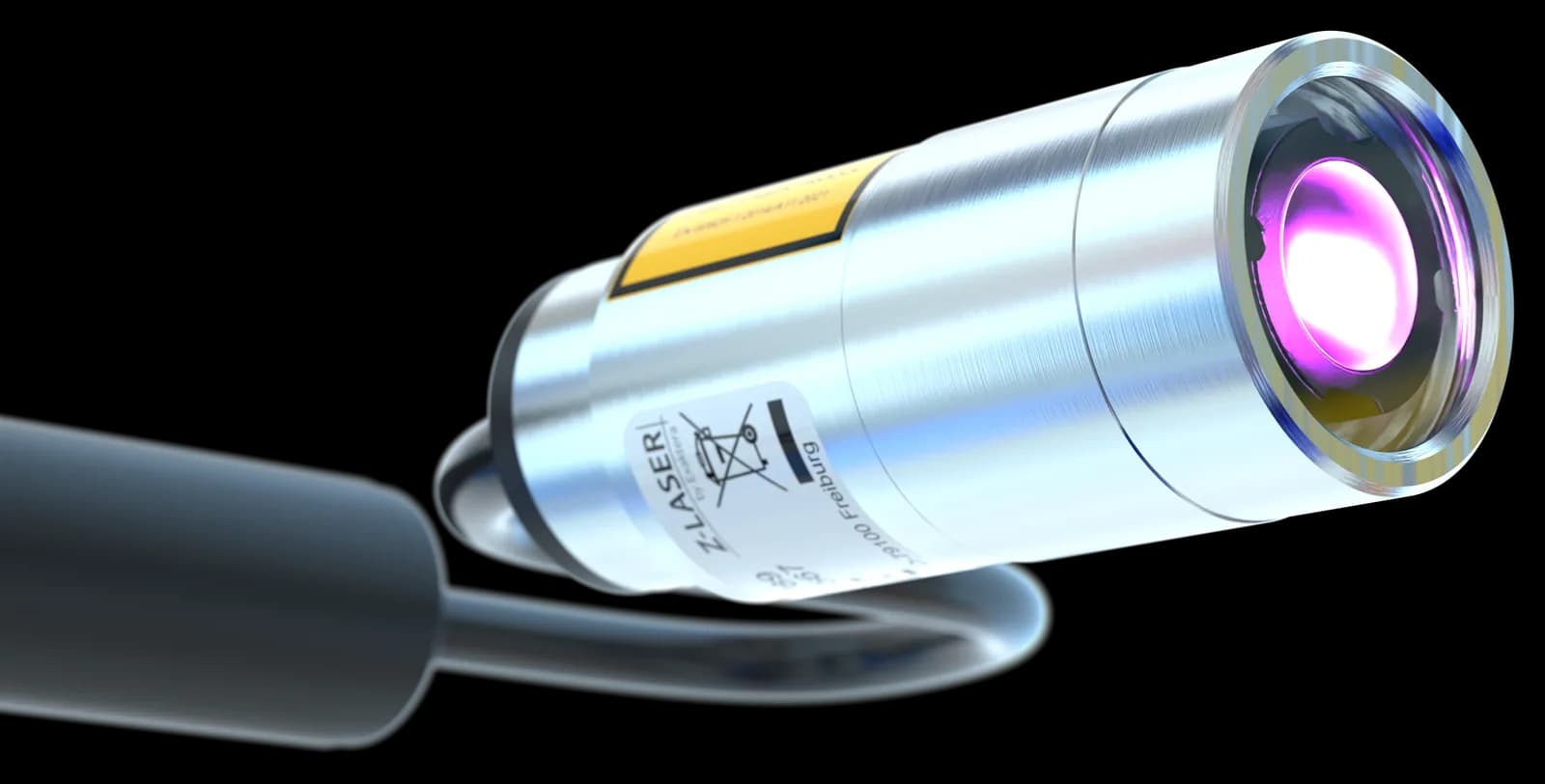

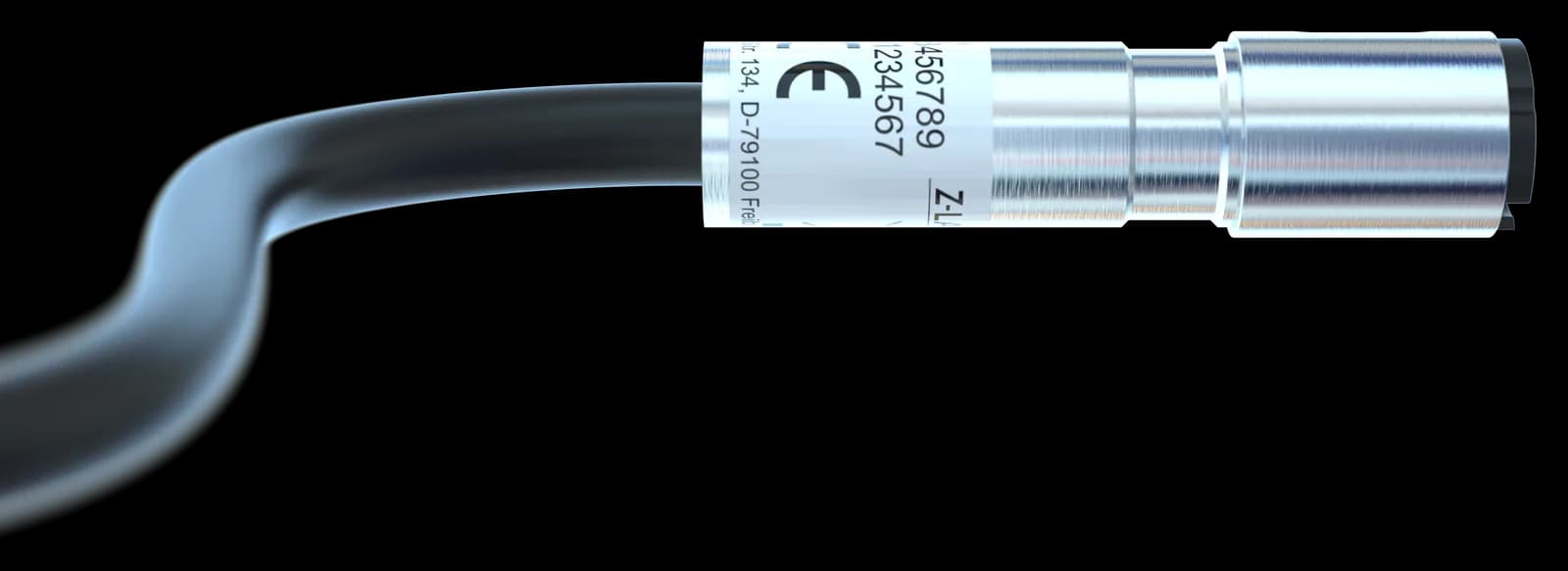

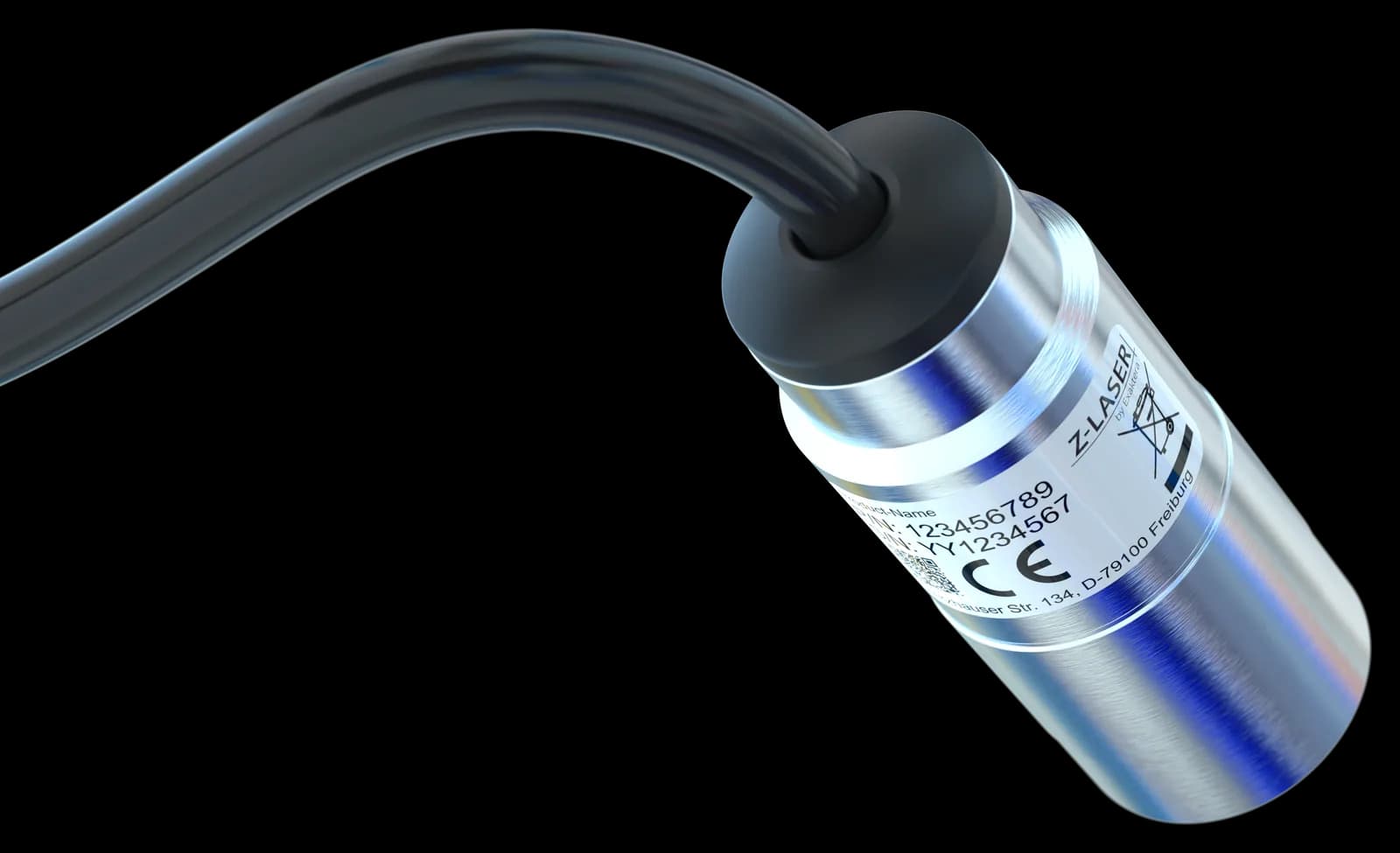

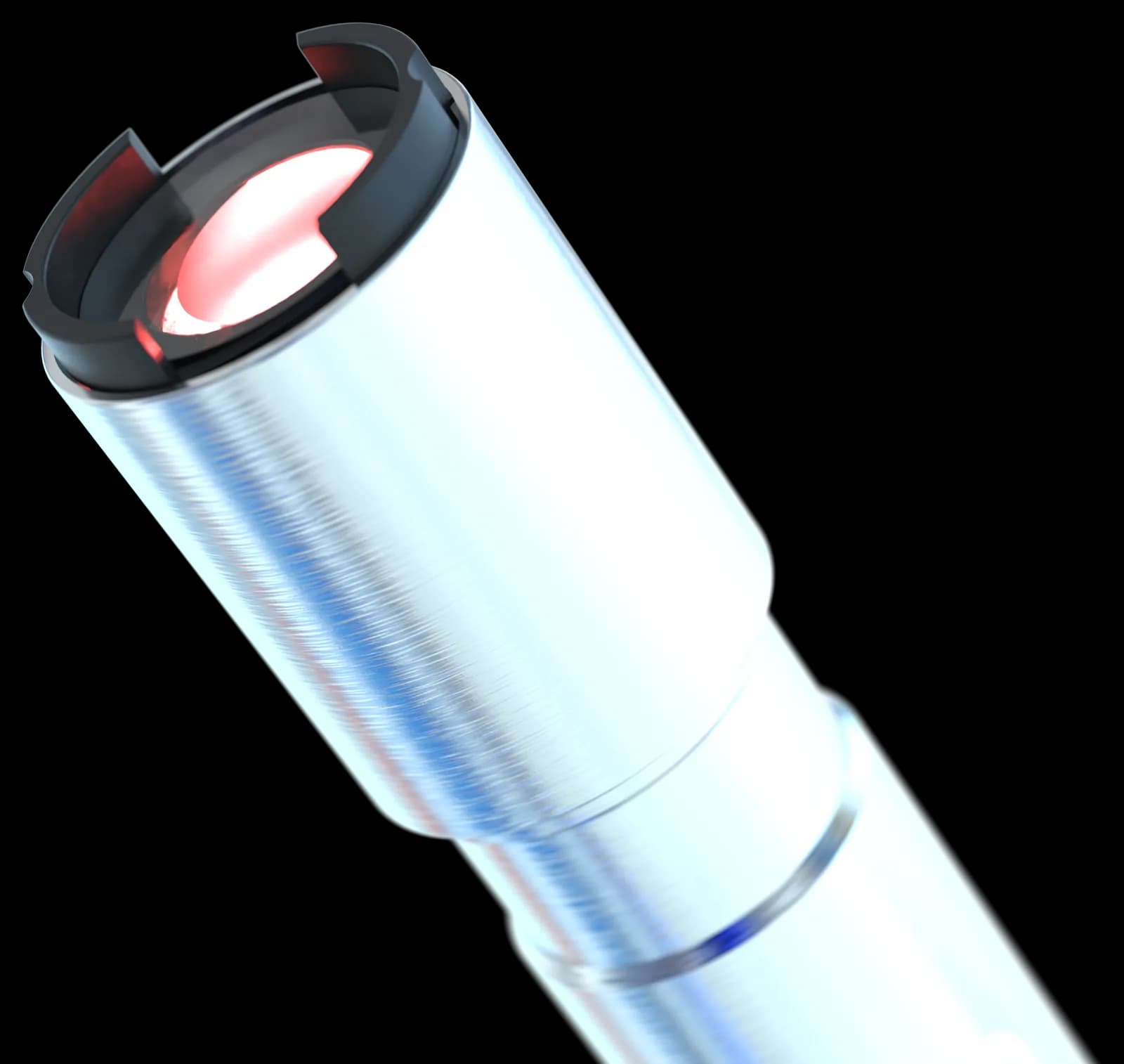

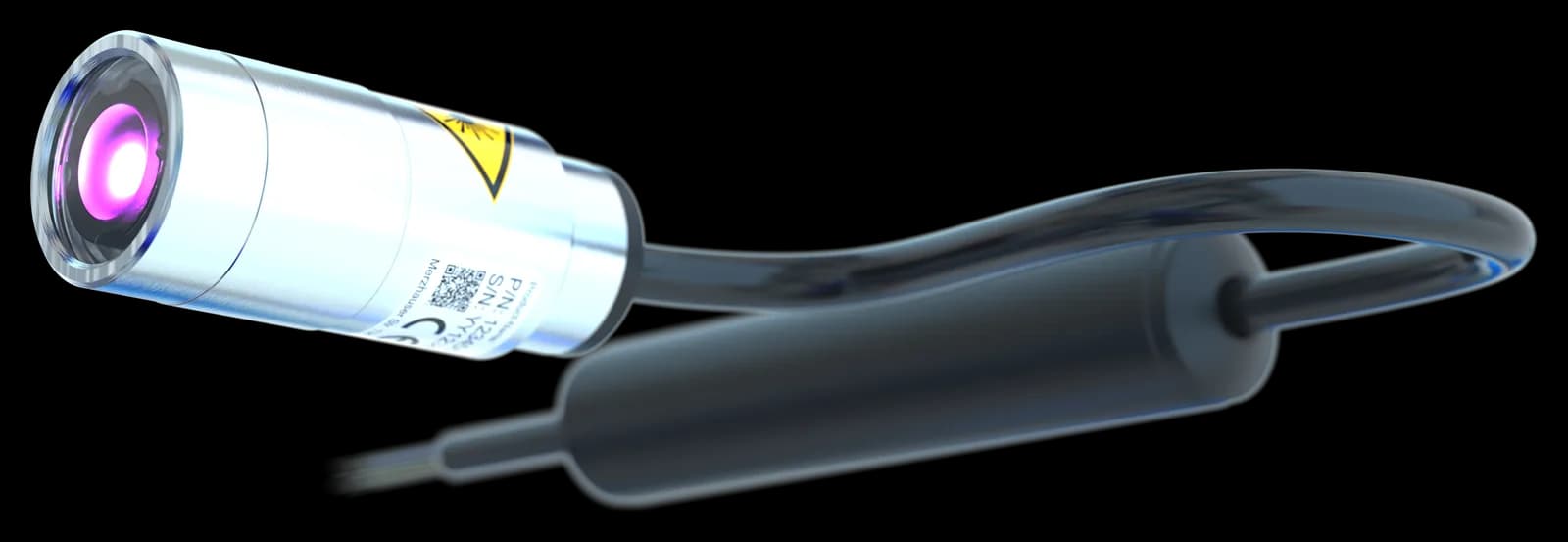

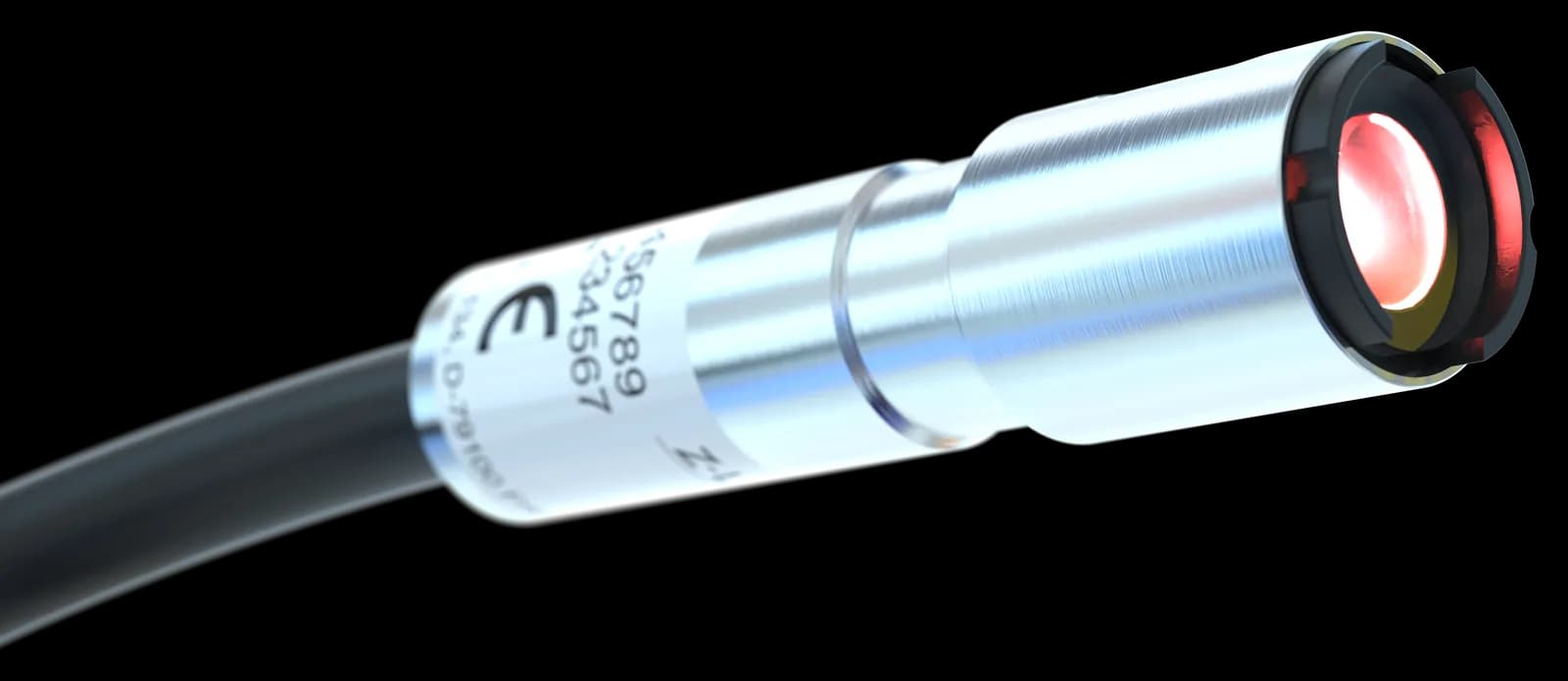

The ZXS is a structured light laser for triangulation sensors, built as a stainless steel optical head on a 100 mm cable with separate driver electronics of 34 by 33 mm. That puts the head where the optics need to be and the electronics wherever there is space. An OEM version fits customized electronics to an existing PCB.

Heads run from the 10 mm ZXS10, 40 mm long, to the 20 mm ZXS20 at 38 mm, or 98 mm in the focusable ZXS20-F. Robot alignment during automated production holds boresight error under 0.8 mrad typical, so beam quality is repeatable between units and a replacement heads needs no recalibration.

Line straightness stays remains 0.05 percent with uniformity under 25 percent, critical for triangulation profiles. Wavelengths range from 405 nm to 830 nm with output up to 200 mW, on 9 to 30 VDC for blue and green and 5 to 30 VDC for red and infrared. TTL modulation reaches 150 kHz with analog intensity control. Ingress Protection is IP 50 on the ZXS10 and IP 67 on the ZXS20.

Specifications

Key Features

Feature 1: Optical output power up to 200 mW
Feature 2: Highest reproducibility of beam quality (robot-aligned optics)
Feature 3: Manually focusable (ZXS20)
Feature 4: Separated / OEM driver electronics
Feature 5: TTL modulation up to 150 kHz
Feature 6: Analog intensity control
Feature 7: Wavelengths from 405 – 830 nm
Feature 8: Industrial standard

Key Applications

Application 1: Machine Vision
Application 2: Triangulation Sensors
Application 3: High-Precision Positioning Tasks
Application 4: 3D-Measurement
Application 5 (website): Industrial image processing, advanced sensing applications

Wavelength

Wavelengths available: 405, 450, 520, 640, 660, 685, 785, 830
Wavelength tolerance: ±10 (405/450/640/660/685/785), −5/+10 (520), ±4 (830)
Wavelength drift: 0.02–0.25 nm/K (by wavelength)

Output Power

Max output power: Up to 200 (830 nm, elp)
Spatial mode: Single transverse mode
Laser operation mode: APC

Beam / Line Quality

Boresight error: <0.8 (fixed focus, typ.)
Line orientation: <10
Pointing stability: <10 µrad/K
Line straightness: <0.08 / <0.05 (by fan angle)
Line uniformity: <25 (typ.)
Optics configuration: slp / elp / flp

Focus & Fan Angle

Focus type: Manually focusable (ZXS20 only)
Focus range: <100 up to 10,000 (up to 980 @ 5° fan angle)
Fan angles: 5, 10, 20, 30, 45, 60, 75, 90
Projection type: Dot, DOE (multi line, crosses, grids)

Stability

Long term power stability: ±3% over operating temperature range (24 h)
Rms noise: <0.5 (20 Hz–20 MHz)
Warm up start up time: <2 s

Modulation

Digital modulation max: 150 kHz
Analog modulation bandwidth: <10 Hz
Analog active range vdc: 0–2

Mechanical

Net weight: Head 40/38/98 mm variants; weight not stated
Dimensions lxbxh: 40 (ZXS10-OEM) / 38 (ZXS20-OEM) / 98 (ZXS20-F-OEM) optic head length
Diameter head: 10h7 / 20h7 (by variant)
Housing material: Stainless steel (laser head) / aluminum (electronics housing)
Protection class ip: IP 50 (ZXS10-OEM, IP 67 optional) / IP 67 (ZXS20/-F-OEM)
Conformity: CE (2014/30/EU, 2011/65/EU, 2006/25/EU)
Shock vibration: IEC EN 61373:2011, cat. 2

Electrical

Supply voltage vdc: 9–30 (405–520 nm) / 5–30 (640–830 nm)
Power consumption: <2.5–2.7 (by wavelength); max 4 W dissipated heat
Operating current: <300 (405–520 nm) / <500 (640–830 nm)
Protection electrical: Over-temperature protection, LED pre-failure indicator, reverse polarity & transient protection (ESD, burst & surge)
Electrical isolation: Potential-free housing
Connection type: JST-BM08B-ZESS-TBT (driver) / 6-lead cable (no driver)
Communication interfaces: I²C, RS-232 (5 V)
Operating current: <300 mA (405–520 nm) / <400–500 mA (635–830 nm)
