Chameleon FX

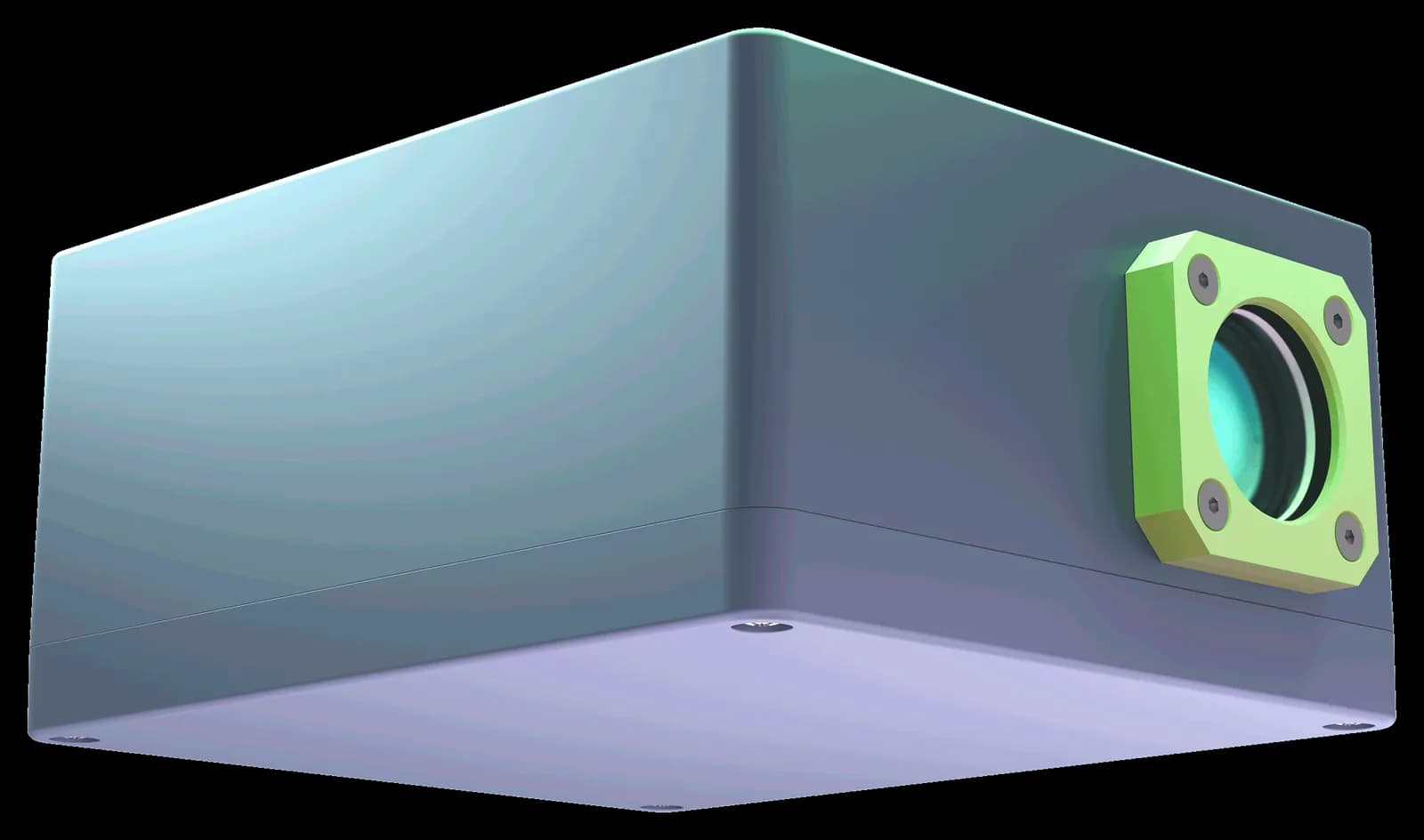

Chameleon FXRight-angle enclosure for Specim FX10/FX17 cameras, aluminium, IP66/IP67, Peltier-cooled (IP54) and hygienic IP69K versions.
- Format
- Right-Angle
- Window aperture
- 45 mm
- Available variants
- 2 variants
About the Chameleon FX

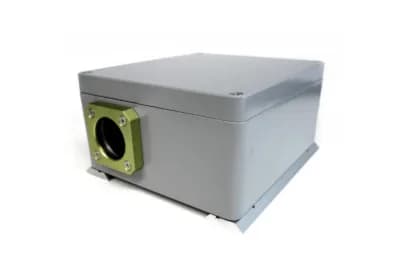

The Chameleon FX is a protection housing built around the Specim FX10 and FX17 hyperspectral cameras and the Keyence VS-L. Heat conductive tape sits between camera and enclosure, drawing heat into the powder coated aluminium body and holding the sensor stable, which matters where spectral calibration drifts with temperature.
The 230 x 200 x 111 mm body takes the GigE and Camera Link versions of each camera, with cable gland apertures of 26.5 mm for M32 GigE and 42 mm for M50 Camera Link, so the original camera cable passes through without a connector change. An Orca housing adapter opens the front to every Orca lid and extension, which brings shorter focal length lenses into range.

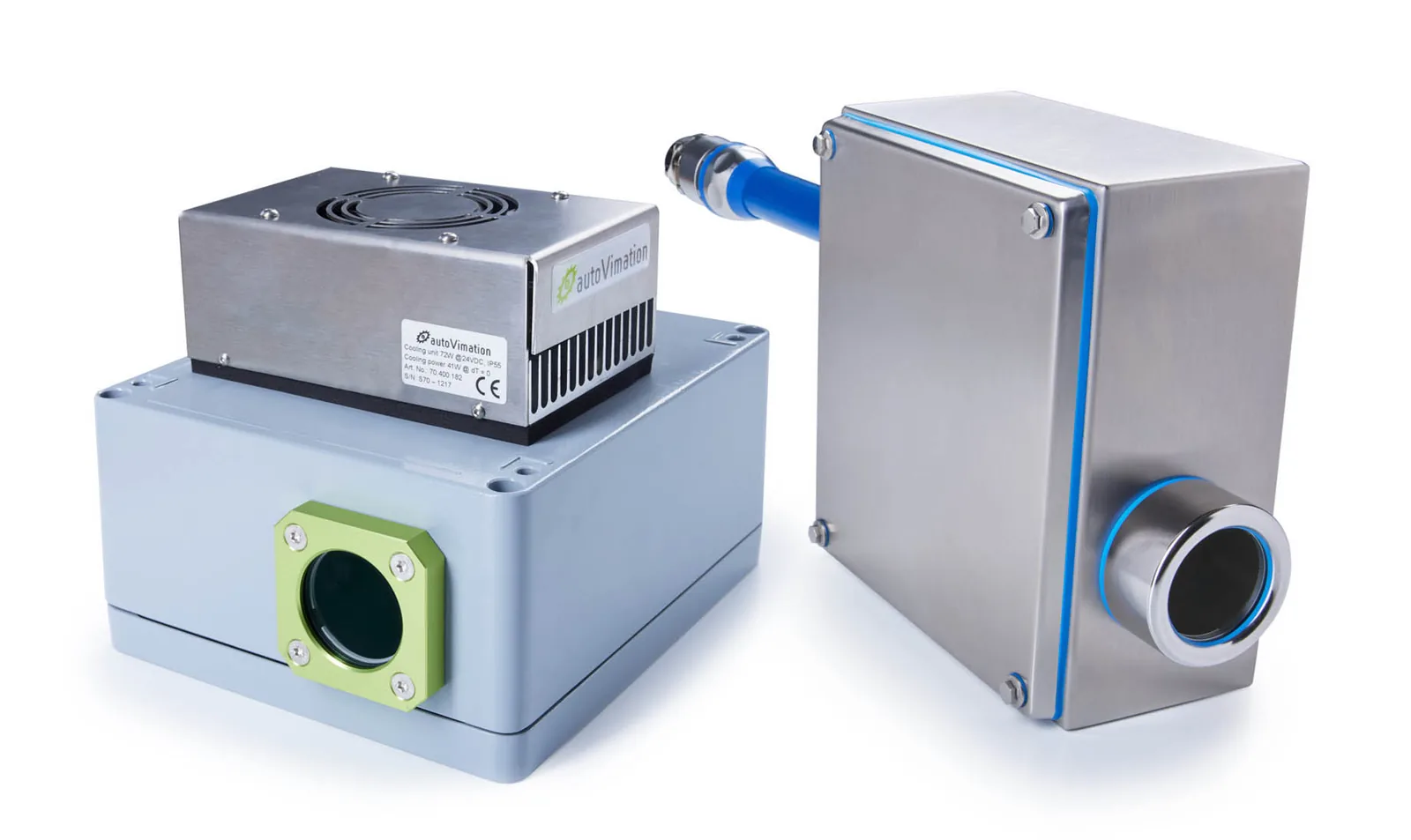

Rated IP66 and IP67, the enclosure withstands jetting water and temporary immersion. It weighs 3000 g in RAL 7001 light grey with a 45 mm window aperture. The Chameleon FX range offers acrylic and BK7 windows, Peltier cooling and heater options, a dovetail mounting plate, and a pressure equalising valve for outdoor use.
Specifications
Compatibility
- Compatible with
- Specim FX10, FX17, Keyence VS / VS-L
Camera / Optical Fit
- Max camera size
- n/a (camera-specific mount)
- Format
- Right-Angle
Window
- Window aperture
- 45 mm
- Standard window options
- BK7 (double sided ARC), Acrylic (uncoated / double sided ARC)
- Window seal
- NBR (standard) / EPDM (Hygienic)
Seals & Cable Gland
- Enclosure seals
- Polyurethane (standard) / Silicone (Hygienic)
- Cable gland seal
- TPE (standard) / PA6 (Hygienic)
- Cable gland aperture
- 26.5 (M32, GigE) / 42 (M50, Camera Link) standard; 19mm Hygienic
Protection, Weight & Material
- Protection class
- IP66/IP67 standard; IP69K Hygienic variant
- Weight
- ~3000g (standard) / ~4500g (Hygienic) / ~4900g (Peltier)
- Enclosure material
- Powder Coated Aluminum (standard) / Stainless Steel AISI 316L (Hygienic)
- Enclosure dimensions
- 230 x 200 x 111 (standard) / 220 x 210 x 108 (Hygienic) / 230 x 200 x 180 (Peltier)
- Cooling operating voltage
- Peltier variant: 24V/DC, 53.2W at dT=0C, max 30C temp. difference, 0-70C ambient
Order Numbers
- Available variants
- Standard / Hygienic (IP69K) / Peltier-cooled; for FX10, FX17 or Keyence VS
- Part number notes
- Dedicated order numbers per camera model and connector type, e.g. 20.105.294 (FX10, M32/GigE, standard).
