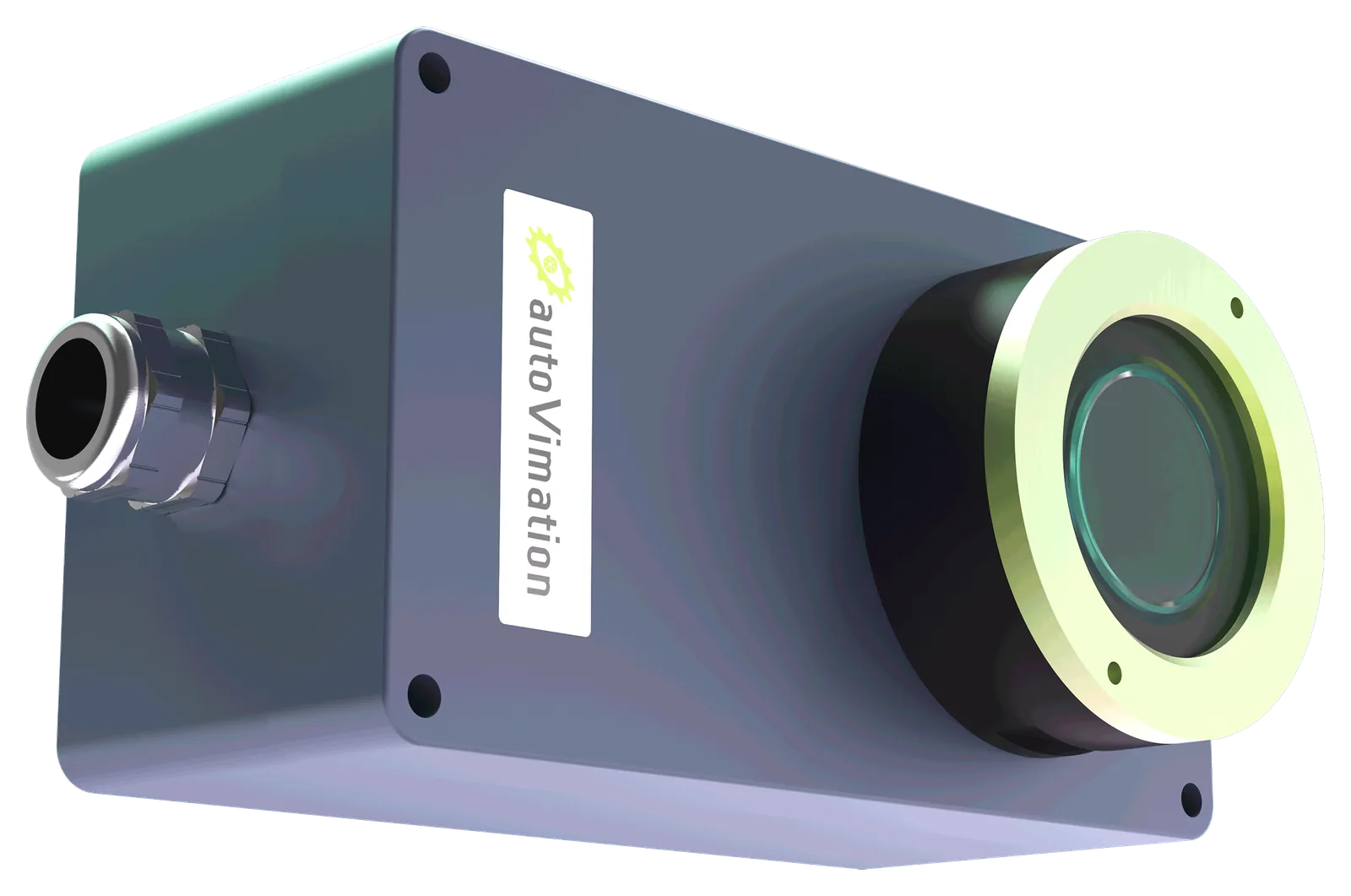

Chameleon
Right-angle enclosure in rugged aluminium, IP66/IP67, for cameras mounted where a straight enclosure won't fit.
S / ST (compact, 90 degree) and L (ring-light compatible)IP66 / IP67Powder Coated Aluminum
Enclosures
Camera Enclosures
IP-rated protective housings for industrial machine vision cameras specified by camera model and lens stack from autoVimation. Engineered for harsh environments: washdown, high temperature, impact and chemical exposure.
Camera enclosures
autoVimation camera enclosures specified by the camera and lens stack they must accommodate. IP65 to IP69K rated for washdown, high-temperature and chemically aggressive environments.

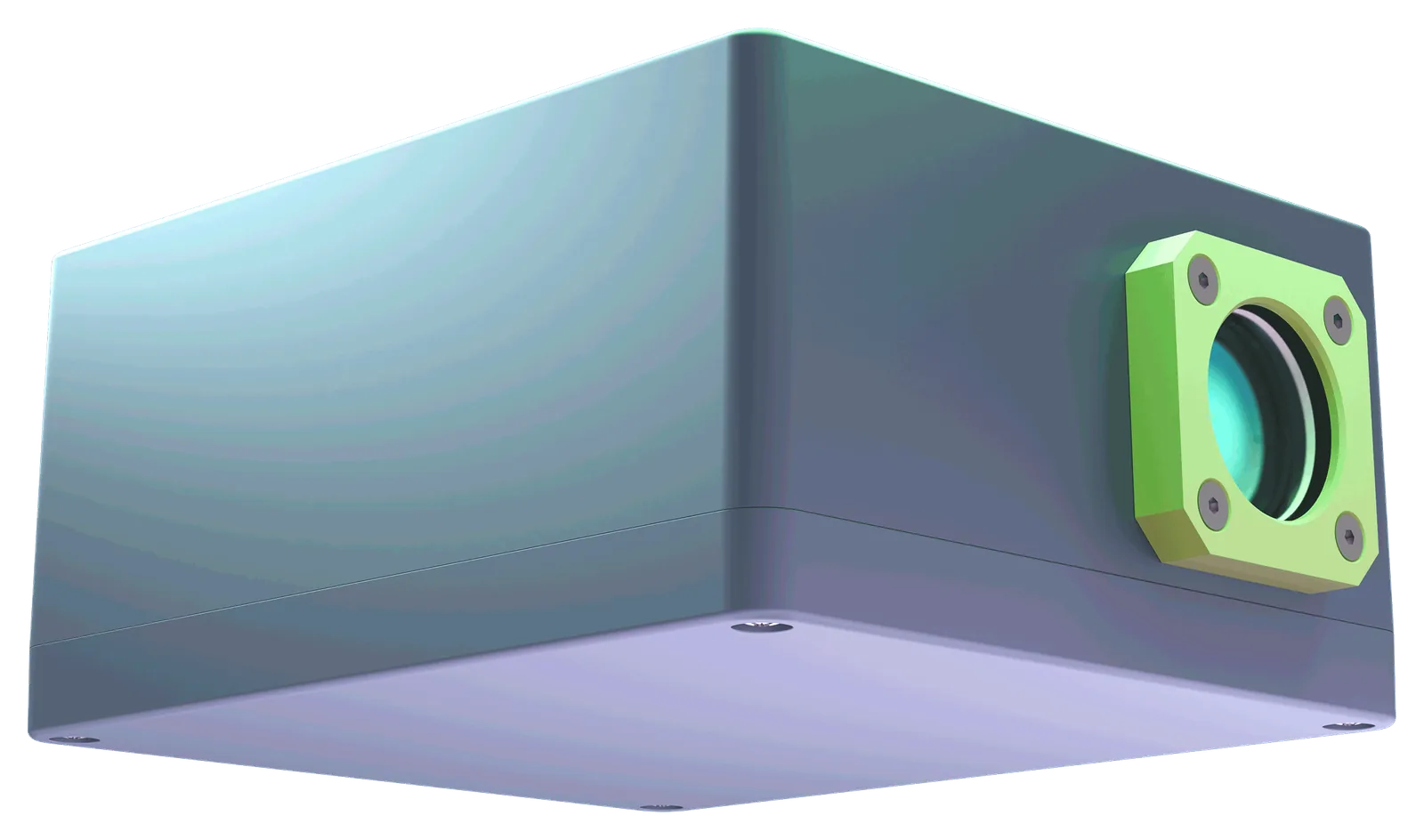

Chameleon FX
Right-angle enclosure for Specim FX10/FX17 cameras, aluminium, IP66/IP67, Peltier-cooled (IP54) and hygienic IP69K versions.
Specim FX10, FX17, Keyence VS / VS-LIP66/IP67 standard; IP69K Hygienic variantPowder Coated Aluminum (standard) / Stainless Steel AISI 316L (Hygienic)

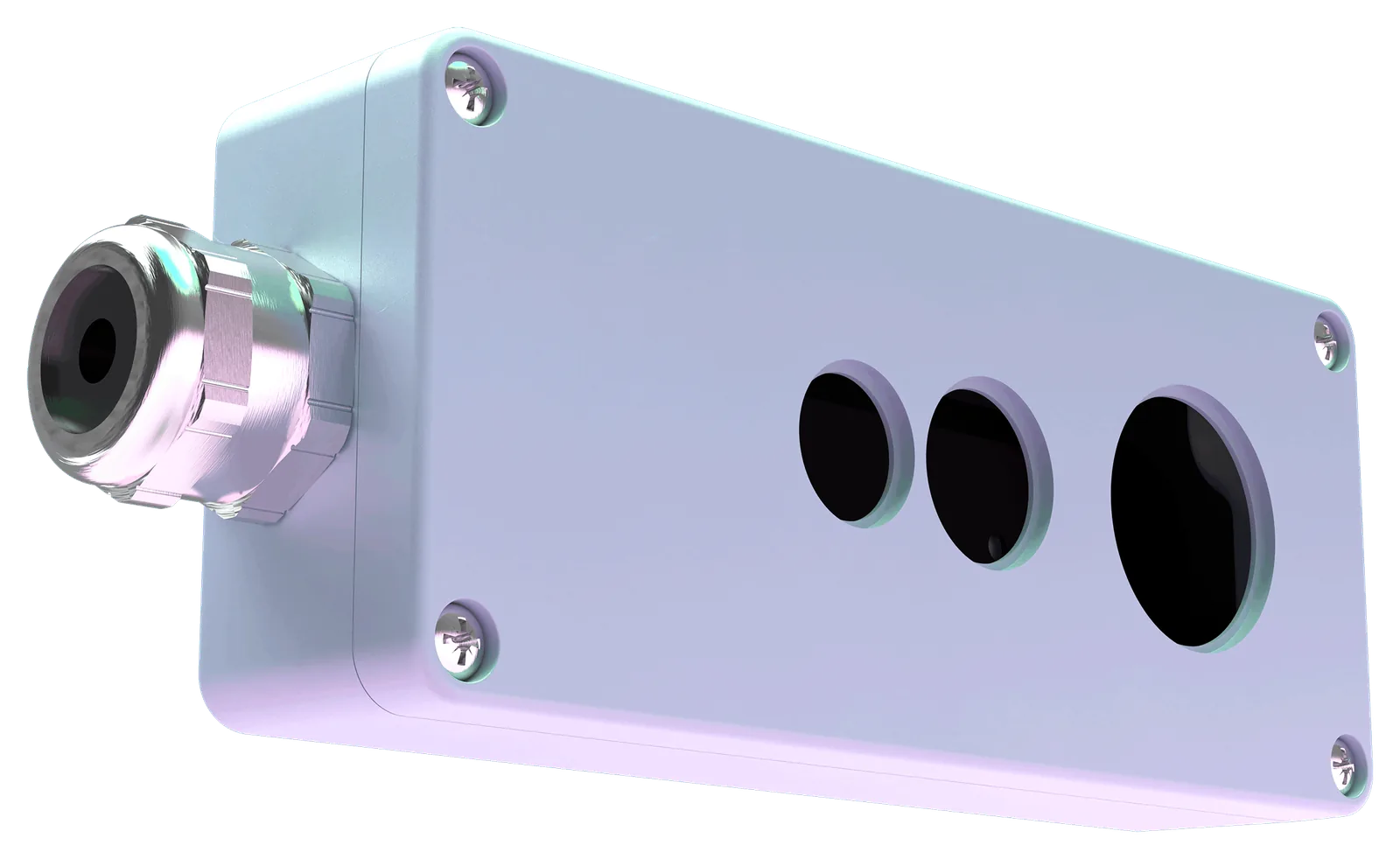

Chameleon XS RealSense™
Rugged aluminium right-angle enclosure, IP66/IP67, for Intel RealSense D415, D435 and D455 cameras.
D415 / D435 / D455IP66 / IP67Powder Coated Aluminum

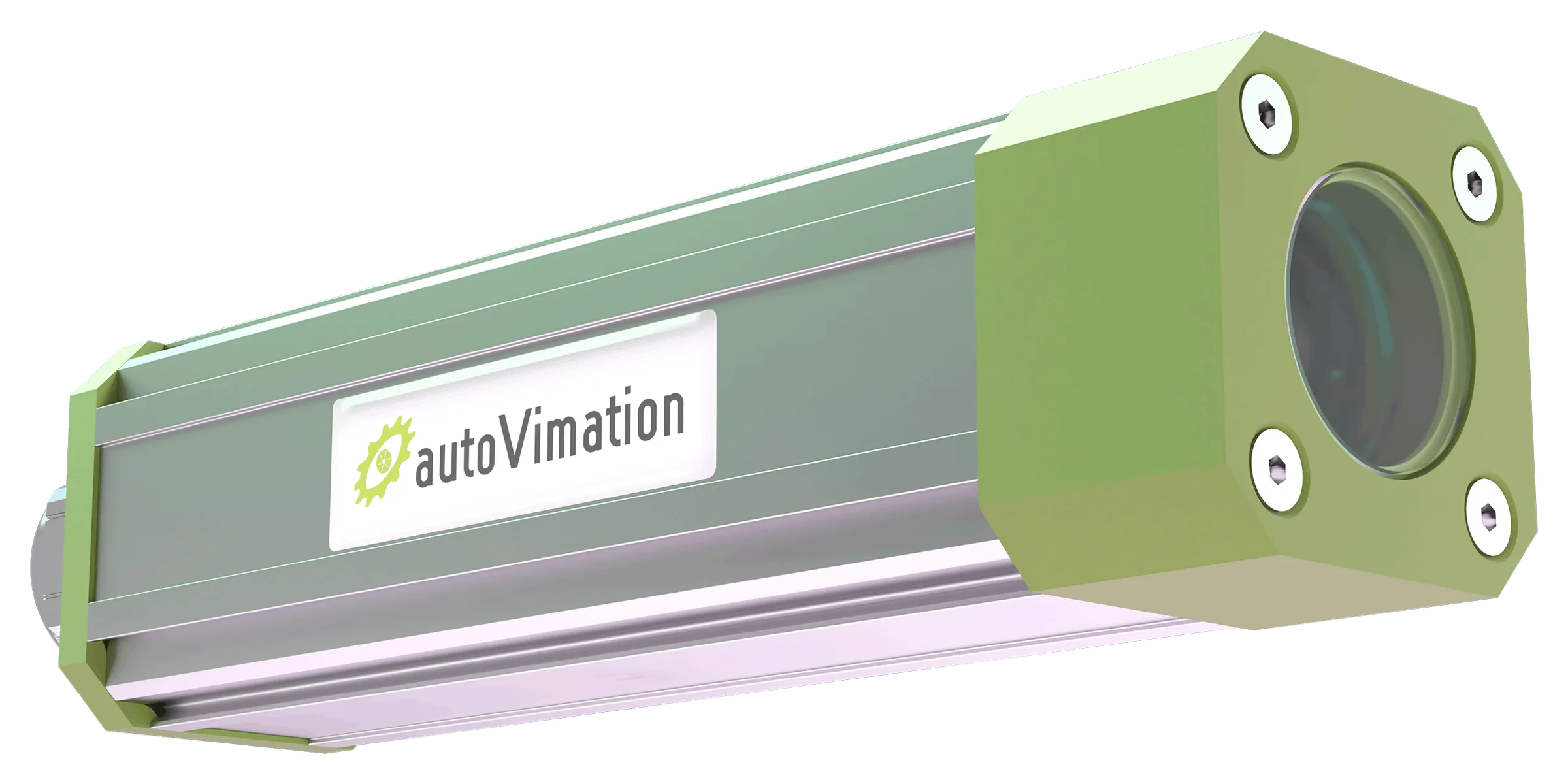

Colibri
Rugged aluminium enclosure, IP66, for compact cameras up to 30×30mm. The smallest in the range.
30 x 30IP66Anodized Aluminum

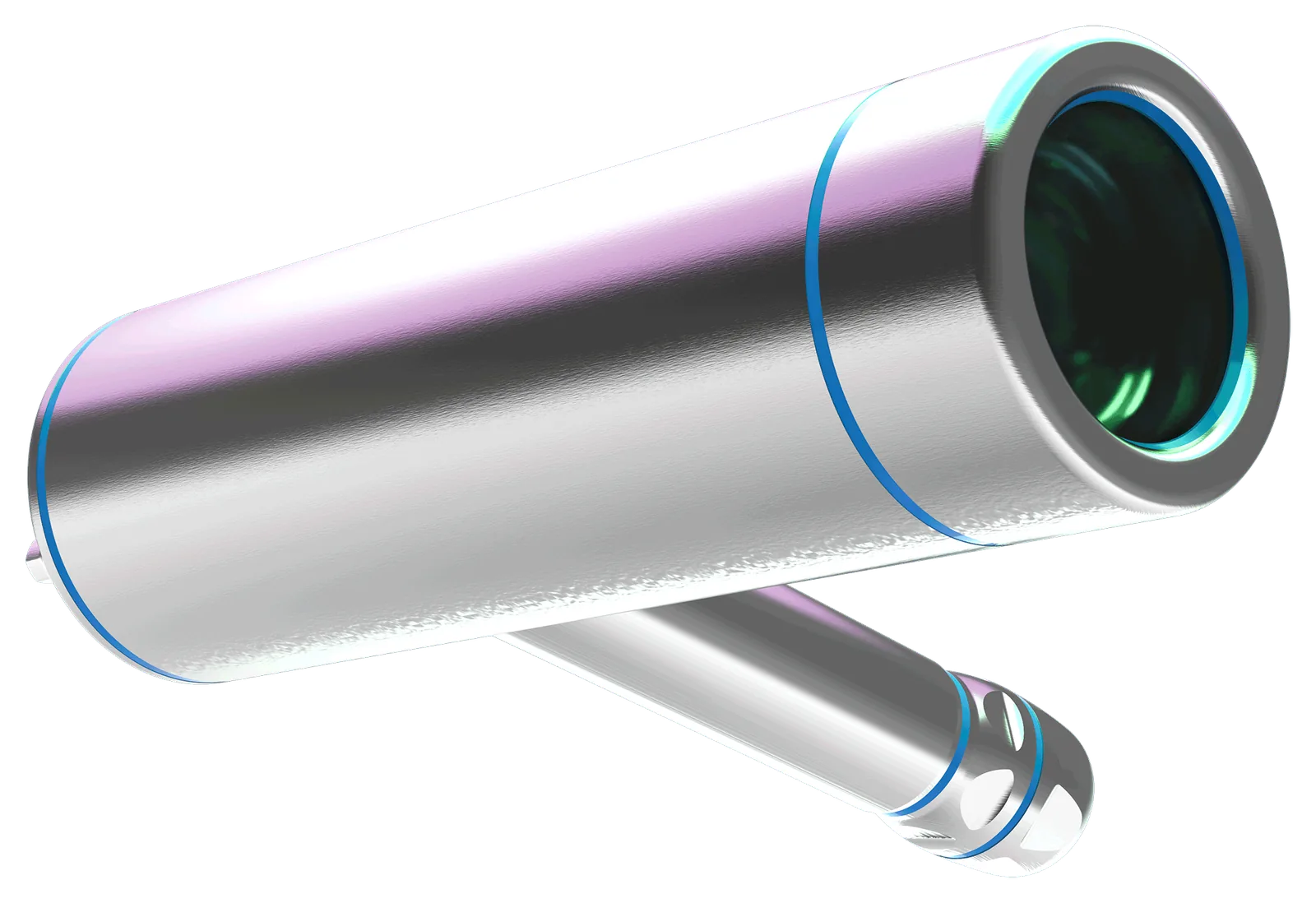

Dolphin
Hygienic stainless steel enclosure, IP69K, for cameras up to 40×40mm in direct food-contact washdown areas.
40 x 40 (or 29 x 47)IP69KYes

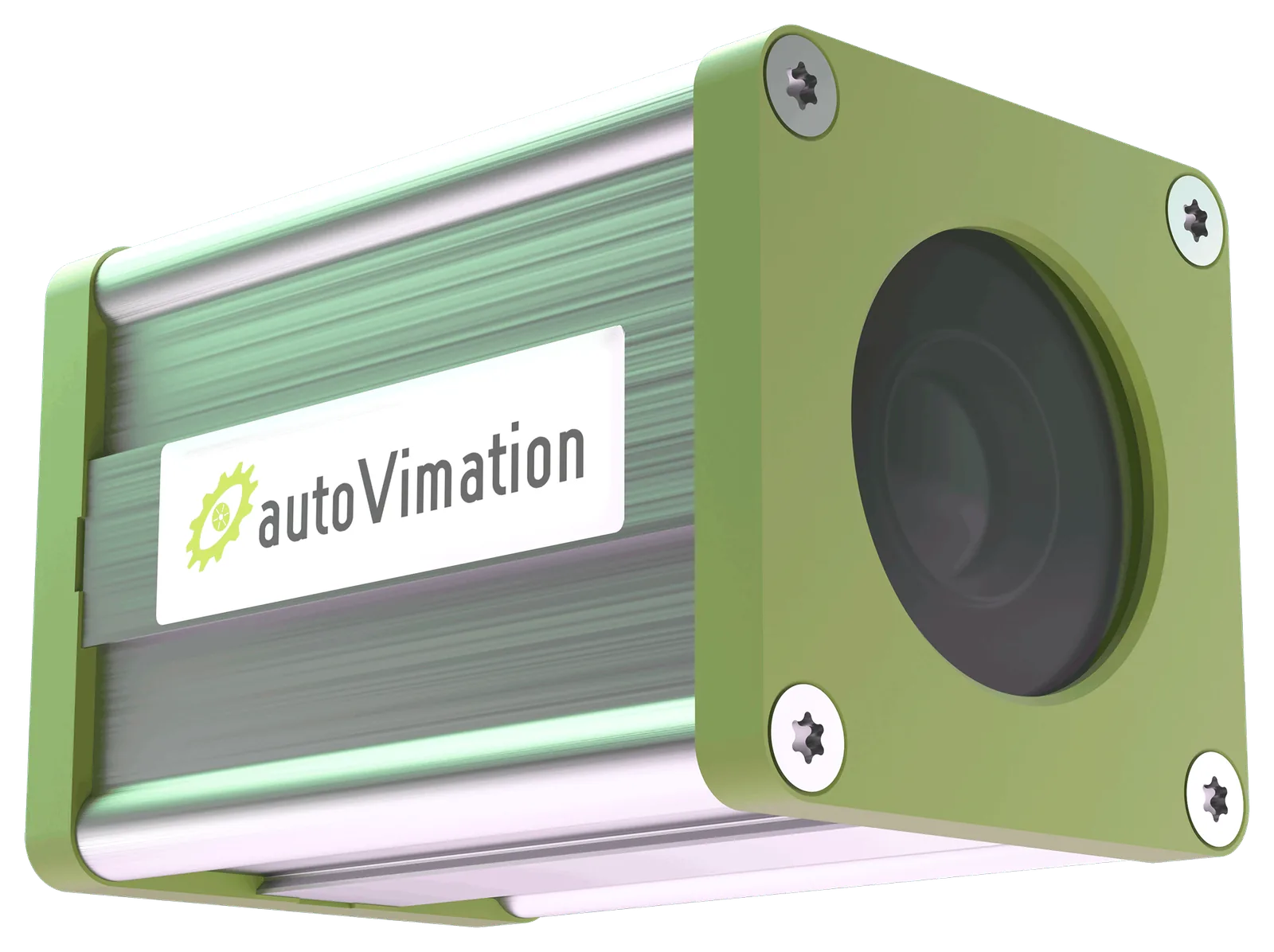

Elefant
Rugged aluminium enclosure, IP66/IP67, for cameras up to 100×100m.
100 x 100IP66 / IP67Anodized Aluminum

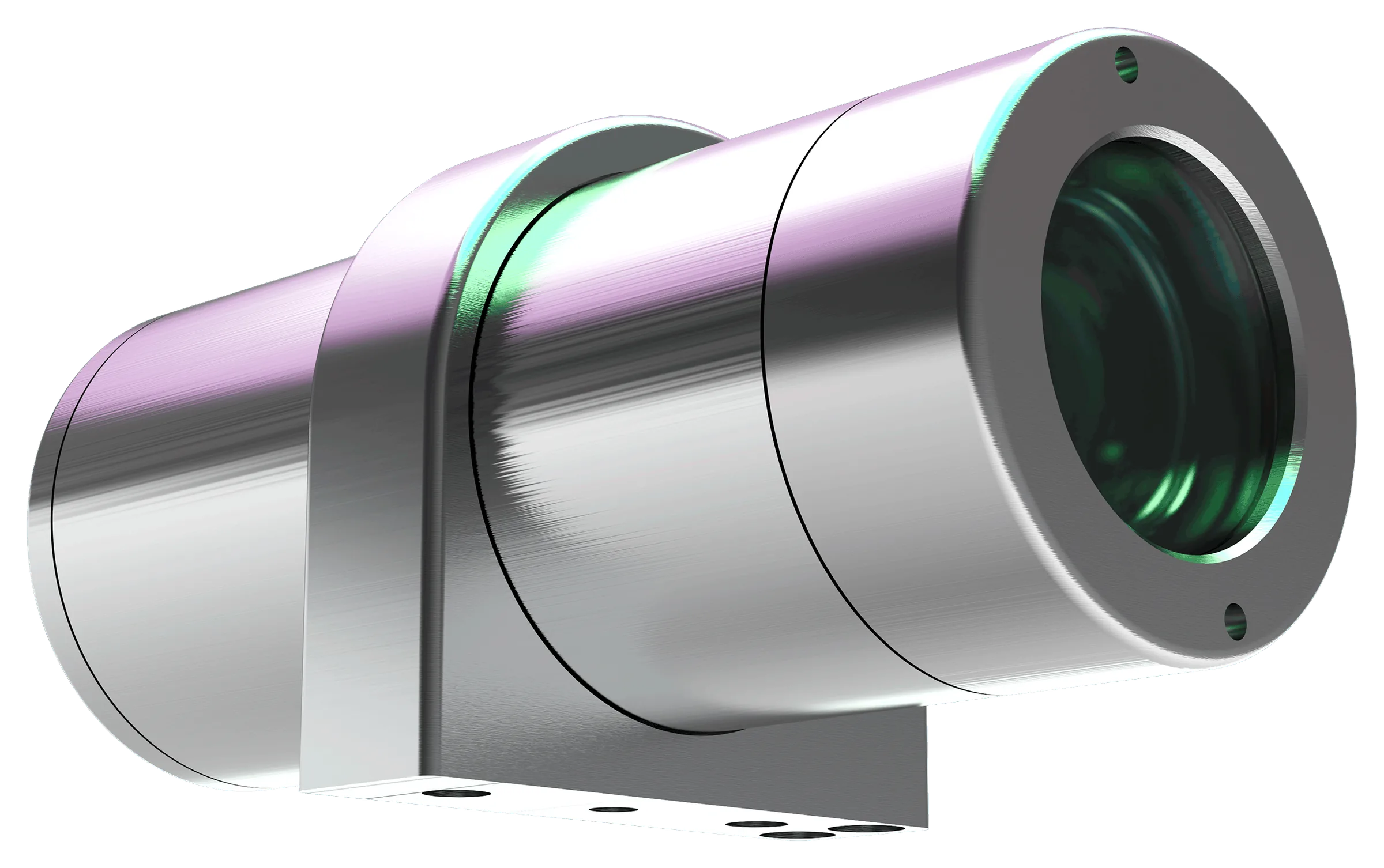

Feuersalamander
Stainless steel enclosure, IP66/IP67, for compact cameras up to 40×40mm. FDA-approved seals for food and pharma.
40 x 40 (or 29 x 47)IP66 / IP67Electro-polished V4A stainless steel AISI 316L

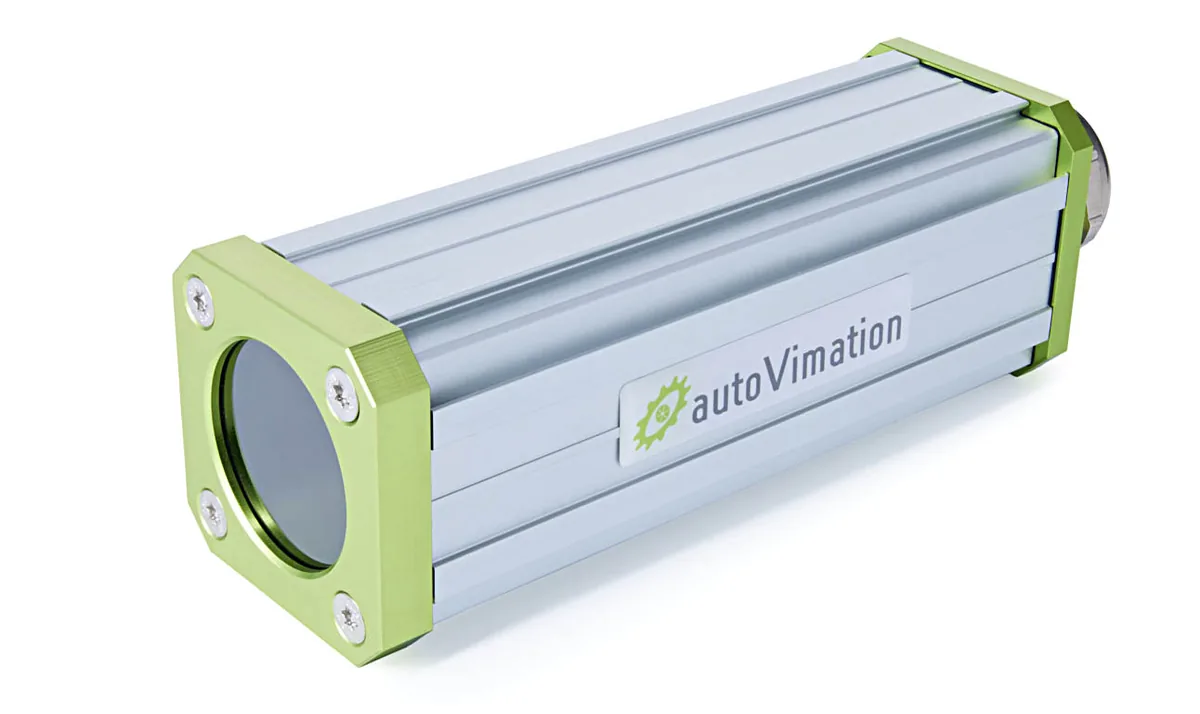

Gecko
Designed for specific compact cameras (Flir AX5, Vision Components VC4xxx, Tamron MP1010M) — check compatibility.

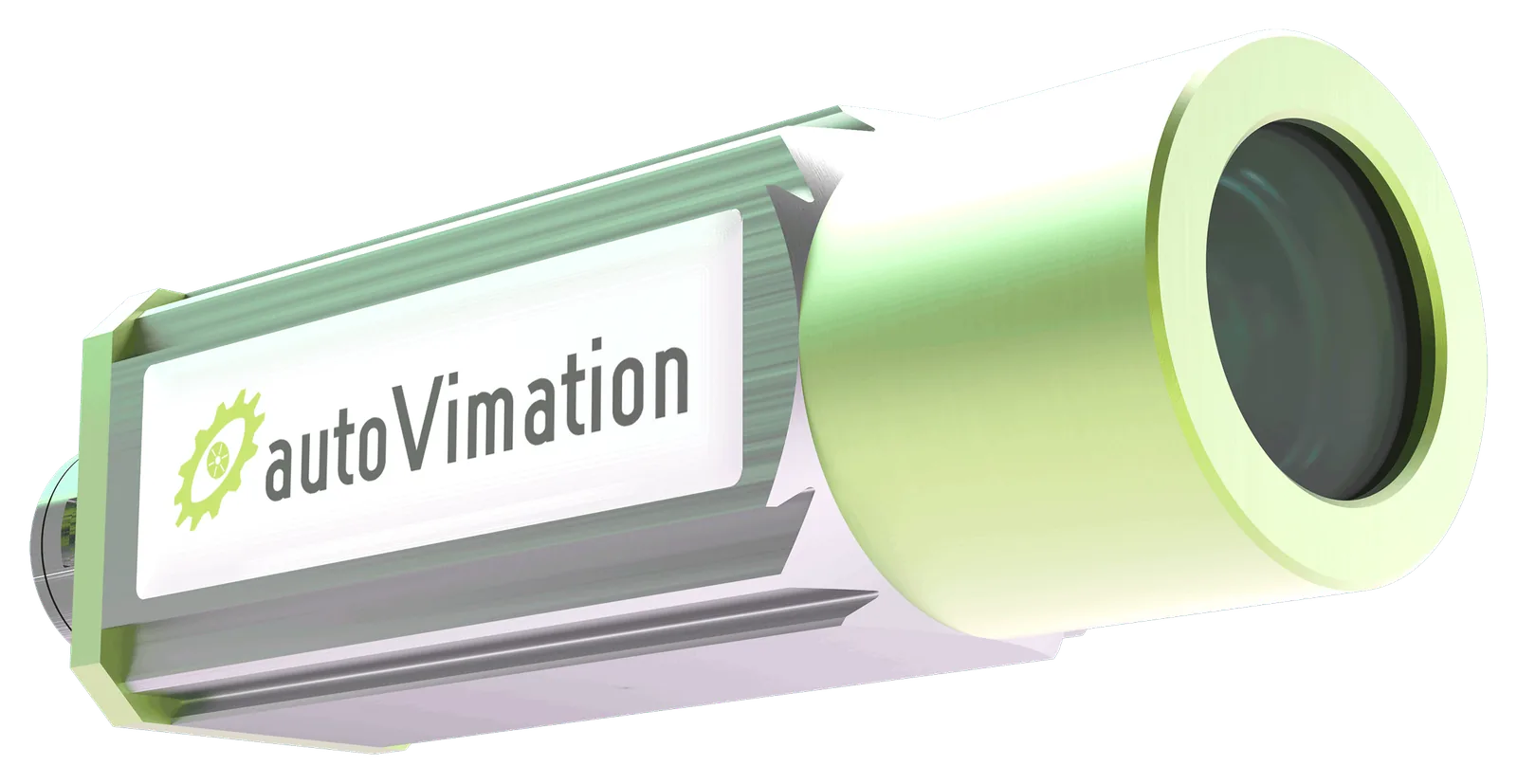

Lizard
Rugged aluminium enclosure, IP66/IP67, with tool-less lens adjustment for cameras up to 40×40mm.
40 x 40 (or 29 x 47)IP66 / IP67Anodized Aluminum

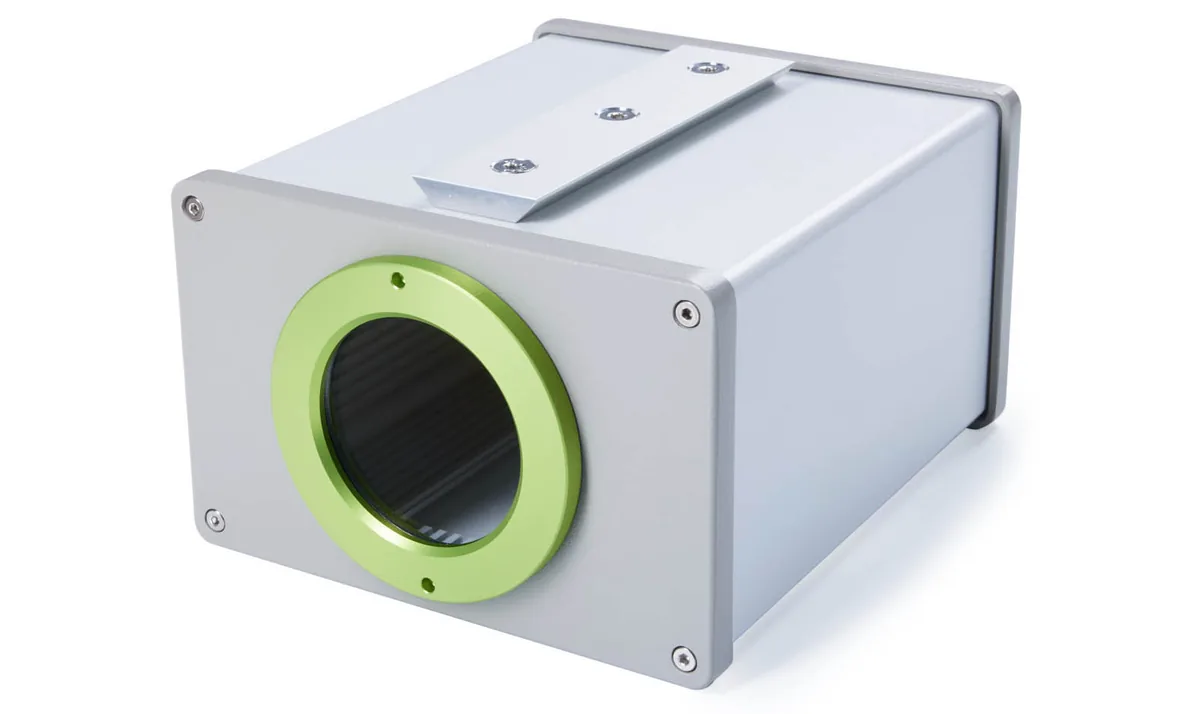

Mammoth
Rugged aluminium enclosure, IP65, for large-format cameras up to 90×150mm. Suitable for line scan, large sensors and thermal imagers.
90 x 150IP65Powder Coated Aluminum

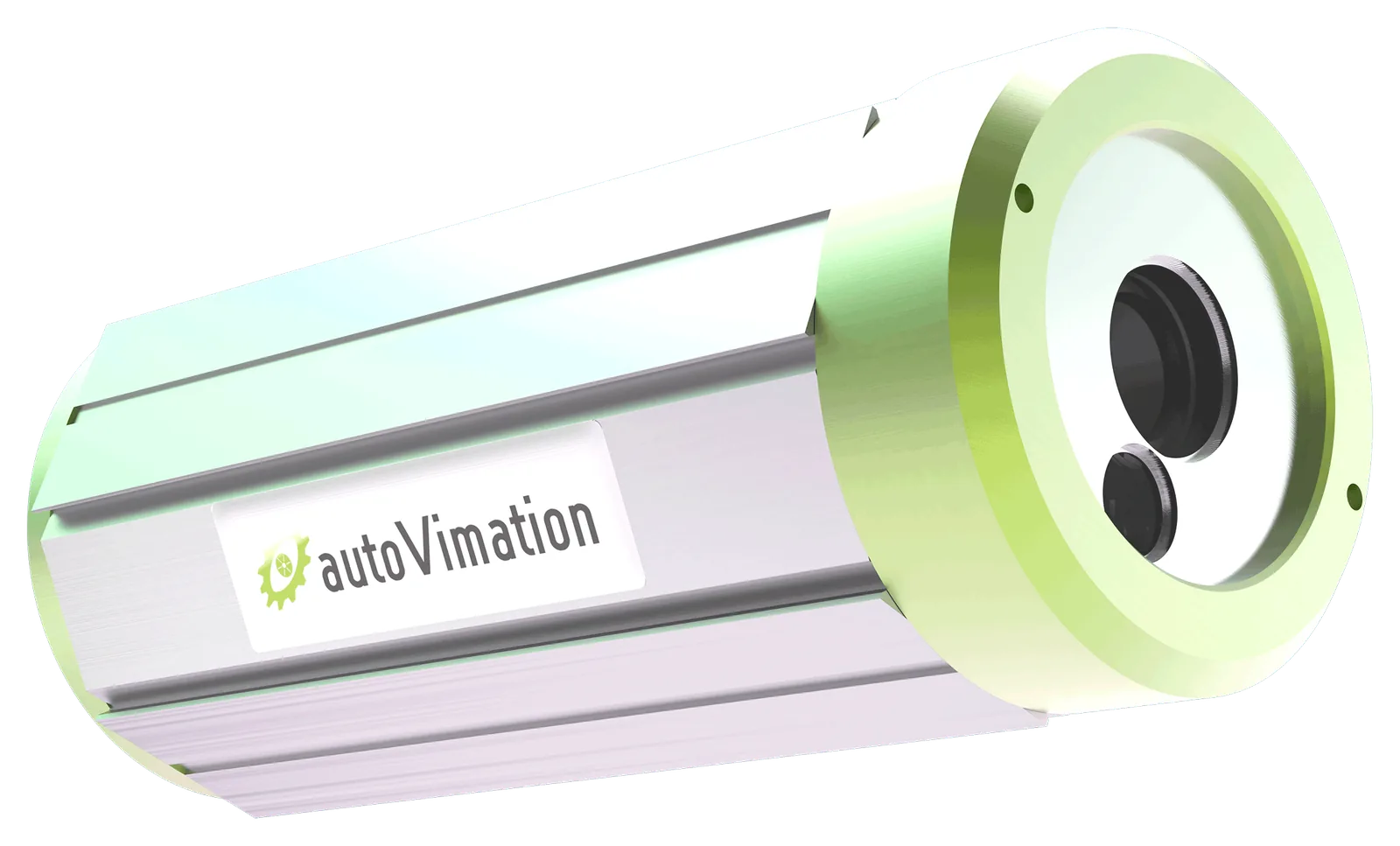

Megalodon
Aluminium enclosure, IP66/IP67, for large cameras from 61×61mm such as Flir A400–700, Basler Runner and JAI Spark.
62 x 62 (and larger, edge-radius dependent)IP66 / IP67Anodized Aluminum

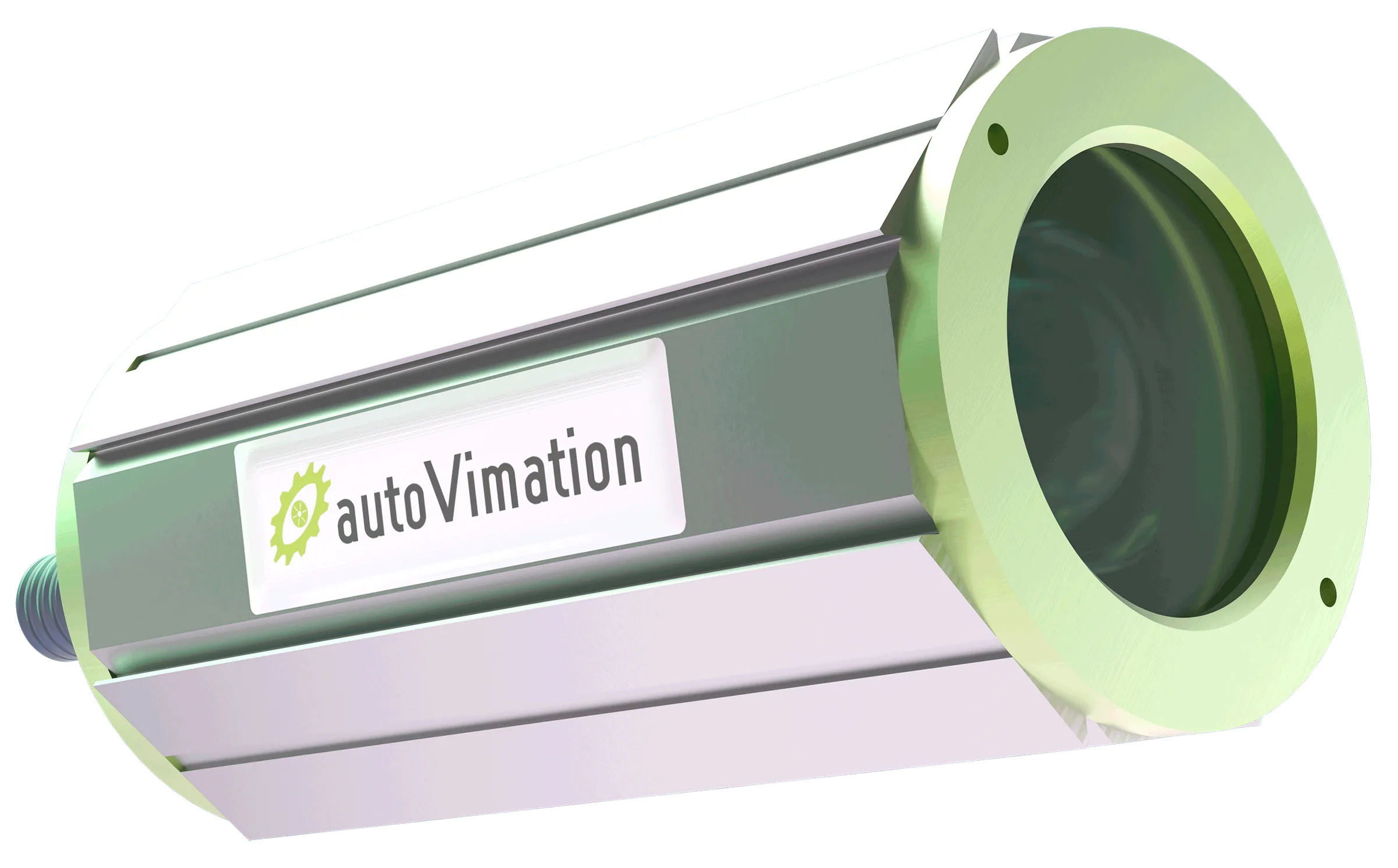

Nautilus
Rugged aluminium enclosure, IP68, for permanent underwater use with cameras from 61×61mm, 5m cable tube included.
61 x 61IP66 / IP68Anodized Aluminum

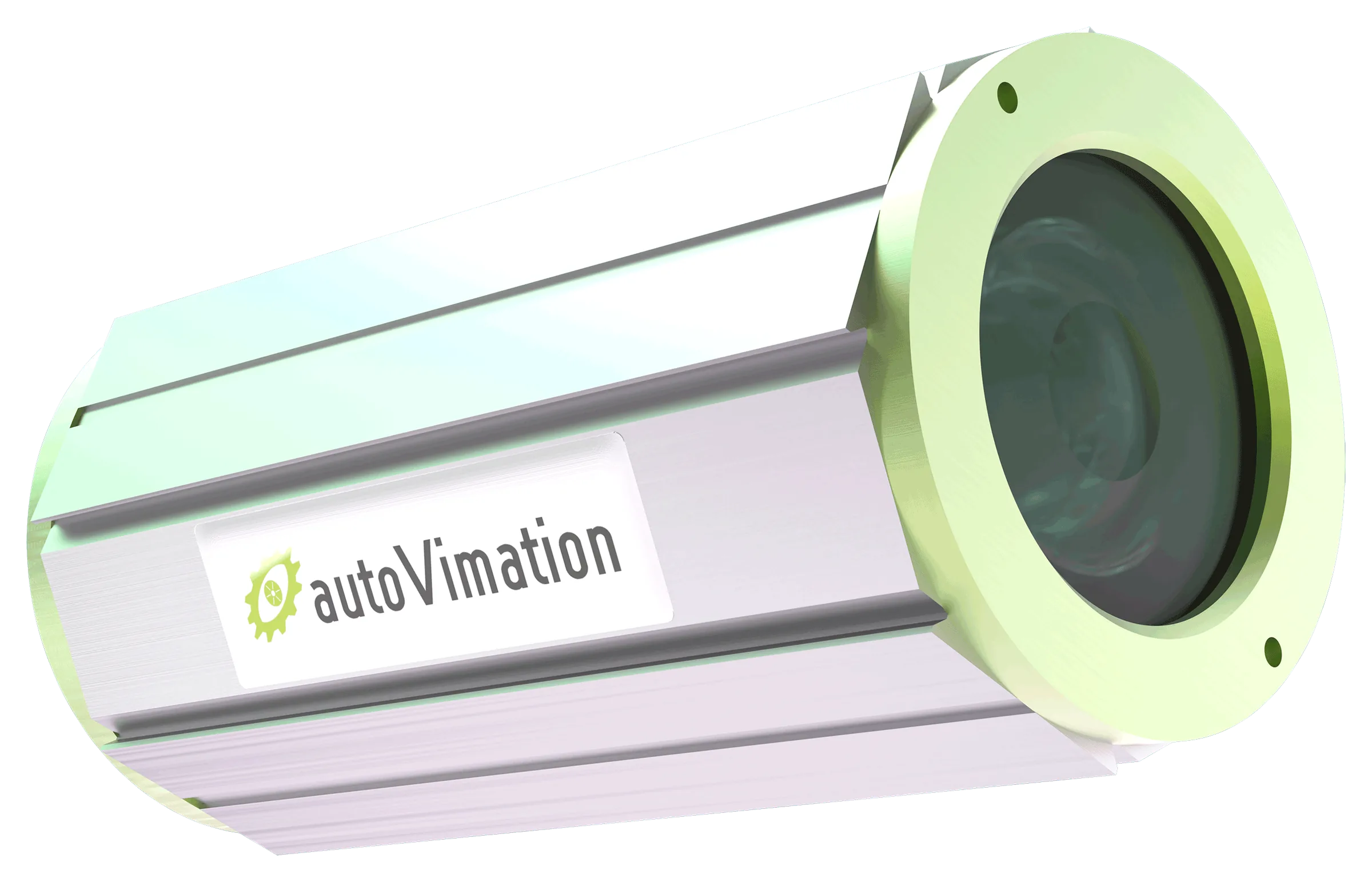

Orca
Rugged aluminium enclosure, IP66/IP67, for cameras from 61×61mm, full window range, Meganova ringlight compatible.
61 x 61IP66 / IP67Anodized Aluminum

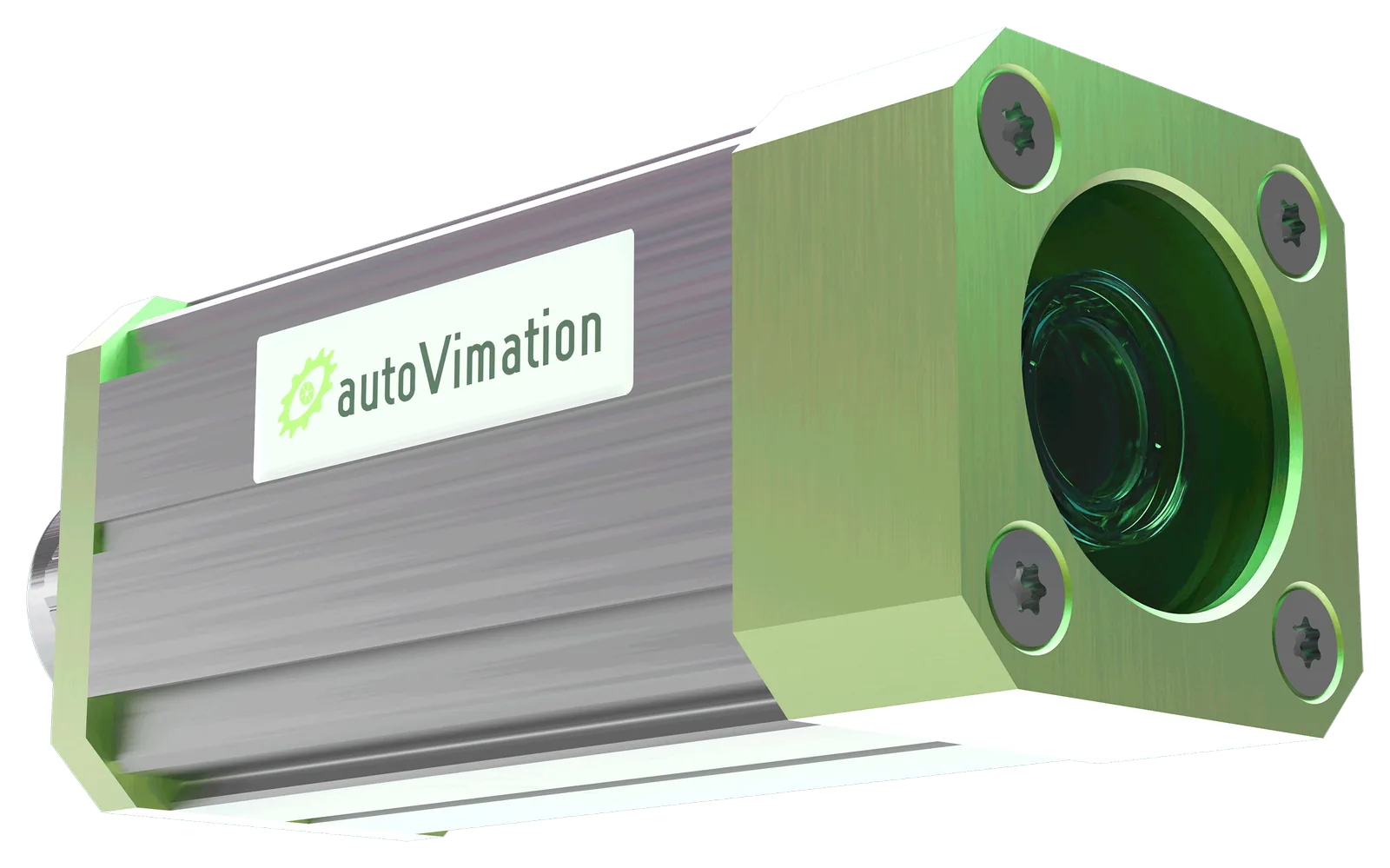

Salamander
Rugged aluminium enclosure, IP66/IP67, for compact cameras up to 40×40mm, four lengths and a full accessory range.
40 x 40 (or 29 x 47)IP66 / IP67Anodized Aluminum

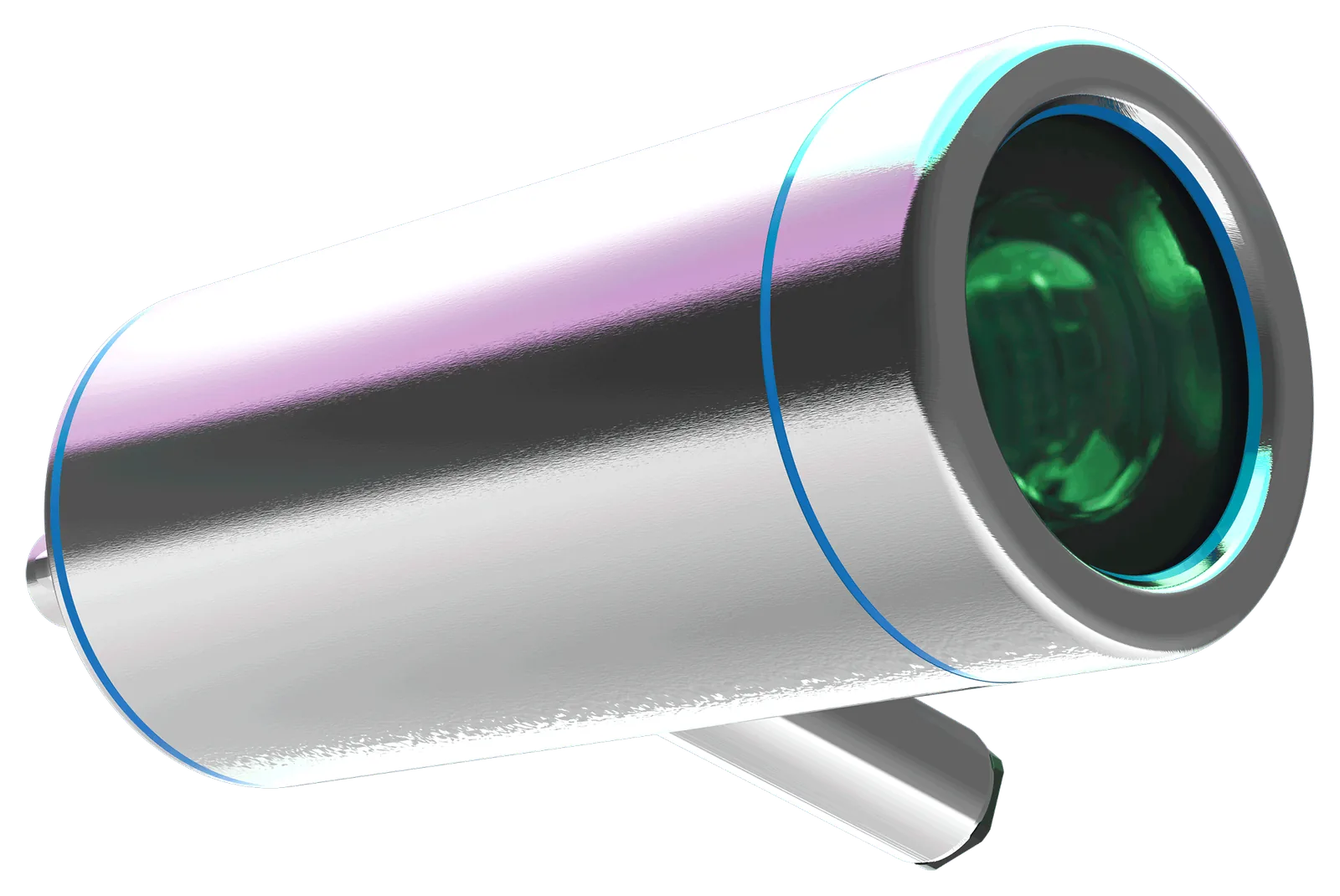

Shark
Hygienic stainless steel enclosure, IP69K, for cameras from 61×61mm.
62 x 62 (edge-radius dependent)IP69KYes

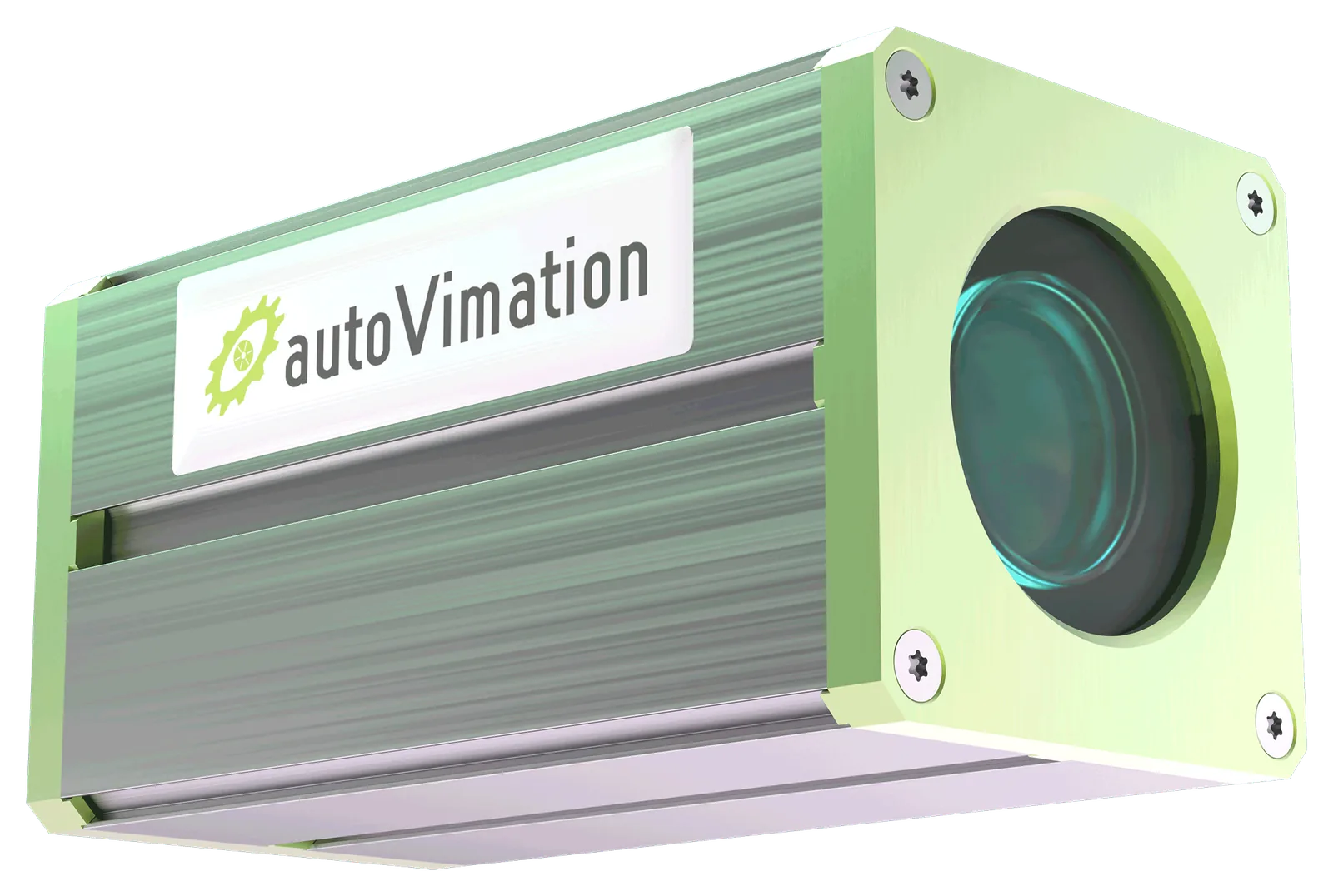

Stingray
Rugged aluminium enclosure, IP66, for larger cameras up to 75×75mm.
75 x 75 (cross-section 100 x 100)IP66Anodized Aluminum

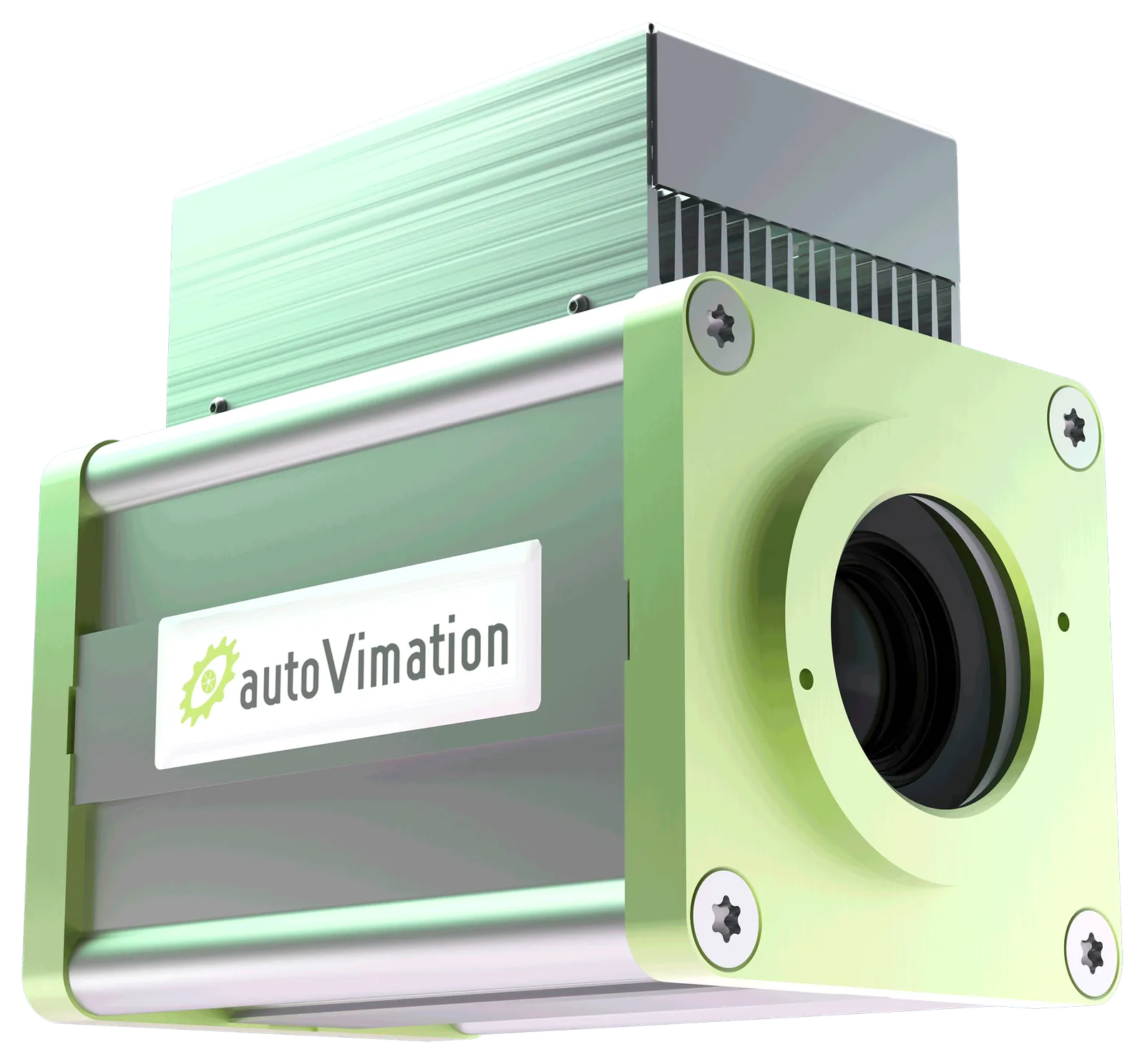

Turtle
Peltier-cooled aluminium enclosure, IP54, for cameras up to 100×100mm, cools and heats for outdoor use up to +70°C.
60 x 60IP54 (fan) / IP65 (camera)Powder-Coated Aluminum
Protect your camera installation
Tell us your camera model and lens, your operating environment and IP requirement — we will match the right enclosure.
