Colibri

The Colibri is a compact protection housing for small industrial cameras working in wet, dusty or wash-down areas. The camera mount is included and carries heat straight into the anodised aluminium body, so the sensor runs cooler and holds its noise performance through a long shift.

The Colibri takes cameras up to 30 x 30 mm in cross section and lenses up to 39 mm in diameter, in a body just 50 x 50 mm square, which lets it sit close to the part on crowded machinery. Weight starts at 280 g, light enough to carry on a robot arm or a moving gantry without adding to the payload budget.

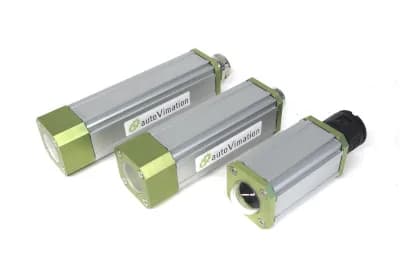

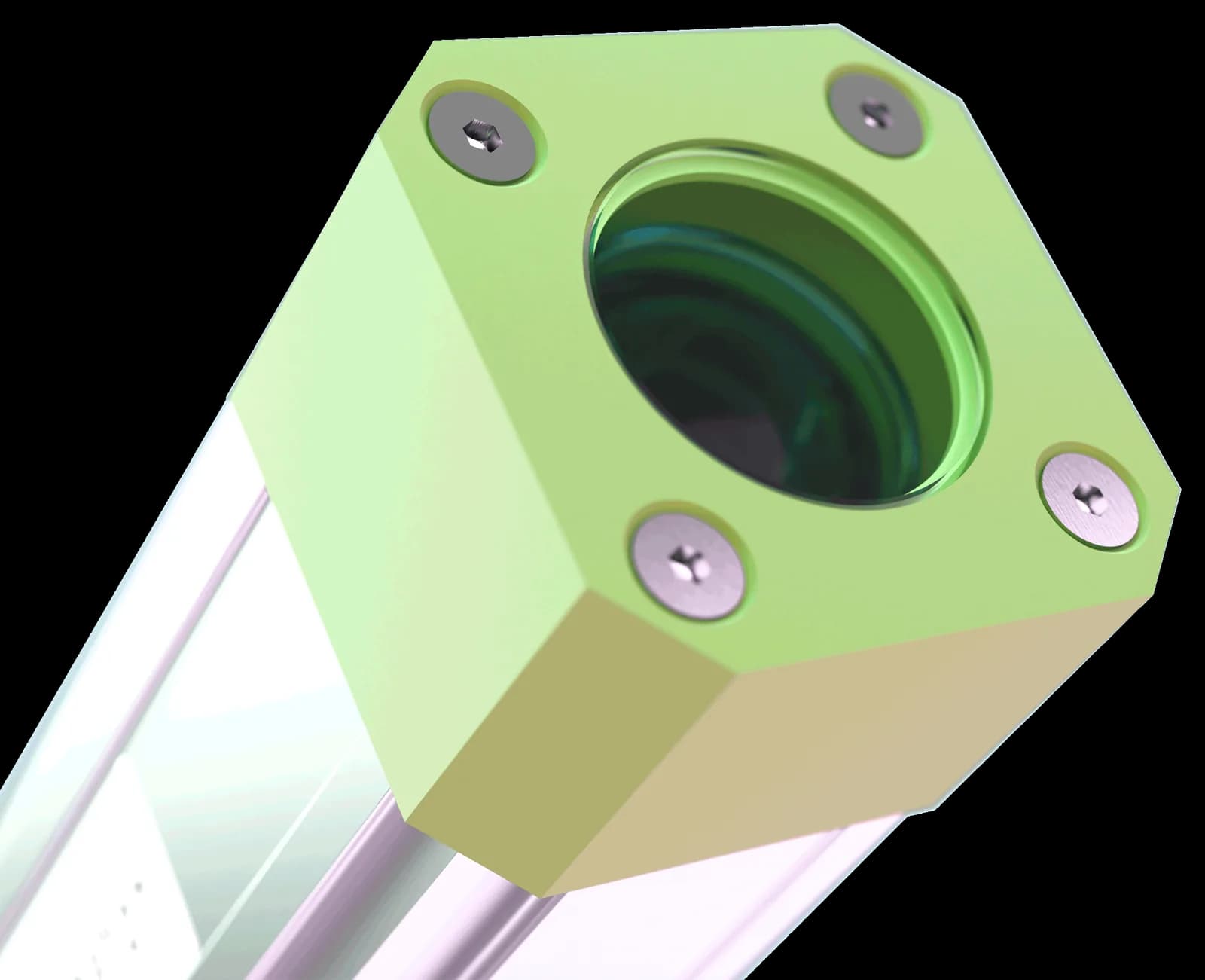

A 28 mm window aperture keeps the full field clear, and the IP66 rating covers hose-down cleaning. The Colibri range runs XS, S and M at 116, 156 and 186 mm long, each with a flat front lid option for short lenses, rear walls giving cable gland apertures of 16.5 to 20.5 mm, and windows in BK7, sapphire or germanium out to 14 um.
