Dolphin
DolphinHygienic stainless steel enclosure, IP69K, for cameras up to 40×40mm in direct food-contact washdown areas.
- Hygienic design
- Yes
- Max camera size
- 40 x 40 or 29 x 47
- Format
- Compact & Mid-Size
About the Dolphin

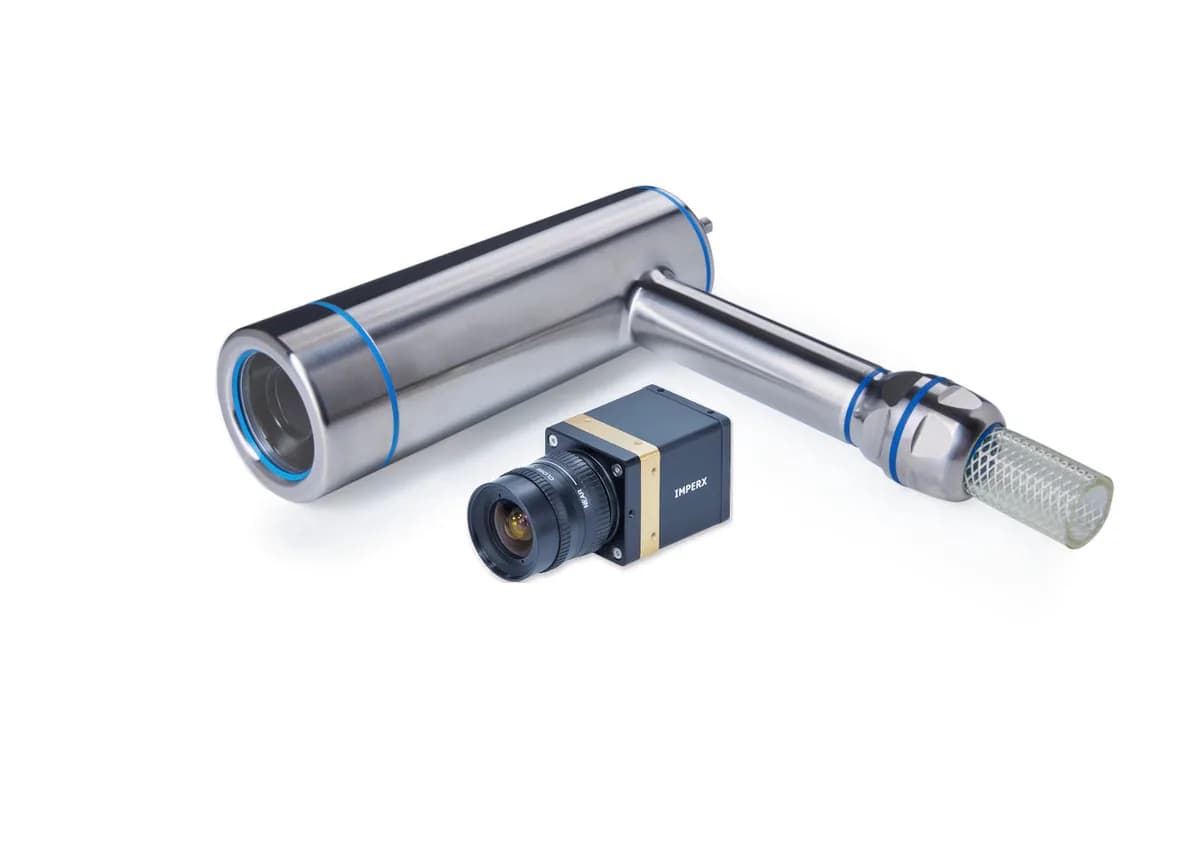

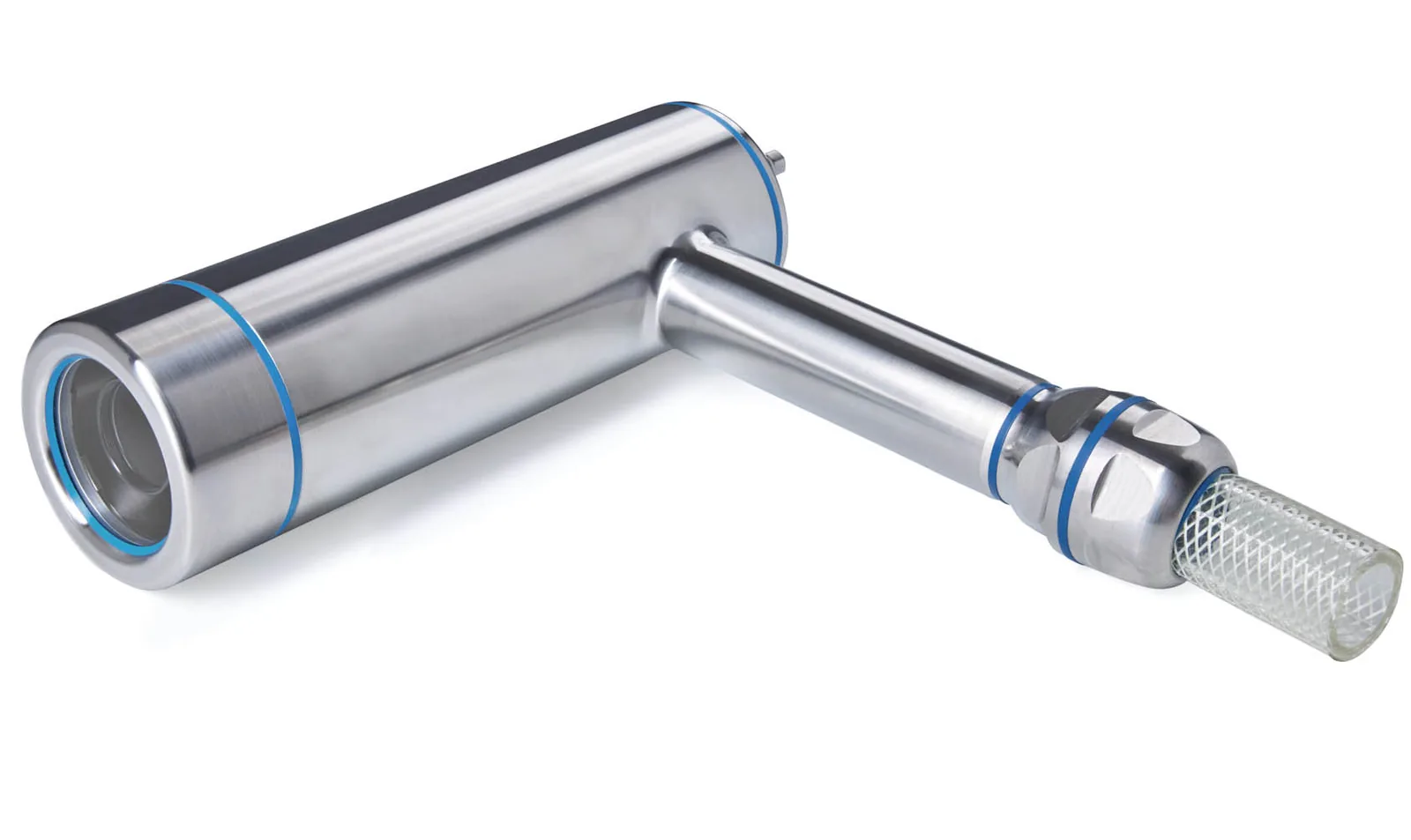

The Dolphin is a hygienic stainless steel housing for cameras on food and pharmaceutical lines cleaned with high-pressure hot water. The V4A AISI 316L body carries an IP69K rating with the hygiene cable gland fitted, so the camera stays sealed through a full wash-down cycle.

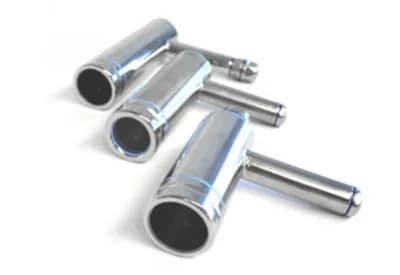

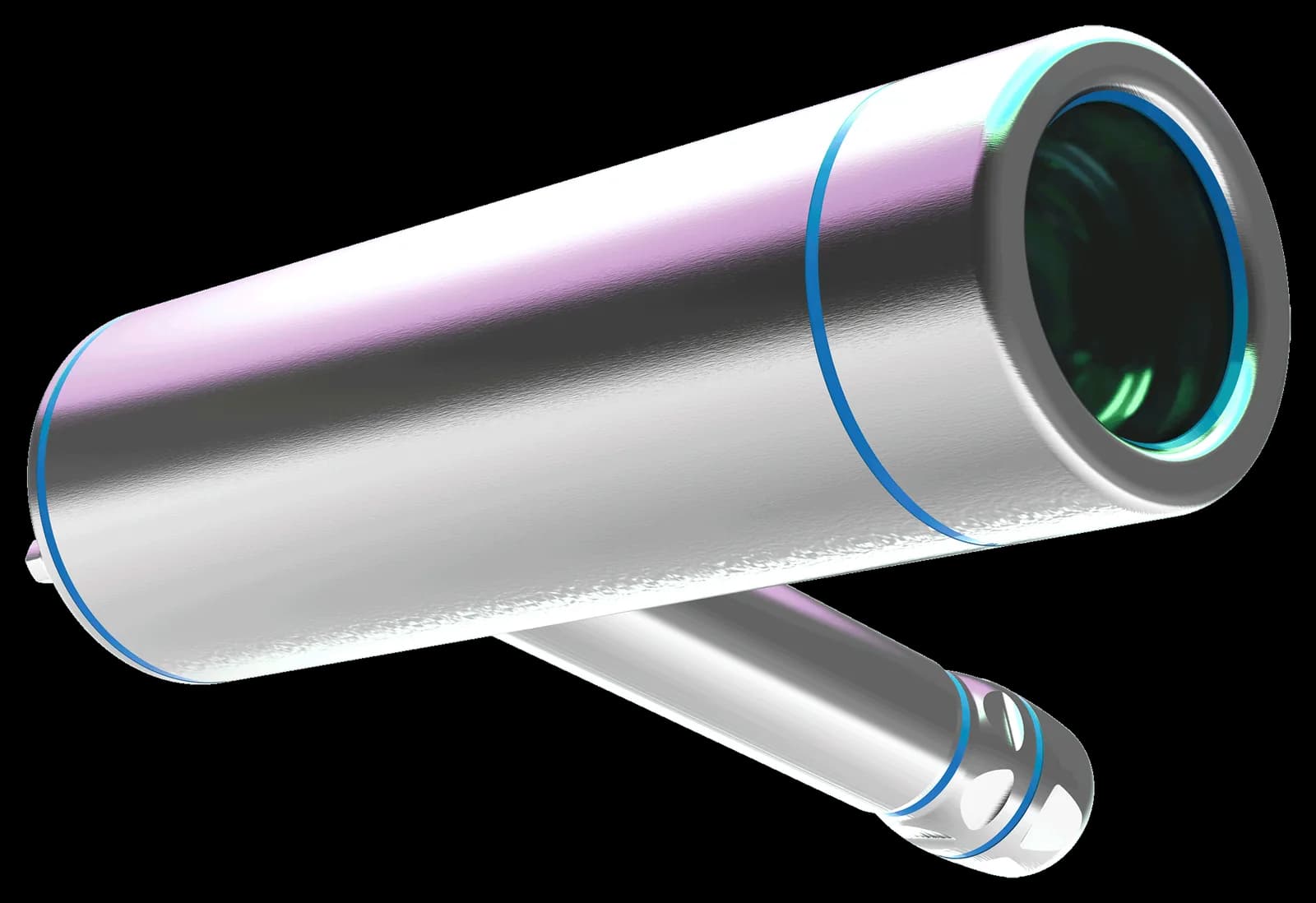

The Dolphin takes cameras up to 40 x 40 mm in cross section and lenses up to 55 mm in diameter, in a 63 mm diameter cylinder with no ledges or pockets for product to collect. Three lengths at 167, 207 and 237 mm cover short and long optics on the same hygienic mount, and the Hygienic Building Kit joins enclosure, tube and gland into one cleanable run.
Weight runs 1360 g to 1710 g, and the 45 mm window aperture keeps the field clear. The Dolphin range offers FDA-compliant uncoated acrylic, coated acrylic, BK7, sapphire and germanium windows, hygiene cable glands sealing cables from 15 to 25 mm, and heating and cooling modules.
Specifications
Compatibility
- Compatible with
- Cameras/cylindrical objects up to 40x40mm or 19/20/30mm dia (hygienic/food-contact areas)
Camera / Optical Fit
- Max camera size
- 40 x 40 (or 29 x 47)
- Format
- Compact & Mid-Size
- Max lens diameter
- 55 mm
- Inner length
- 148/188/218 (S/M/L)
Window
- Window aperture
- 45 mm
- Standard window options
- IR Mirror, Sapphire, Germanium, Acrylic (uncoated, FDA), Acrylic (double sided AR), BK7 (double sided AR)
- Window seal
- EPDM
Seals & Cable Gland
- Enclosure seals
- EPDM
- Cable gland seal
- TPU
- Cable gland aperture
- M25: 15-18mm / M32: 20-25mm
Protection, Weight & Material
- Protection class
- IP69K
- Weight
- 1360g (S) / 1510g (M) / 1710g (L)
- Enclosure material
- V4A stainless steel AISI 316L
- Enclosure dimensions
- 63 dia x 167/207/237 (D x L)
Order Numbers
- Available variants
- Sizes S / M / L; rear/side hygienic or standard cable gland
- Part number notes
- Order No. format 2X.X7x.18x identifies size, cable gland position (rear/side) and type (M25/M32).
Environmental
- Hygienic design
- Yes
- Active climatisation
- No
Construction
- Angle-mount body
- No
Fit
- Max camera width
- 40 mm
- Max camera height
- 40 mm
Configuration
- Available lengths
- S / M
- Rear-wall options
- Rear A
- Accessory options
- Hygienic Building Kit / Extension
Media
