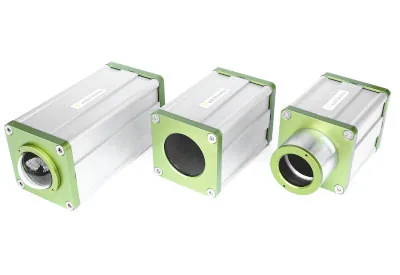

ElefantRugged aluminium enclosure, IP66/IP67, for cameras up to 100×100m.
- Compatible with
- Cameras up to 100x100mm
- Max camera size
- 100 x 100
- Format
- Large Format
About the Elefant

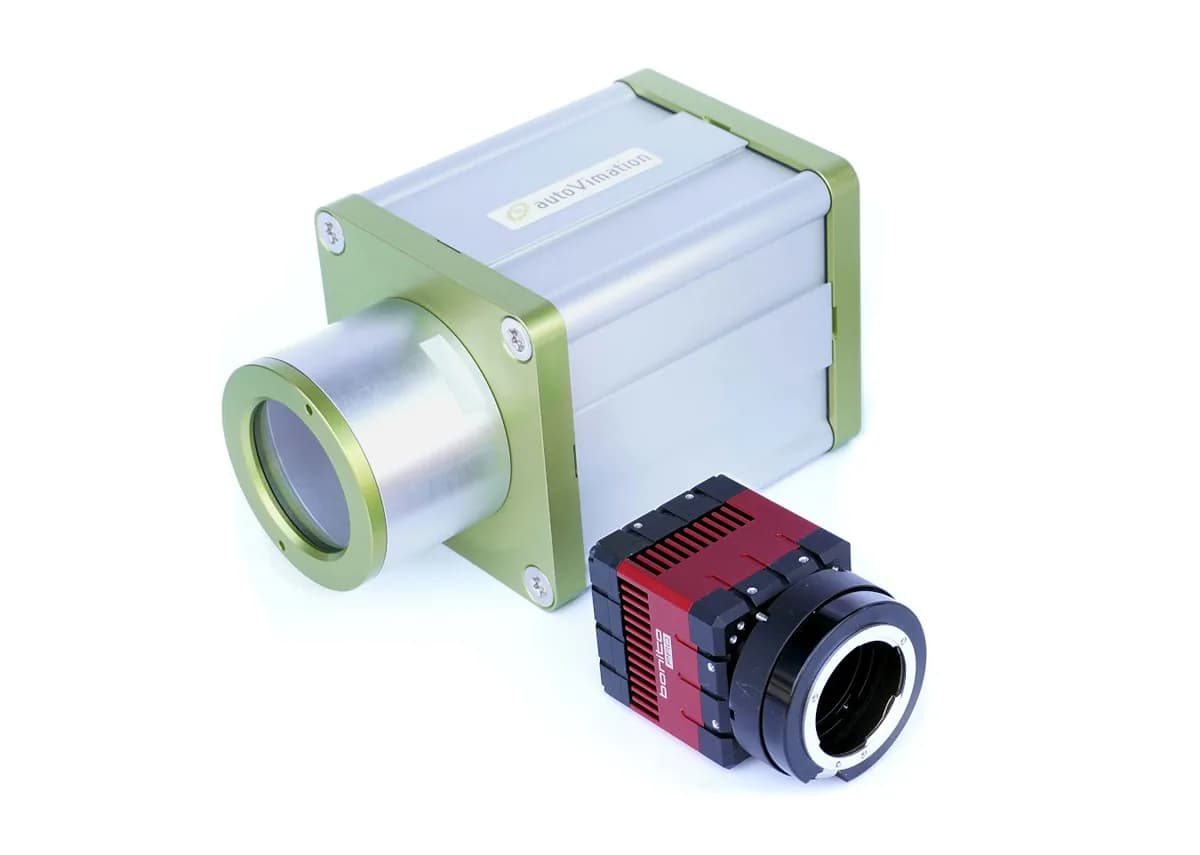

The Elefant is a protection housing for the largest industrial cameras, taking bodies up to 100 x 100 mm in cross section. Water cooling channels are cast into the lid, which pulls heat out of a high-power sensor in ambient conditions where air cooling alone would not hold it.
The Elefant accepts lenses up to 120 mm in diameter through a 4 inch front lid with an 88 mm aperture, clearing the large-diameter optics used on line scan and high-speed cameras. Three lengths from 172 to 282 mm cover short and long lens assemblies, and flange versions accept every Orca lid and extension plus the Meganova ring light.

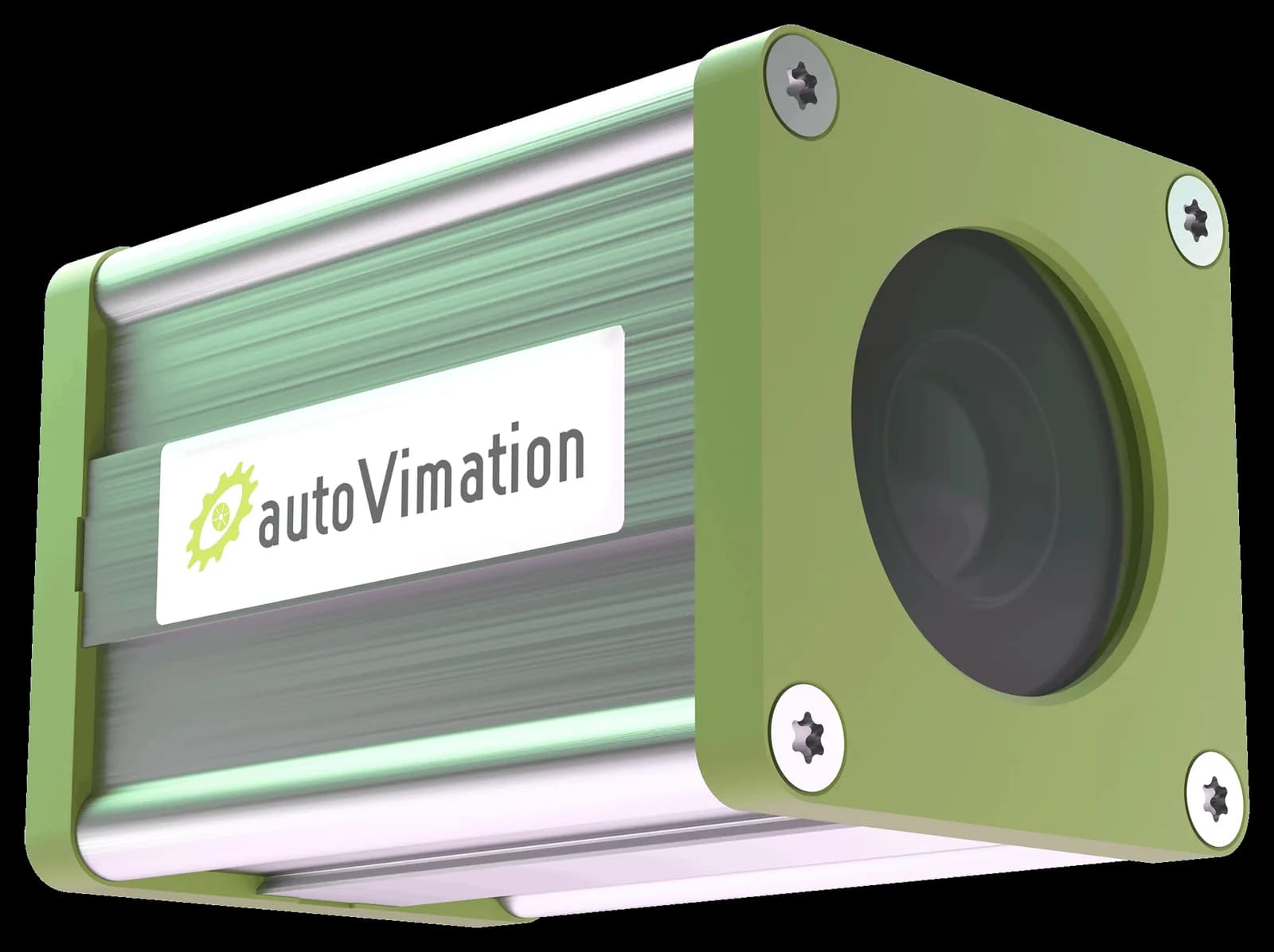

Rated IP66 and IP67, the Elefant handles jetting water and temporary immersion. The anodised aluminium body weighs 2.3 to 3.3 kg. The Elefant range offers 3 inch and 4 inch windows in acrylic, BK7 or germanium, dome lids for fisheye lenses, and heating, pneumatic shutter, air nozzle and wind curtain options, with custom colour available.
Specifications
Compatibility
- Compatible with
- Cameras up to 100x100mm
Camera / Optical Fit
- Max camera size
- 100 x 100
- Format
- Large Format
- Max lens diameter
- 120 mm
- Inner length
- 156/196/266 (S/M/L)
Window
- Window aperture
- 65 (3in) / 88 (4in)
- Standard window options
- 4in/3in Standard, IR Mirror, Germanium, Acrylic (no coating / double sided AR), BK7 (double sided ARC)
- Window seal
- EPDM
Seals & Cable Gland
- Enclosure seals
- EPDM
- Cable gland seal
- TPE (Rear Wall C)
- Cable gland aperture
- 22 (A) / 26.5 (C)
Protection, Weight & Material
- Protection class
- IP66 / IP67
- Weight
- 2.3-3.4kg depending on size/flange
- Enclosure material
- Anodized Aluminum
- Enclosure dimensions
- 100 x 100 x 172/212/282 (w x h x l)
- Cooling operating voltage
- Optional integrated water-cooling channel
Order Numbers
- Available variants
- Sizes S / M / L; standard or with flange
- Part number notes
- Please specify camera type when ordering.
Environmental
- Hygienic design
- No
- Active climatisation
- No
Construction
- Angle-mount body
- No
Fit
- Max camera width
- 100 mm
- Max camera height
- 100 mm
Configuration
- Available lengths
- S (150mm) / M (200mm) / L (250mm)
- Rear-wall options
- Rear A / Rear B / Rear C / Rear D
- Accessory options
- Meganova LED ringlight (via flange) / Mounting kit (40mm dovetail) / Extension / Water cooling / Heating plate
Media
