Nautilus

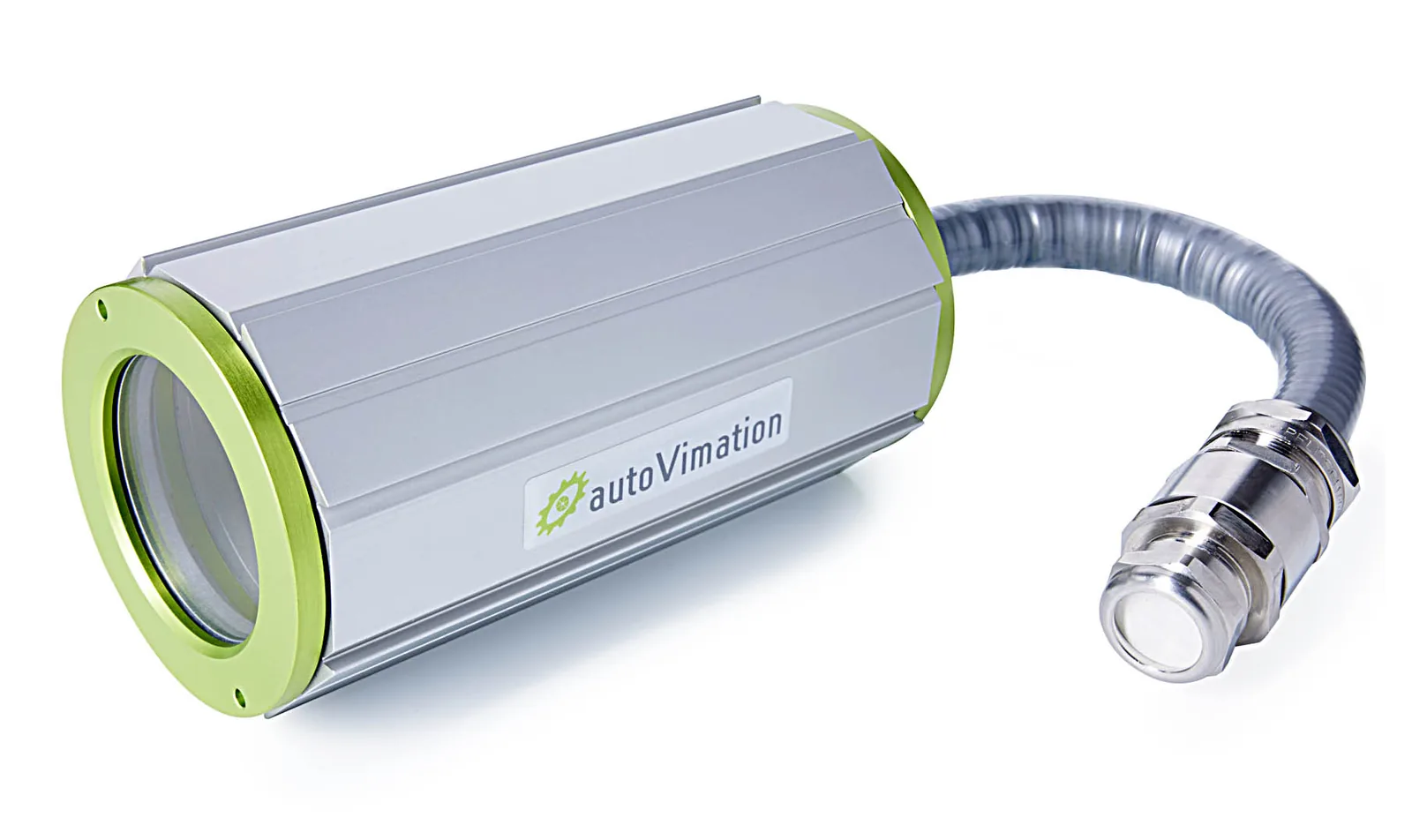

NautilusRugged aluminium enclosure, IP68, for permanent underwater use with cameras from 61×61mm, 5m cable tube included.
- Max camera size
- 61 x 61
- Format
- Large Format
- Inner length
- 172 mm
About the Nautilus

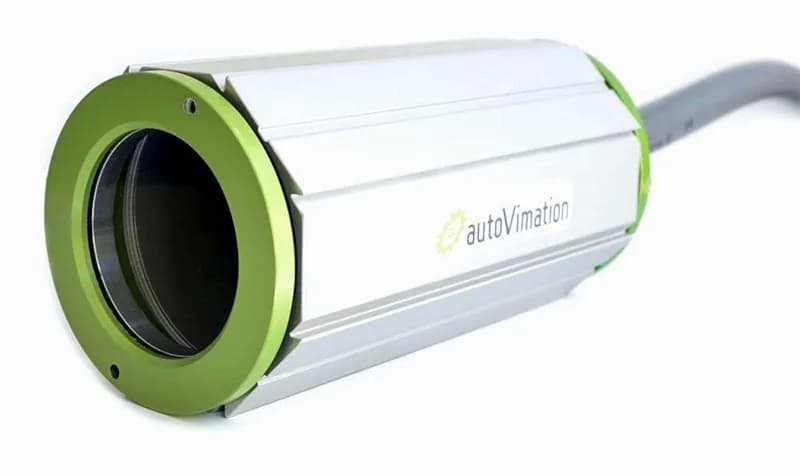

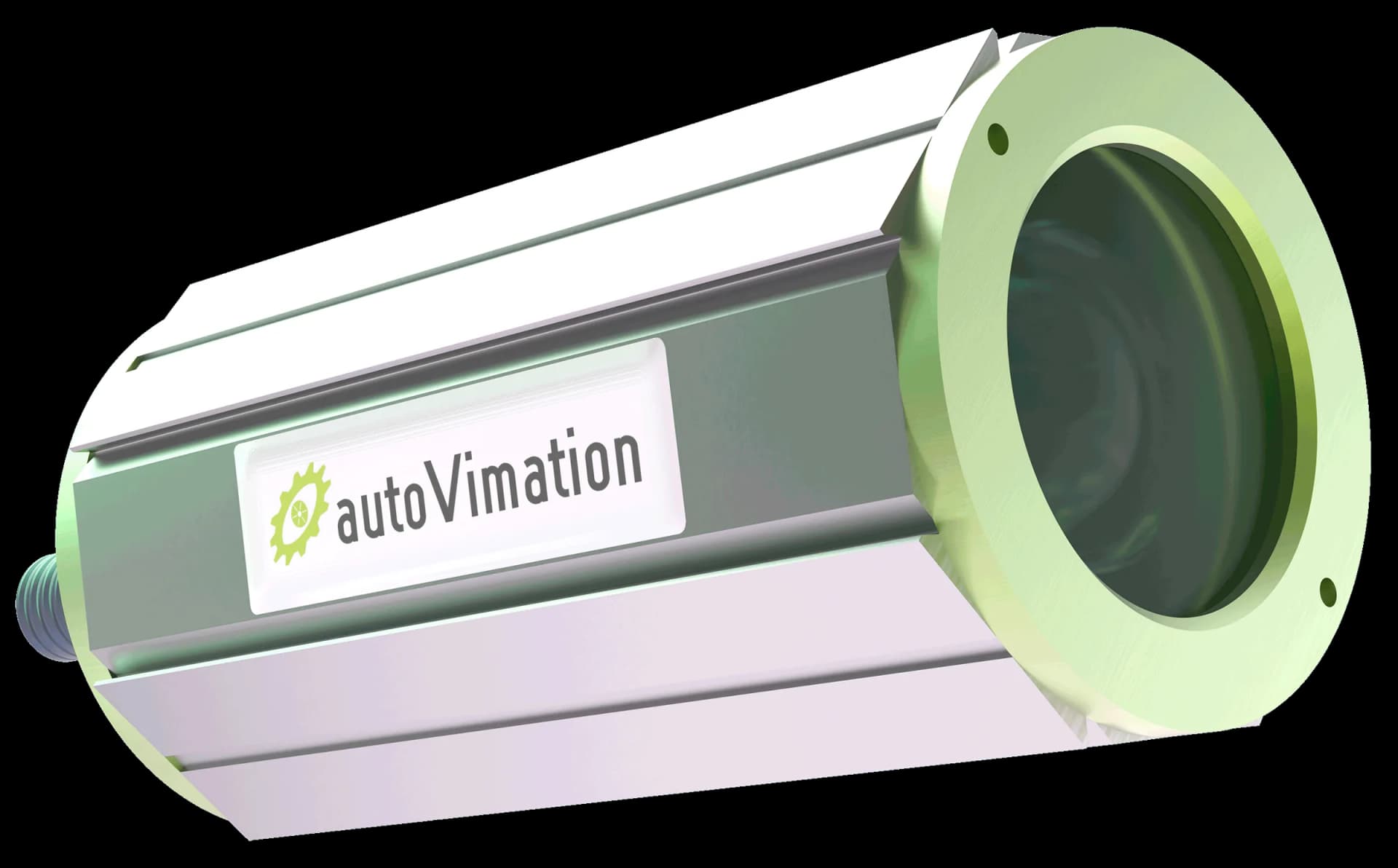

The Nautilus is a protection housing for cameras working offshore, in harbours and under water. A double EPDM seal on the front lid and rear wall carries the IP68 rating, and the enclosure has been tested for 12 hours at 10 m depth, so a camera can be left submerged between inspections.

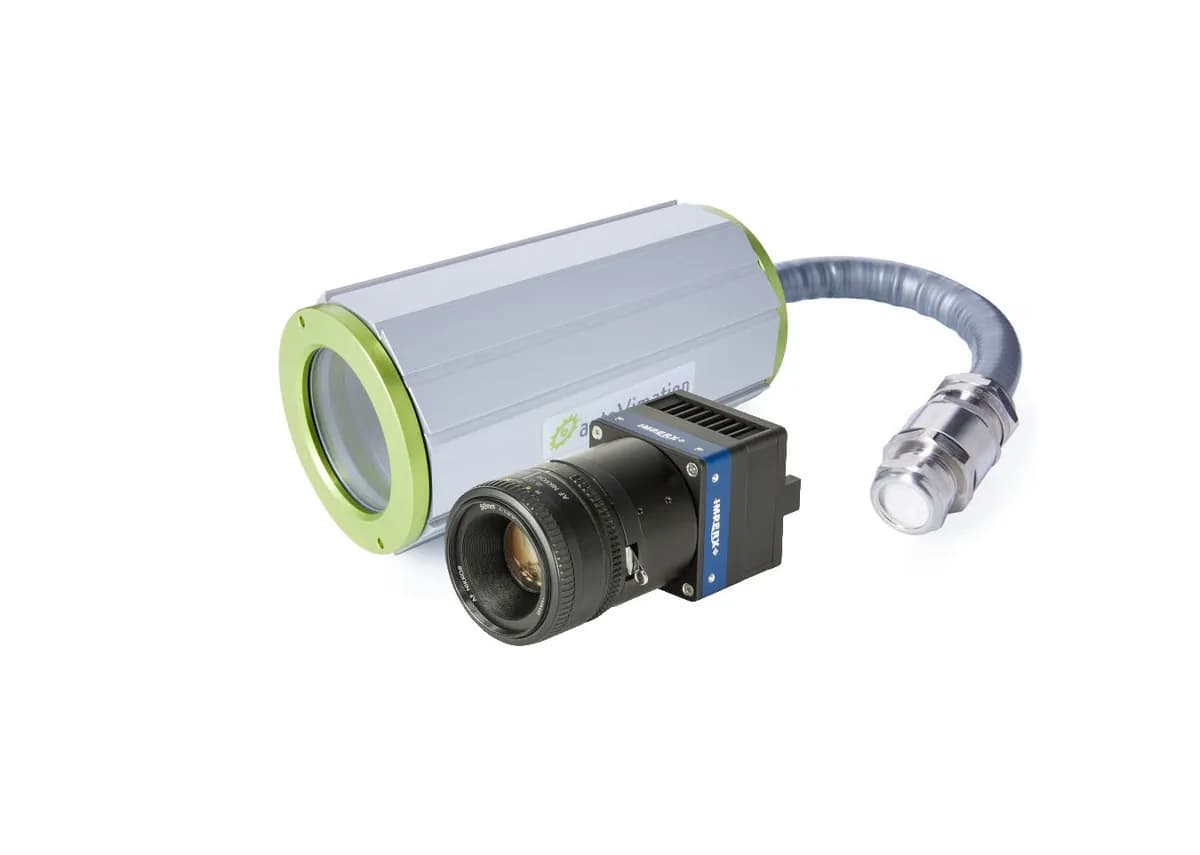

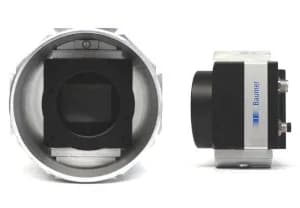

The Nautilus takes cameras up to 61 x 61 mm in cross section and lenses up to 85 mm in diameter, with 172 mm of internal length for a camera and its optics. The aluminium body is extra anodised for salt and chlorine water, which holds off pitting in seawater and pool installations.

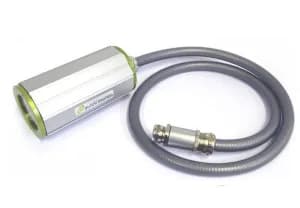

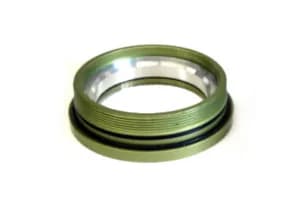

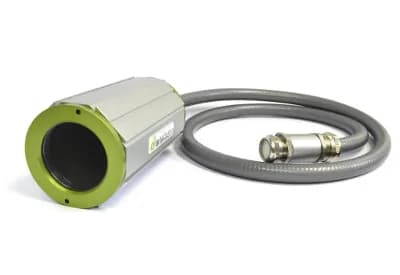

The 96 x 96 x 194 mm housing weighs 1400 g and carries a 65 mm window aperture. Cable entry uses a metal conduit tube system with a 15 mm inner diameter, sealing the cable run along with the camera. The Nautilus range offers BK7, acrylic and 3 inch germanium windows, sun roofs, heating and cooling modules, and mounting kits for fixed and pole installations.
Specifications
Compatibility
- Compatible with
- Cameras up to 61x61mm, underwater applications
Camera / Optical Fit
- Max camera size
- 61 x 61
- Format
- Large Format
- Max lens diameter
- 85 (profile) / 78 (front lid)
- Inner length
- 172 mm
Window
- Window aperture
- 65 mm
- Standard window options
- Germanium, Acrylic (double sided AR), BK7 (double sided ARC)
- Window seal
- EPDM
Seals & Cable Gland
- Enclosure seals
- EPDM
- Cable gland seal
- TPE
- Cable gland aperture
- 15 (inner tube)
Protection, Weight & Material
- Protection class
- IP66 / IP68
- Weight
- 1400g
- Enclosure material
- Anodized Aluminum
- Enclosure dimensions
- 96 x 96 x 194 (w x h x l)
Order Numbers
- Available variants
- Single size
- Part number notes
- Please ask for current order number / dedicated quote.
Environmental
- Hygienic design
- No
- Active climatisation
- No
Construction
- Angle-mount body
- No
Fit
- Max camera width
- 61 mm
- Max camera height
- 61 mm
Configuration
- Available lengths
- Standard
- Rear-wall options
- Custom (sealed)
- Accessory options
- Extended cable tube / Mounting kit
Media
