Stingray

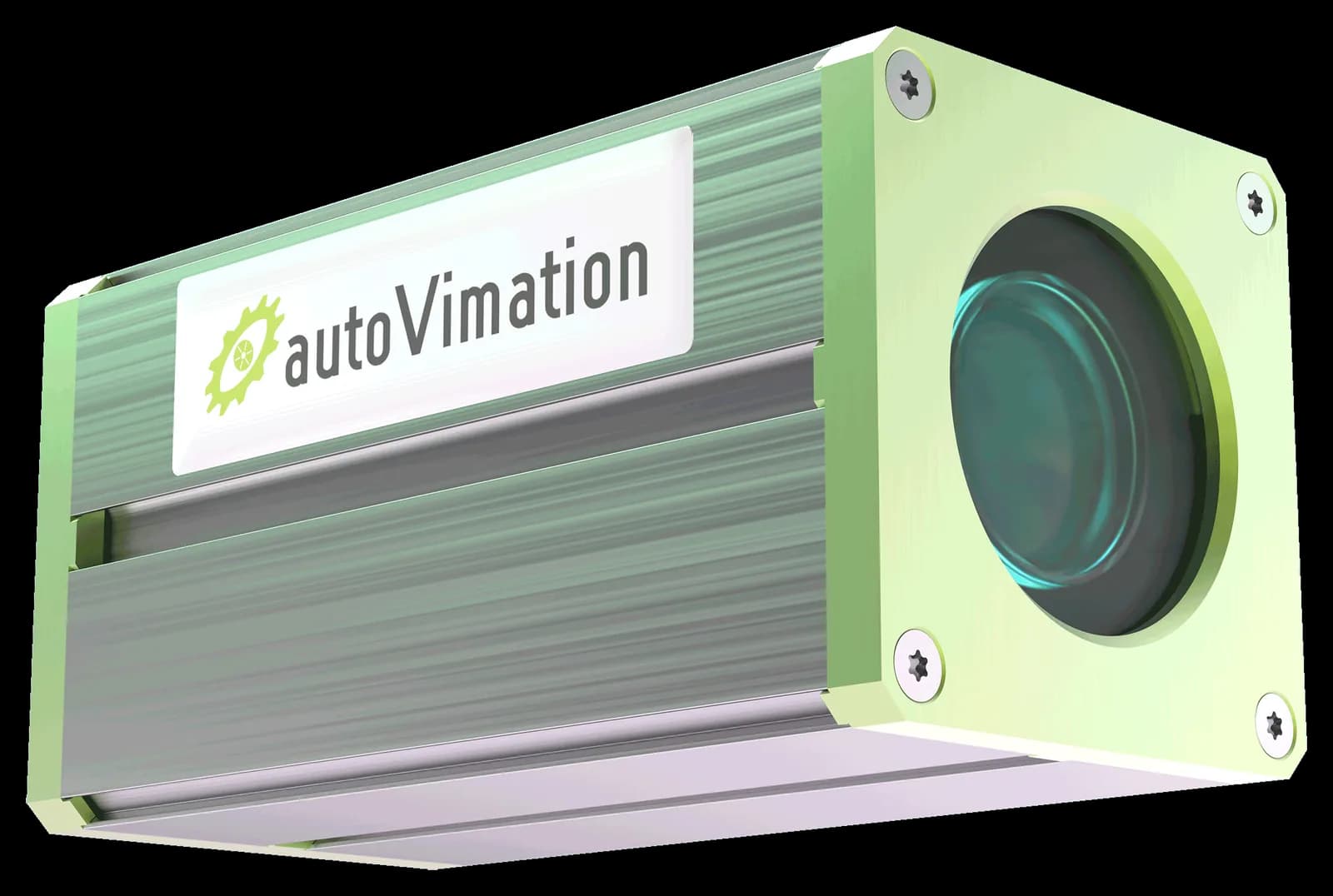

The Stingray is a protection housing for large-format cameras on inspection lines and outdoor installations. The T-slot and dovetail profile is machined into the body itself, so the enclosure clamps directly to standard extrusion without an adapter plate.

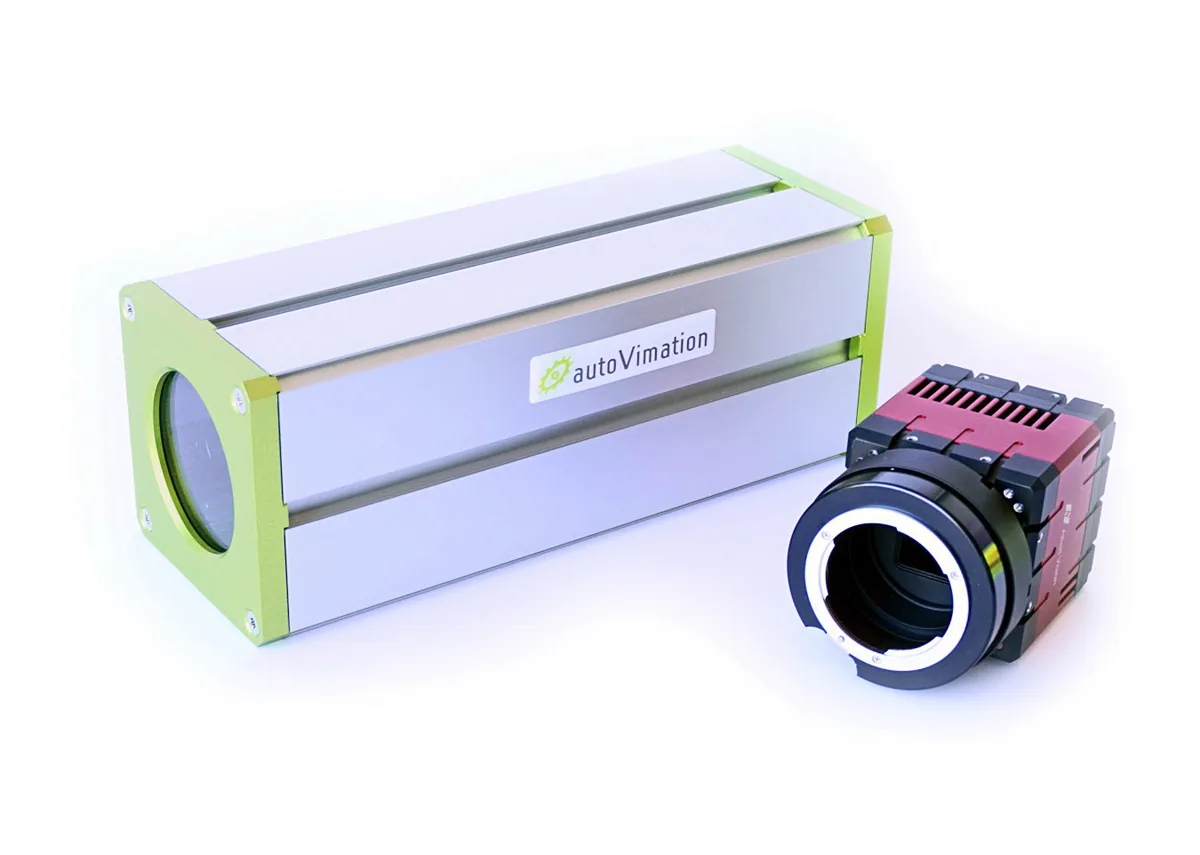

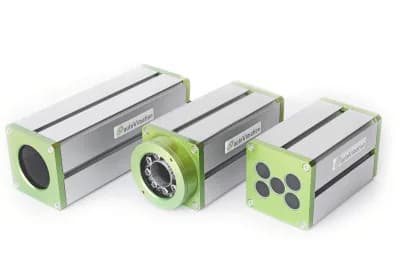

The Stingray takes cameras up to 75 x 75 mm in cross section and lenses up to 78 mm in diameter, on a 100 x 100 mm cross section that keeps dead weight down to 930 g in the smallest size. Three lengths from 150 to 270 mm cover short and long optics, and flange versions accept every Orca lid and extension along with the Meganova ring light, so camera and illumination mount as one sealed unit.

Rated IP66, the Stingray withstands jetting water from any direction. A 65 mm window aperture keeps a wide field clear. The Stingray range offers 3 inch windows in acrylic, BK7 or germanium, a dome lid for fisheye lenses, a special lid for IFM and Lucid time-of-flight cameras, and heating, cooling, shutter and wind curtain options.
